Kamera CAM5HD

Side camera CAM5HD

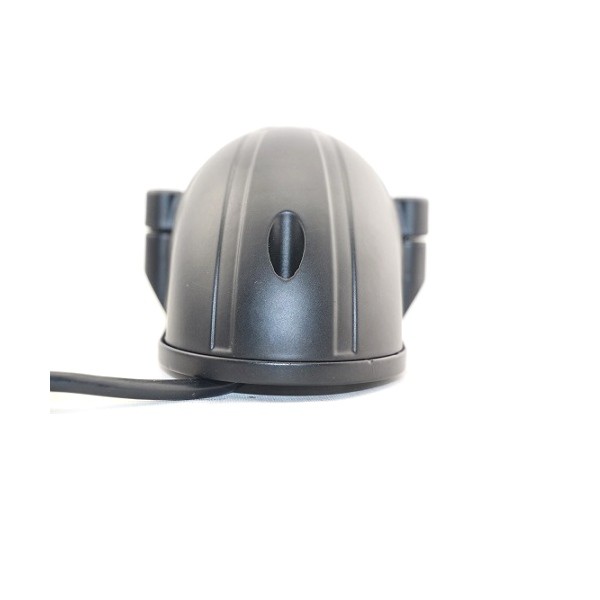

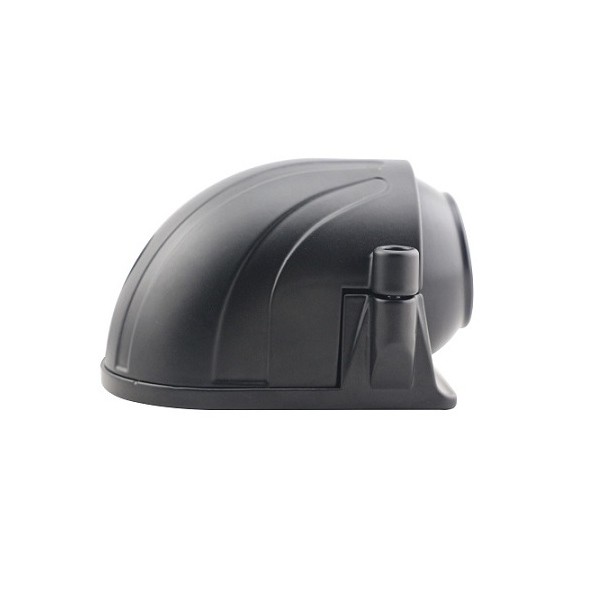

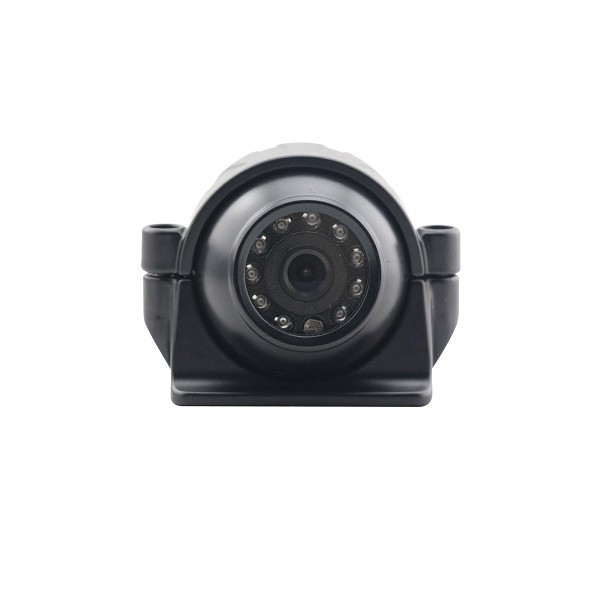

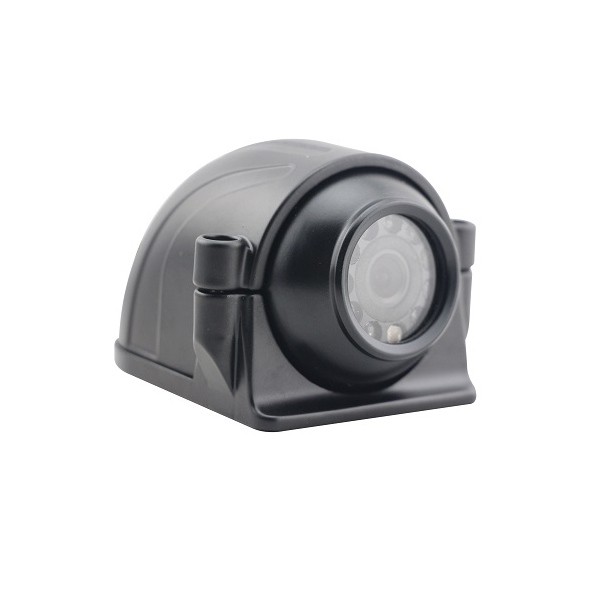

Vehicle AHD camera with 720p resolution and automatic IR illumination is intended for display on an AHD monitor. It is powered from the monitor via screw M12 4PIN connectors. Ideal for use as a left or right side camera; thanks to the ability to rotate and tilt the lens the application is universal. The metal body and vibration resistance make it suitable for use even in more demanding conditions. Image orientation is set on the monitor; it is homologated.

Technical specifications

• CMOS 1/3" image sensor.
• HD resolution 720p.
• Automatic illumination, 10 x IR LED.
• Viewing angle: 120°.
• TV system: PAL.
• Water resistance: IP69K.
• Shock resistance: min. 4G.
• Image orientation: mirrored.
• Ability to rotate the camera lens during installation.
• 0.5 m cable terminated with 4PIN M12 screw connector.
• Power supply: DC 12V (from monitor).
• Metal camera body.
• Microphone: no.
• Power consumption: <3W.
• Operating temperature: from -20 to +70 °C.
• Dimensions: 75 x 59 x 95 mm.
• Homologated.
• Note: The AHD camera is intended for display on an AHD monitor; analog monitors do not support AHD cameras.

Package contents

• Camera
• Allen key
• Screws
• 3M double-sided tape
