Kamera CAM1HD
AHD camera with automatic IR illumination, 720p resolution
More about the product
More about the product
We will help you with your purchase
- You can return the goods to us within 14 days

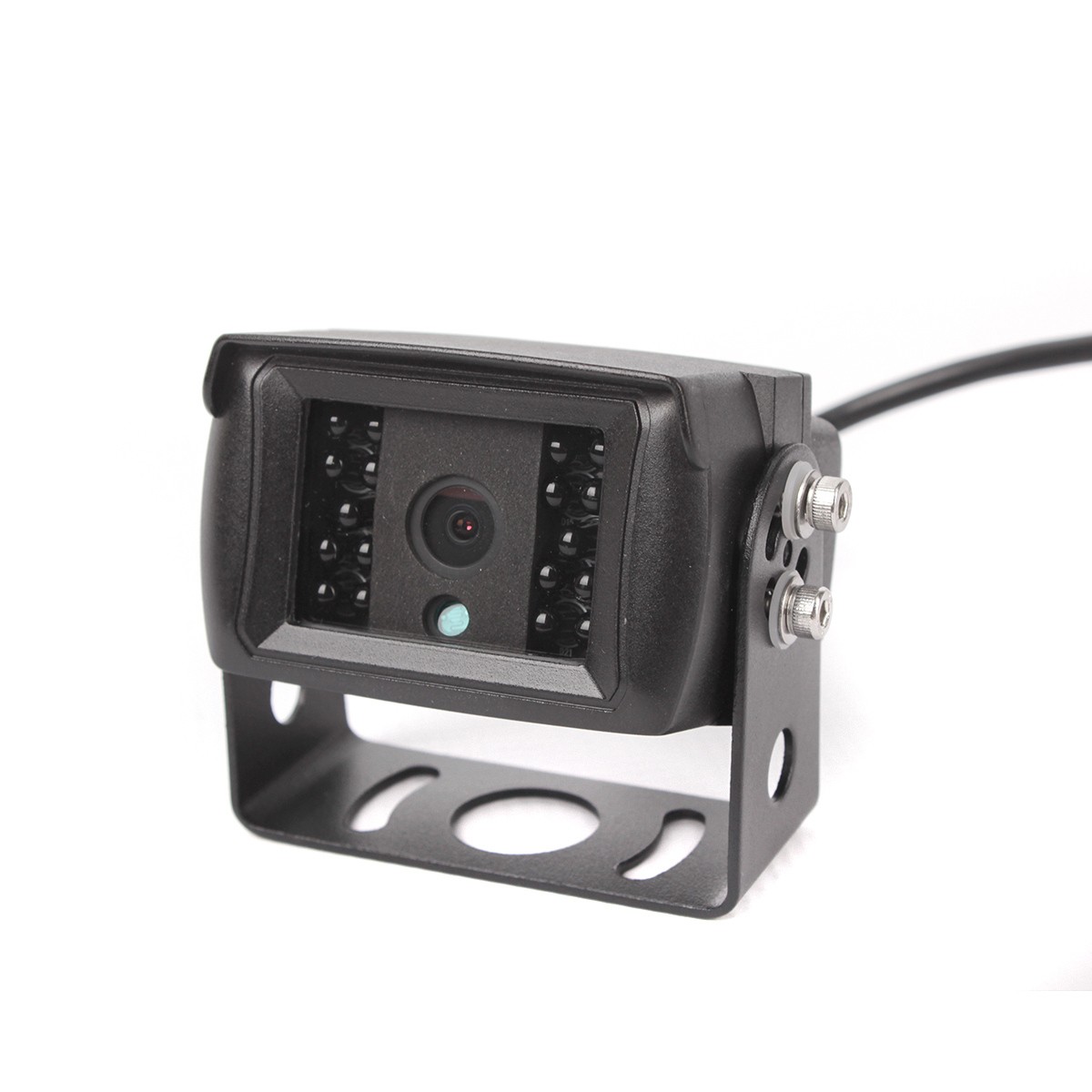

Vehicle camera CAM1HD
AHD vehicle camera with 720p resolution and automatic IR illumination, intended for display on an AHD monitor, powered from the monitor via screw M12 4PIN connectors. Ideal for use as a front or rear camera, or in the cargo area. Its metal body and vibration resistance make it suitable for use in tougher conditions. Image orientation is set on the monitor. It is homologated.
Technical specifications
- CMOS 1/3" image chip.
- HD resolution 720p.
- Automatic illumination, 18 x IR LEDs.
- Viewing angle: 120°.
- TV system: PAL.
- Water resistance: IP69K.
- Vibration resistance at least 4G.
- Image orientation: mirrored.

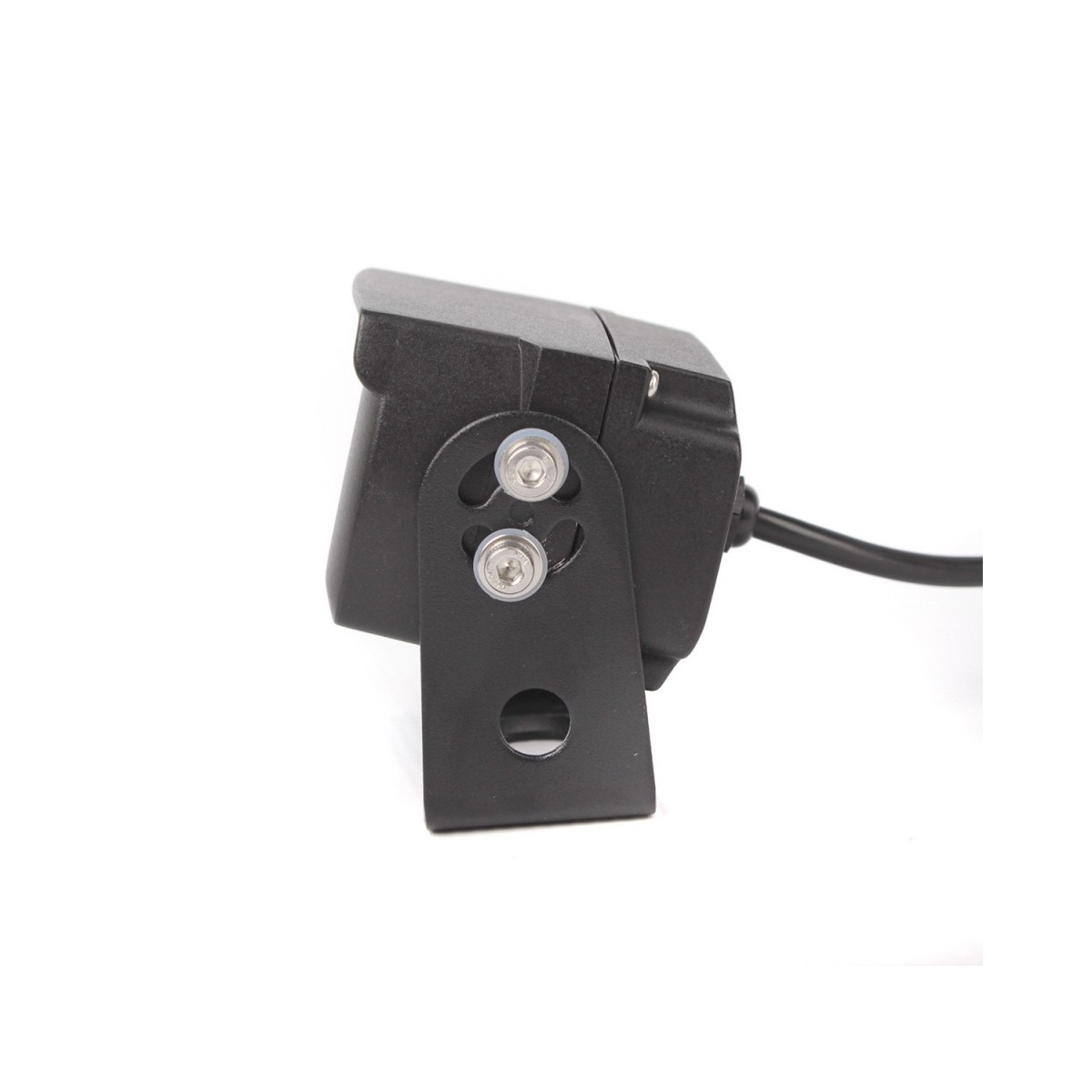

- Possibility to tilt the camera during installation.

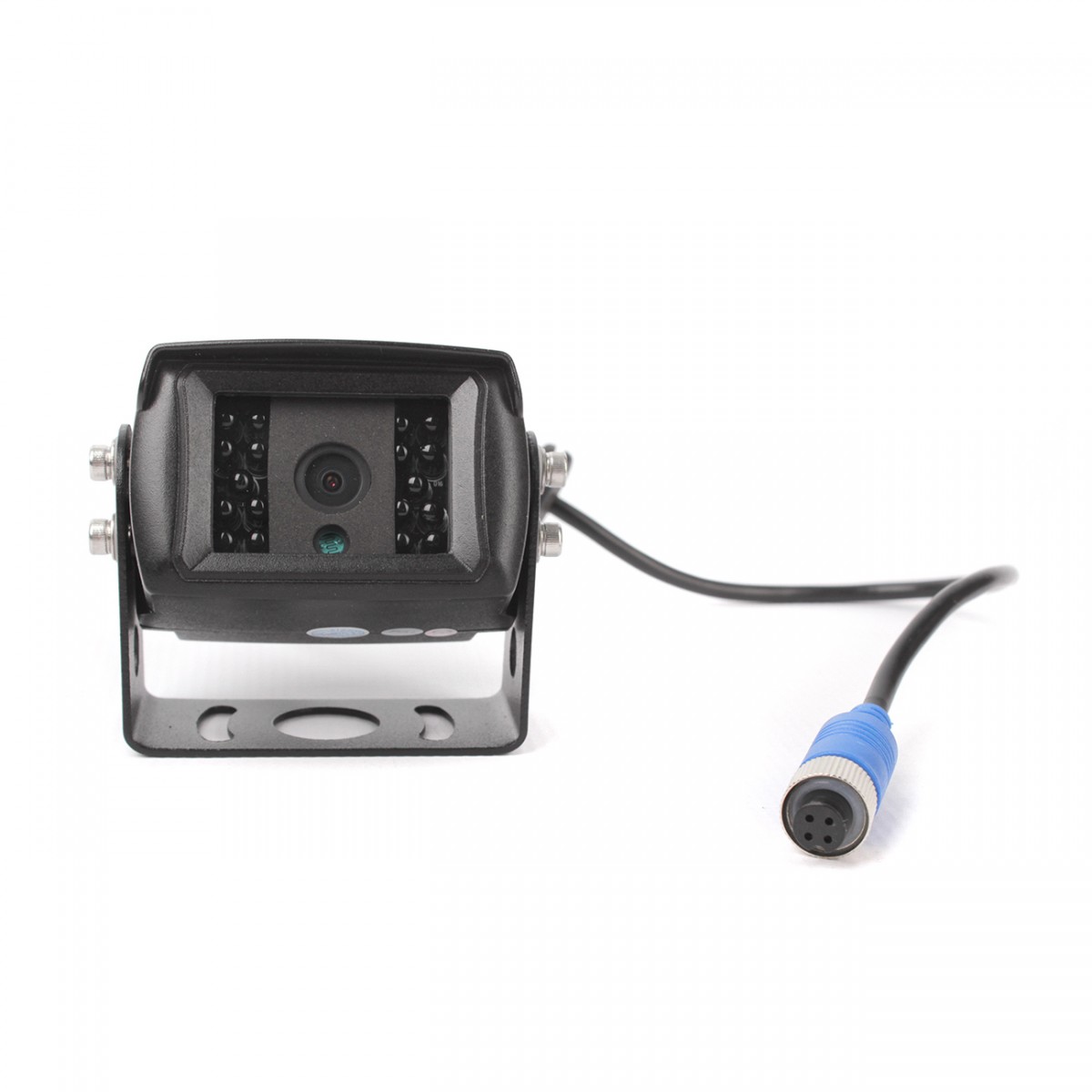

- 0.5 m cable terminated with screw connector 4PIN M12.
- Power supply DC 12V (from the monitor).
- Metal camera body.
- Microphone - No.
- Power consumption: <3W.
- Operating temperature from -20 to +70 °C.
- Dimensions: 71 x 45 x 52 mm (without visor and bracket).
- Homologated.
- Note: AHD camera is intended for display on an AHD monitor; analog monitors do not support AHD cameras.
Package contents
- Camera with U bracket
- Allen key
- Double-sided 3M tape
| Catalog number | CAM1HD |
| Brand | TSS Group |
