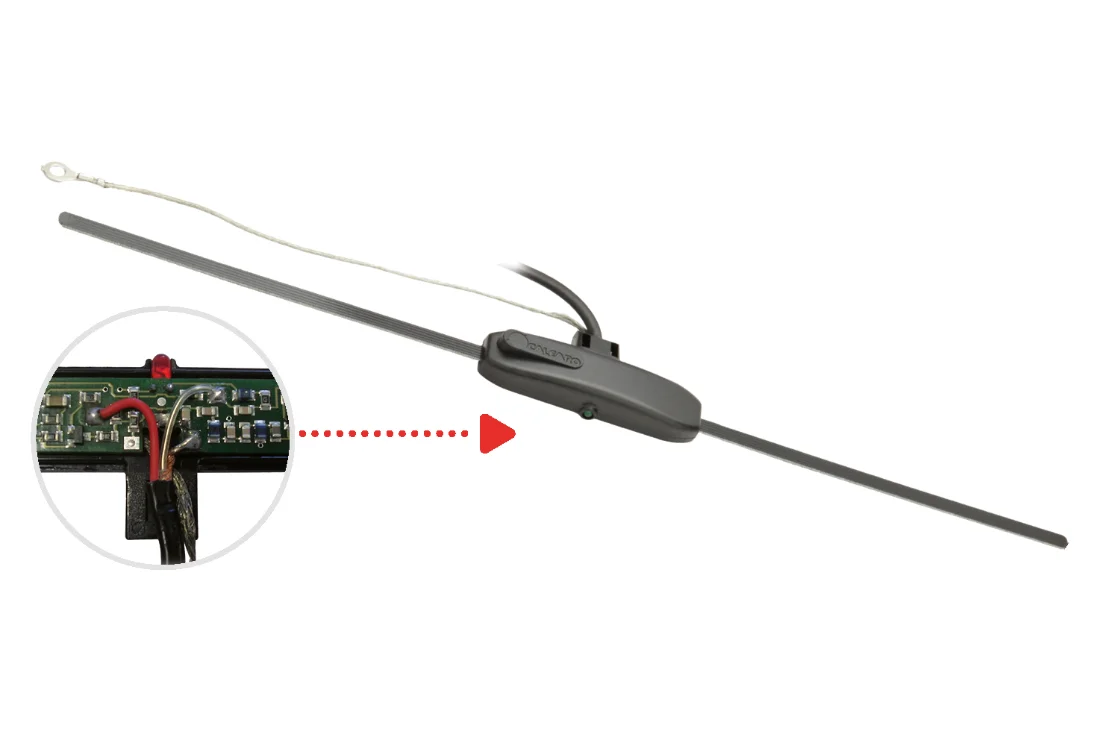

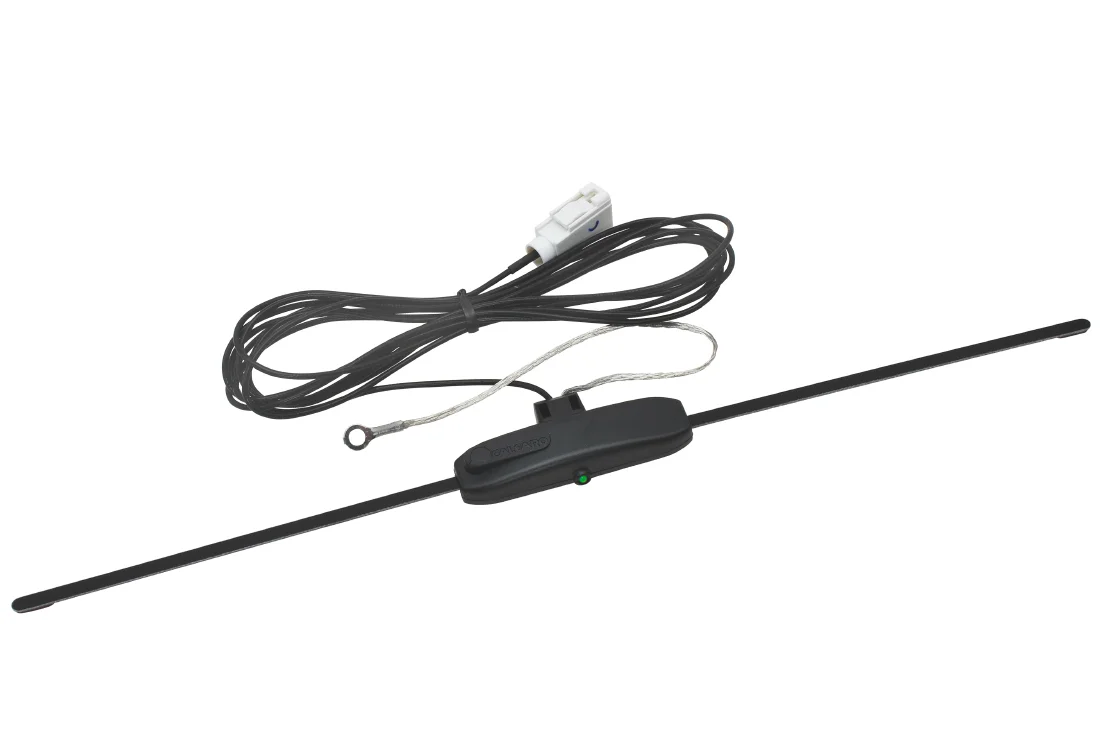

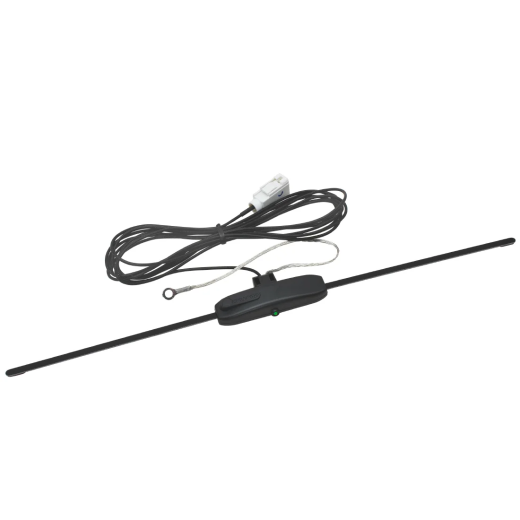

Internal antenna Calearo 7697018

Universal internal AM / FM antenna with amplifier

• antenna location: self-adhesive on the glass from the inside
• frequency range: AM 0.52-1.71 MHz / FM 87.5-108 MHz
• 12 V phantom power
• built-in amplifier gain: 26 dB
• current consumption: 45 mA
• dipole width: 30 cm
• downpipe length: 2.4 m
• grounding cable length: 140 mm

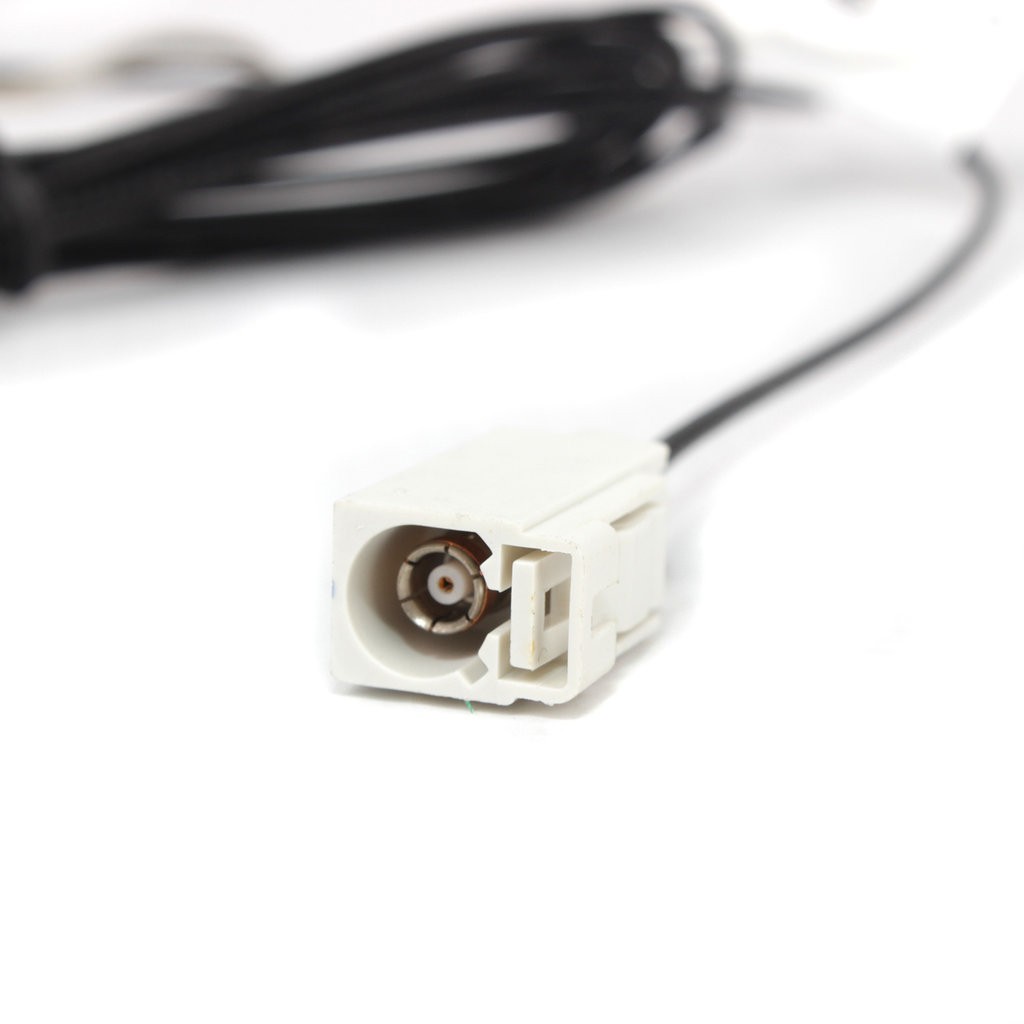

• car radio connector: FAKRA female (white)
• dimensions: 305 x 26 x 14 mm
• weight: 80 g
• protection: IP50
• working temperature: -10°C to +90°C
