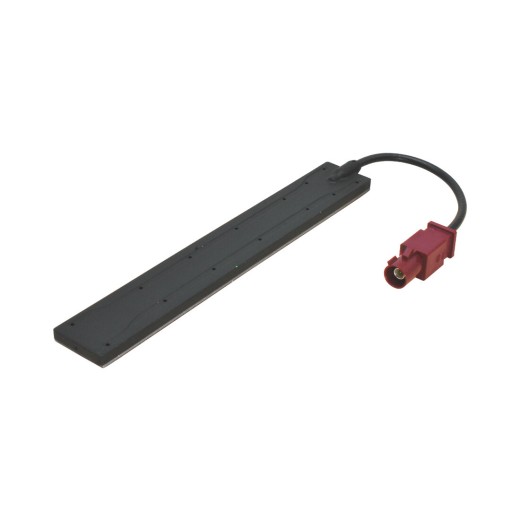

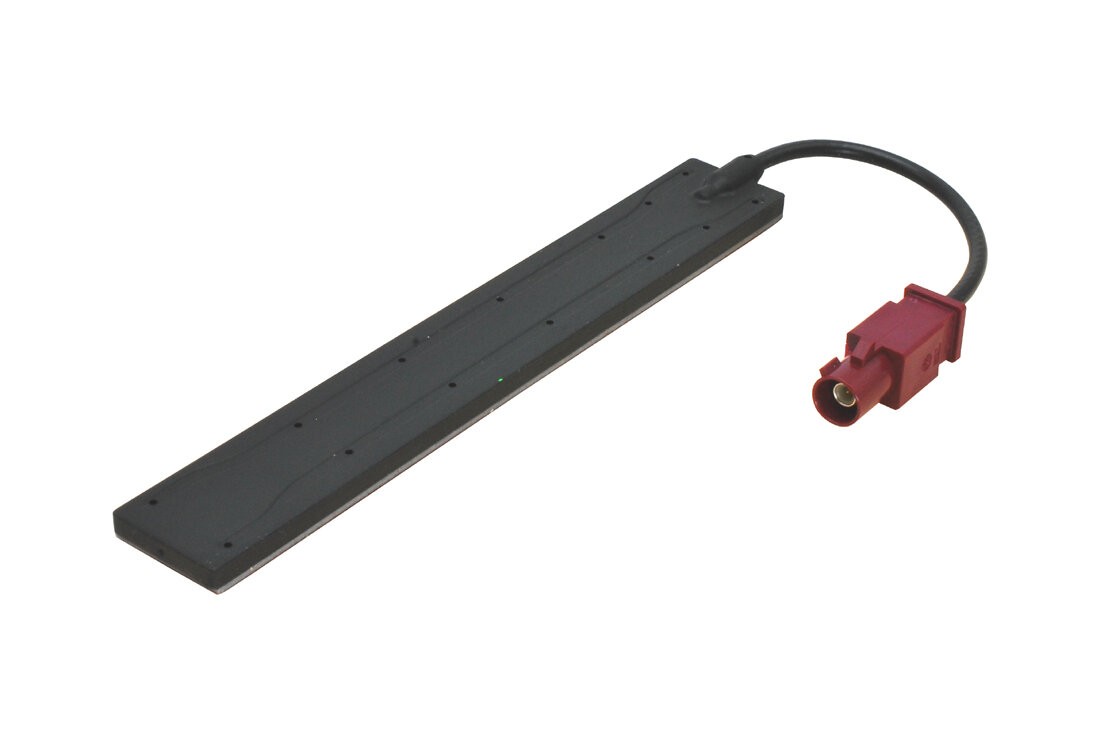

Internal antenna Calearo 7681080

GSM-UMTS-LTE internal rubber antenna

• Use in cars: universal, adhesive, on glass from the inside.

Function

• Antenna for GSM telephone networks.
• Antenna for UMTS telephone networks.
• Antenna for LTE telephone networks.

Technical parameters

• Antenna connector: FAKRA male (purple color).
• Antenna cable: RG174.
• Cable length at the antenna: 110 mm.
• Impedance: 50 ohms.
• Gain: -4dB.
• VSWR: 3.2:1.
• Protection class: IP67.
• Dimensions: 18 x 1.3 x 0.5 cm.
• Black colour.

Frequency range

• GSM 880-960/1710-1880 MHz.
• UMTS 1885-2170 MHz.
• AMPS 824-894 MHz.
• PCS 1850-1990 MHz.
