Interconnect cable 42CTZENECLEAD-0

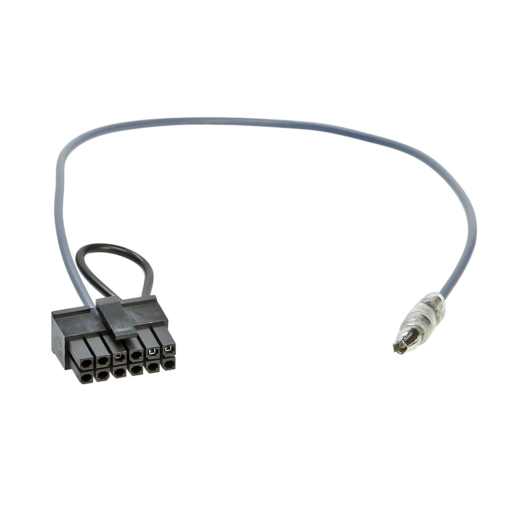

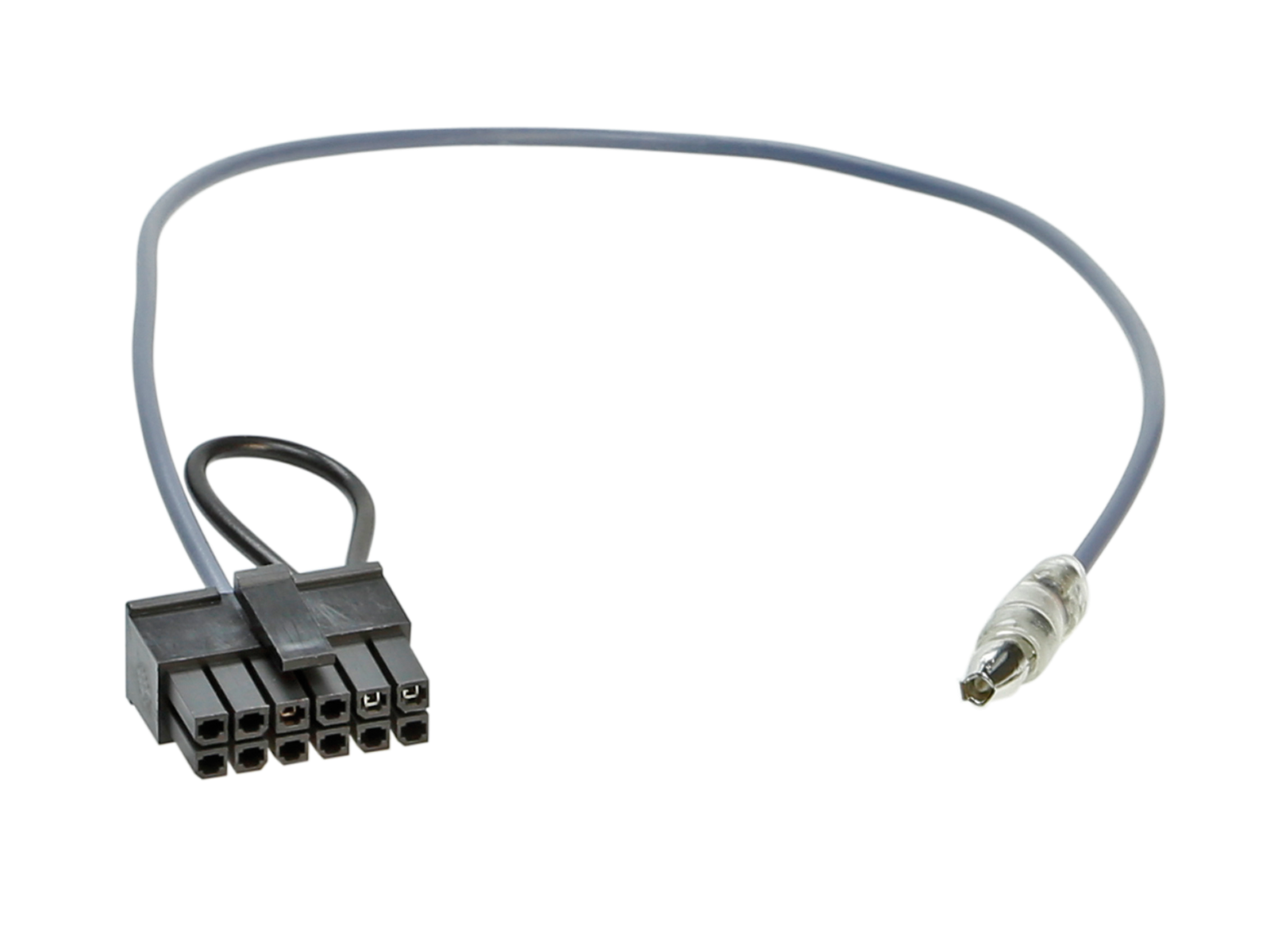

Interconnection (patch) cable for steering wheel adapter 42CTZENECLEAD-0

• Interconnection (patch) cable for connecting XZent and Zenec car radios to the ACV steering wheel control adapter (LFB/SWC).
• Car radio manufacturers use various types of control inputs: single-wire, two- and multi-wire (Key1/Key2/GND), or a 3.5 mm jack — the exact variant is always specified in the radio's manual (BDA).
• All required connection wires must be connected before connecting the interface to the vehicle.
• On some radios it is necessary to additionally "teach" (remap) the steering wheel button functions in the unit's menu according to the instructions in the radio manufacturer's manual (BDA).
• Always test correct operation before final installation.

Notice

• Connection: 12-pin Microfit → single-wire connection.
• LFB patch cable for ACV interface 42s-xxxxx and Infodapter 43u-xxxx.
• Configuration according to the specific car radio's manual (BDA).
• Must be ordered together with the appropriate steering wheel adapter.
• How steering wheel adapters and their patch cables work is explained in the accompanying article.

Intended for head units:

• XZent – single-wire connection.
• Zenec – single-wire connection.
