Infinity REFERENCE 6530CX

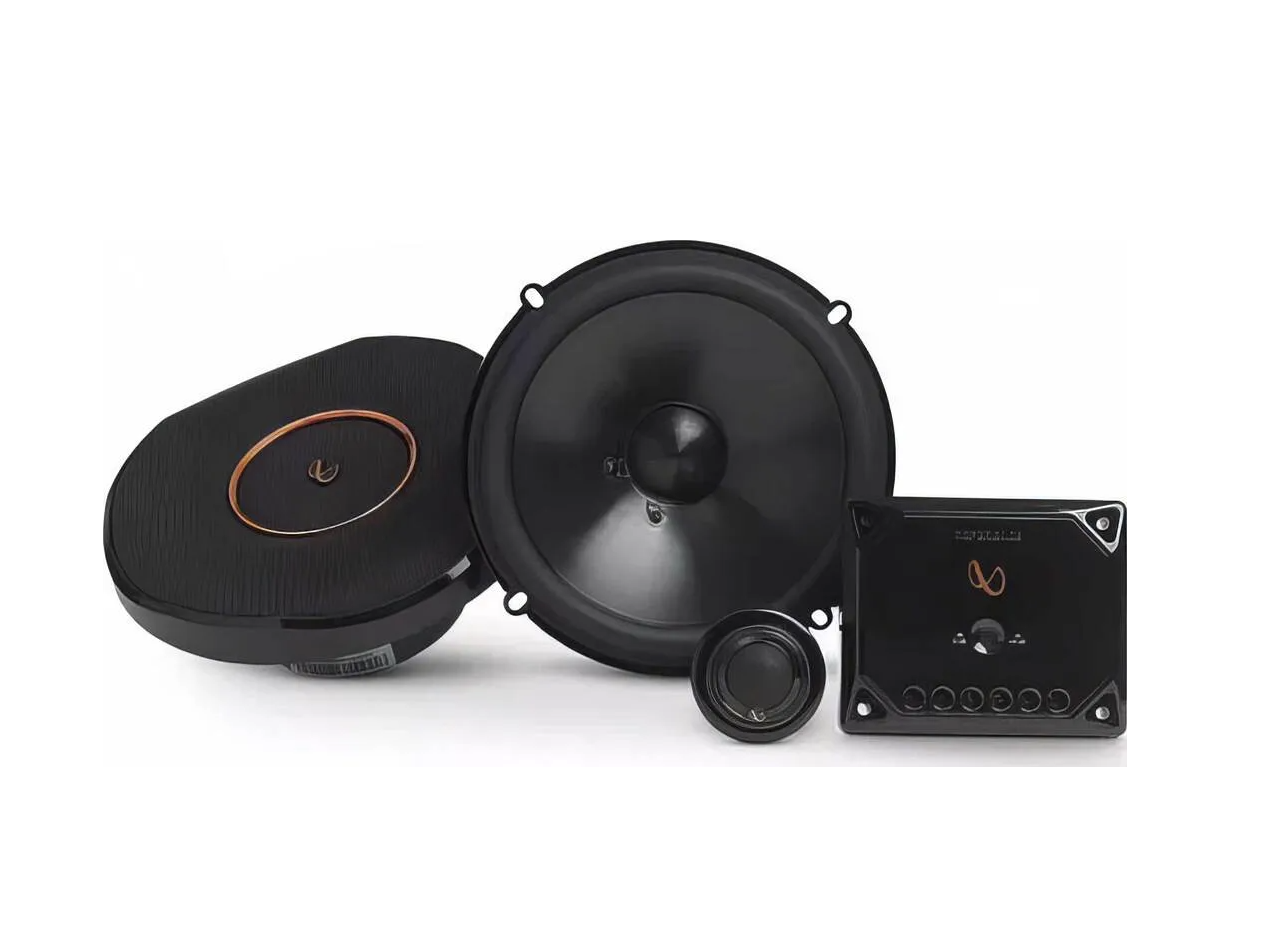

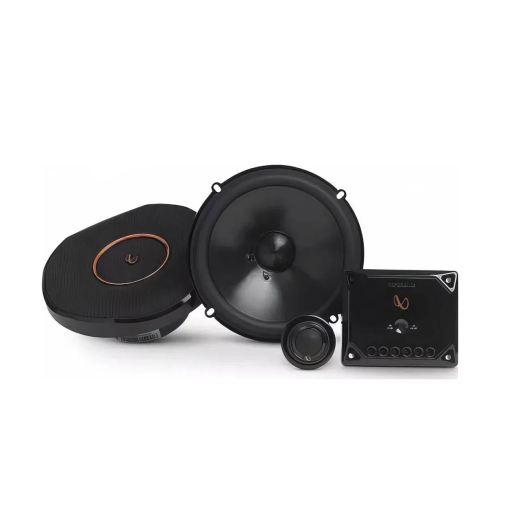

The Infinity Reference 6530CX speakers are 6.5" (160 mm) two-way component speakers designed as an ideal upgrade for factory audio systems, especially for customers seeking better detail, improved soundstage, and overall cleaner sound compared to standard coaxial speakers. Thanks to the separate tweeters and component design, they deliver a more precise stereo image, clearer vocals, and a more natural music reproduction. The Infinity Reference series is known for its balanced, detailed, and musical sound character, performing well both with a standard head unit and when paired with an amplifier.
At the core of the system is the polypropylene Plus One™ cone, which offers a larger effective surface area than conventional speakers of the same size. This results in higher sensitivity, stronger bass response, and improved midrange performance. High frequencies are handled by a 3/4" edge-driven textile tweeter, ensuring smooth, clean, and non-fatiguing highs even at higher volume levels. Larger component systems in the Reference series also feature tweeter level adjustment, allowing the final sound to be better tailored to a specific vehicle installation.
Another key advantage is the 3-ohm impedance, which allows the speakers to draw more power from both factory head units and aftermarket systems. This translates into louder and more dynamic performance without the immediate need for an external amplifier. The optimized frame design and practical mounting dimensions also make installation easier in most factory locations, making the Infinity Reference 6530CX an excellent choice for anyone looking for a high-quality yet practical audio upgrade for their vehicle.
Key features
- Two-way component speakers from the Infinity Reference series
- 6.5" (160 mm) size suitable for most vehicles
- Plus One™ polypropylene cone for higher sensitivity and stronger bass
- 3/4" edge-driven textile tweeter for clean and smooth highs
- Balanced and detailed sound characteristic of Infinity
- Tweeter level adjustment for sound tuning to the installation
- 3 Ω impedance for higher output from both head units and amplifiers
- 93 dB sensitivity for loud and dynamic performance
- Optimized frame for easy installation in OEM locations
- Ideal solution for upgrading factory speakers
About the brand
Infinity Car Audio is one of the renowned manufacturers of car audio systems, with a long-standing focus on combining high-quality sound, modern technologies, and precise craftsmanship. As part of the Harman International group, Infinity products stand out for their detailed and balanced sound performance, high sensitivity, and emphasis on clarity across the entire frequency range. The portfolio includes a wide range of speakers, subwoofers, and amplifiers designed for both simple factory audio upgrades and more advanced installations. Infinity Car Audio is an ideal choice for anyone looking to experience high-quality, dynamic, and accurate sound in their vehicle - without compromise.
| Catalog number | REFERENCE 6530CX |
| Brand | Infinity |
| Links | Official web presentation |
| Speaker typeCoaxial speakers: Coaxial speakers are characterized by a so-called all-in-one design. The tweeter and mid-bass speaker are in one basket. The advantage is simpler assembly, but thanks to the connection or proximity of the bands in one speaker, the sound quality will usually be reduced. As a rule, in the middle of the mid-bass speaker, there is a tweeter whose voice coil works in the second air gap of the common magnetic circuit. The three-way coaxial speaker consists of a mid-bass speaker, a center speaker and a separate tweeter in the front on a special beam. Component Speakers: Component speakers are characterized by a division into individual frequency bands, treble + mid-bass + or. bass band. The individual speakers can be placed completely separately, which results in a better sound and acoustic performance. In the vast majority of cases of component speakers, an external crossover is also supplied, which divides the treble, middle / mid-bass, and into the three-band the bass band or allows setting the decibel level of the tweeter (e.g. +2 dB, 0 dB, -2 dB), steepness (e.g. 6dB/Oct. 12dB/Oct.) or active or bi-amp connection. | component 2-way |
| RMS powerRMS speaker power is the constant power of the entire system, not just one speaker or one side. This is also the performance of continuous use of the speakers. If the RMS power is exceeded for a long time, the speakers may be irreversibly damaged! | 90 W |
| Max. (maximum performancePeak performance , which the speaker can play for a moment (approx. 0.5 s), for example when hitting drums in a song. If the max power is exceeded, the speakers will usually be damaged! | 270 W |
| Sensitivity (SPL 2.83V/1m)Sensitivity, sensitivity or efficiency of the speaker. Speaker sensitivity is given in decibels (dB) and simply put, the higher the value, the lower the demands on the amplifier's power. This is a defacto rating of how a speaker converts watts to sound. Sensitivity ratings are in noise level measured at 1 meter from the speaker using 1 W (watt of power) or using 2.83 volts at the source at 1 meter. A higher decibel level means the speaker is louder with less power. For every 3 dB increase in sensitivity, the speaker requires half the power to reproduce the same volume. For example, if an 88 dB speaker needs 100 Watts to produce a certain volume, then a speaker with a sensitivity of 91 dB needs only 50 Watts to reach the same volume. | 93 dB |
| ImpedanceImpedance - measurement of electrical resistance. When buying speakers, it is important to make sure that the impedance matches the amplifier or car stereo you are using. Example: A 2 Ohm speaker cannot be connected to an amplifier that is only stable up to 4 Ohms! A 4 Ohm speaker can easily be used with an amplifier that is stable up to 2 Ohms. The most common speaker impedance today is 3 - 4 Ohm. | 3 Ω |
| Frequency rangeThe ability of the speakers to play a signal from the lowest frequency to the highest, or the speaker's ability to faithfully reproduce sound in a specific frequency band. Professionally: In the frequency range from 40 to 16,000 Hz, the vast majority of fundamental and overtones (harmonics) of all musical instruments are found. We are interested in the course of the radiated sound pressure in this range of frequencies when the loudspeaker system is supplied with constant power. We call this course the frequency characteristic, which tells us the level of radiated sound pressure in decibels (dB) depending on the frequency. The frequency characteristic of a speaker or speaker system can be expressed most succinctly with a graph. Mostly, however, the frequency characteristic is indicated by indicating the maximum tolerance of the sound pressure in the given frequency range, e.g. 50 to 15,000 Hz -+ 6 dB. Since the frequency characteristics of loudspeakers and systems in general are quite uneven, some manufacturers do not even specify this maximum tolerance of sound pressure in decibels in their catalogs for reasons of prestige. Data impoverished in this way is unfortunately worthless. What is valid is that the manufacturer offers a speaker system with a frequency range of 30 to 20,000 Hz, if he is worried about stating the maximum unevenness of the sound pressure in this range, because he can have a tolerance of, for example, +- 20 dB. The unevenness or undulation of the frequency curve in good speaker systems for high-quality music performance should not exceed +-3 dB in the 80 to 12,000 Hz band and +-6 dB in the 40 to 16,000 Hz band. Greater unevenness already depletes or emphasizes certain tonal areas, which can cause audible or even disturbing distortion. The proportion between fundamental tones and higher harmonics also changes, thereby changing the color of the sound, and individual musical instruments as well as the entire musical image sound unnatural. | 53 - 21,000 Hz |
| The diameter of the mid-bass speakerWe state the diameter of the speaker as the diameter of the entire speaker, not including the mounts, when smaller speakers (87, 100, 130 mm) have extra mounts. Some speakers are oval and there the dimension is given in inches, always the shortest side to the longest side. One inch is approx. 2.5 cm. | 165 mm |
| Frequency crossover included in the packageThe crossover is an important part of defacto all loudspeakers. A crossover usually contains different resistor values, coil sizes, and capacitor types that fundamentally modify the sound. We describe below what the turnouts are for. Component Speakers: A crossover is part of every quality component speaker system. Its task is to ensure the distribution of frequencies that the amplifier produces in the entire acoustic spectrum of frequencies so that each of the speakers receives only that part of the band that it can optimally play in terms of efficiency and minimal distortion. Coaxial speakers: In most cases, coaxial loudspeakers have a simple crossover (6dB/Oct.) formed by a capacitor at the tweeter. | Yes |
| Cover grids included in the packageOriginal cover grilles in speaker packaging. | Yes |
| Price forIf the price is for a pair, the package always includes 2 pieces of everything, e.g. 2x mid-bass, 2x tweeter and 2x crossover. | Pair |
