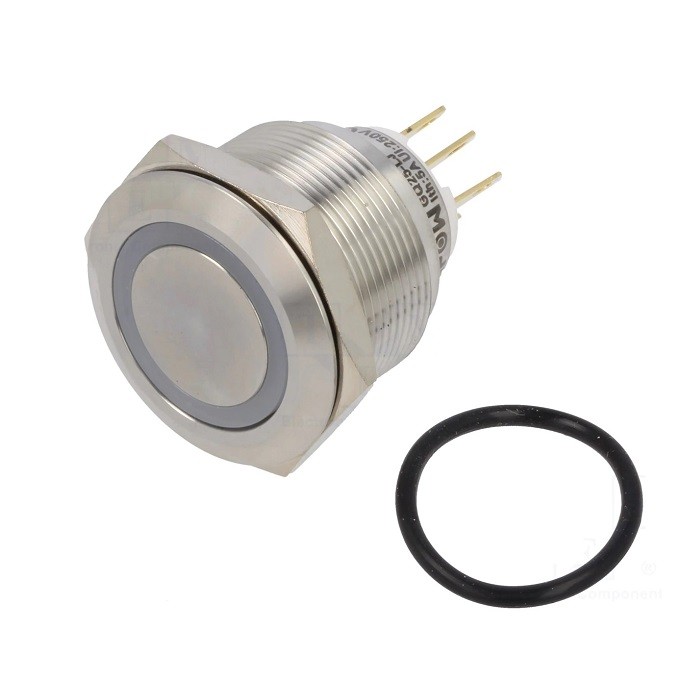

Impulse switch with LED backlight, green, 19mm SW IMP

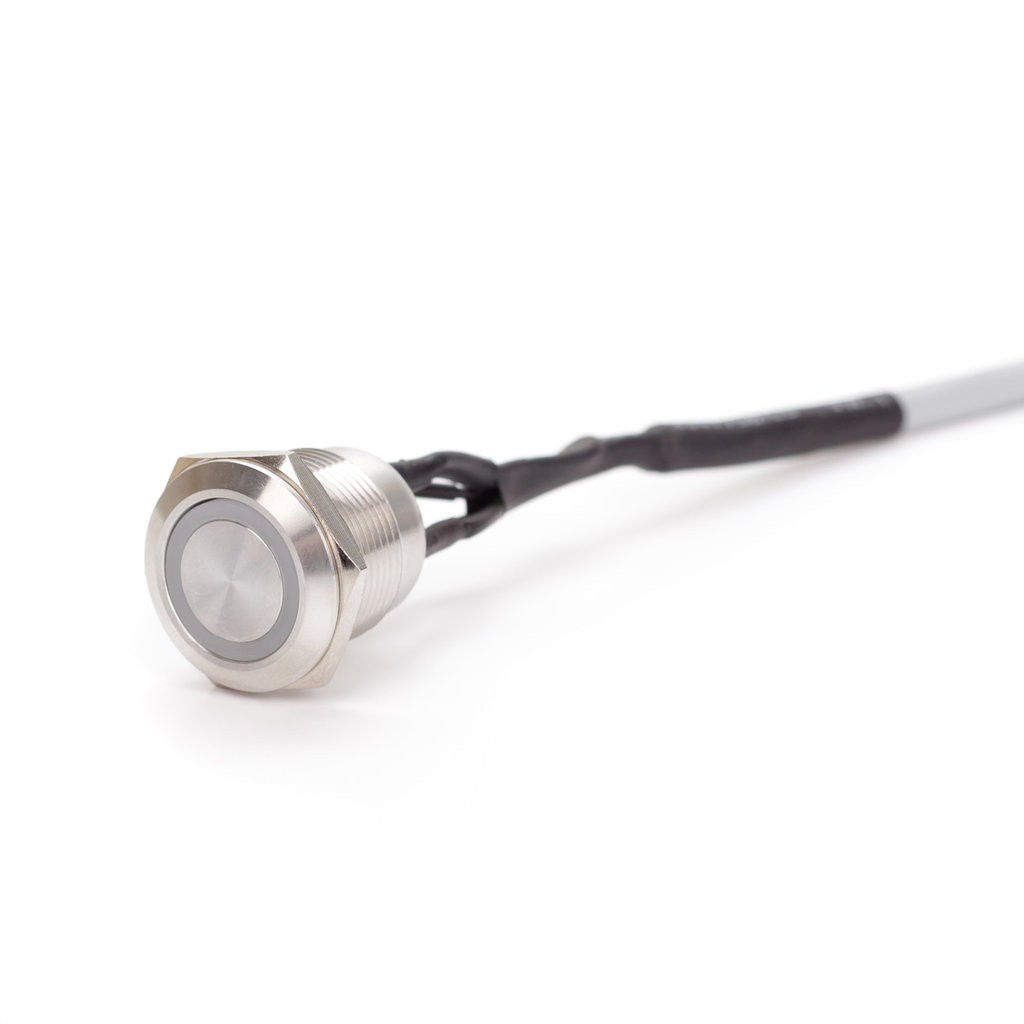

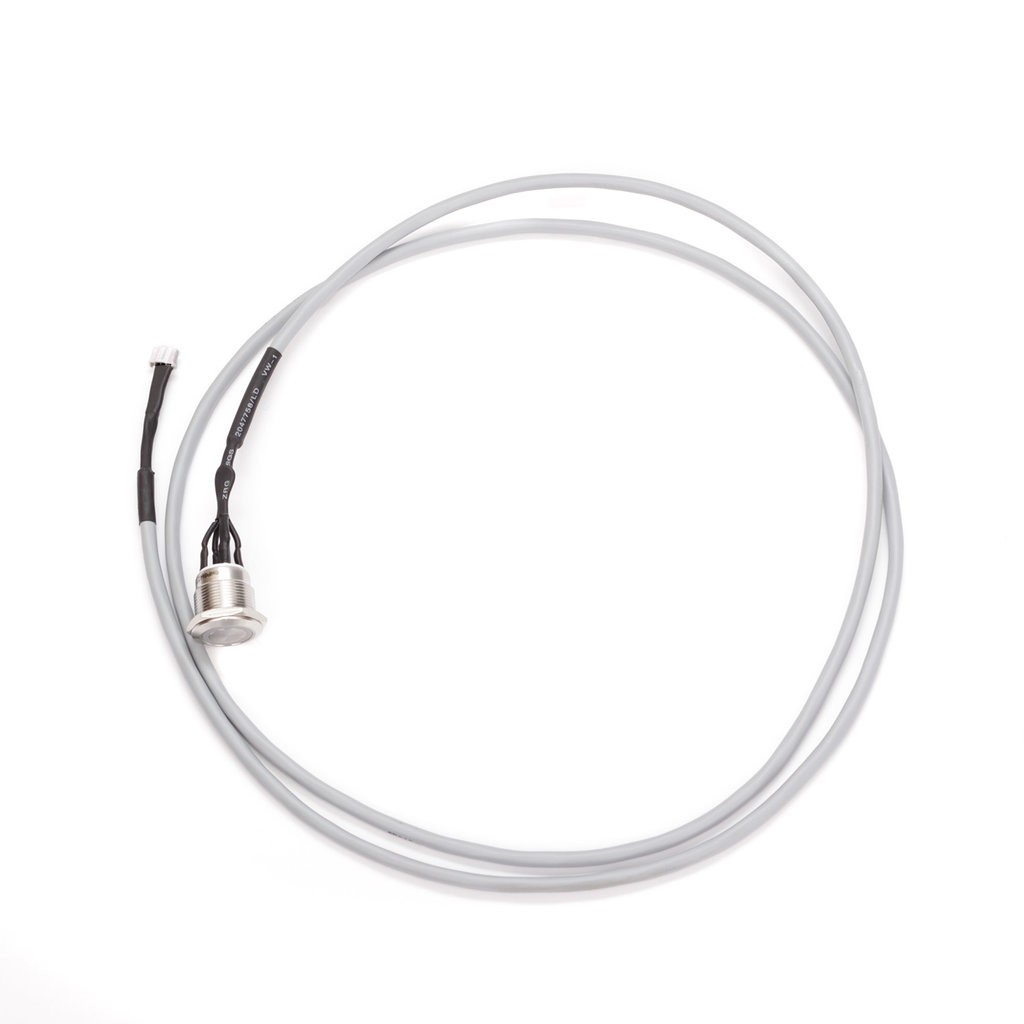

Momentary switch with LED backlight, with cable and connector, green, 19mm. The package includes a 1.5m cable with a 4-pin connector.
Parameters
| The switch switches in the temporary position | - during pressing |
| The switch turns off | - after release |
| Configuration of contacts | SPST-NO |
| Rating of AC contacts @R | 0.5A / 220V AC |
| Rating of DC Contacts @R | 2A / 36V DC |
| IP rating | IP65 |
| Switching method (in brackets indicates the current position.) | off (on) |
| Lighting | LED 24V AC/DC |
| Backlight color | green |

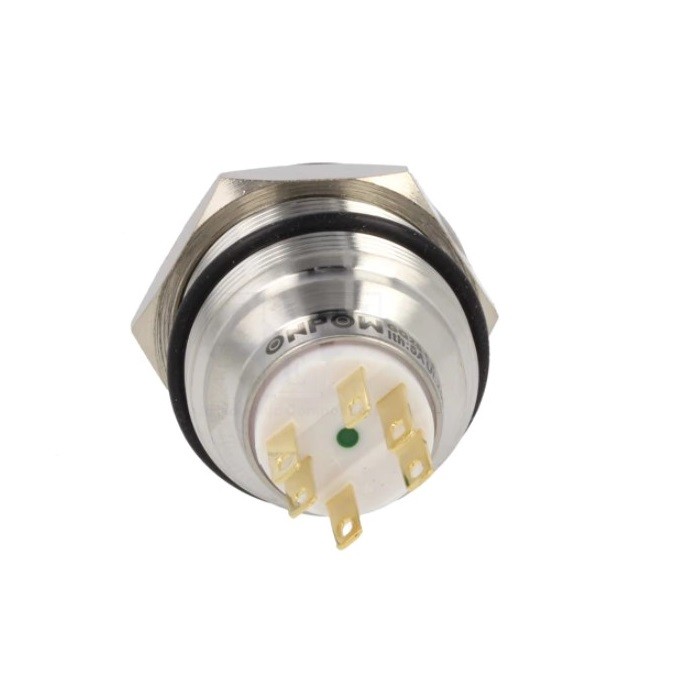

| Contacts | 2.8x0.5mm |
| Operating temperature | -25...55 °C |
| Electrical life | 200,000 cycles |
| Max. contact resistance: | 50mΩ |
| Operating force | 4N |
| Mechanical resistance | 1000000 cycles |
| Mounting hole diameter | Ø 19 mm |
| Body material | stainless steel |
| Test voltage | 2 kV |
| Contact material | silver alloy |
| Min. insulation resistance | 1000MΩ |
| Number of stable positions | 1 |
| Catalog number | SW IMP |
| Brand | TSS Group |
