Honda CR-V OEM parking camera (BC HON-11)

Parking camera for Honda CR-V (BC HON-11)

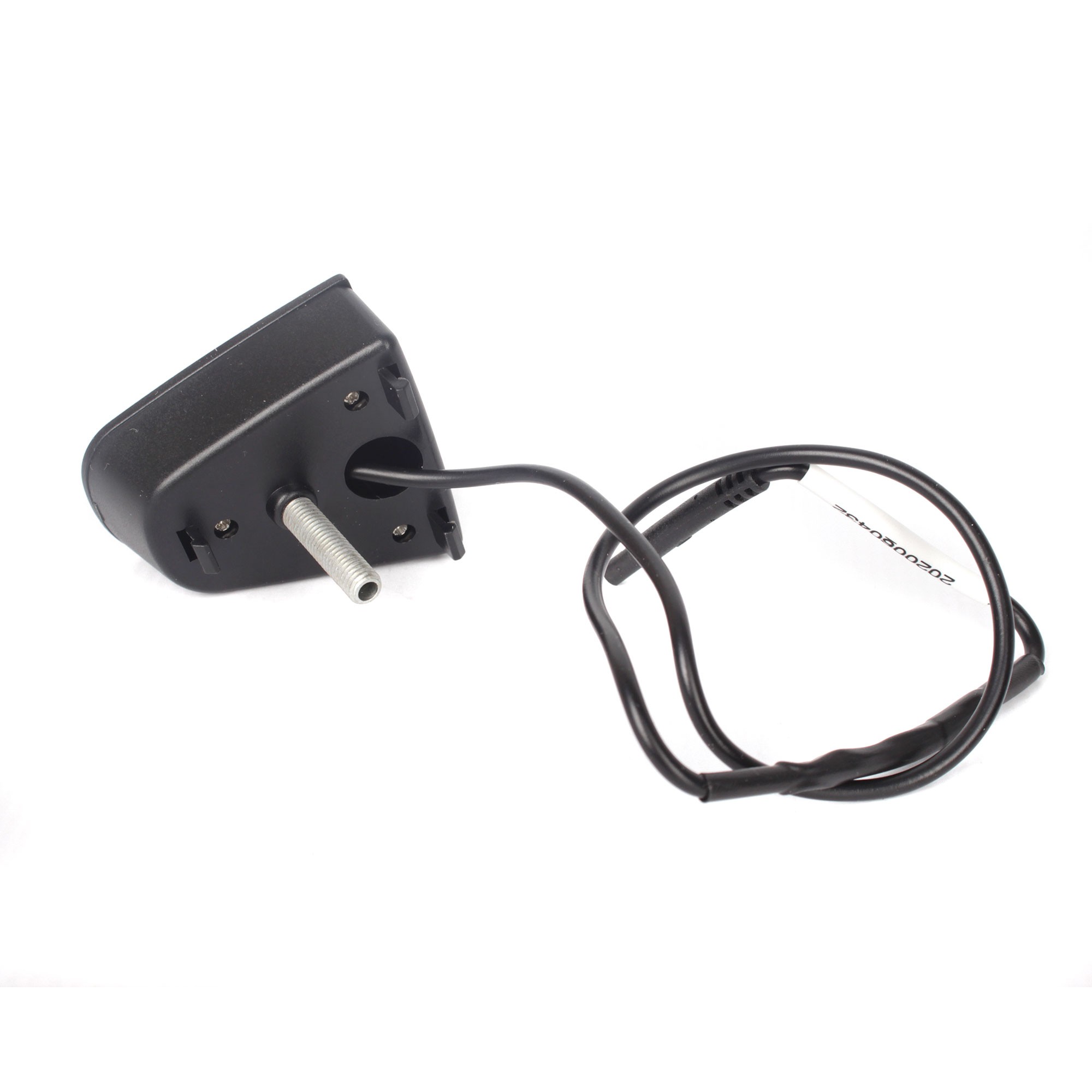

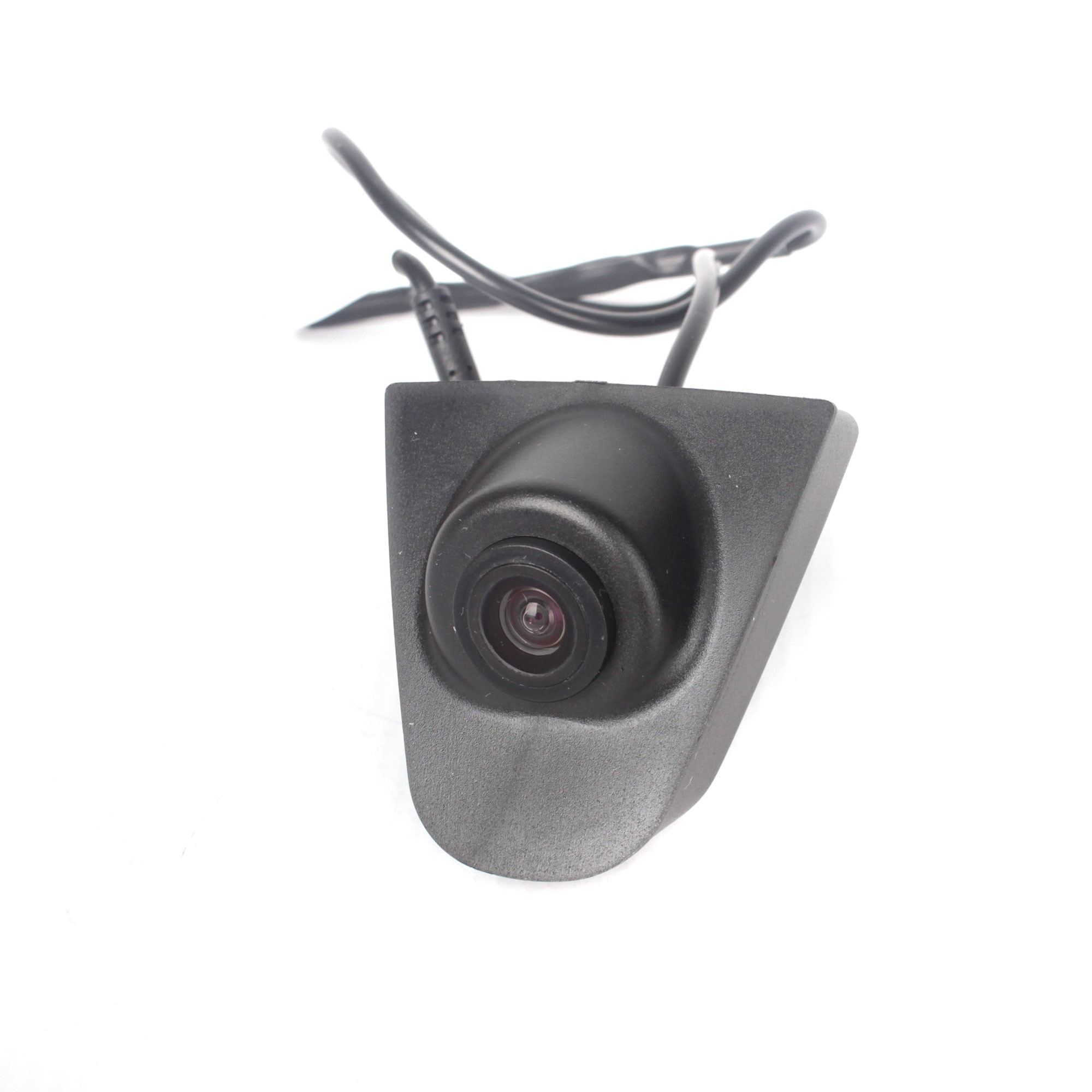

OEM front parking camera for installation into the front emblem, for Honda CR-V IV vehicles.

The camera is suitable for the following vehicles:

• Honda CR-V IV. (2012->)

Technical specifications

• image sensor: CMOS 1/3"
• ability to turn on/off display of auxiliary trajectories (guidelines)
• electronic shutter: 1/60 - 1/10000 sec.
• minimum illumination: 0.05 lux
• signal-to-noise ratio: > 48 dB
• TV system: NTSC
• number of TV lines: 700 TVL
• weather protection: IP67
• horizontal viewing angle: 120°
• image display: mirrored
• white balance: automatic
• operating temperature: from -30 °C to +70 °C
• AGC, BLC, white balance: automatic

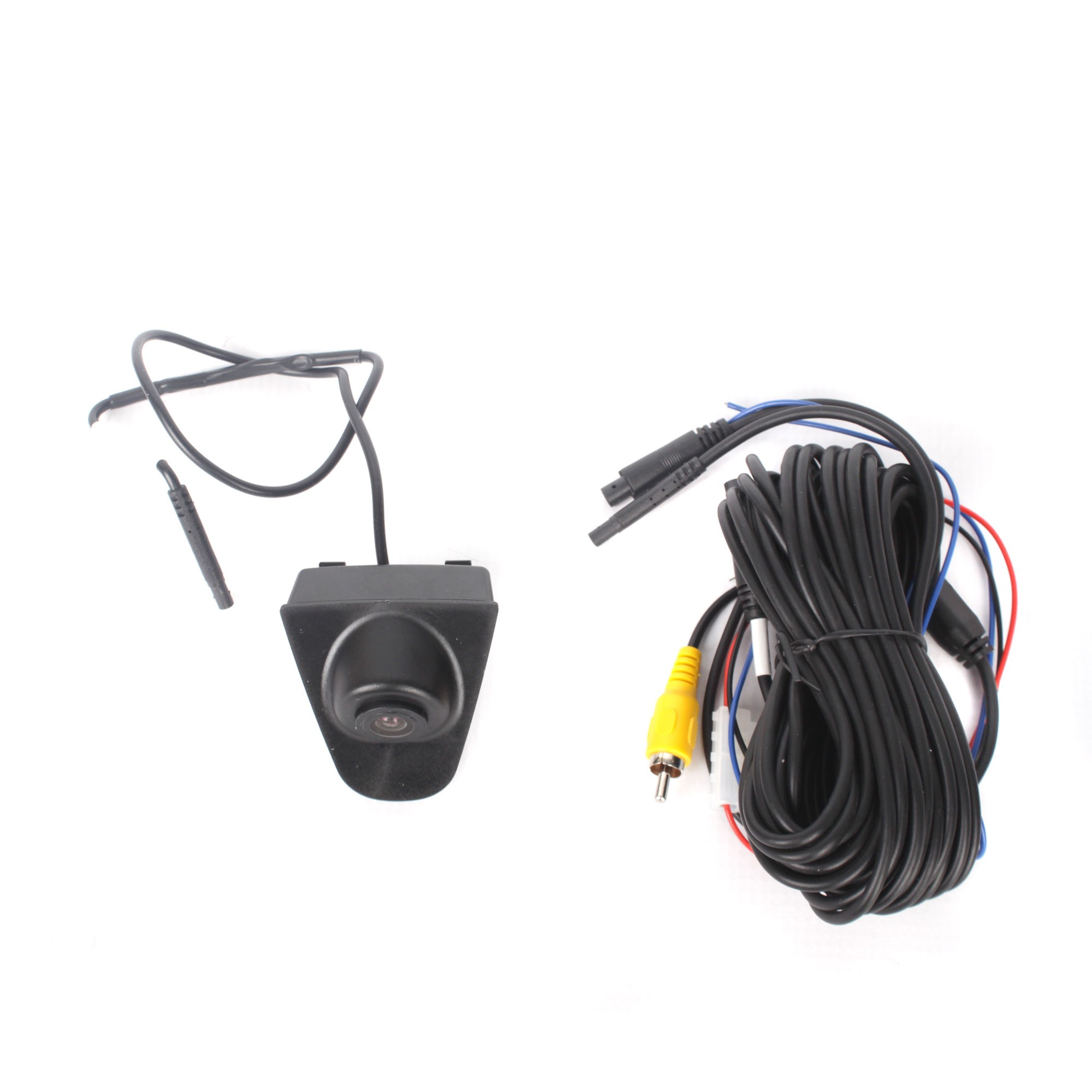

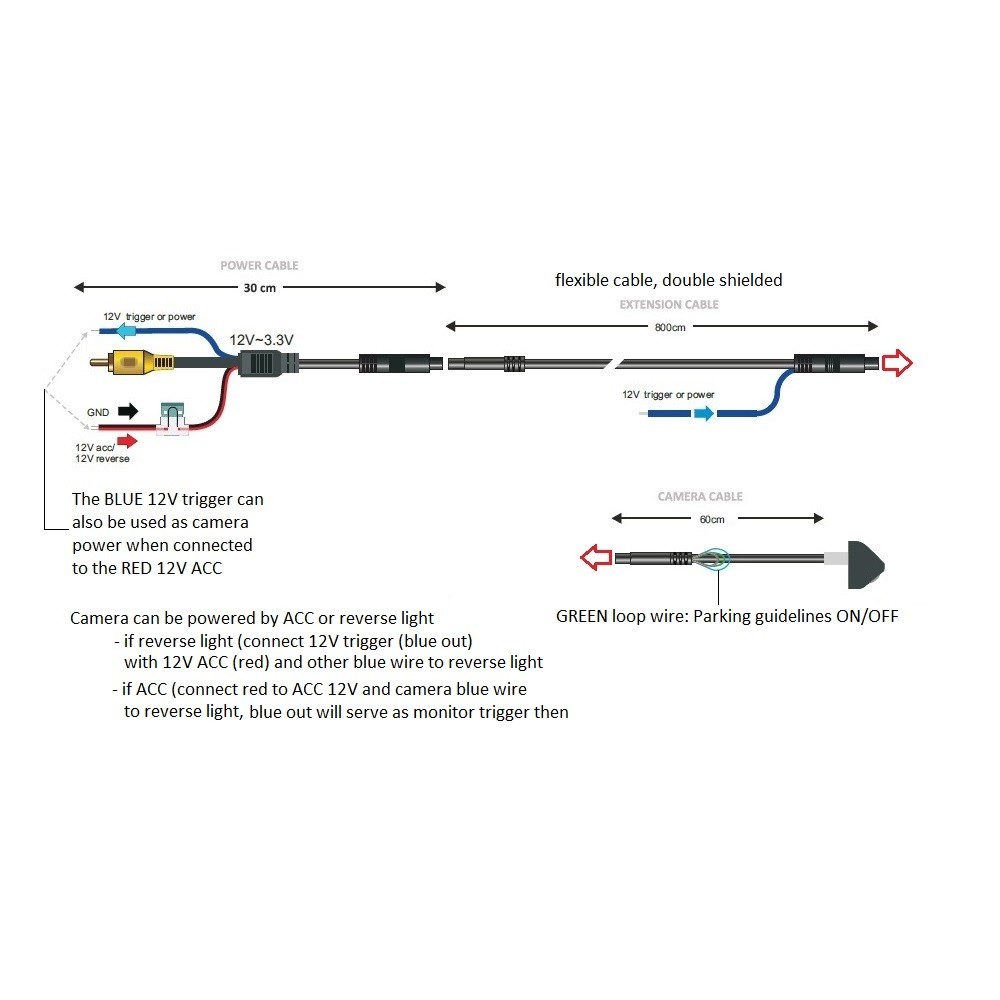

• signal cable: length 8 m (CINCH / RCA connector)
• double-shielded signal cable
• power cable: 30 cm
• video output: 1.0 V / 75 ohm
• power supply: 12 V DC
• power consumption: <1 W

Dimensions

• base: 57 x 54 mm

Note

The camera is intended for non-original (aftermarket) radios with a CINCH AV input. Use with an original radio may require connecting a video adapter for the parking camera!
