Hifonics ZSV62X speakers

coaxial speakers for VW / Škoda / Seat, Ø 165 mm, 90 W RMS, 93 dB (2.83V/1m), 3 Ω
More about the product
We will help you with your purchase
  • You can return the goods to us within 14 days
Hifonics ZSV62X speakers
New

Hifonics ZSV62X Speakers

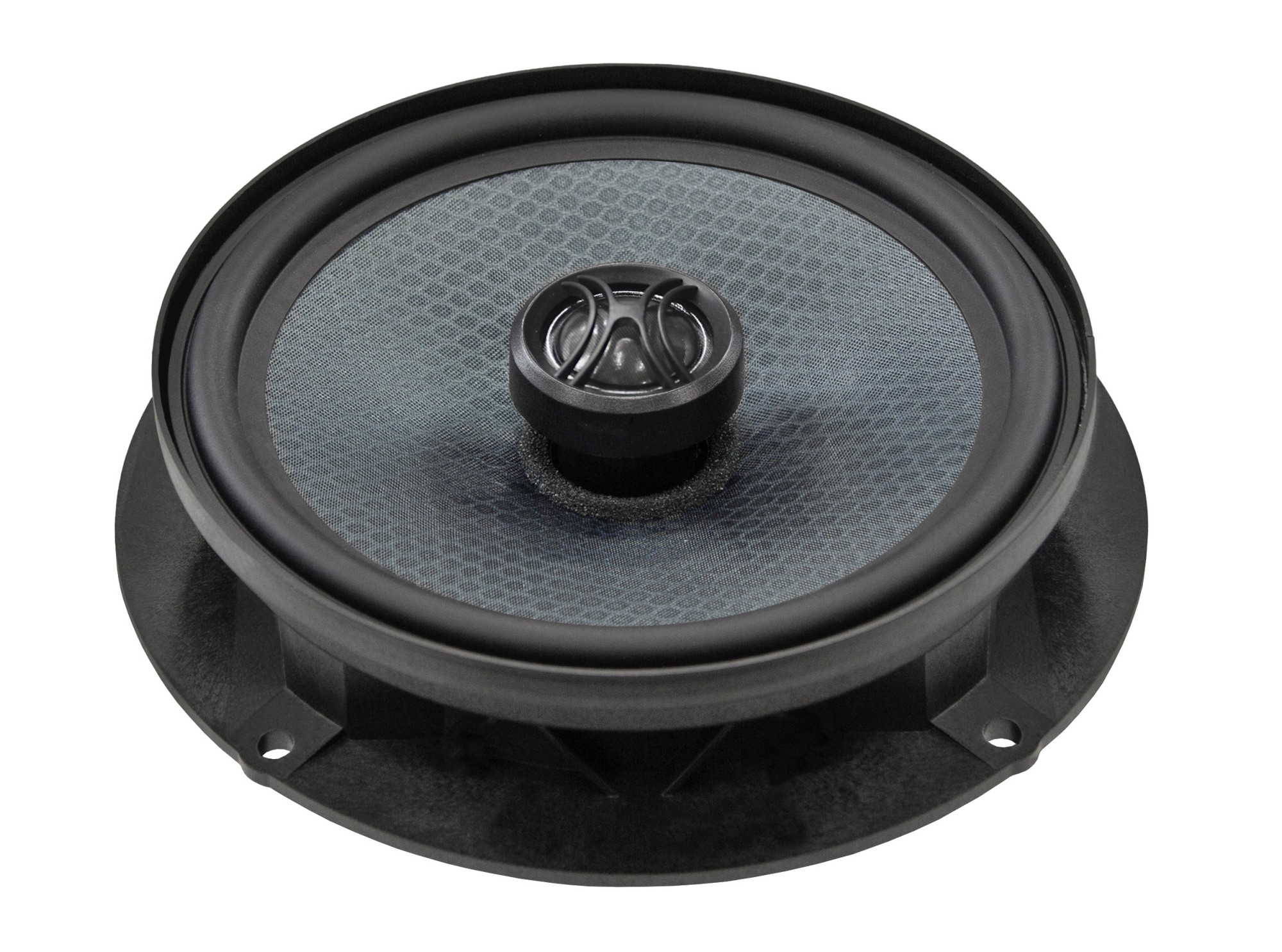

The Hifonics ZEUS ZSV62X is a 165 mm two-way coaxial speaker system designed as a direct replacement for factory speakers in selected Volkswagen, Škoda, Seat and MAN vehicles. Thanks to precise mounting dimensions and vehicle-specific connectors, it allows Plug+Play installation without demanding modifications or interference with the vehicle’s original wiring. The speakers use proven ZEUS series technologies. The midbass drivers feature high-quality glass-fiber sandwich cones with a honeycomb structure, which ensure accurate yet punchy low-frequency reproduction. With a high sensitivity of approximately 93 dB, the system can effectively use the power of a factory head unit or OEM amplifier. Clean and detailed highs are provided by integrated 25 mm tweeters with a silk dome and neodymium magnet. The result is a marked improvement over stock sound – firmer and fuller bass, clearer highs, more detail and overall more dynamic reproduction. All this while preserving simple Plug and Play installation and the vehicle’s original interior appearance.

Main features

  • 165 mm two-way coaxial system from the Hifonics ZEUS series.
  • Designed for selected Volkswagen, Škoda, Seat and MAN vehicles.
  • Plug and Play installation without modifications to the original wiring.
  • High sensitivity of approximately 93 dB (2.83 V / 1 m).
  • Efficient use of power from the factory head unit or OEM amplifier.
  • Glass-fiber sandwich cone with honeycomb structure.
  • 25 mm silk-dome tweeter with neodymium magnet.
  • Precise mounting dimensions for direct replacement of factory speakers.
  • Significant improvement in bass, detail and dynamics compared to stock equipment.

Compatibility

Volkswagen:

  • Golf 6 – rear doors.
  • Golf 7 – rear doors.
  • Polo 6 – rear doors.
  • T-Roc – rear doors.
  • Up! – rear doors.
  • e-Up! – rear doors.
  • Amarok – rear doors.
  • New Beetle – rear doors.
  • Crafter 2 – rear doors.

Škoda:

  • Citigo – rear doors, 2012–2020.
  • Kamiq – rear doors.
  • Fabia – rear doors, 1999–2021.
  • Octavia – rear doors, 1996–2004.
  • Rapid – rear doors, 2012–2021.
  • Yeti – rear doors, 2009–2017.
  • Roomster – rear doors, 2006–2015.

Seat:

  • Altea – rear doors, 2004–2015.
  • Arona – rear doors, 2018–2020.
  • Arosa – rear doors, 1997–2004.
  • Cordoba – rear doors, 2002–2009.
  • Ibiza – rear doors, 2001–2008 and 2018–2021.
  • Leon – rear doors, 2000–2012.
  • Mii – rear doors, 2012–2021.
  • Toledo – rear doors, 1994–2009 and 2012–2019.

MAN:

  • TGE – rear doors.

About the brand

Hifonics is one of the world’s legends in car audio. Since its inception in the 1980s it has defined standards in automotive sound and is a strong player in amplifiers, speakers and subwoofers. The brand is known for its uncompromising philosophy - combining top performance with precise workmanship and unmistakable design. Hifonics products appeal to everyone from demanding audiophiles to enthusiasts who want powerful bass and maximum dynamics in their car. Hifonics amplifiers are renowned for high stability, clean sound and enormous power potential. Speakers and subwoofers also stand out for precise construction and long durability even under extreme loads. Hifonics continually innovates its products. Modern technologies such as hybrid puffer capacitors, extremely stiff carbon cones, MICA composite cones or advanced cooling push sound boundaries even further. Alongside top amplifiers you’ll find practical accessories, from remote bass controllers to mounting accessories and designer protective grilles. If you’re looking for a proven brand that combines a legendary name with modern technologies and top sound, Hifonics is the right choice for your car. Treat yourself to above-standard power you can feel – with Hifonics you’ll always be one step ahead!
Catalog numberZSV62X
BrandHifonics
LinksOfficial web presentation
Test in Car&Hifi magazine (German)
Speaker typeCoaxial speakers:
Coaxial speakers are characterized by a so-called all-in-one design. The tweeter and mid-bass speaker are in one basket. The advantage is simpler assembly, but thanks to the connection or proximity of the bands in one speaker, the sound quality will usually be reduced. As a rule, in the middle of the mid-bass speaker, there is a tweeter whose voice coil works in the second air gap of the common magnetic circuit. The three-way coaxial speaker consists of a mid-bass speaker, a center speaker and a separate tweeter in the front on a special beam.

Component Speakers:
Component speakers are characterized by a division into individual frequency bands, treble + mid-bass + or. bass band. The individual speakers can be placed completely separately, which results in a better sound and acoustic performance. In the vast majority of cases of component speakers, an external crossover is also supplied, which divides the treble, middle / mid-bass, and into the three-band the bass band or allows setting the decibel level of the tweeter (e.g. +2 dB, 0 dB, -2 dB), steepness (e.g. 6dB/Oct. 12dB/Oct.) or active or bi-amp connection.
Coaxial
RMS powerRMS speaker power is the constant power of the entire system, not just one speaker or one side. This is also the performance of continuous use of the speakers. If the RMS power is exceeded for a long time, the speakers may be irreversibly damaged! 90 W
Max. (maximum performancePeak performance , which the speaker can play for a moment (approx. 0.5 s), for example when hitting drums in a song. If the max power is exceeded, the speakers will usually be damaged! 180 W
Sensitivity (SPL 2.83V/1m)Sensitivity, sensitivity or efficiency of the speaker.

Speaker sensitivity is given in decibels (dB) and simply put, the higher the value, the lower the demands on the amplifier's power. This is a defacto rating of how a speaker converts watts to sound. Sensitivity ratings are in noise level measured at 1 meter from the speaker using 1 W (watt of power) or using 2.83 volts at the source at 1 meter.

A higher decibel level means the speaker is louder with less power. For every 3 dB increase in sensitivity, the speaker requires half the power to reproduce the same volume. For example, if an 88 dB speaker needs 100 Watts to produce a certain volume, then a speaker with a sensitivity of 91 dB needs only 50 Watts to reach the same volume.
93 dB
ImpedanceImpedance - measurement of electrical resistance. When buying speakers, it is important to make sure that the impedance matches the amplifier or car stereo you are using.

Example:
A 2 Ohm speaker cannot be connected to an amplifier that is only stable up to 4 Ohms! A 4 Ohm speaker can easily be used with an amplifier that is stable up to 2 Ohms. The most common speaker impedance today is 3 - 4 Ohm.
3 Ω
Frequency rangeThe ability of the speakers to play a signal from the lowest frequency to the highest, or the speaker's ability to faithfully reproduce sound in a specific frequency band.

Professionally:
In the frequency range from 40 to 16,000 Hz, the vast majority of fundamental and overtones (harmonics) of all musical instruments are found. We are interested in the course of the radiated sound pressure in this range of frequencies when the loudspeaker system is supplied with constant power. We call this course the frequency characteristic, which tells us the level of radiated sound pressure in decibels (dB) depending on the frequency. The frequency characteristic of a speaker or speaker system can be expressed most succinctly with a graph.

Mostly, however, the frequency characteristic is indicated by indicating the maximum tolerance of the sound pressure in the given frequency range, e.g. 50 to 15,000 Hz -+ 6 dB. Since the frequency characteristics of loudspeakers and systems in general are quite uneven, some manufacturers do not even specify this maximum tolerance of sound pressure in decibels in their catalogs for reasons of prestige. Data impoverished in this way is unfortunately worthless. What is valid is that the manufacturer offers a speaker system with a frequency range of 30 to 20,000 Hz, if he is worried about stating the maximum unevenness of the sound pressure in this range, because he can have a tolerance of, for example, +- 20 dB.

The unevenness or undulation of the frequency curve in good speaker systems for high-quality music performance should not exceed +-3 dB in the 80 to 12,000 Hz band and +-6 dB in the 40 to 16,000 Hz band. Greater unevenness already depletes or emphasizes certain tonal areas, which can cause audible or even disturbing distortion. The proportion between fundamental tones and higher harmonics also changes, thereby changing the color of the sound, and individual musical instruments as well as the entire musical image sound unnatural.
50 - 24000 Hz
The diameter of the mid-bass speakerWe state the diameter of the speaker as the diameter of the entire speaker, not including the mounts, when smaller speakers (87, 100, 130 mm) have extra mounts. Some speakers are oval and there the dimension is given in inches, always the shortest side to the longest side. One inch is approx. 2.5 cm. 165 mm
Mid-woofer diaphragm materialThe material that was used for the speaker diaphragm. Don't be afraid of the paper, it surprisingly has a very natural and high-quality sound and, thanks to the surface treatment, it can withstand moisture without any problems. Glass fiber
Tweeter dome diameterThe net diameter of the dome (diaphragm) of the tweeter. 25 mm
Tweeter dome materialThe shell material that was used in the manufacture of the tweeter. Silk
Cover grids included in the packageOriginal cover grilles in speaker packaging. No
Price forIf the price is for a pair, the package always includes 2 pieces of everything, e.g. 2x mid-bass, 2x tweeter and 2x crossover. Pair
