Helix AMI Measurement Audio Interface
The AMI (Audio Measurement Interface) is a precise measurement device designed for analysis of both electrical and acoustic signals. It is the ideal choice for anyone who requires top-level accuracy and seamless integration into DSP audio systems. AMI combines compact dimensions with high versatility and provides all key functions for signal evaluation, precise tuning and system optimization – additionally it is perfectly matched with the DSP PC-Tool software.
Maximum flexibility when working with signals

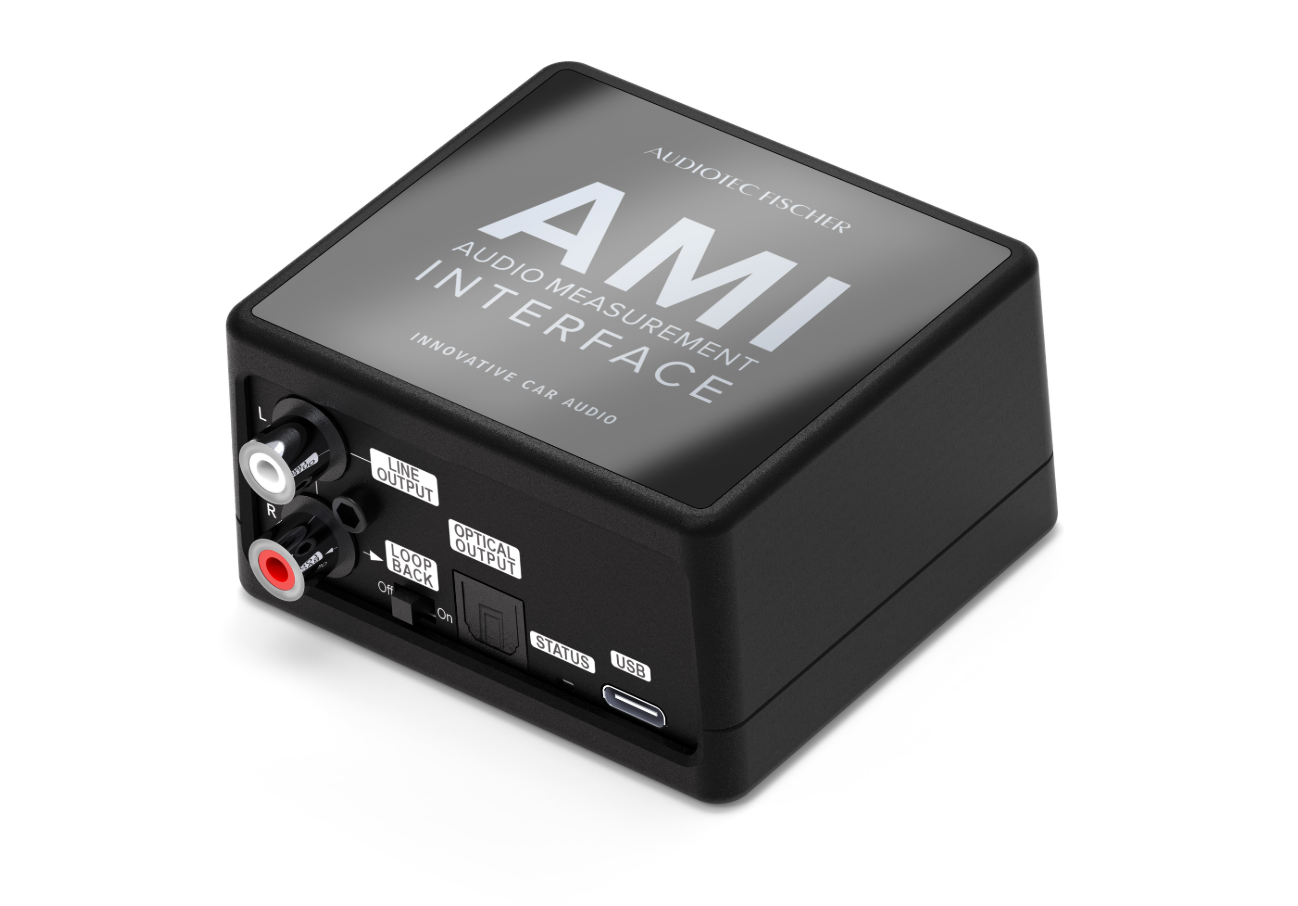

AMI offers a microphone input compatible with any condenser microphone, complemented by adjustable gain and optional phantom power – ideal for professional acoustic measurements. There is also a line input with switchable sensitivity (1 V or up to 40 V) for analysis of both low- and high-level signals. The signal output is available via RCA as well as optical, allowing direct connection to DSP units. A loopback function is also included for advanced measurements, such as detailed phase analysis or comprehensive evaluation of the signal path.
Perfect synergy with DSP PC-Tool
Full compatibility with DSP PC-Tool from Audiotec Fischer turns AMI into a sophisticated measurement tool that fully exploits its potential. It includes support for AISA (Advanced Input Signal Analyzer) to detect and correct factory equalizations, time alignment or all-pass filters. Also included are RTA (Real-Time Analyzer) for detailed frequency response measurements and automatic fine-tuning via the TuneEQ algorithm, as well as ATM (Automatic Time Measurement) for automatic calibration of speaker delays – resulting in perfect time alignment and a realistic sound image.
Ready to use immediately

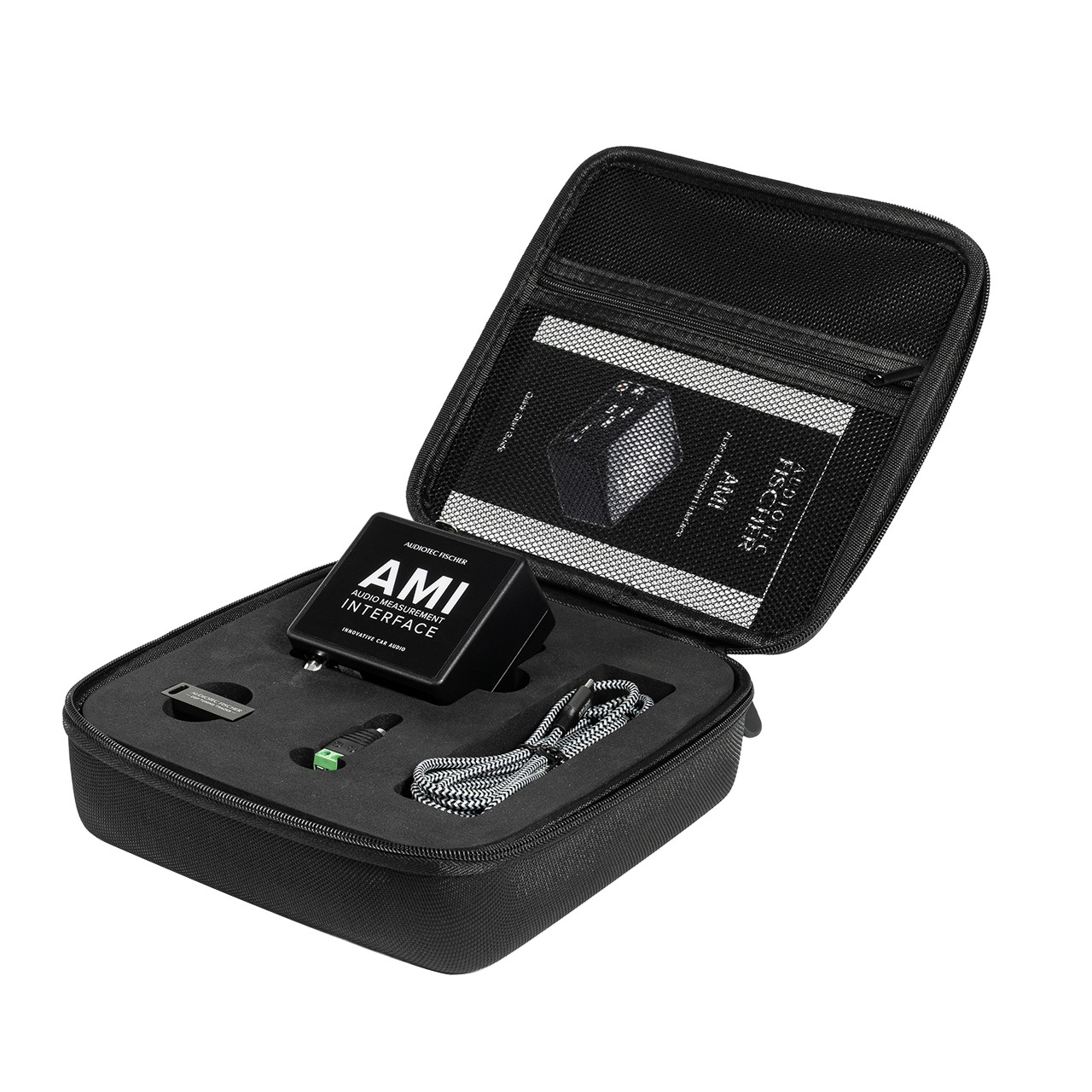

AMI is powered via USB, so no external power supply is required. The package includes a premium 3 m USB-C cable with a USB-A adapter, an RCA high-level connector and a 16 GB USB 3.0 flash drive with preinstalled DSP calibration tracks. The device is compatible with Windows 10 and 11, macOS, Android and iOS and supports ASIO drivers for professional applications. Just connect and you can start measuring with maximum accuracy anywhere you are.
Main features
- Microphone input with adjustable gain and phantom power for condenser microphones.
- Line input with switchable sensitivity (1 V / 40 V) for precise analysis of signals at different levels.
- Stereo output via RCA and optical digital interface for direct connection to DSP.
- Loopback function for detailed phase measurements and advanced signal-path analyses.
- USB-powered – no external power supply required.
- Optimized for DSP PC-Tool from Audiotec Fischer.
- Support for AISA, RTA and TuneEQ for advanced tuning and signal analysis.
- Automatic Time Measurement (ATM) for perfect speaker time alignment.
- Includes 3 m USB-C cable with adapter, RCA high-level connector and 16 GB USB drive with calibration tracks.
- Compatibility with Windows, macOS, Android and iOS + ASIO driver support.
About the brand
HELIX by Audiotec Fischer is a German brand of premium car audio equipment that has been among the world leaders in amplifiers and DSP processors for more than 35 years. HELIX is regarded as a leader in digital signal processors. It offers some of the most advanced and highest-quality DSP processors in the world, enabling a skilled technician to tune any audio system to perfection and bring an authentic hi‑fi experience into the vehicle. The combination of precise German engineering, state-of-the-art technologies and innovative design delivers a clean, dynamic and detailed sound that has won the favor of audiophiles worldwide. HELIX products are characterized by high efficiency, reliability and perfect integration into modern cars. They are an excellent choice for demanding users who require the best possible sound without compromise. Helix, together with the brands Brax and Match, is part of the German manufacturer Audiotec Fischer.
| Catalog number | H424519 |
| Brand | Helix |
| Links | Official web presentation |
