Ground Zero GZCS 100.2MB-206C speakers

Ground Zero GZCS 100.2MB-206C Speakers

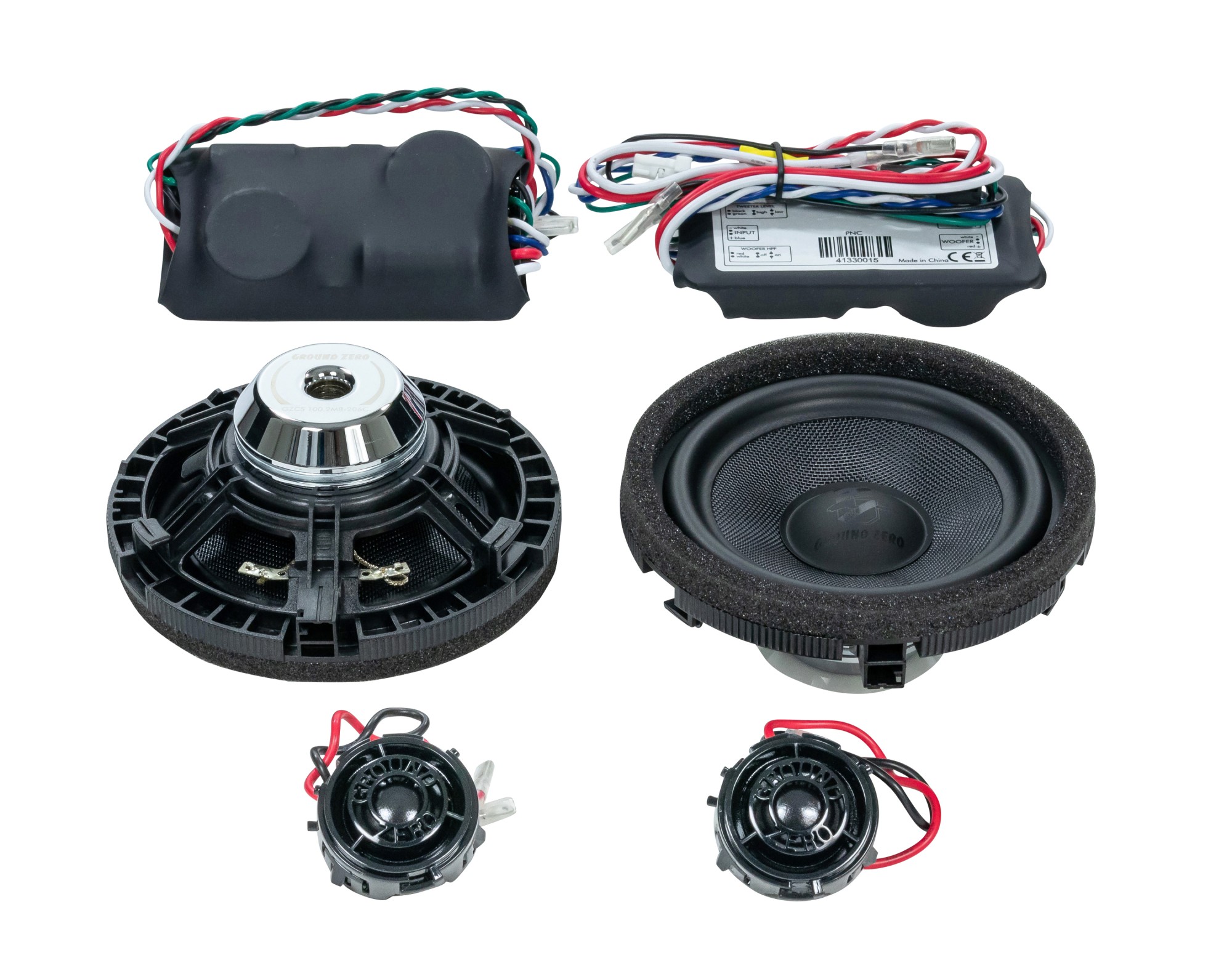

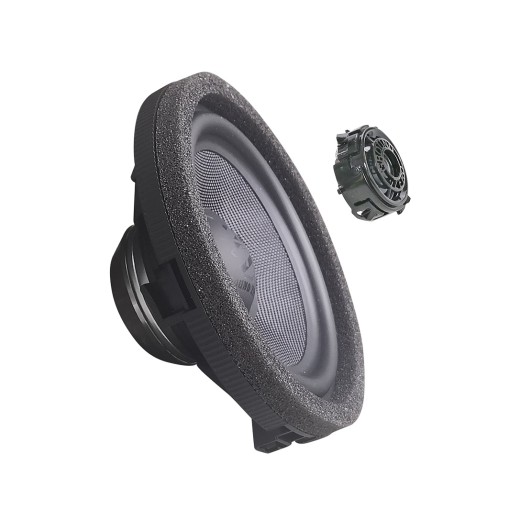

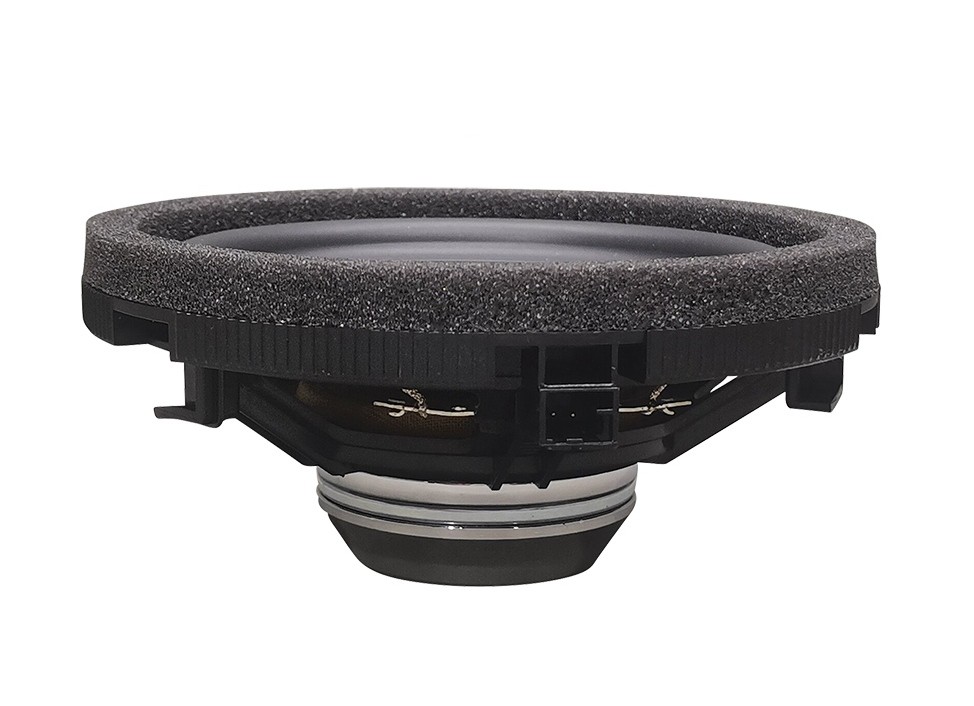

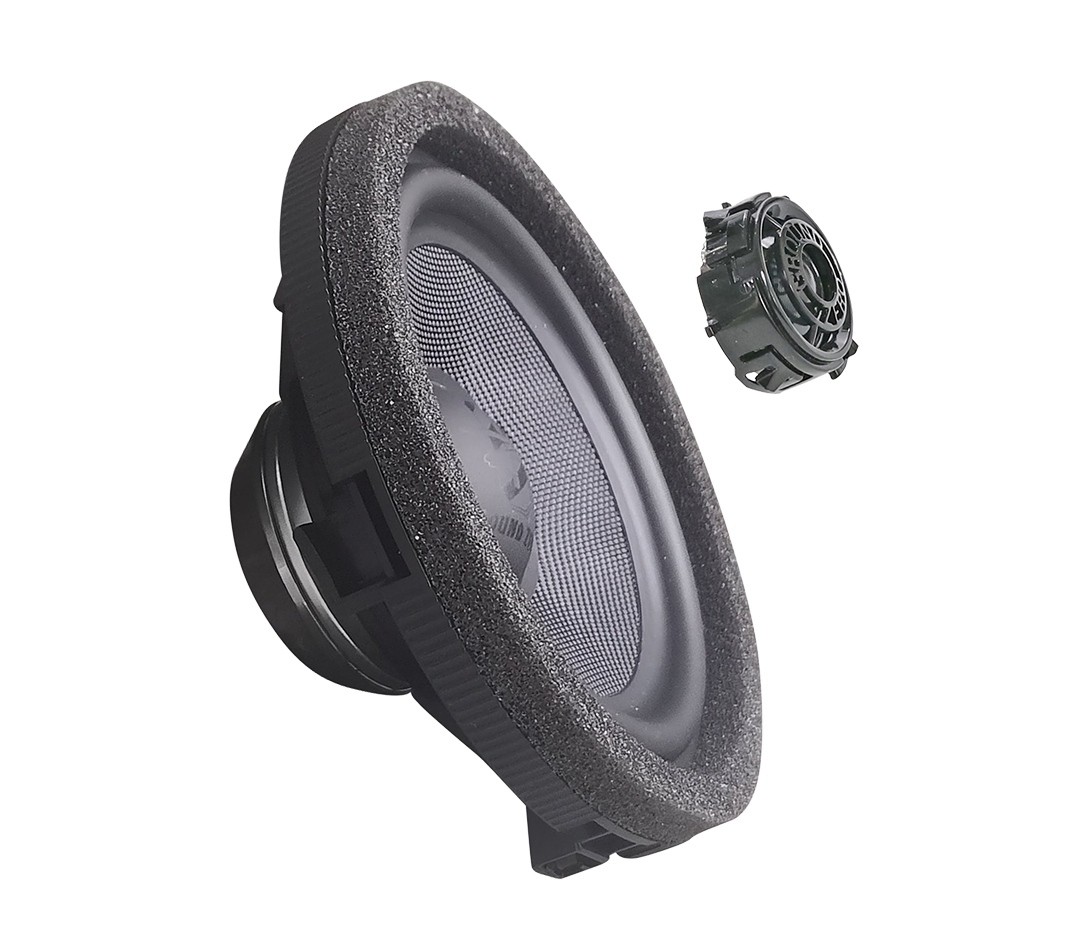

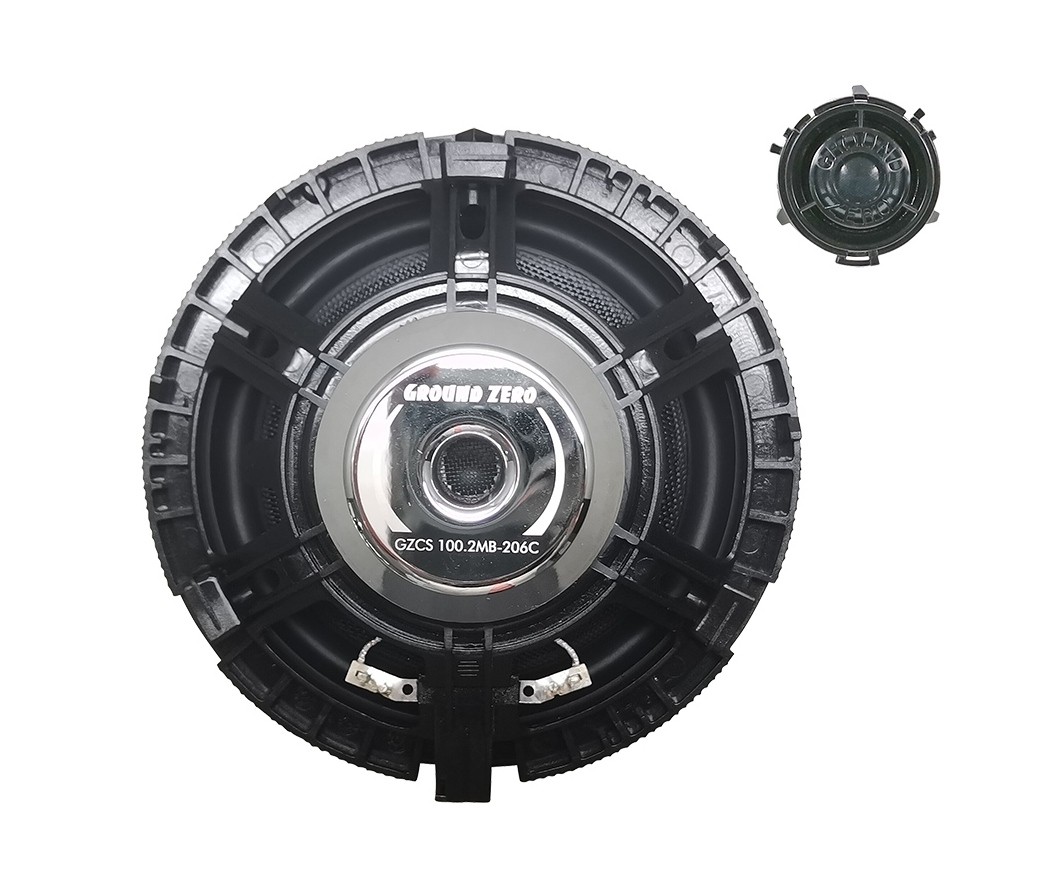

Ground Zero GZCS 100.2MB-206C is a 100 mm two-way speaker system developed specifically for Mercedes‑Benz vehicles. It offers a significant upgrade in sound quality over the factory system without the need for any modifications or complex installation – the system is designed as a Plug'n'Play concept, so it fits perfectly into the original mounting locations and vehicle connectors. The midbass driver uses a stiff fiberglass cone that combines low distortion and excellent dynamics, while a neodymium magnet ensures high efficiency and precise control of cone movement. A 25 mm silk tweeter provides detailed and natural high-frequency reproduction, preserving the delicacy and spatial character of the recording. The GZCS 100.2MB-206C system is an ideal solution for Mercedes‑Benz owners who want to maintain the original interior appearance while gaining noticeably livelier, cleaner and more accurate sound performance.

Main features

• Two-way component speaker system specific to Mercedes‑Benz vehicles.
• 100 mm midbass driver with fiberglass cone for precise and dynamic bass.
• Neodymium magnet for high efficiency and detailed control.
• 25 mm silk tweeter with natural high-frequency reproduction.
• 12 dB/oct crossover with original Plug'n'Play connector.
• Easy installation into original mounting locations without modifications.
• Significant improvement in clarity, soundstage and dynamics compared to the factory system.

Compatibility

• C‑Class (W206, S206, C206, A206) from 2021

About the brand

Ground Zero Audio is a globally recognized brand in car audio founded in 1995 in Germany. Since its inception it has built a strong market position thanks to cutting-edge technologies, precise engineering and a focus on sound quality. Ground Zero specializes in complete car audio solutions, from high-end car speakers and powerful subwoofers to amplifiers designed for SPL or SQ. Ground Zero products are known for their durability, high power and faithful music reproduction, as evidenced by numerous awards from prestigious international competitions in Sound Quality (SQ) and Sound Pressure Level (SPL) categories. The manufacturer uses the latest technologies in development, such as the KLIPPEL® measurement system and CEA 2006-A standards, to ensure maximum accuracy and reliability of each component. With the slogan "Respect The Music" Ground Zero Audio emphasizes its philosophy – to offer listeners an authentic musical experience that captures the emotion of every track. If you are looking for top-tier car audio solutions, speakers or subwoofers that excel not only in power but also in build quality, Ground Zero Audio is the right choice for demanding customers worldwide. Ahifi is the sole exclusive importer of the Ground Zero brand for the Czech and Slovak Republics.

Catalog number	GZCS 100.2MB-206C
Brand	Ground Zero
Links	Official web presentation
Speaker typeCoaxial speakers: Coaxial speakers are characterized by a so-called all-in-one design. The tweeter and mid-bass speaker are in one basket. The advantage is simpler assembly, but thanks to the connection or proximity of the bands in one speaker, the sound quality will usually be reduced. As a rule, in the middle of the mid-bass speaker, there is a tweeter whose voice coil works in the second air gap of the common magnetic circuit. The three-way coaxial speaker consists of a mid-bass speaker, a center speaker and a separate tweeter in the front on a special beam. Component Speakers: Component speakers are characterized by a division into individual frequency bands, treble + mid-bass + or. bass band. The individual speakers can be placed completely separately, which results in a better sound and acoustic performance. In the vast majority of cases of component speakers, an external crossover is also supplied, which divides the treble, middle / mid-bass, and into the three-band the bass band or allows setting the decibel level of the tweeter (e.g. +2 dB, 0 dB, -2 dB), steepness (e.g. 6dB/Oct. 12dB/Oct.) or active or bi-amp connection.	Component 2-way
RMS powerRMS speaker power is the constant power of the entire system, not just one speaker or one side. This is also the performance of continuous use of the speakers. If the RMS power is exceeded for a long time, the speakers may be irreversibly damaged!	60 W
Max. (maximum performancePeak performance , which the speaker can play for a moment (approx. 0.5 s), for example when hitting drums in a song. If the max power is exceeded, the speakers will usually be damaged!	100 W
Sensitivity (SPL 1W/1m)Sensitivity, sensitivity or efficiency of the speaker. Speaker sensitivity is given in decibels (dB) and simply put, the higher the value, the lower the demands on the amplifier's power. This is a defacto rating of how a speaker converts watts to sound. Sensitivity ratings are in noise level measured at 1 meter from the speaker using 1 W (watt of power) or using 2.83 volts at the source at 1 meter. A higher decibel level means the speaker is louder with less power. For every 3 dB increase in sensitivity, the speaker requires half the power to reproduce the same volume. For example, if an 88 dB speaker needs 100 Watts to produce a certain volume, then a speaker with a sensitivity of 91 dB needs only 50 Watts to reach the same volume.	88 dB
ImpedanceImpedance - measurement of electrical resistance. When buying speakers, it is important to make sure that the impedance matches the amplifier or car stereo you are using. Example: A 2 Ohm speaker cannot be connected to an amplifier that is only stable up to 4 Ohms! A 4 Ohm speaker can easily be used with an amplifier that is stable up to 2 Ohms. The most common speaker impedance today is 3 - 4 Ohm.	4 Ω
Frequency rangeThe ability of the speakers to play a signal from the lowest frequency to the highest, or the speaker's ability to faithfully reproduce sound in a specific frequency band. Professionally: In the frequency range from 40 to 16,000 Hz, the vast majority of fundamental and overtones (harmonics) of all musical instruments are found. We are interested in the course of the radiated sound pressure in this range of frequencies when the loudspeaker system is supplied with constant power. We call this course the frequency characteristic, which tells us the level of radiated sound pressure in decibels (dB) depending on the frequency. The frequency characteristic of a speaker or speaker system can be expressed most succinctly with a graph. Mostly, however, the frequency characteristic is indicated by indicating the maximum tolerance of the sound pressure in the given frequency range, e.g. 50 to 15,000 Hz -+ 6 dB. Since the frequency characteristics of loudspeakers and systems in general are quite uneven, some manufacturers do not even specify this maximum tolerance of sound pressure in decibels in their catalogs for reasons of prestige. Data impoverished in this way is unfortunately worthless. What is valid is that the manufacturer offers a speaker system with a frequency range of 30 to 20,000 Hz, if he is worried about stating the maximum unevenness of the sound pressure in this range, because he can have a tolerance of, for example, +- 20 dB. The unevenness or undulation of the frequency curve in good speaker systems for high-quality music performance should not exceed +-3 dB in the 80 to 12,000 Hz band and +-6 dB in the 40 to 16,000 Hz band. Greater unevenness already depletes or emphasizes certain tonal areas, which can cause audible or even disturbing distortion. The proportion between fundamental tones and higher harmonics also changes, thereby changing the color of the sound, and individual musical instruments as well as the entire musical image sound unnatural.	100 - 24000 Hz
Center speaker diameterThe diameter of the center speaker is given as the diameter of a round speaker, not including the mount, where the mounts protrude even more on smaller speakers.	100 mm
Center speaker diaphragm materialDiaphragm material that was used in the manufacture of the center speakers.	Glass fiber
Tweeter dome diameterThe net diameter of the dome (diaphragm) of the tweeter.	25 mm
Tweeter dome materialThe shell material that was used in the manufacture of the tweeter.	Silk
Frequency crossover included in the packageThe crossover is an important part of defacto all loudspeakers. A crossover usually contains different resistor values, coil sizes, and capacitor types that fundamentally modify the sound. We describe below what the turnouts are for. Component Speakers: A crossover is part of every quality component speaker system. Its task is to ensure the distribution of frequencies that the amplifier produces in the entire acoustic spectrum of frequencies so that each of the speakers receives only that part of the band that it can optimally play in terms of efficiency and minimal distortion. Coaxial speakers: In most cases, coaxial loudspeakers have a simple crossover (6dB/Oct.) formed by a capacitor at the tweeter.	Yes
Cover grids included in the packageOriginal cover grilles in speaker packaging.	No
Other	For Mercedes-Benz vehicles
Price forIf the price is for a pair, the package always includes 2 pieces of everything, e.g. 2x mid-bass, 2x tweeter and 2x crossover.	Pair
