Gladen Sigma 200.2 AC speakers

Name: Gladen Sigma 200.2 AC speakers
Brand: Gladen
Price: 349.00 EUR
Availability: InStock

Be the first to rate the product

Add to FavoritesRemove from favourites

component speakers, Ø 200 mm, 200 W RMS, 3 Ω, 92.5 dB (2.83V/1m), mounting depth 76 mm
More about the product

We will help you with your purchase

You can return the goods to us within 14 days

Description and parameters
Evaluation0
Category

Gladen Sigma 200.2 AC Speakers

The new Sigma series combines the original values of Gladen with the latest future-oriented technologies. In addition to the excellent sound performance achieved through the careful development of the latest materials and newly designed drivers, a significant aspect of the development was the integration into today's modern vehicles. The compact tweeter with a 22 mm dome and rich mounting accessories, along with the mid-bass driver equipped with the new Hexatec cone, impress with their sound quality and ease of installation. This is further enhanced by the advanced crossover, which can be easily configured according to frequency bands. Besides regular operation, the crossover design also allows for bi-amping configuration. Special attention is also given to the newly developed 50 mm full-range speaker, which, thanks to its frequency range from 300 to over 20,000 Hz, enables an innovative concept of audio systems. Sigma successfully follows in the footsteps of its predecessors Zero and Zero Pro, bringing an exclusive speaker series that transforms any audio system into an unforgettable sound experience.

Main Features

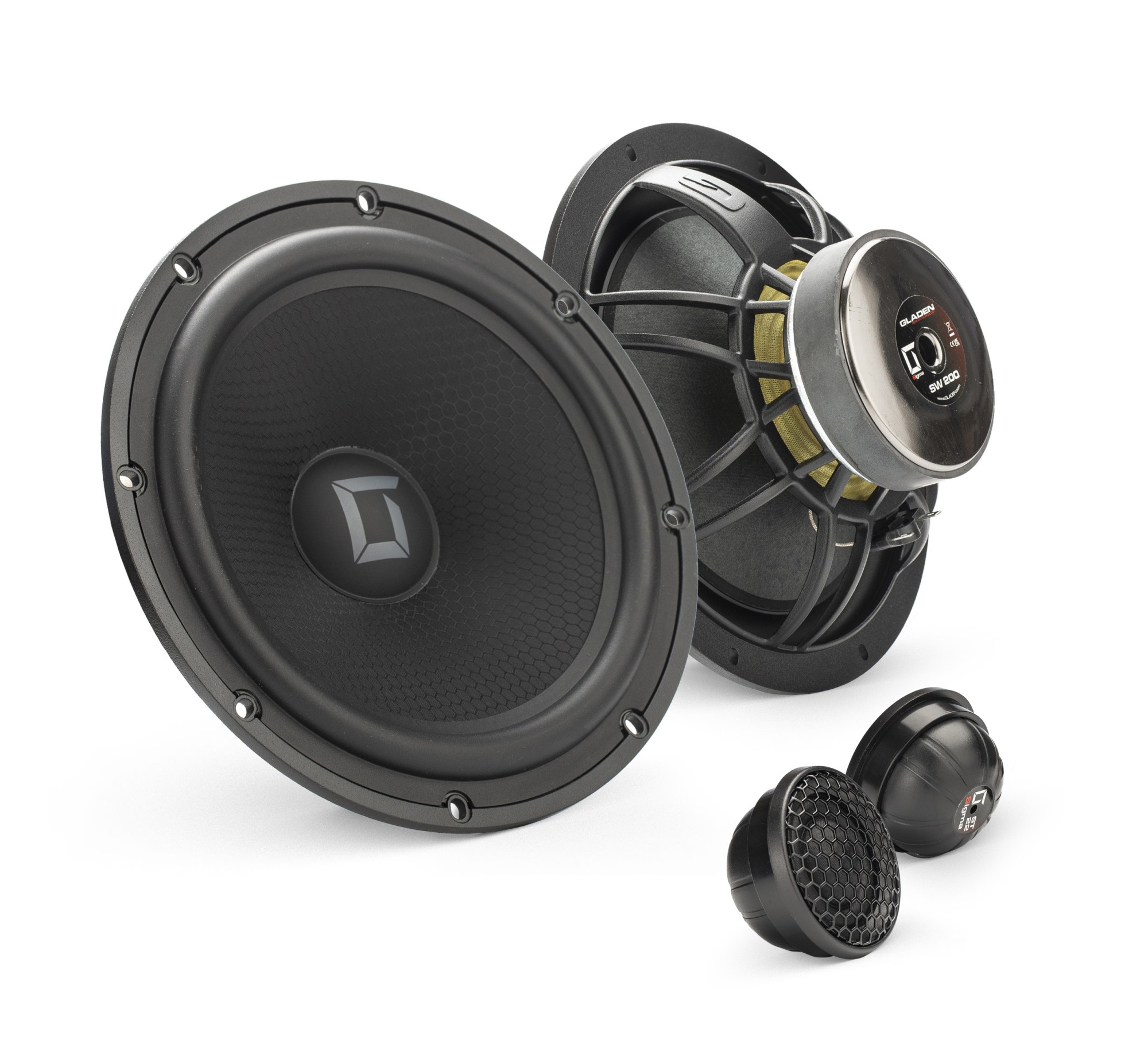

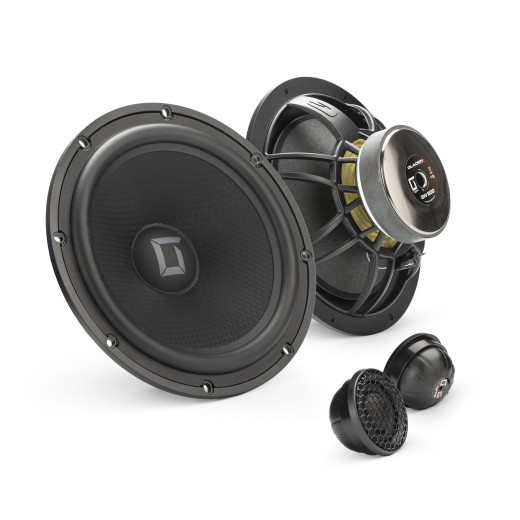

2-way component speakers from the Sigma series.
High sensitivity and reduced impedance of 3 ohms ensure low demand on the amplifier.

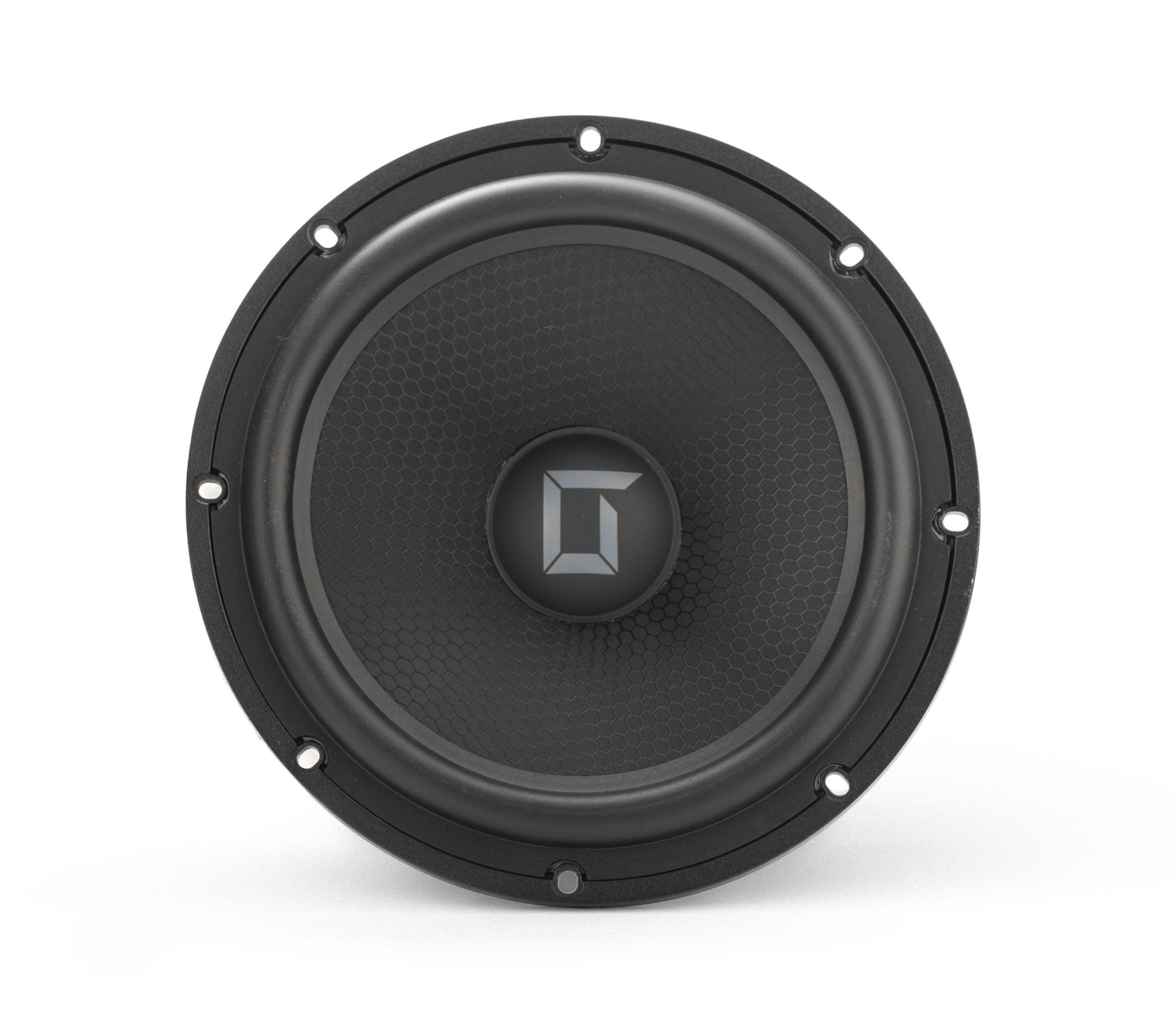

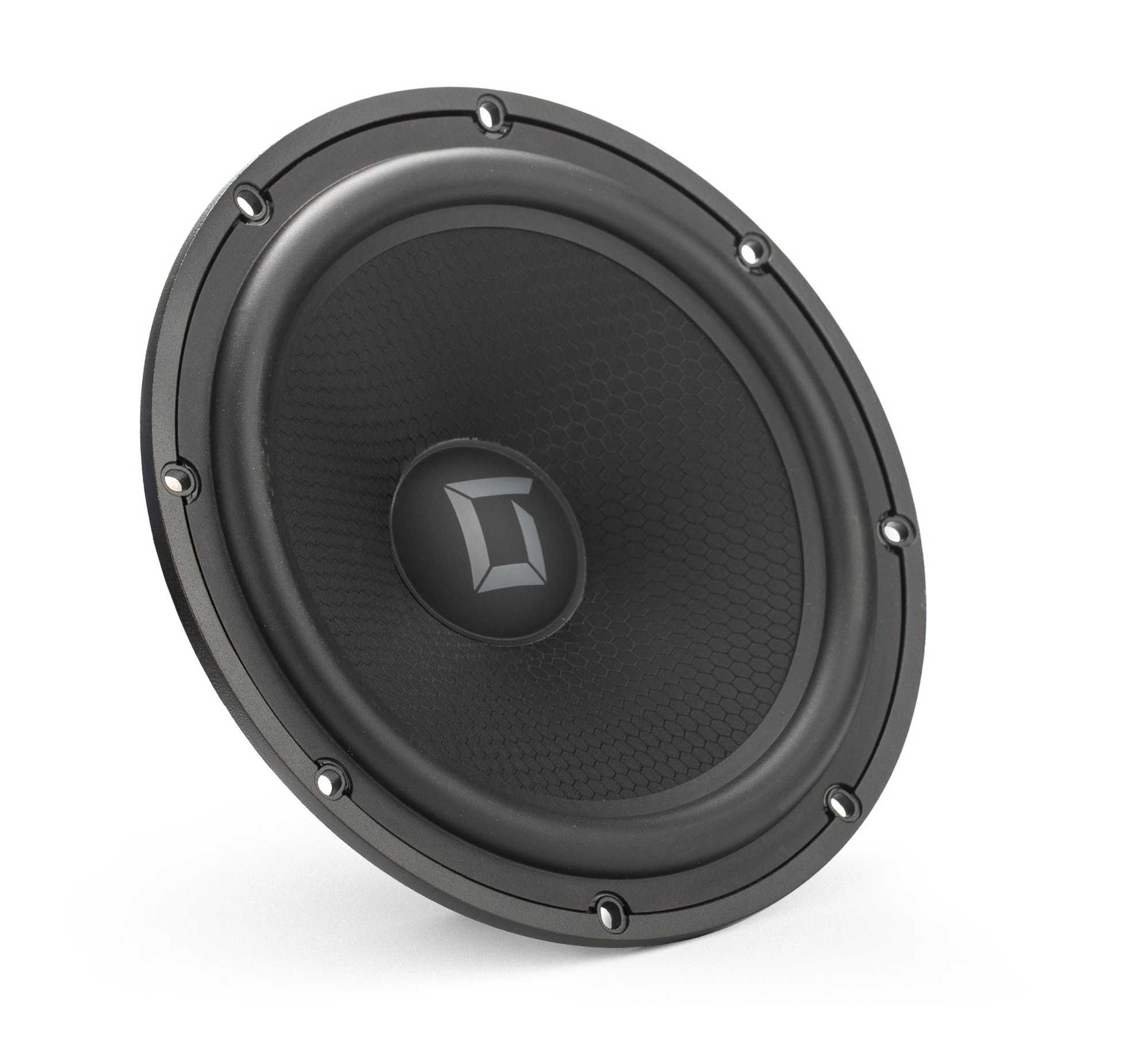

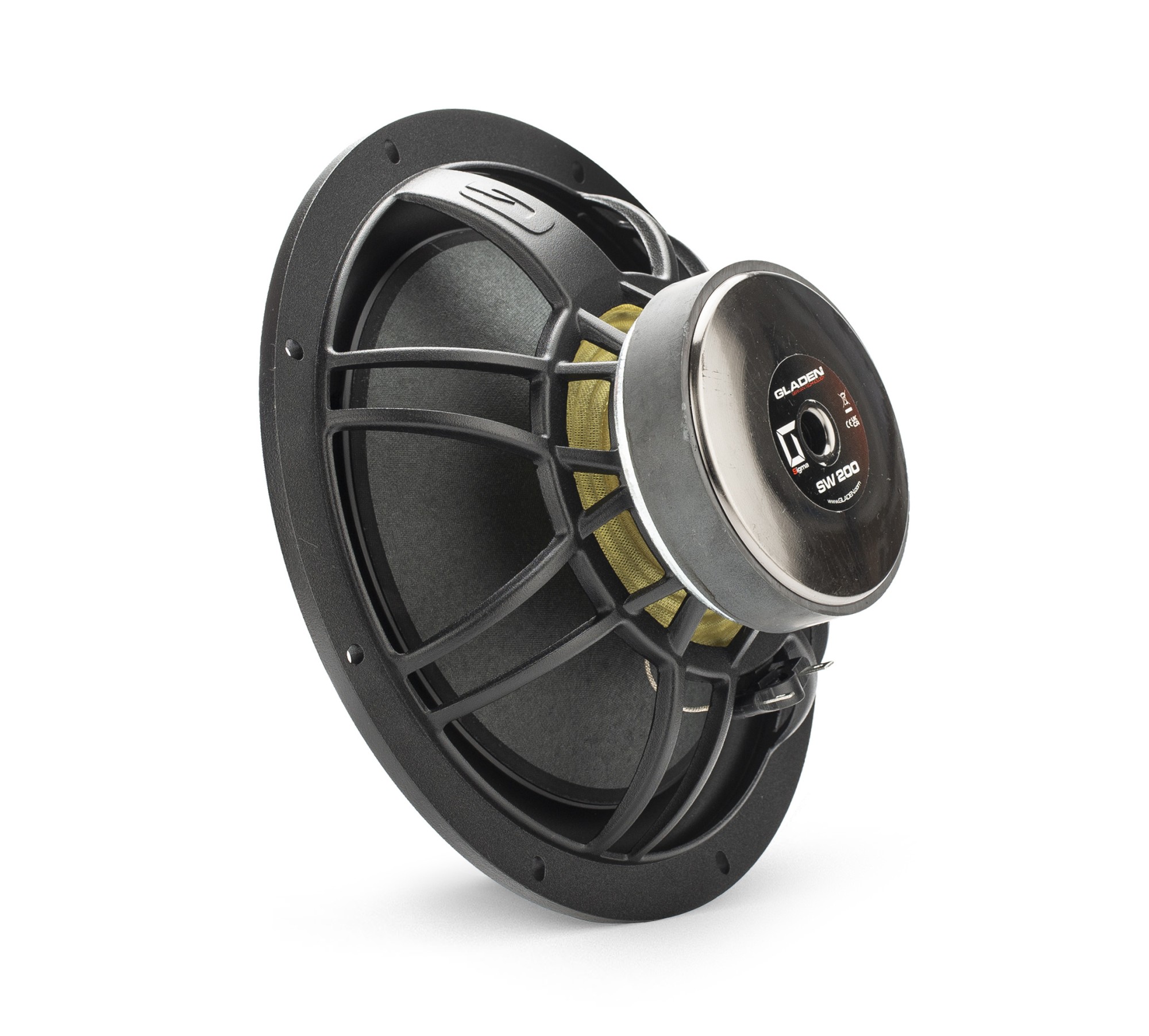

Newly developed Hexatec cone with a diameter of 200 mm.
Meta-aramid fiber surround with strong durability (Nomex).
Option to remove the tweeter from the plastic casing.

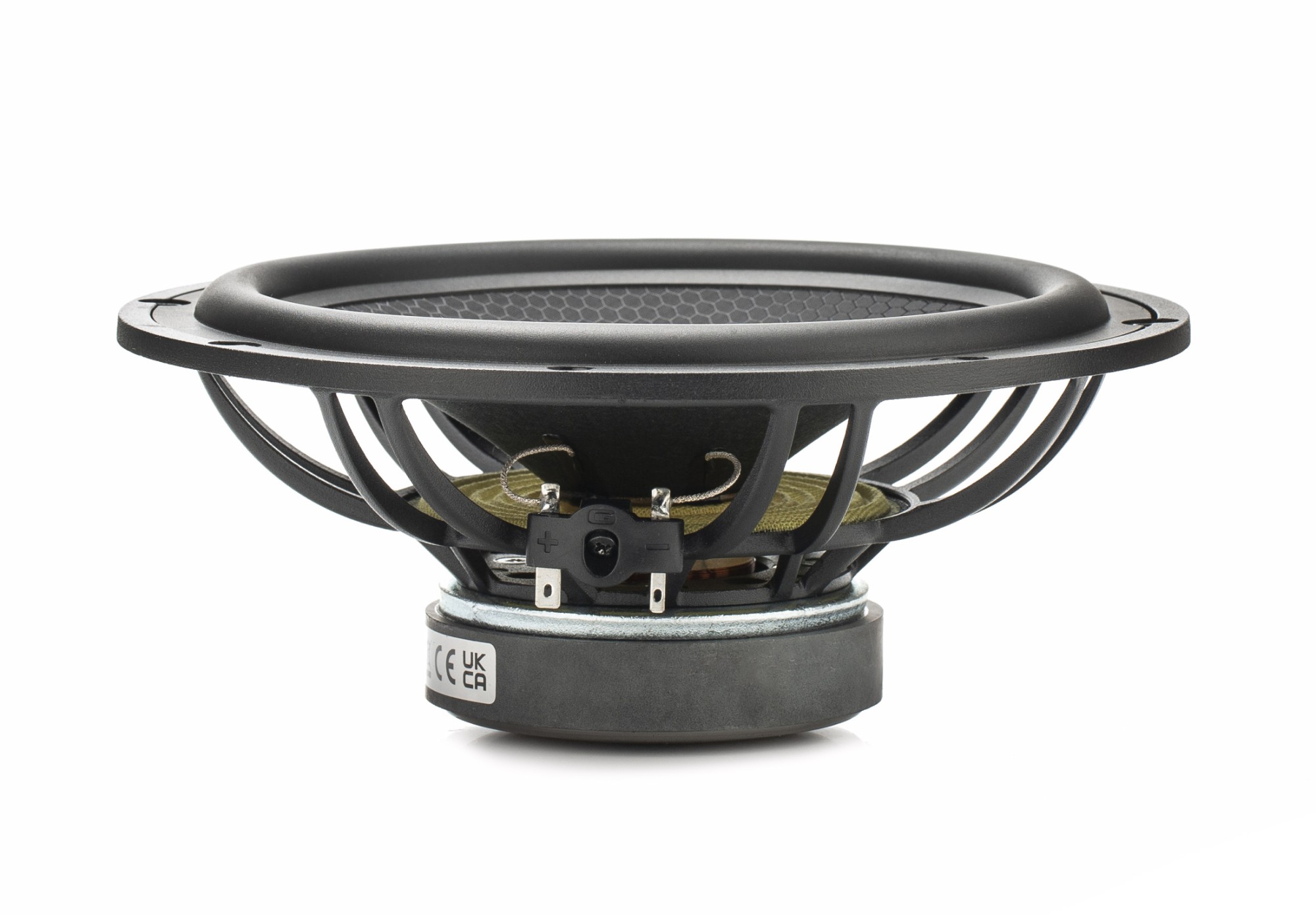

Solid aluminum basket with optimized airflow.
Rubber surround for long-term durability.
Robust magnet system with rubber protection for high distortion-free performance.

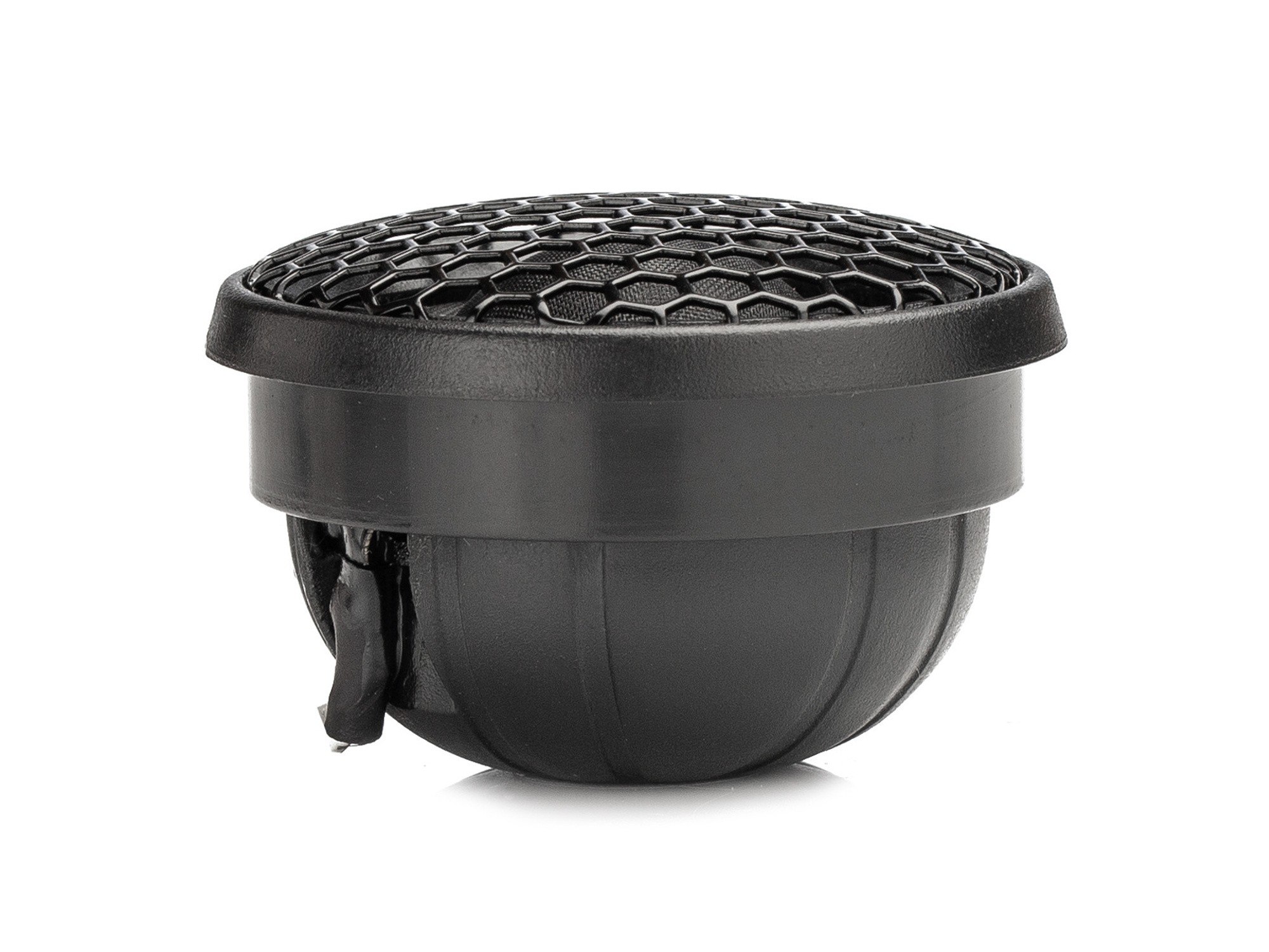

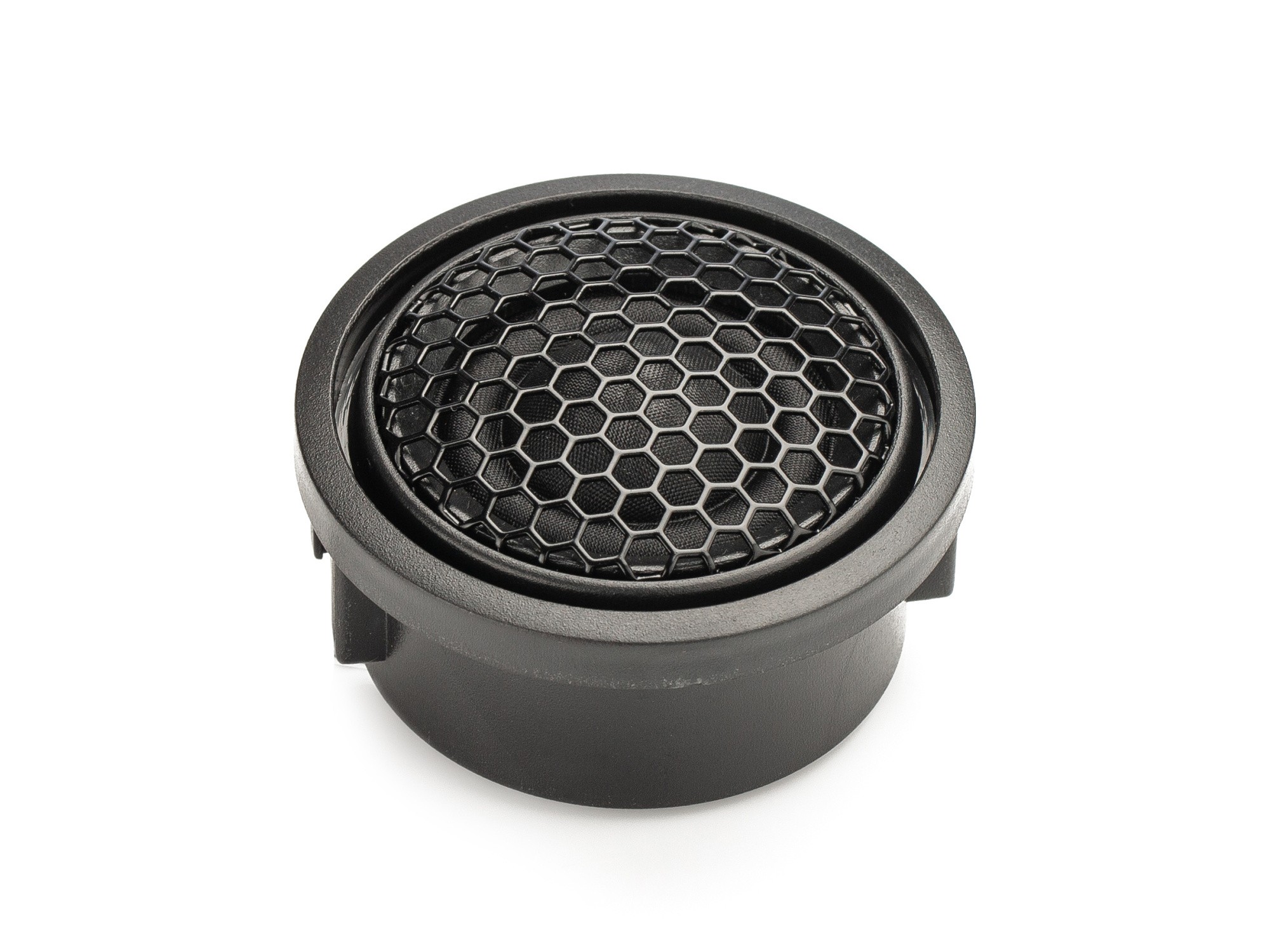

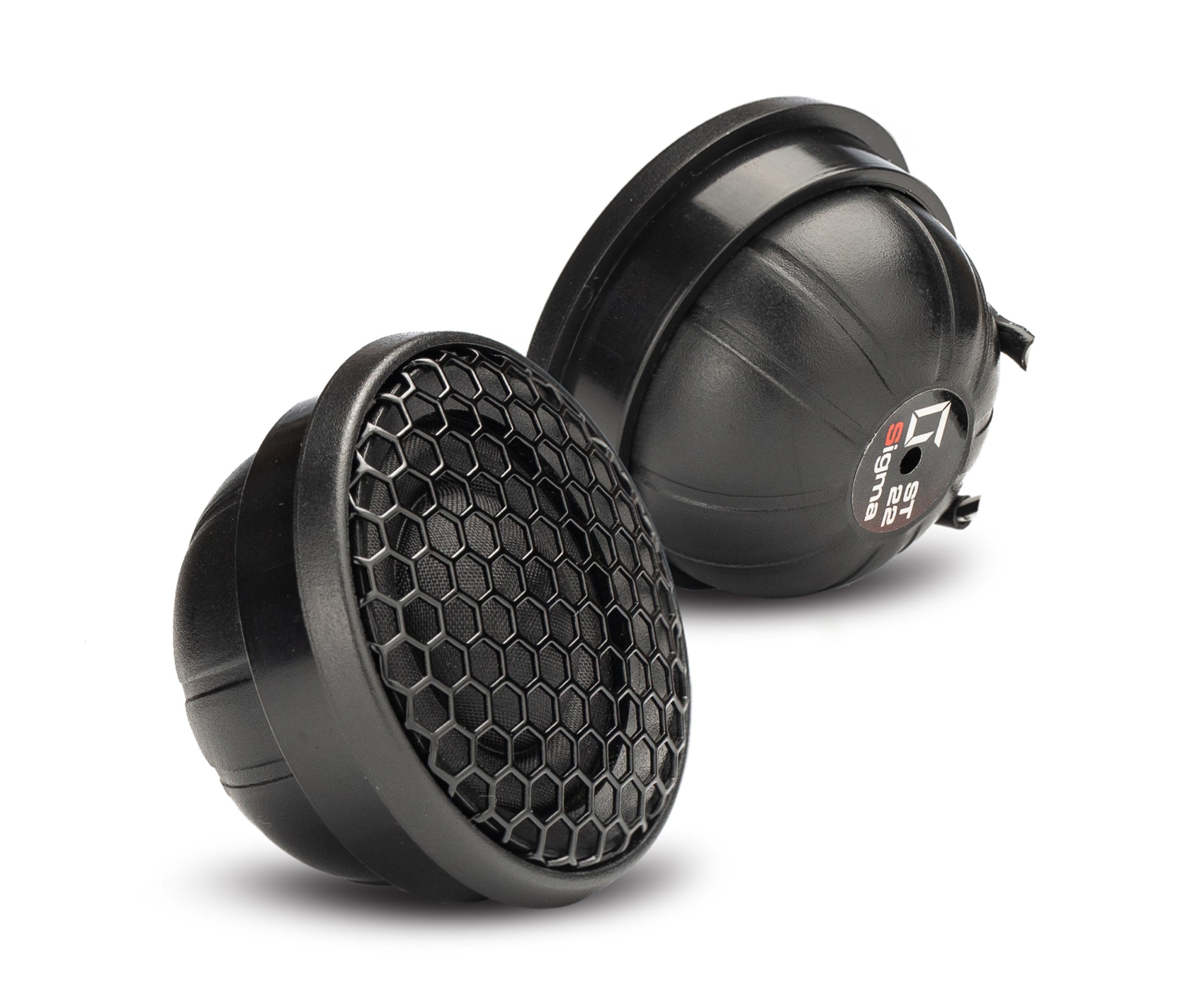

22 mm tweeter with a silk dome.
Option to remove the tweeter from the plastic casing.

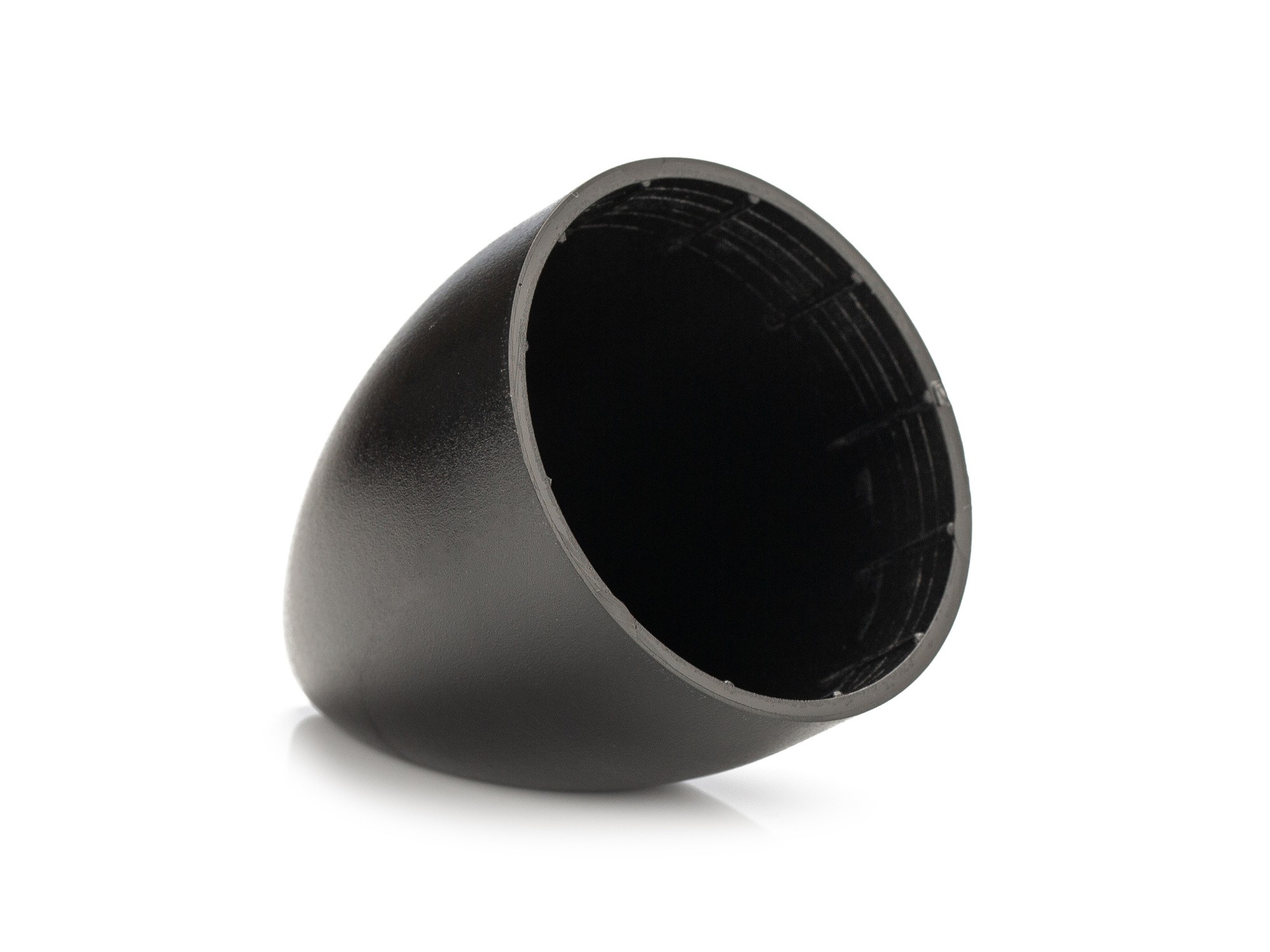

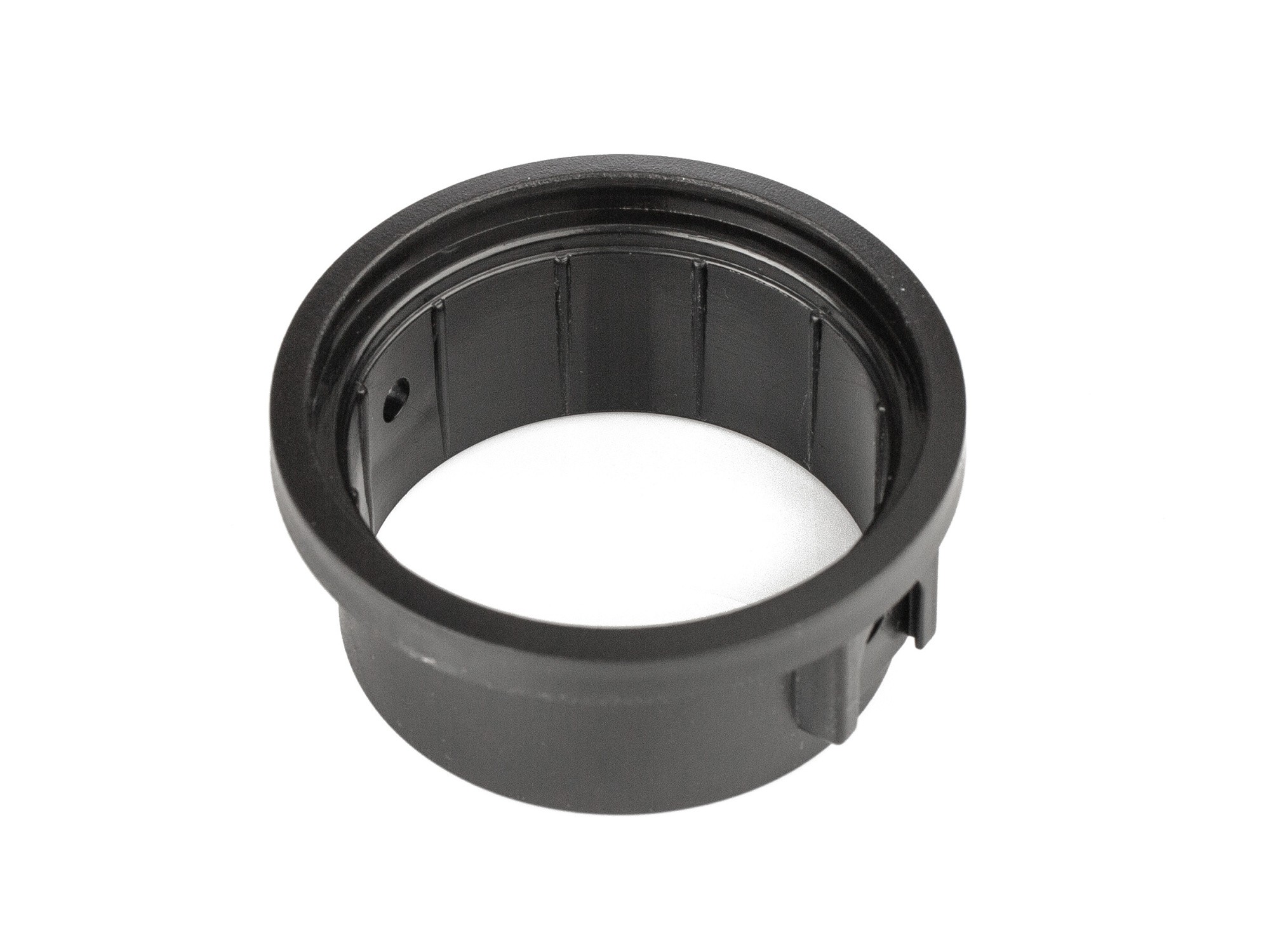

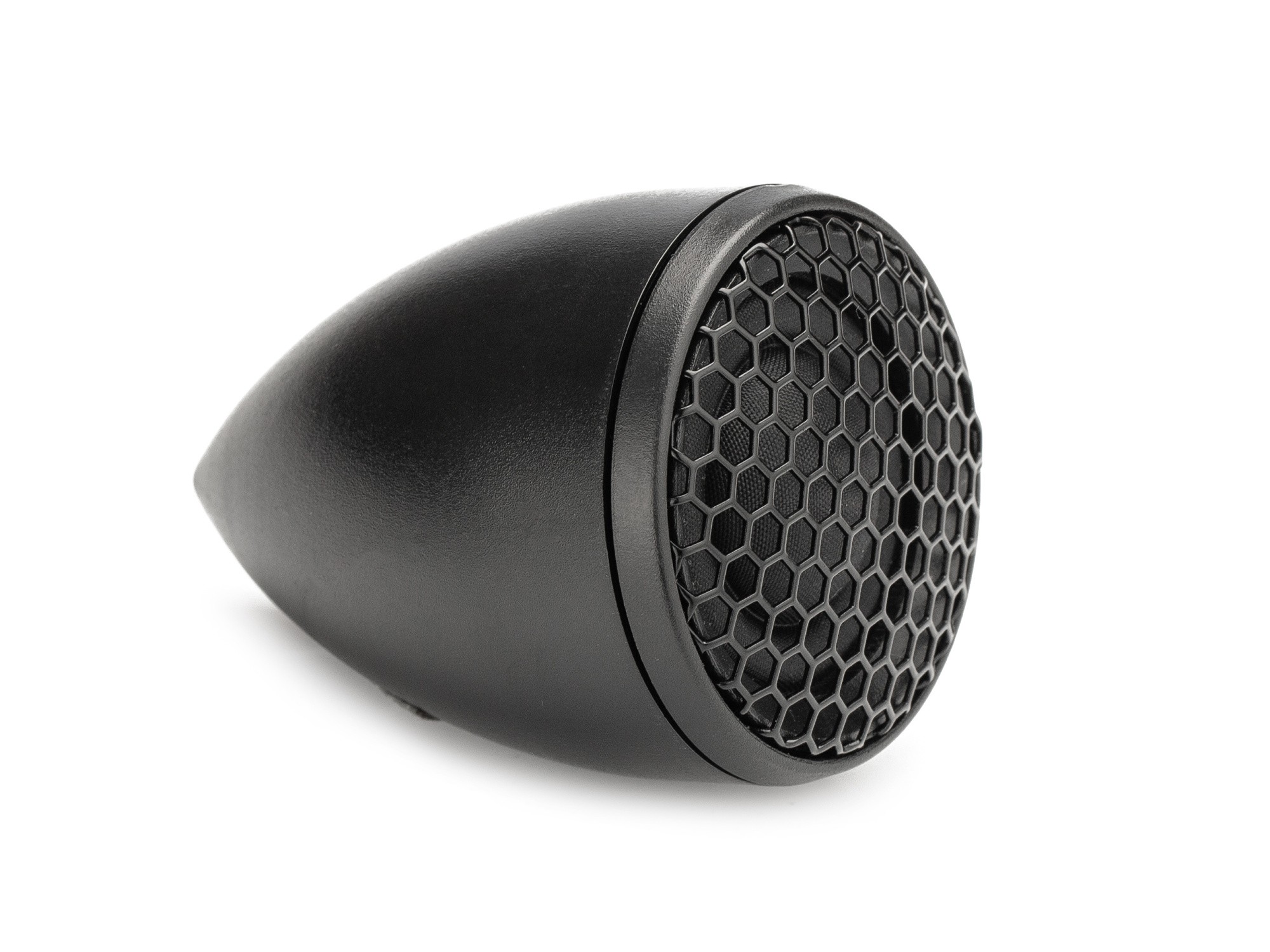

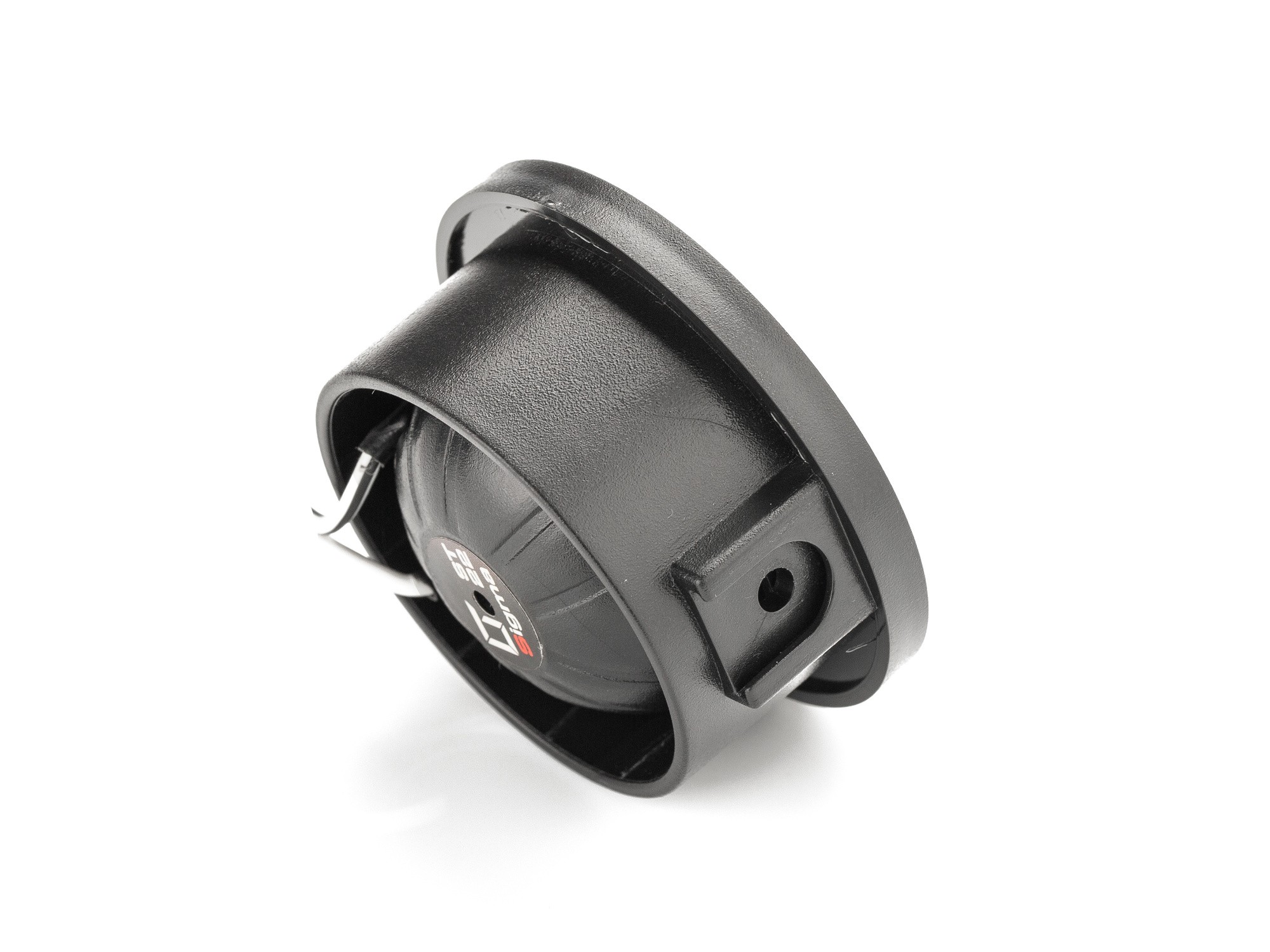

Housings and additional accessories for tweeters included.
Without crossovers - suitable for active wiring.

About the Brand

Gladen is one of the most successful brands in Germany, where it originated and has its roots. Gladen offers high-quality products like speakers, subwoofers, and amplifiers. It also has a wide product portfolio, including hundreds of items such as connectors, damping materials, and many other items. In the past and present, Gladen products have received prestigious EISA awards. Germans have come to love this brand - they simply adore it.

Catalog number	SIGMA 200.2 AC
Brand	Gladen
Links	Official web presentation
Speaker typeCoaxial speakers: Coaxial speakers are characterized by a so-called all-in-one design. The tweeter and mid-bass speaker are in one basket. The advantage is simpler assembly, but thanks to the connection or proximity of the bands in one speaker, the sound quality will usually be reduced. As a rule, in the middle of the mid-bass speaker, there is a tweeter whose voice coil works in the second air gap of the common magnetic circuit. The three-way coaxial speaker consists of a mid-bass speaker, a center speaker and a separate tweeter in the front on a special beam. Component Speakers: Component speakers are characterized by a division into individual frequency bands, treble + mid-bass + or. bass band. The individual speakers can be placed completely separately, which results in a better sound and acoustic performance. In the vast majority of cases of component speakers, an external crossover is also supplied, which divides the treble, middle / mid-bass, and into the three-band the bass band or allows setting the decibel level of the tweeter (e.g. +2 dB, 0 dB, -2 dB), steepness (e.g. 6dB/Oct. 12dB/Oct.) or active or bi-amp connection.	Component 2-way
RMS powerRMS speaker power is the constant power of the entire system, not just one speaker or one side. This is also the performance of continuous use of the speakers. If the RMS power is exceeded for a long time, the speakers may be irreversibly damaged!	200 W
Max. (maximum performancePeak performance , which the speaker can play for a moment (approx. 0.5 s), for example when hitting drums in a song. If the max power is exceeded, the speakers will usually be damaged!	275 W
Sensitivity (SPL 2.83V/1m)Sensitivity, sensitivity or efficiency of the speaker. Speaker sensitivity is given in decibels (dB) and simply put, the higher the value, the lower the demands on the amplifier's power. This is a defacto rating of how a speaker converts watts to sound. Sensitivity ratings are in noise level measured at 1 meter from the speaker using 1 W (watt of power) or using 2.83 volts at the source at 1 meter. A higher decibel level means the speaker is louder with less power. For every 3 dB increase in sensitivity, the speaker requires half the power to reproduce the same volume. For example, if an 88 dB speaker needs 100 Watts to produce a certain volume, then a speaker with a sensitivity of 91 dB needs only 50 Watts to reach the same volume.	92.5 dB
Sensitivity (SPL 1W/1m)Sensitivity, sensitivity or efficiency of the speaker. Speaker sensitivity is given in decibels (dB) and simply put, the higher the value, the lower the demands on the amplifier's power. This is a defacto rating of how a speaker converts watts to sound. Sensitivity ratings are in noise level measured at 1 meter from the speaker using 1 W (watt of power) or using 2.83 volts at the source at 1 meter. A higher decibel level means the speaker is louder with less power. For every 3 dB increase in sensitivity, the speaker requires half the power to reproduce the same volume. For example, if an 88 dB speaker needs 100 Watts to produce a certain volume, then a speaker with a sensitivity of 91 dB needs only 50 Watts to reach the same volume.	88.4 dB
ImpedanceImpedance - measurement of electrical resistance. When buying speakers, it is important to make sure that the impedance matches the amplifier or car stereo you are using. Example: A 2 Ohm speaker cannot be connected to an amplifier that is only stable up to 4 Ohms! A 4 Ohm speaker can easily be used with an amplifier that is stable up to 2 Ohms. The most common speaker impedance today is 3 - 4 Ohm.	3 Ω
The diameter of the mid-bass speakerWe state the diameter of the speaker as the diameter of the entire speaker, not including the mounts, when smaller speakers (87, 100, 130 mm) have extra mounts. Some speakers are oval and there the dimension is given in inches, always the shortest side to the longest side. One inch is approx. 2.5 cm.	200 mm
Installation depth of the mid-bass speakerThe installation depth of the speaker is measured from the bottom edge of the magnet to the bottom edge of the tin, plastic or cast speaker basket, or speaker bearing surfaces.	76 mm
Mid-woofer diaphragm materialThe material that was used for the speaker diaphragm. Don't be afraid of the paper, it surprisingly has a very natural and high-quality sound and, thanks to the surface treatment, it can withstand moisture without any problems.	Hexatec
Resonant frequency of the mid-bass speaker	45.2 Hz
Overall tweeter diameterThe total diameter of the tweeter is given as the diameter of the individual tweeter without the installation houses.	49 mm (39.5 mm after removing grille)
Tweeter dome diameterThe net diameter of the dome (diaphragm) of the tweeter.	22 mm
The overall depth of the tweeterThe total depth of the tweeter itself without the installation houses.	24 mm
Tweeter dome materialThe shell material that was used in the manufacture of the tweeter.	Silk
The resonant frequency of the tweeter	790 Hz
Frequency crossover included in the packageThe crossover is an important part of defacto all loudspeakers. A crossover usually contains different resistor values, coil sizes, and capacitor types that fundamentally modify the sound. We describe below what the turnouts are for. Component Speakers: A crossover is part of every quality component speaker system. Its task is to ensure the distribution of frequencies that the amplifier produces in the entire acoustic spectrum of frequencies so that each of the speakers receives only that part of the band that it can optimally play in terms of efficiency and minimal distortion. Coaxial speakers: In most cases, coaxial loudspeakers have a simple crossover (6dB/Oct.) formed by a capacitor at the tweeter.	No
Cover grids included in the packageOriginal cover grilles in speaker packaging.	No
Price forIf the price is for a pair, the package always includes 2 pieces of everything, e.g. 2x mid-bass, 2x tweeter and 2x crossover.	Pair
