Front parking camera Kenwood CMOS-320
Updated

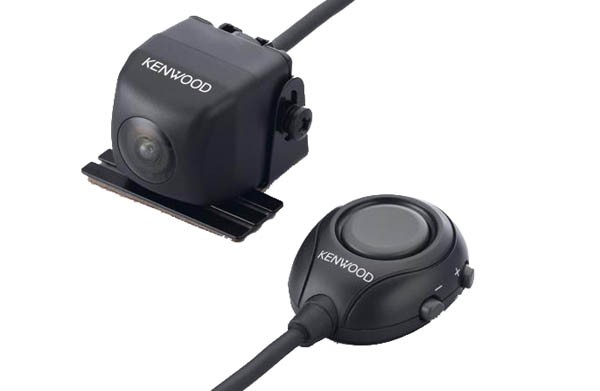

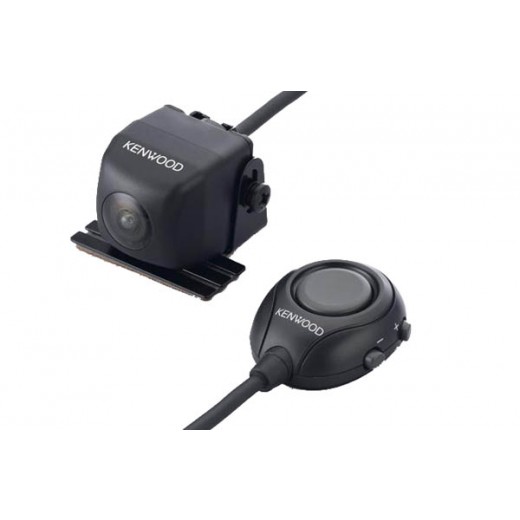

Kenwood CMOS-320

The Kenwood CMOS-320 is a universal multiview camera for cars that is designed for both front and rear installation and helps improve visibility when parking and maneuvering. Thanks to its very compact dimensions and waterproof design, it is suitable for a wide range of mounting options, whether as a front camera to monitor the area in front of the vehicle or as a rear camera for more convenient reversing. The manufacturer describes it as a universal solution for front- and rear-view use.

A major advantage of the CMOS-320 model is the selectable display modes that allow adapting the view to the specific situation. In addition to normal or mirrored display it also offers Night, Wide, Overhead and Corner modes, so the driver gets a better view of the area around the vehicle. Thanks to the CMOS chip, the camera has higher light sensitivity, shorter exposure times and a usable image even at dusk or in reduced lighting conditions.

The Kenwood CMOS-320 is a suitable choice for customers looking for a universal parking camera with flexible use and broader display options than standard models. The product page lists a 1/3.6" color CMOS camera, NTSC video signal and a separately supplied control unit. Thanks to the combination of multiple views, small size and flexible use, it is a practical accessory for expanding a compatible multimedia system in the vehicle.

Hlavní vlastnosti

  • Universal multiview camera for front and rear installation.
  • Suitable as a front or rear parking camera.

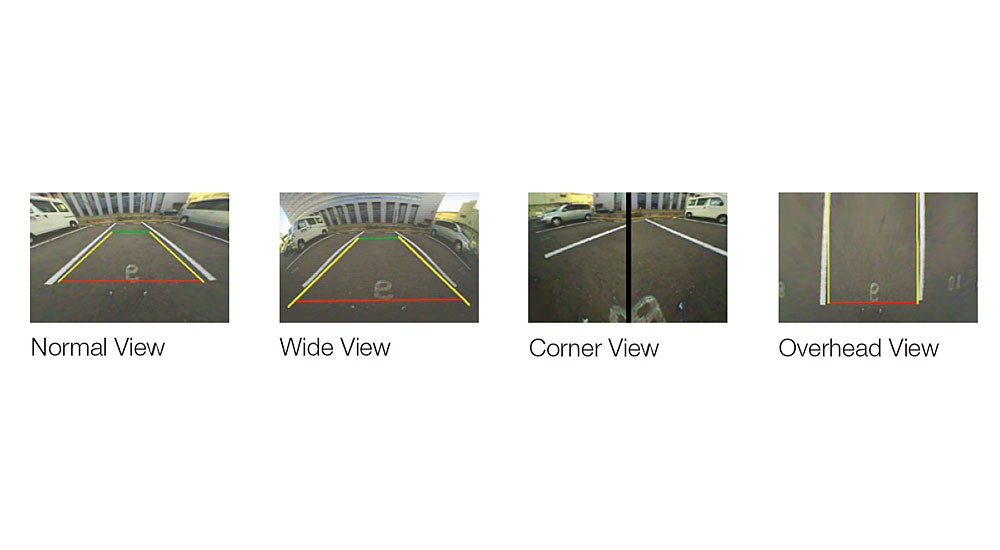

  • Selectable modes: Night, Normal, Wide, Overhead and Corner.
  • Supports normal and mirrored display.
  • 1/3.6" color CMOS camera.
  • Higher light sensitivity for better images at dusk.
  • Shorter exposure times thanks to the CMOS chip.
  • Waterproof design.
  • Very compact dimensions for flexible mounting.
  • A control unit is included in the package.
    Catalog numberCMOS-320
    BrandKenwood
    LinksOfficial web presentation

    Evaluation

    Overall rating
    0 %
    No one has rated the product yet
    Rate the product:
    Universal camera for front or rear mounting with a 1/4" color CMOS sensor and switchable views, which can be connected to any Kenwood device or monitor or any other with an AV CINCH input or used as a reverse camera. It offers a fully color wide-angle view of the area behind the vehicle for comfortable and safe reversing. Camera type: color CMOS sensor Effective number of pixels: 310000 Video output: wide-angle image for normal view wide-angle mirrored image rear view Waterproof construction: Yes Mounting system: Flexible Mount Base Installation position: Front or rear Camera ID setting: Yes View switching via controller: Super wide view Wide view Top-down view Picture-in-picture view Corner view High voltage protection: Yes Wide-angle lens: Yes Focal length: f: 0.82 mm, F value 2.6 Horizontal viewing angle: +/- 190° !!!!! Vertical viewing angle: +/- 158° Illumination range: approx. 0.9 to 100000 lux Electronic scanning system: Yes System synchronization: Internal Video output: 1Vpp, 75 Ω Remote control included: Yes Operating voltage: 14.4 (11 ~ 16V acceptable) Maximum current: 0.1 A CMOS camera dimensions: (W×H×D) 24 x 24 x 24.8 mm CMOS camera weight: 30 g DC box dimensions: (W×H×D) 54 x 23 x 22 mm DC box weight: 32 g
