Distribution block Connection BFD 41.1

Connection BFD 41.1

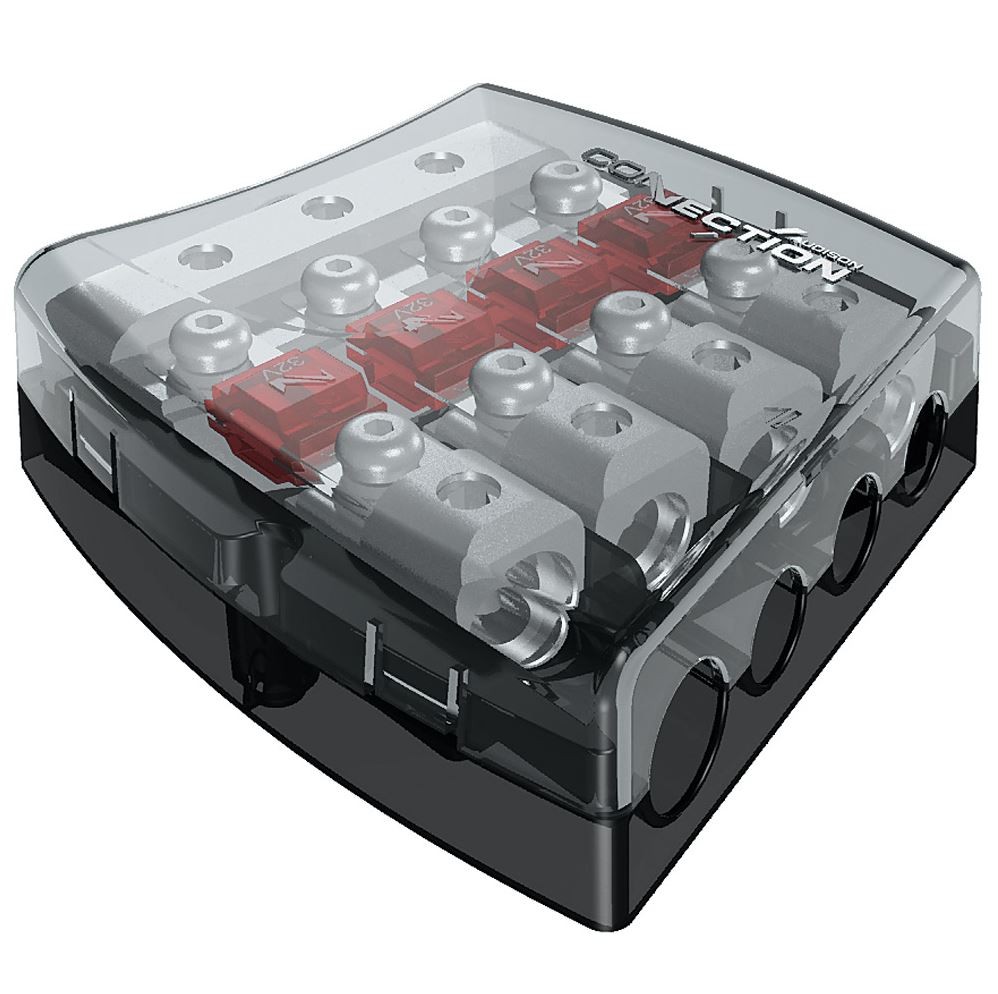

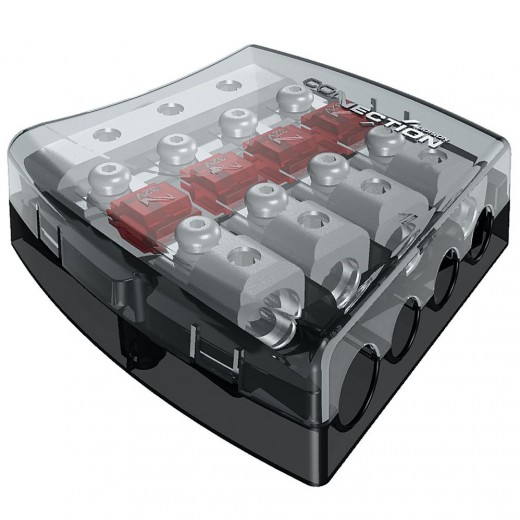

Connection BFD 41.1 is a high‑quality distribution block designed for the safe and efficient branching of the power cable in car hi‑fi systems. This polycarbonate block offers four fuse positions and ensures reliable current transfer to the individual components of your audio system. Thanks to its robust construction and precise workmanship, it represents an ideal solution for any professional car hi‑fi installation.

When building a powerful audio system in a car, proper power distribution is the key to safe and stable operation of all amplifiers. This distribution block allows you to split the main power cable from the battery into four separate branches, each protected by its own fuse. In this way you effectively protect your valuable audio components from possible short circuits or overloads.

The block features a single main input that accepts cables with cross‑sections from 21 mm² up to 53 mm², making it suitable even for very powerful systems. On the output you will find four positions for cables with a cross‑section of 21 mm². The block can accommodate fuses with ratings from 15 to 300 A, providing high flexibility when configuring protection for different types and power levels of connected amplifiers.

The construction from solid machined brass with a surface finish ensures minimal contact resistance and optimal conductivity without voltage loss. The durable polycarbonate housing protects the internal connections from mechanical damage and contaminants. The use of quality materials guarantees long service life and stable electrical properties even in the demanding automotive environment.

Main features

• Distribution fuse block designed for safe branching of the power cable in the vehicle's electrical installation.
• Strong and durable polycarbonate housing with high scratch resistance.
• Input terminal for the power conductor with cross‑section from 21 to 53 mm².
• Four output terminals for cables with a cross‑section of 21 mm².
• SMBTM (Solid Machined Brass) construction from solid machined brass for optimal current transfer.
• PLATINUM SATIN finish providing an elegant look and protection against corrosion.
• Knurled screws for a firm and low‑loss contact with individual cable strands.
• Recessed cable collar protecting against the formation of unwanted shorts caused by stray strands.
• Designed for fuses with ratings from 15 to 300 A.

About the brand

Connection is an Italian brand of high‑quality cables, accessories and installation materials for audio systems that belongs to the respected company Elettromedia — the same group that includes the prestigious Audison and Hertz brands. Elettromedia is a long‑standing leader in the audio industry with a strong tradition of innovation and quality in the manufacture of components for car audio. The Connection brand specializes primarily in interconnect cables, power cables, speaker cables and a wide range of accessories designed to transmit the signal with maximum accuracy and without compromise. Connection combines Italian design, top‑grade materials and precise manufacturing, making it the choice for those seeking reliable and long‑term high‑performance solutions for their audio systems. It is a brand synonymous with top quality and technological advancement in the field of cabling and accessories for car hi‑fi installations.
