Distribution block Connection BDB 51.1
More about the product
- You can return the goods to us within 14 days
Connection BDB 51.1

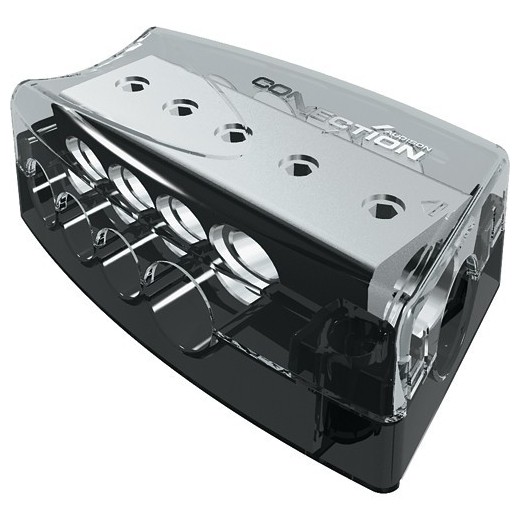

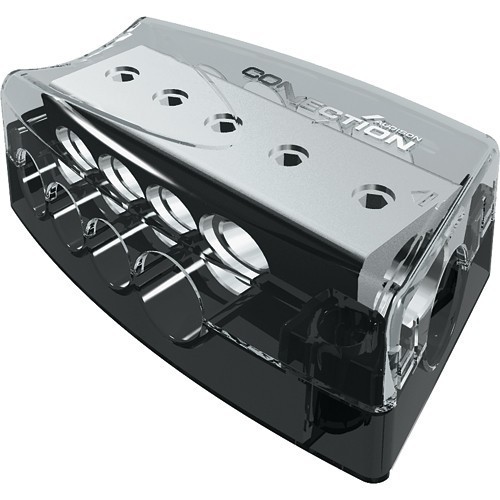

The Connection BDB 51.1 distribution block is a reliable solution for safe and efficient power distribution in your car audio system. This component ensures optimal current distribution to individual amplifiers and minimizes contact resistance in the power network. With precise workmanship and a robust design, it is an ideal choice for the stable operation of the entire audio installation.
When building a higher-power car audio system, you often face the need to split the main battery cable into multiple branches for individual amplifiers. A distribution block is exactly for this purpose, ensuring each component receives precisely the amount of power it needs for proper operation. Correct power distribution also prevents voltage drops that could negatively affect the resulting sound quality.
This model features a one-piece brass body with an SMB design, which guarantees high electrical conductivity and minimizes energy loss. A durable polycarbonate housing reliably protects the internal connections from mechanical damage and contaminants, which is crucial in the demanding environment of a vehicle. The brushed platinum finish additionally gives the block an elegant look that aesthetically complements any installation.
Connection flexibility is provided by inputs and outputs that allow wiring of various cross-sections from 4 AWG up to sturdy 1/0 AWG. The package also includes a practical adapter for 10 mm² wire, making it easier to adapt the block to the specific requirements of your installation. Robust screw terminals then guarantee a secure and lasting contact, so you don’t have to worry about cables loosening due to vibration while driving.
Main features
- Distribution block designed for safe and efficient distribution of supply voltage to multiple components of a car audio system.
- Connection configuration for 1 x 1/0 AWG, 1 x 2 AWG and 3 x 4 AWG with included 10 mm² adapter.
- Durable polycarbonate housing protecting internal connections from scratching.
- Inputs for wires with cross-sections from 4 AWG to 1/0 AWG.
- One-piece brass SMB construction ensuring optimal current transfer.
- Stylish brushed platinum surface finish.
- Secure screw terminals to ensure perfect contact with the conductor.
About the brand
Connection is an Italian brand of high-quality cables, accessories and installation materials for audio systems, part of the renowned Elettromedia group — the same group that includes the prestigious brands Audison and Hertz. Elettromedia is a long-standing leader in the audio industry with a strong tradition of innovation and quality in the manufacture of car-audio components. The Connection brand focuses primarily on interconnects, power cables, speaker cables and a wide range of accessories designed to transmit signals with maximum accuracy and no compromises. Connection combines Italian design, top-quality materials and precise manufacturing, making it the choice for those seeking reliable and long-lasting performance for their audio systems. It is a brand synonymous with premium quality and technological advancement in cabling and accessories for car audio installations.
| Catalog number | 64100610 |
| Brand | Connection |
| Links | Official web presentation |
