DAB receiver

DAB receiver

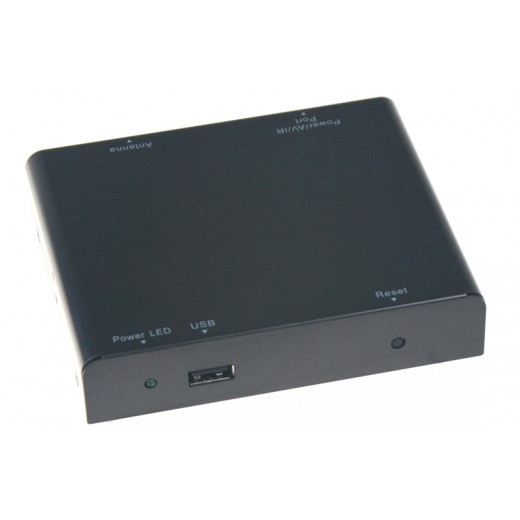

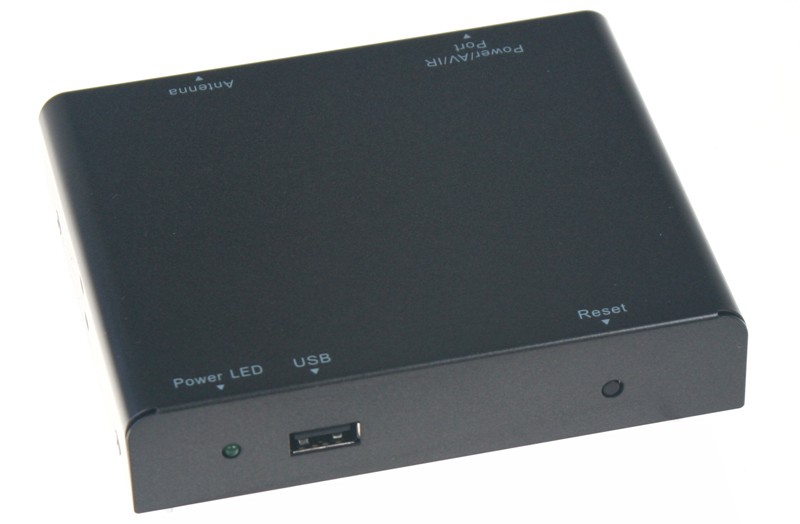

DAB radio receiver for installation in the car. This receiver will allow you to receive DAB/DAB+ digital radio broadcasts. The sound is transmitted to the car radio using line (cinch) inputs, the receiver is controlled using the remote control that is included in the package.

Advantages:

• excellent sound output quality
• excellent reception sensitivity
• DAB+ radio with slide show function

Specifications:

• antenna: active DAB antenna (SMB)

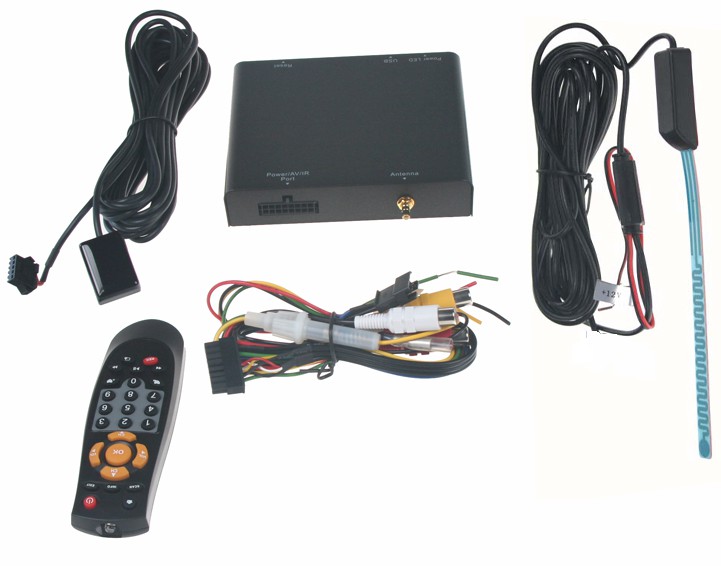

• the package includes a glass antenna with power supply
• frequency range: FM (88-108MHz), VHF-3(170-230MHz)
• RF input impedance: 75 ohm
• transmission standard: ETSI EN 300 401 DAB compliant, ETSI TS 102 563 DAB+ compliant
• decoder: video - JPEG, audio - MPEG Audio Layer II, AAC
• OSD language: Czech, Chinese, English, German, French, Portuguese, Spanish, Italian, Danish
• functions: DAB slide show, Multi language EPG, Channel Management, Auto channel search
• media formats: audio - mp3, wav; video - mpg, data, vob, avi(MPEG4 ASP, XviD, Divx4.0/5.0); photo - jpg, bmp, gif
• AV output: CVBS and stereo audio output
• USB Port USB 2.0 (for multimedia playback)
• IR remote control including an external IR receiver
• supply voltage: +12 V ~ +24 V DC
• power consumption: 2.4 W
• dimensions: 115 x 95 x 25 mm
• weight: 295 g
