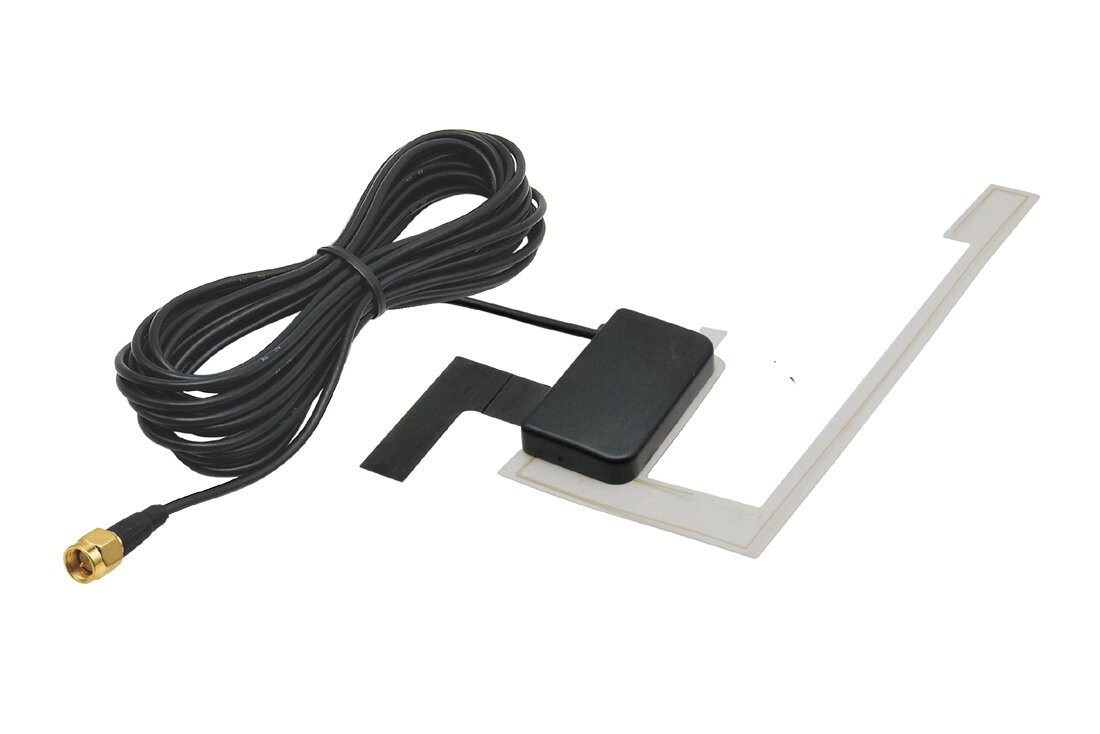

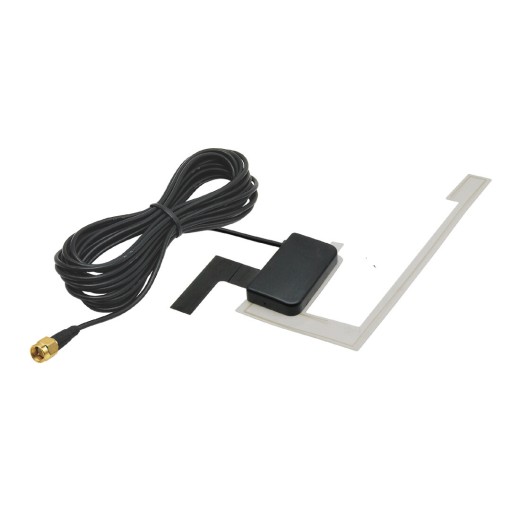

DAB indoor active antenna Macrom 287006

DAB-DAB+ internal active antenna on glass - clear

• Supply voltage: 9 - 16 V DC phantom.
• Cable length: 3 m (impedance: 50 ohms, capacitance: 101pF/m).
• Connector: SMA male.
• Frequency range: 174 - 237 MHZ (III band) / 1452 - 1492 MHz (L band).
• Gain: III band 16 - 20 dB / L band 12 ± 2 dB.
• Current consumption: 30 mA.
• Dimensions: 16 x 7 x 1 cm (L x W x H).

Installation : self-adhesive on the glass from the inside, vertical placement

Application : universal, for car radios with SMA connector
