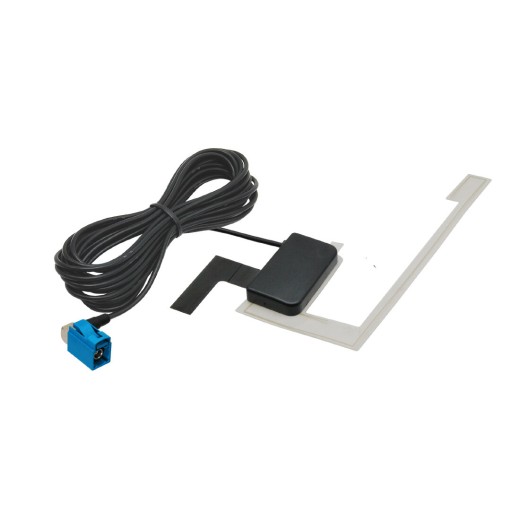

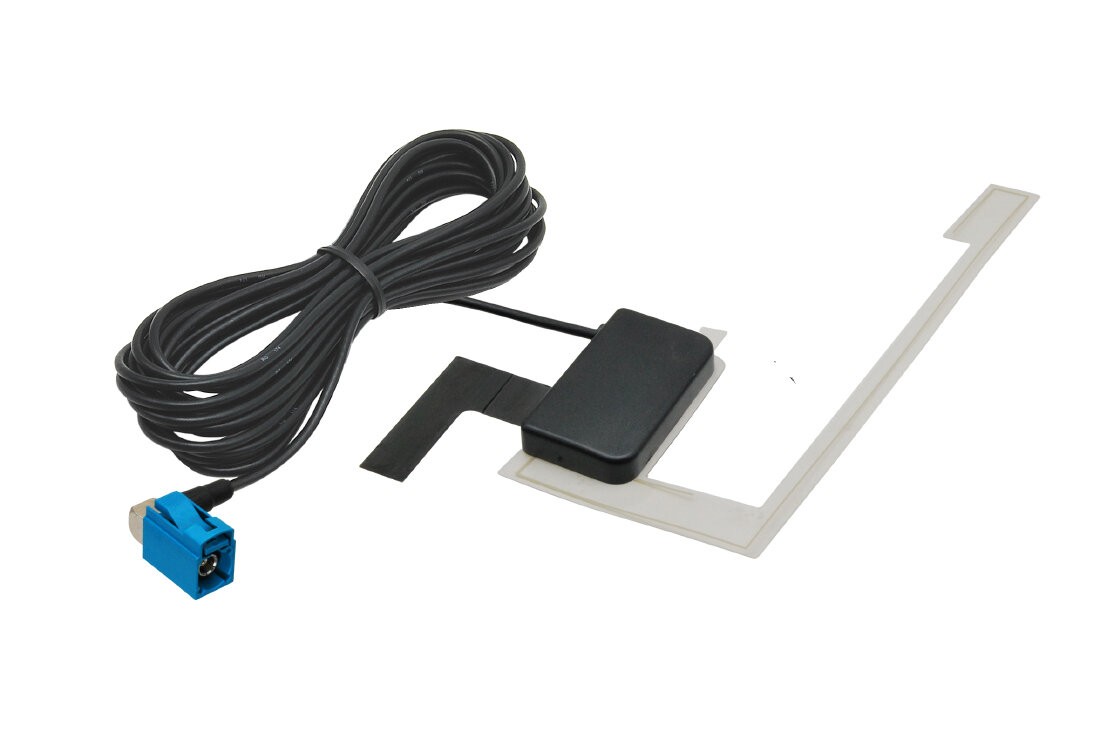

DAB indoor active antenna Macrom 287003
internal active glass antenna / DAB / phantom power 12V / FAKRA connector
More about the product
More about the product
The sale is over
DAB-DAB+ internal active antenna on glass - clear
- Supply voltage: 9 - 16 V DC phantom
- Cable length: 3 m (impedance: 50 Ohm, capacitance: 101 pF/m)
- Connector: FAKRA female (dark green color)
- Frequency range: 174 - 237 MHZ (III band) / 1452 - 1492 MHz (L band)
- Gain: III band 16 - 20 dB / L band 12 ± 2 dB
- Current consumption: 30 mA
- Dimensions: 16 x 7 x 1 cm (L x W x H)
Application: universal, for car radios with SMB connector (e.g. Macrom, Pioneer, Clarion...)
| Catalog number | 287003 |
| Brand | Macrom |
| Links | Official web presentation |
