Crunch DSX6.2E Speakers

component speakers, Ø 165 / 25 mm, 100 W RMS, 4 Ω, cone: polypropylene / silk, mounting depth 45 mm
More about the product

We will help you with your purchase

You can return the goods to us within 14 days

Description and parameters
Evaluation0
Category

Crunch DSX6.2E Speakers

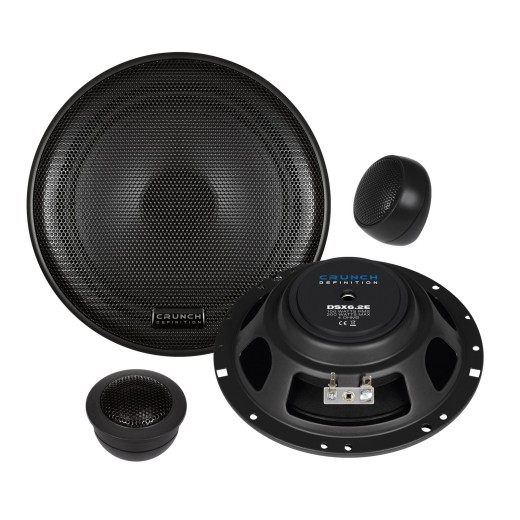

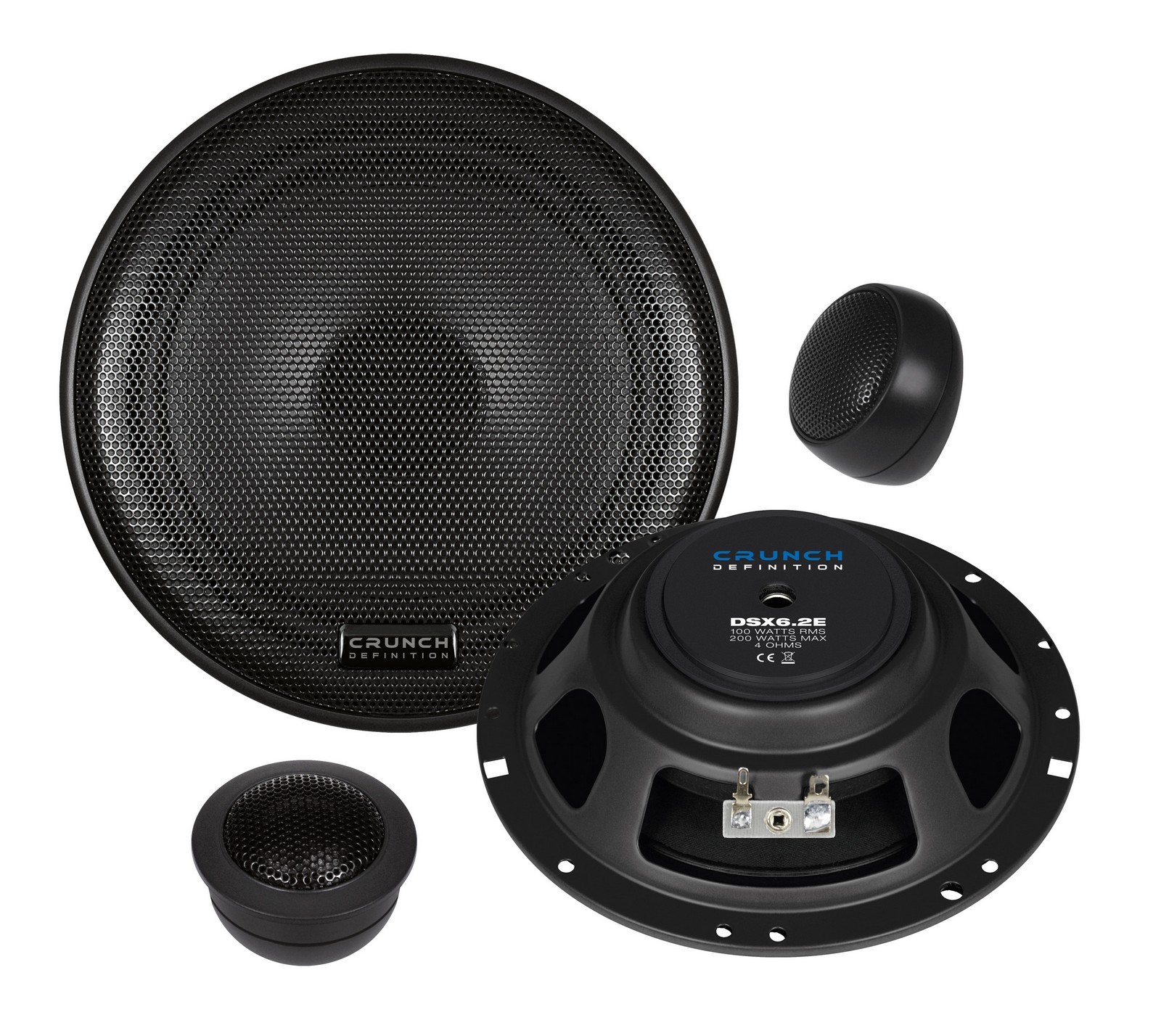

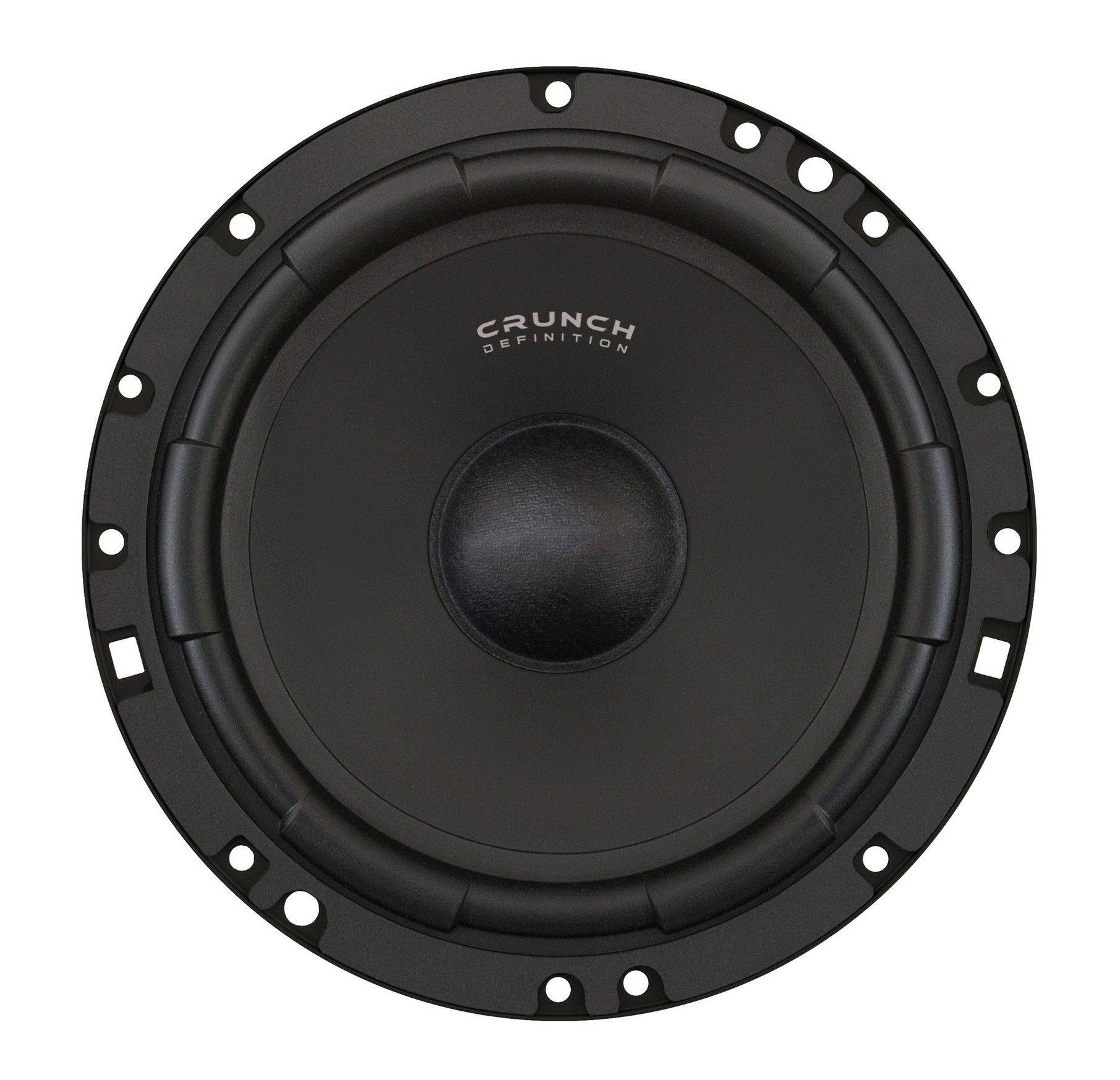

The Crunch DSX6.2E are 165 mm component speakers in a low-profile design, engineered for installations with very limited mounting depth. The internally mounted magnetic system allowed a significant reduction of the basket depth without major compromises in performance, making them a suitable choice for vehicles with tight installation space or when replacing factory speakers. The mid-bass drivers use a polypropylene cone, a 25 mm voice coil and a sturdy flat steel basket. The highs are handled by 25 mm silk dome tweeters with neodymium magnets, which are rotatable for better aiming toward the listening area. The system includes compact 12 dB crossovers for mid-bass and tweeters separately. The DSX series is primarily intended for space-saving installations where mounting depth and easy replacement of OEM speakers are priorities.

Main features

Component 2-way 165 mm system in a flat design.
Very shallow mounting depth of 45 mm.
Internally mounted magnetic system to save space.
Polypropylene cones.
25 mm silk-dome tweeters with neodymium magnet.
Rotatable tweeters for sound direction control.

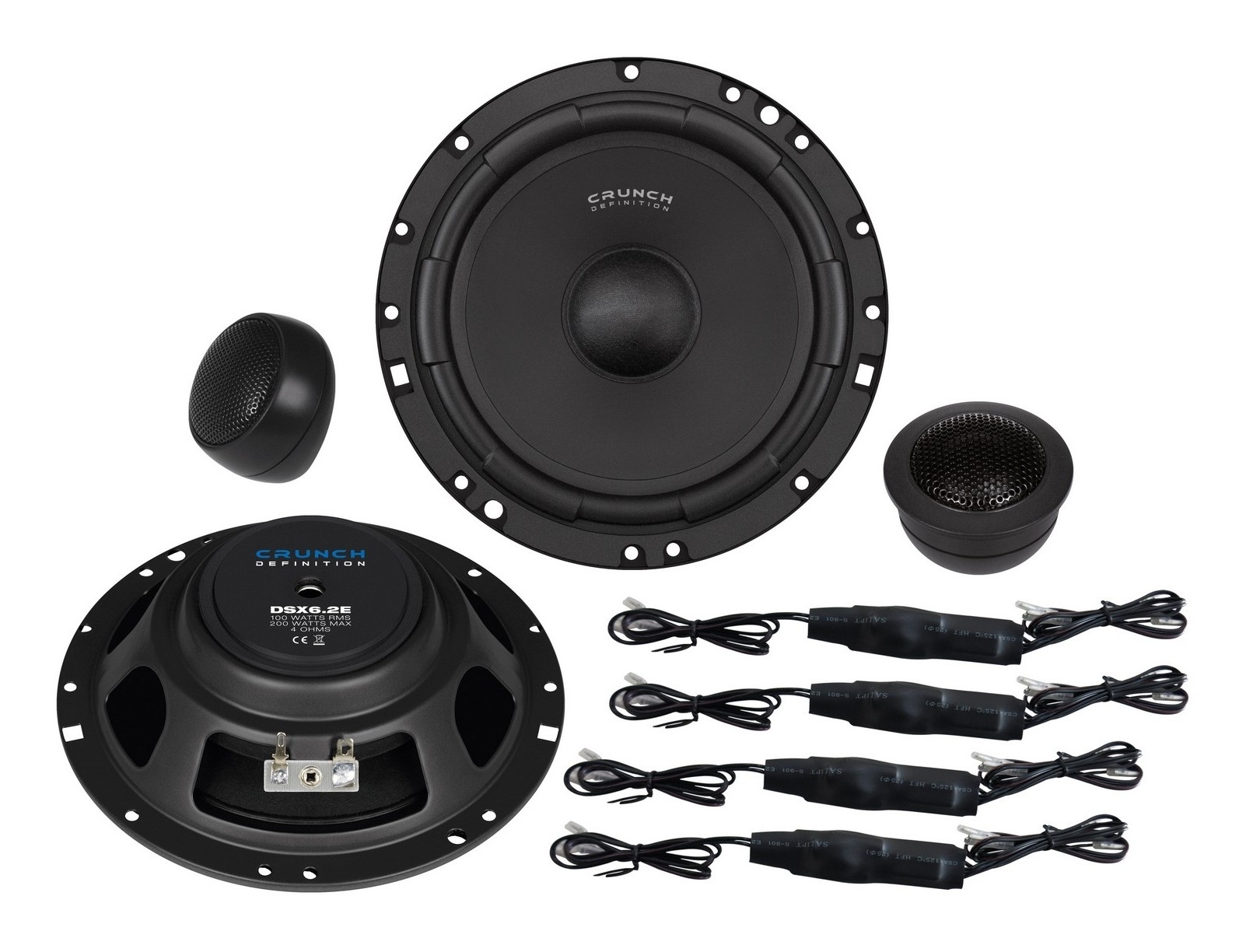

Compact 12 dB crossovers for mid-bass and tweeters separately.

About the brand

Crunch has been present on the car audio market for more than three decades. The brand originated in the 1980s in the United States and gradually became one of the established manufacturers of affordable audio solutions intended for standard and less demanding installations. Later, the brand became part of the American Maxxsonics USA group, which also includes other well-known car audio brands such as Hifonics, MB Quart and Autotek. Within this group, Crunch has long been positioned as an affordable alternative focused on simple and functional solutions for amplifying and expanding factory audio systems. Crunch's range includes a wide portfolio of amplifiers, speakers, subwoofers and accessories offering good value for money.

Catalog number	DSX6.2E
Brand	Crunch
Links	Official web presentation
Speaker typeCoaxial speakers: Coaxial speakers are characterized by a so-called all-in-one design. The tweeter and mid-bass speaker are in one basket. The advantage is simpler assembly, but thanks to the connection or proximity of the bands in one speaker, the sound quality will usually be reduced. As a rule, in the middle of the mid-bass speaker, there is a tweeter whose voice coil works in the second air gap of the common magnetic circuit. The three-way coaxial speaker consists of a mid-bass speaker, a center speaker and a separate tweeter in the front on a special beam. Component Speakers: Component speakers are characterized by a division into individual frequency bands, treble + mid-bass + or. bass band. The individual speakers can be placed completely separately, which results in a better sound and acoustic performance. In the vast majority of cases of component speakers, an external crossover is also supplied, which divides the treble, middle / mid-bass, and into the three-band the bass band or allows setting the decibel level of the tweeter (e.g. +2 dB, 0 dB, -2 dB), steepness (e.g. 6dB/Oct. 12dB/Oct.) or active or bi-amp connection.	Component 2-way
RMS powerRMS speaker power is the constant power of the entire system, not just one speaker or one side. This is also the performance of continuous use of the speakers. If the RMS power is exceeded for a long time, the speakers may be irreversibly damaged!	100 W
Max. (maximum performancePeak performance , which the speaker can play for a moment (approx. 0.5 s), for example when hitting drums in a song. If the max power is exceeded, the speakers will usually be damaged!	200 W
ImpedanceImpedance - measurement of electrical resistance. When buying speakers, it is important to make sure that the impedance matches the amplifier or car stereo you are using. Example: A 2 Ohm speaker cannot be connected to an amplifier that is only stable up to 4 Ohms! A 4 Ohm speaker can easily be used with an amplifier that is stable up to 2 Ohms. The most common speaker impedance today is 3 - 4 Ohm.	4 Ω
Frequency rangeThe ability of the speakers to play a signal from the lowest frequency to the highest, or the speaker's ability to faithfully reproduce sound in a specific frequency band. Professionally: In the frequency range from 40 to 16,000 Hz, the vast majority of fundamental and overtones (harmonics) of all musical instruments are found. We are interested in the course of the radiated sound pressure in this range of frequencies when the loudspeaker system is supplied with constant power. We call this course the frequency characteristic, which tells us the level of radiated sound pressure in decibels (dB) depending on the frequency. The frequency characteristic of a speaker or speaker system can be expressed most succinctly with a graph. Mostly, however, the frequency characteristic is indicated by indicating the maximum tolerance of the sound pressure in the given frequency range, e.g. 50 to 15,000 Hz -+ 6 dB. Since the frequency characteristics of loudspeakers and systems in general are quite uneven, some manufacturers do not even specify this maximum tolerance of sound pressure in decibels in their catalogs for reasons of prestige. Data impoverished in this way is unfortunately worthless. What is valid is that the manufacturer offers a speaker system with a frequency range of 30 to 20,000 Hz, if he is worried about stating the maximum unevenness of the sound pressure in this range, because he can have a tolerance of, for example, +- 20 dB. The unevenness or undulation of the frequency curve in good speaker systems for high-quality music performance should not exceed +-3 dB in the 80 to 12,000 Hz band and +-6 dB in the 40 to 16,000 Hz band. Greater unevenness already depletes or emphasizes certain tonal areas, which can cause audible or even disturbing distortion. The proportion between fundamental tones and higher harmonics also changes, thereby changing the color of the sound, and individual musical instruments as well as the entire musical image sound unnatural.	65 – 22000 Hz
The diameter of the mid-bass speakerWe state the diameter of the speaker as the diameter of the entire speaker, not including the mounts, when smaller speakers (87, 100, 130 mm) have extra mounts. Some speakers are oval and there the dimension is given in inches, always the shortest side to the longest side. One inch is approx. 2.5 cm.	165 mm
Installation depth of the mid-bass speakerThe installation depth of the speaker is measured from the bottom edge of the magnet to the bottom edge of the tin, plastic or cast speaker basket, or speaker bearing surfaces.	45 mm
Mid-woofer diaphragm materialThe material that was used for the speaker diaphragm. Don't be afraid of the paper, it surprisingly has a very natural and high-quality sound and, thanks to the surface treatment, it can withstand moisture without any problems.	Polypropylene
Tweeter dome diameterThe net diameter of the dome (diaphragm) of the tweeter.	25 mm
Tweeter dome materialThe shell material that was used in the manufacture of the tweeter.	Silk
Frequency crossover included in the packageThe crossover is an important part of defacto all loudspeakers. A crossover usually contains different resistor values, coil sizes, and capacitor types that fundamentally modify the sound. We describe below what the turnouts are for. Component Speakers: A crossover is part of every quality component speaker system. Its task is to ensure the distribution of frequencies that the amplifier produces in the entire acoustic spectrum of frequencies so that each of the speakers receives only that part of the band that it can optimally play in terms of efficiency and minimal distortion. Coaxial speakers: In most cases, coaxial loudspeakers have a simple crossover (6dB/Oct.) formed by a capacitor at the tweeter.	Yes

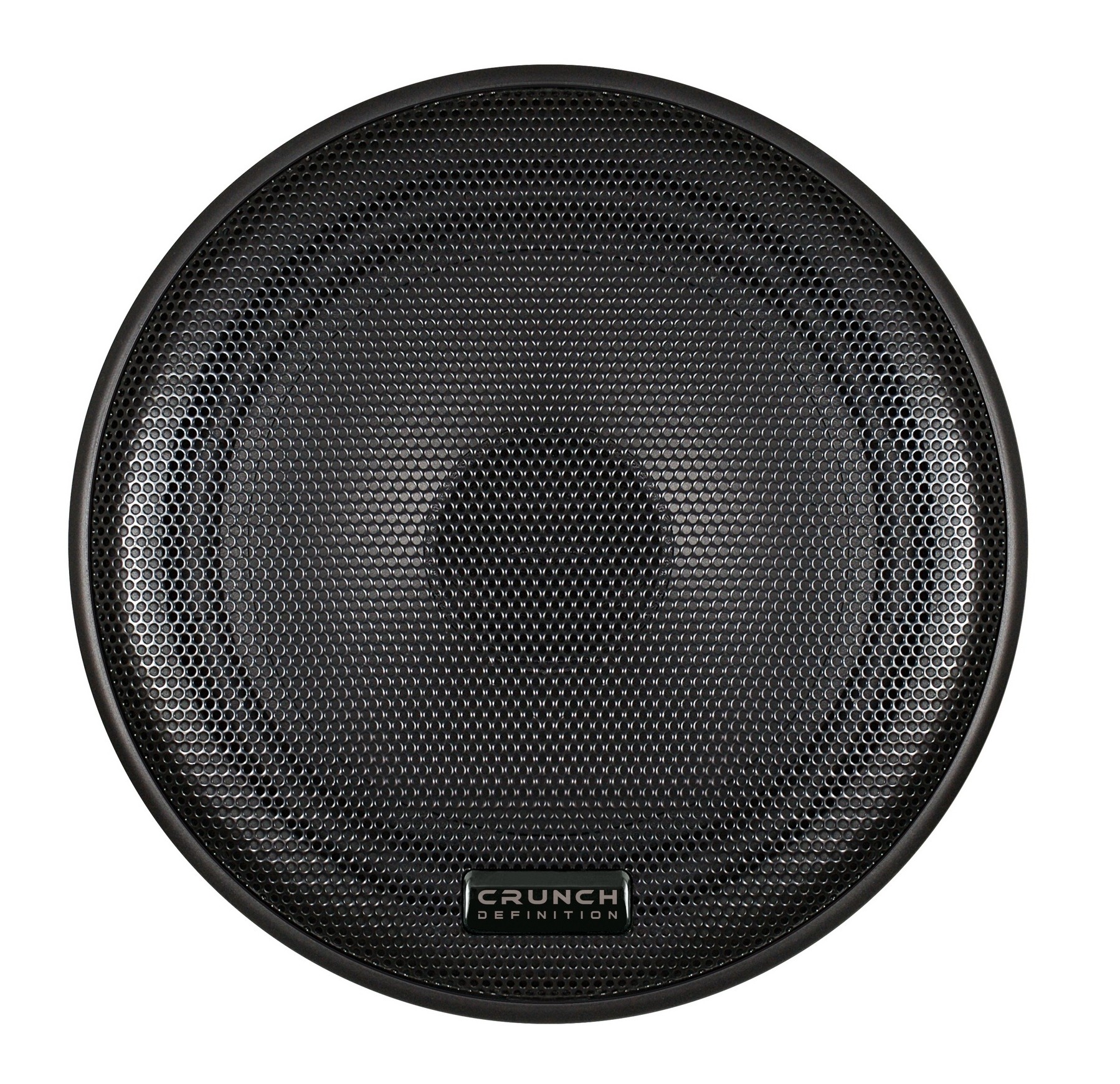

Cover grids included in the packageOriginal cover grilles in speaker packaging.	Yes
Price forIf the price is for a pair, the package always includes 2 pieces of everything, e.g. 2x mid-bass, 2x tweeter and 2x crossover.	Pair
