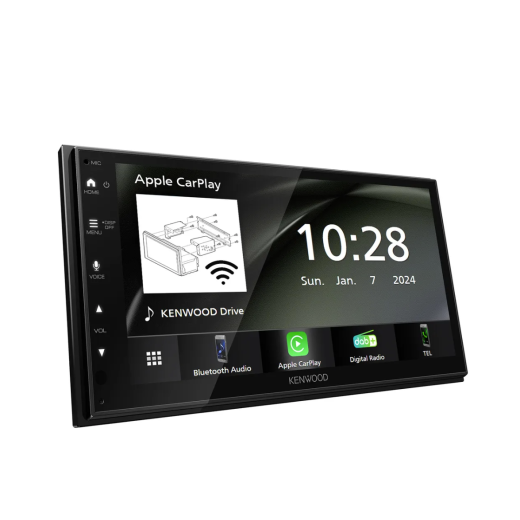

Kenwood DMX-6523DSM

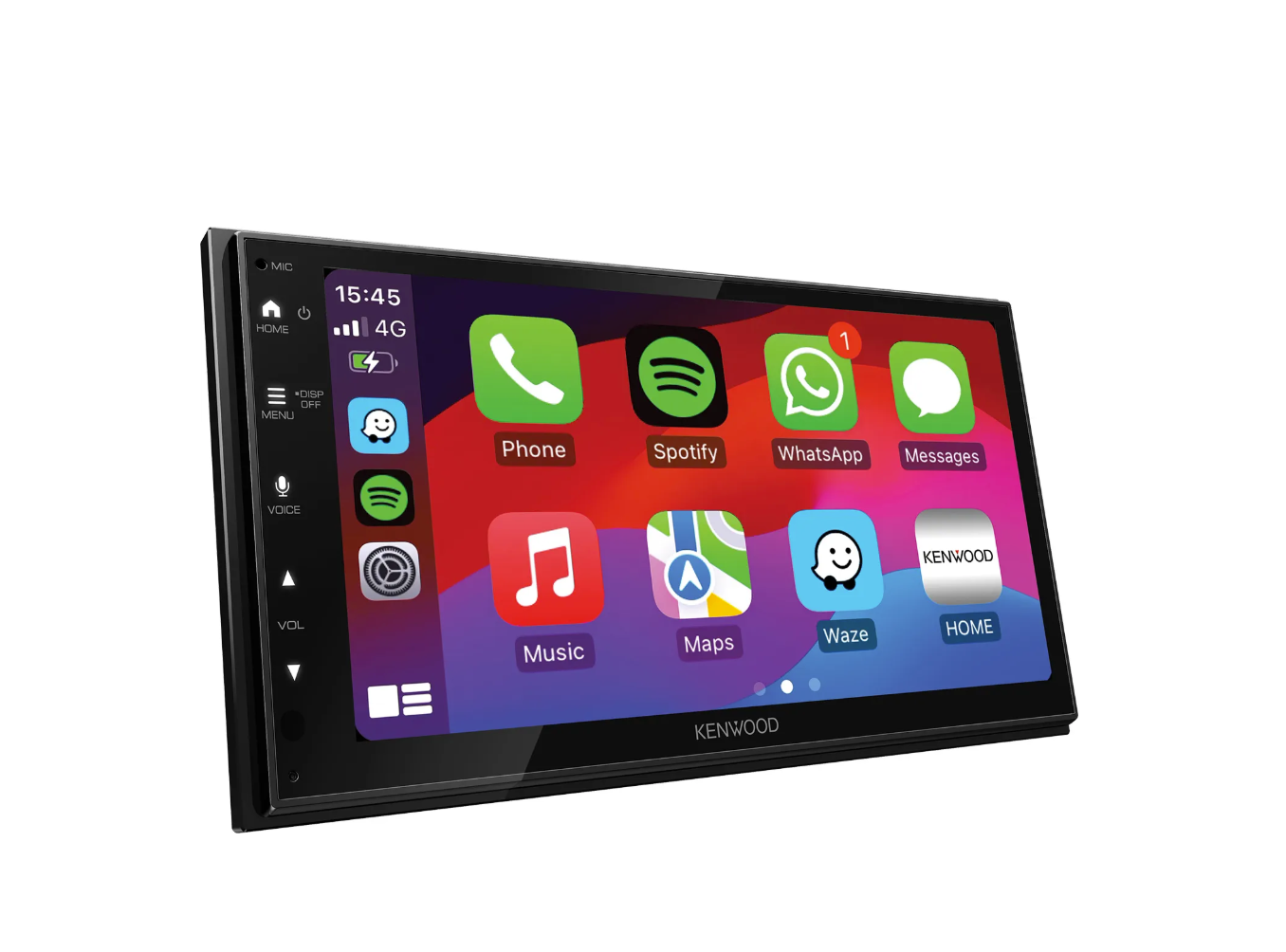

Kenwood DMX6523DABS is a modern multimedia car stereo with a 6.8" capacitive touchscreen, wireless and wired Apple CarPlay and Android Auto, a built-in DAB+ tuner, Bluetooth and Wi-Fi. Thanks to its very short 1DIN chassis with an installation depth of only 86 mm, it is suitable even for vehicles where space behind the radio is limited.
Wireless Apple CarPlay and Android Auto
Kenwood DMX6523DABS lets you use Apple CarPlay and Android Auto both wirelessly and via USB. On the 6.8" touchscreen you can conveniently control navigation, calls, music, messages and other supported apps. The radio also supports wireless screen mirroring of iPhone and Android phones via the MirrorApp+ app.

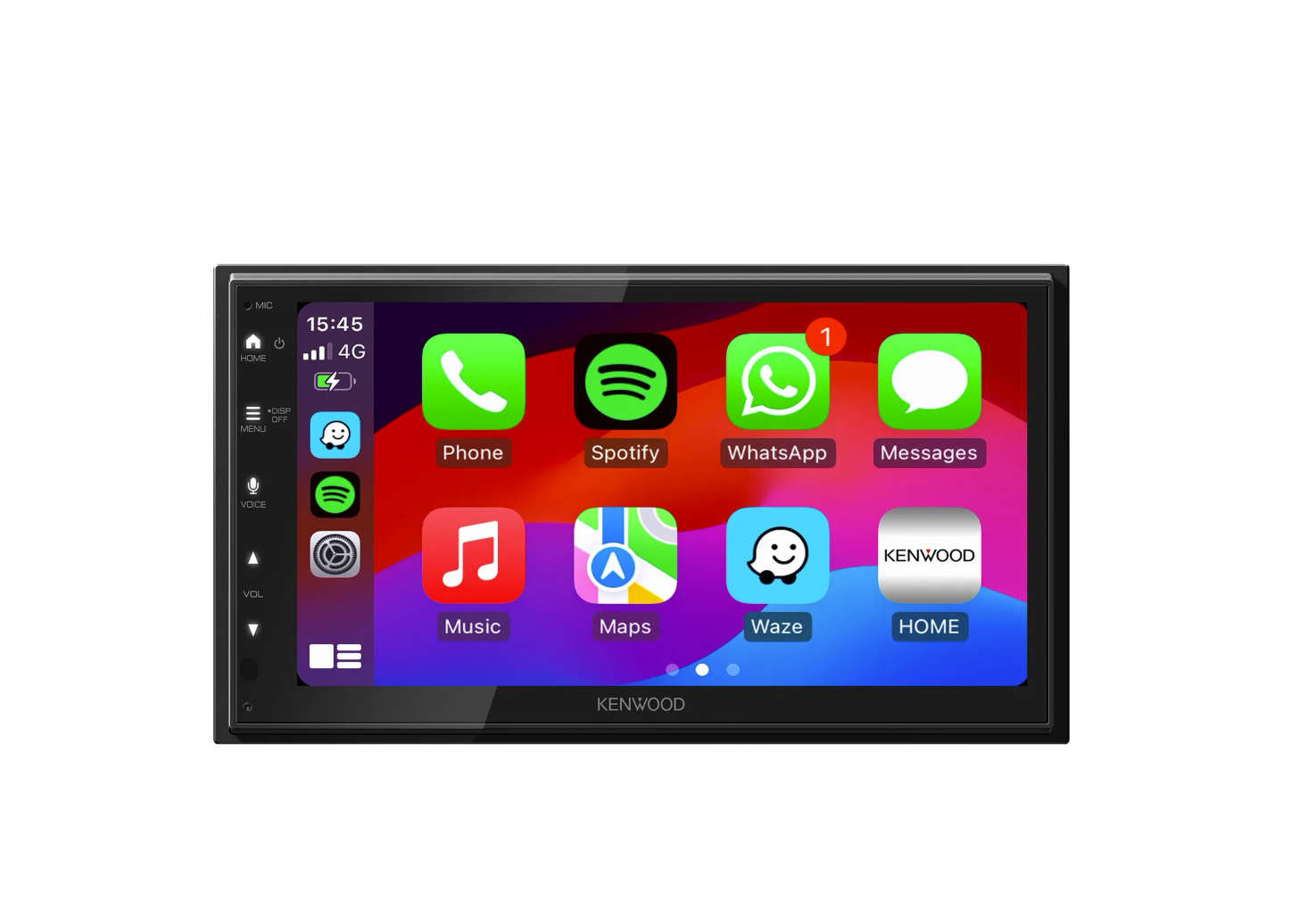

6.8" capacitive display with 1024 × 600 px resolution
The front panel is dominated by a 6.8" capacitive WSVGA display with a 1024 × 600 px resolution. The display offers high readability, adjustable brightness, contrast and color settings, as well as automatic or manual dimming. The user interface can be partially customized, including the main menu and background.
DAB+ digital radio
The integrated DAB+ tuner enables reception of digital radio broadcasts with high audio quality. The radio supports, for example, automatic switching between DAB and FM, Seamless Blending, DLS text information, slideshow and automatic station search.
Bluetooth 5.0 for handsfree and music streaming
Built-in Bluetooth 5.0 enables wireless calling and music playback from your phone. The radio supports profiles HFP, A2DP, AVRCP and PBAP, codecs SBC and AAC, and can store up to 7 mobile phones. Features also include access to the phonebook, call history, voice control, noise suppression and echo cancellation.
Advanced sound settings

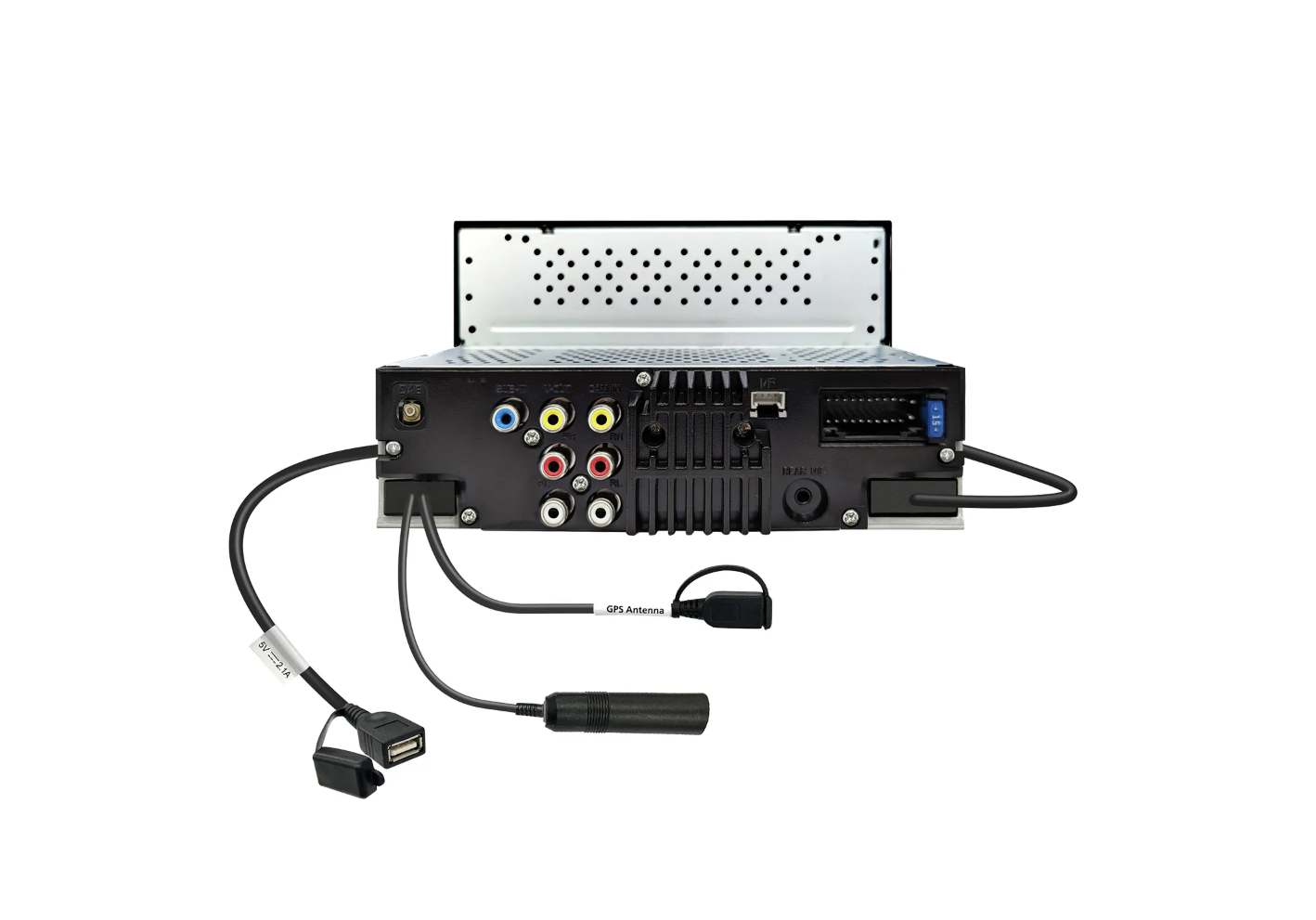

Kenwood DMX6523DABS offers far more sound tuning options than typical basic multimedia units. Available is a 13-band graphic equalizer, digital time correction, HPF and LPF filters, crossover settings, Bass Boost, Loudness and separate level adjustment for individual channels. For connecting external amplifiers, the radio provides front and rear RCA outputs and a dedicated mono subwoofer output with 2.5 V.
Reverse camera connection
A dedicated RCA input allows connecting a reversing camera. The image can be displayed automatically when reverse gear is engaged, and parking guide lines can be set directly on the head unit.

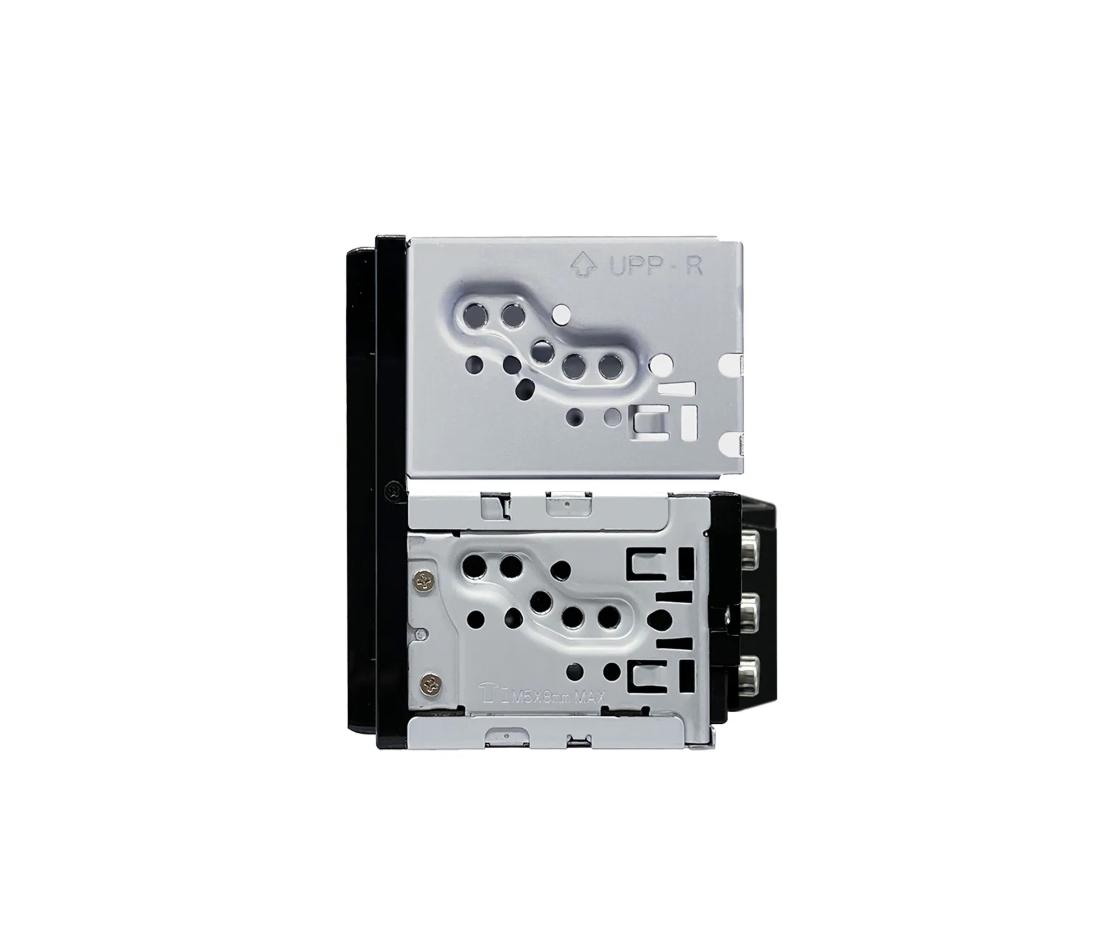

Short 1DIN chassis for easier installation
Although the radio has a front panel corresponding to a 2DIN design, the chassis itself is a short 1DIN construction. The installation depth is only approximately 86 mm, which greatly simplifies fitting into vehicles with limited space behind the dashboard.
Key features
- 6.8" capacitive touchscreen.
- Display resolution 1024 × 600 px.
- Wireless and wired Apple CarPlay.
- Wireless and wired Android Auto.
- Wireless screen mirroring for iPhone and Android.
- Built-in DAB+ tuner.
- Built-in Wi-Fi.
- Bluetooth 5.0 for handsfree and music streaming.
- Stores up to 7 mobile phones.
- 13-band graphic equalizer.
- Digital time correction.
- HPF and LPF filters.
- Bass Boost and Loudness.
- 2.5V RCA outputs Front/Rear + Subwoofer.
- Input for reversing camera.
- Adjustable parking guide lines.
- USB 2.0 with charging up to 2.1 A.
- Supports MP3, WMA, AAC, WAV and FLAC.
- Supports video formats MPEG1/2/4, WMV, H.264 and MKV.
- Steering wheel control via optional adapter.
- Short 1DIN chassis with installation depth of only 86 mm.
Technical specifications
- Type: Multimedia car stereo.
- Panel size: 2DIN.
- Chassis design: Short 1DIN.
- Display: 6.8" capacitive WSVGA.
- Resolution: 1024 × 600 px.
- Apple CarPlay: Yes, wired and wireless.
- Android Auto: Yes, wired and wireless.
- Wireless Mirroring: Yes.
- Wi-Fi: Yes, 5 GHz.
- Bluetooth: Version 5.0.
- DAB+: Yes.
- FM/AM tuner: Yes.
- USB: USB 2.0 High Speed.
- Max USB current: 2.1 A.
- Audio formats: MP3, WMA, AAC, WAV, FLAC.
- Video formats: MPEG1/2/4, WMV, H.264, MKV.
- Max amplifier output power: 4 × 50 W.
- Power per DIN: 4 × 22 W.
- Equalizer: 13-band.
- Time correction: Yes.
- HPF / LPF: Yes.
- Loudness: Yes.
- Bass Boost: Yes.
- RCA outputs: Front/Rear + Subwoofer.
- RCA output voltage: 2.5 V.
- Reversing camera input: Yes.
- Adjustable parking guide lines: Yes.
- Steering wheel control: Yes, via optional adapter.
- DAB antenna connector: SMB.
- FM/AM antenna connector: JASO.
- External microphone: Yes, 3.5 mm connector.
- GPS antenna: Included.
- Installation depth: Approximately 86 mm.
What's in the box
- 1× Kenwood DMX6523DABS car stereo.
- 1× GPS antenna.
- Power and installation wiring.
- Mounting accessories.
- Documentation.
About the brand
KENWOOD is a trusted brand of automotive electronics and car audio, offering a wide range of products to improve comfort, entertainment and safety in the car. Its lineup includes car stereos and multimedia units, car speakers, dash cams, amplifiers and subwoofers. KENWOOD products are popular for their reliability, modern features, quality workmanship and very good sound performance. The brand appeals to customers looking for both simple everyday solutions and the ability to build a complete in-car audio system with an emphasis on power, quality and driving comfort.
| Catalog number | DMX-6523DSM |
| Brand | Kenwood |
| Links | Official web presentation |
| Car radio sizeCar radios are divided into 2 basic sizes, 1DIN car radios and 2DIN car radios . 1DIN size car radios - the exact dimensions including the metal frame where the car radio is inserted are 184 x 53 mm, the external dimensions of the branded 1DIN car radio are 188 x 59 mm. We know 2DIN car radios from newer vehicles, a classic example is the VW Golf IV with navigation. The dimensions of a 2DIN car radio without a metal frame are 180 x 101 mm, the external dimensions of a branded 2DIN car radio are 189 x 119 mm. | 2DIN |
| DisplayAdditional information about the display. Segment, LCD, multi-line, etc. | 6.8" |
| CD driveCar radios with CD drive. Car radios that have an input slot for inserting a CD. | No |
| Integrated BluetoothBluetooth is a communication technology used for wireless connection between two or more electronic devices. A mobile phone, for example, can be connected to a car radio with built-in Bluetooth. Most car radios for 2017 and later can also wirelessly stream (play) music via Bluetooth -> A2DP function. | Yes |
| USB inputThe USB input of the car radio is used to connect a USB flash drive or smartphone. Today, playing music via USB is the most popular way to listen to music in the car. The USB input can be front (on the front panel of the car radio) or rear (on the back of the cable). | Yes (1 x rear input) |
| SD card accessModern branded car radios can play SDHC SD cards up to 32 GB, sometimes even 64 GB. The SD card slot is behind the front panel in most car radios. | No |
| Supported formats via USB inputList of all supported formats (MP3, AAC, Flac, DivX, etc.) that the car radio can play via USB input. | AAC / MP3 / WMA / WAV / FLAC /MPEG1 / MPEG2 / MPEG4 / WMV / H.264 / mkv |
| Apple CarPlayApple CarPlay is a completely new option for connecting a smartphone to a car radio that has the Apple CarPlay function. The connection is only by cable, thanks to the high data flow. You click on the Apple CarPlay icon on the car radio screen and application icons appear on the car radio screen like on a smartphone, and you can continue to control everything using the car radio. It also works with voice control and Siri. | Yes |
| Android AutoGoogle's Android Auto is a completely new option for connecting a smartphone to a car radio that has the Android Auto function. The connection is only by cable, thanks to the high data flow. The Android OS requirement is at least version 5.0. You click on the Android Auto icon on the car radio screen, and application icons appear on the car radio screen like on a smartphone, and you can continue to control everything using the car radio. Voice control and GPS signal also works. | Yes |
| Car radio performanceThe performance of the car radio shown in maximum values. This is therefore the MAX value. The performance of the internal amplifier of the car radio. Today, the RMS power of a car radio ranges from 17 - 30 W RMS per channel. | 4 x 50 W |
| Number of RCA outputsRCA outputs , colloquially called "cinches", are used to connect an external amplifier or active subwoofer. Aftermarket car radios are usually equipped with 1 to 3 pairs of RCA outputs. FRONT, REAR and SUB are used. It also depends on how many volt outputs the car radio is equipped with. More basic models of car radios have 2V outputs, more expensive units have 4V and more. The higher the specified value, the less power demands are placed on the external amplifier and the sound quality increases. | 3 pairs |
| Output level on RCAAn important parameter if you are going to install an external amplifier. If you purchase a car radio with a basic value, i.e. 2V outputs, then greater demands will be placed on the power of the amplifier. As the value increases, e.g. 4V or 5V, the power of the external amplifier increases significantly, in layman's terms. A car radio with strong outputs therefore has the advantage that you do not pull so much power through the amplifier and thus achieve a better sound, as external amplifiers lose control at higher loads. | 2.5 V |
| Input for steering wheel button control adapterCar radios equipped with a cable input or a 3.5 Jack socket for an adapter to control the buttons on the steering wheel. Most branded car radios have this input, from the back of the car radio body. | Yes |
| Backlit buttonsColor options for the backlight of the car radio buttons. | Variable |
| External microphone included in the packageThe external microphone is connected from the back of the car radio to the input marked "MIC". For ideal sound quality during a phone call, we recommend placing the external microphone on the left "A" pillar at the point where the "A" pillar and the roof panel connect to each other. A very good position to place an external microphone is also near the central rear-view mirror. | Yes |
| Remote control includedCard IR remote control of the car radio, thanks to which certain functions of the car radio incl. control the volume from the hand, remotely. | No (optional KNA-RCDV331) |
| Removable front panelPossibility to remove the entire front panel of the car radio by pressing the side button. A very effective weapon against car radio theft. We recommend not hiding the panel in the vehicle, but taking it with you. Alternatively, place the panel in a hidden place in the trunk, but not when leaving the car, but before parking. You never know when a thief might be watching you. | No |
