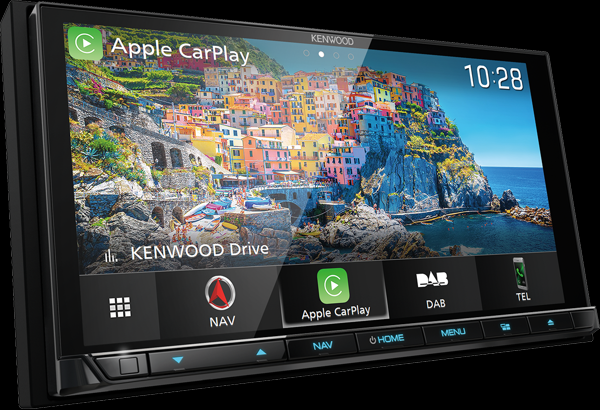

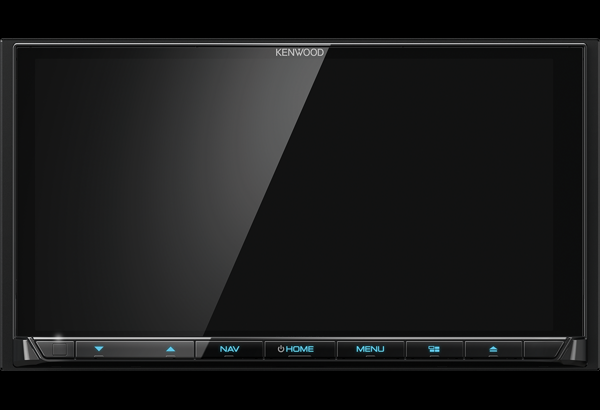

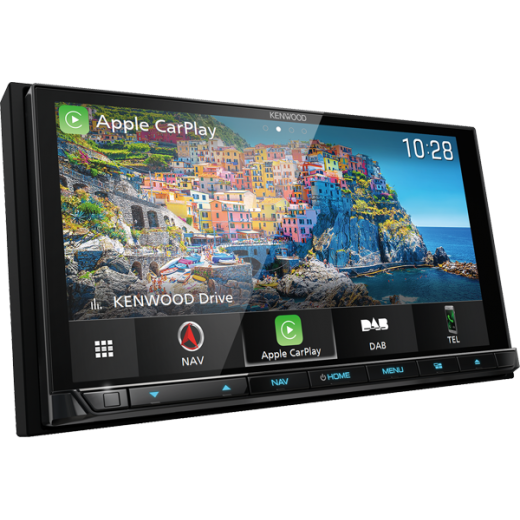

Car radio with navigation Kenwood DNX-9190DABS
Navigation system with 6.8" HD display with Android Auto and App Mode support, Bluetooth, DAB/DAB+ tuner and built-in Garmin navigation.
General specifications of the Kenwood DNX-9190DABS car radio
- 6.8" HD 720 pixel capacitive touch screen with excellent viewing angles.

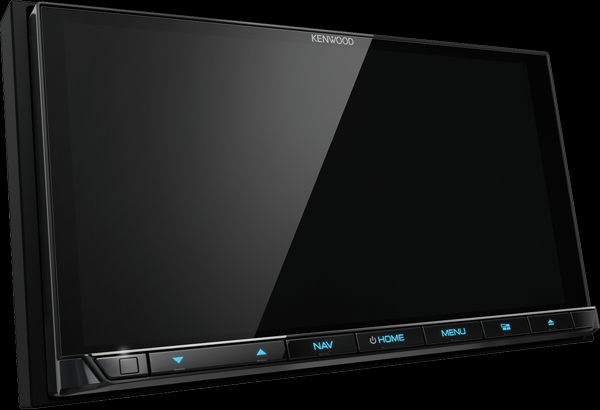

- Front panel with motorized tilt.
- Variable button backlighting.
- Czech, editable user interface.
- DAB/DAB+ tuner (DAB antenna CXDAB1 not included).
- RDS/TMC.

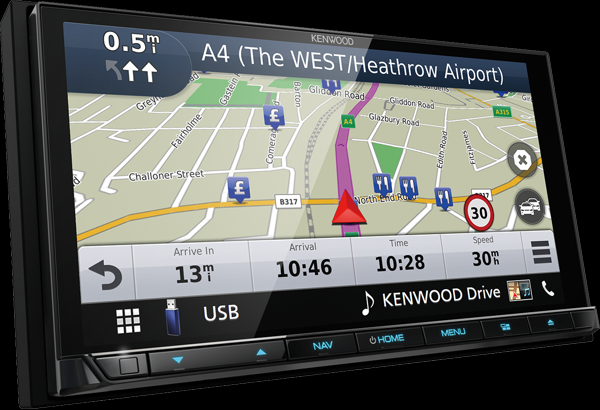

- GARMIN navigation, 3D terrain display, free map updates for 3 years.
- WiFi for wireless Apple CarPlay / wireless mirroring for compatible Android devices.

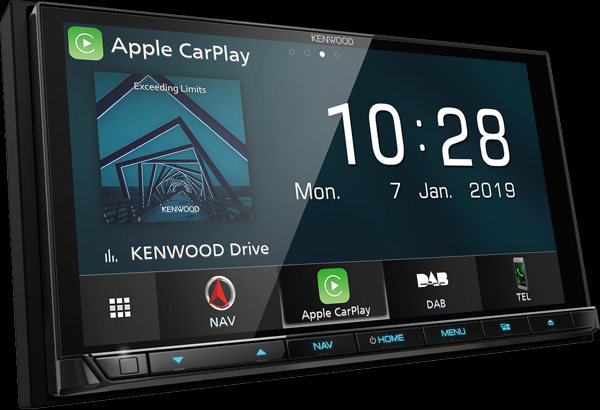

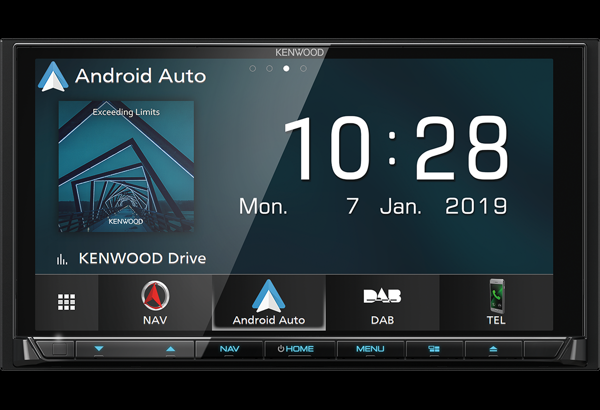

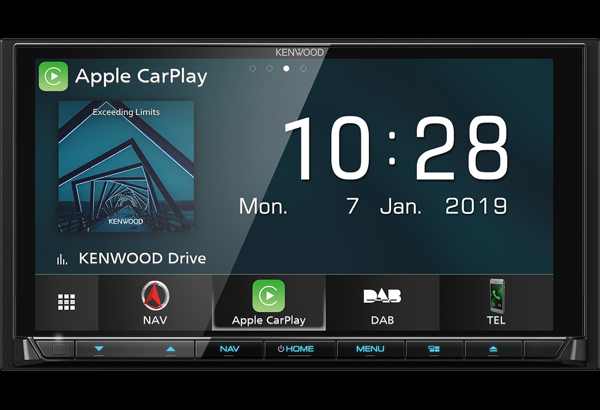

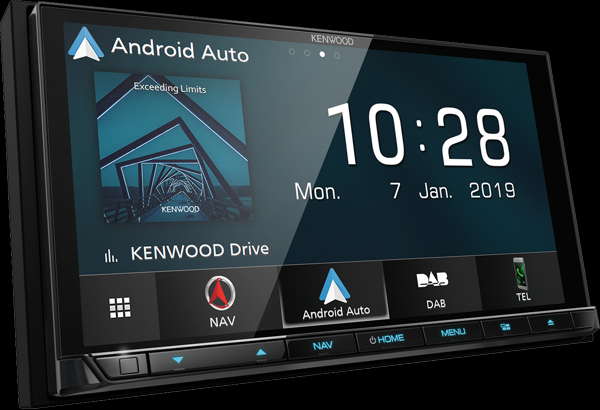

- Apple CarPlay / Android Auto via USB.
- Bluetooth HFP1.7 (battery status display) / A2DP / AVRCP1.6 (album pictures via BT).
- Connecting two phones at the same time.
- An external microphone is included in the package.
- Waze, Spotify and Amazon Alexa.
- 2 x rear USB (1.5A).
- SD slot.
- DSP with DTA, 13-band EQ, .Drive EQ+, 2/3-band crossover.
- Hi-Res audio 192kHz/24bit
- Audio components of the highest quality.
- USB / SD / CD / DVD: MPEG124 / H.264 / mkv / WMV, MP3 / WMA / WAV / AAC / FLAC / DSD2.
- Possibility of communication with OEM display (Maxidot).
- 4 x 50 W (4 x 22 W RMS).

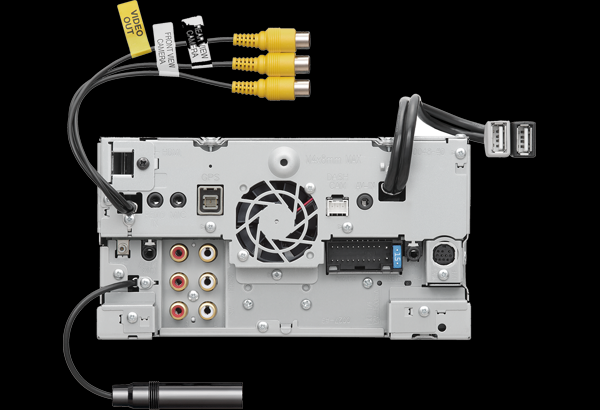

- 3 x RCA gold-plated preout (5 V).
- HDMI input.
- 1 x AV output.
- 1 x AV input / CAMIN.
- 1 x FCAM / Dashcam Link with map view.
- 1 x RCAM with parking trajectories.

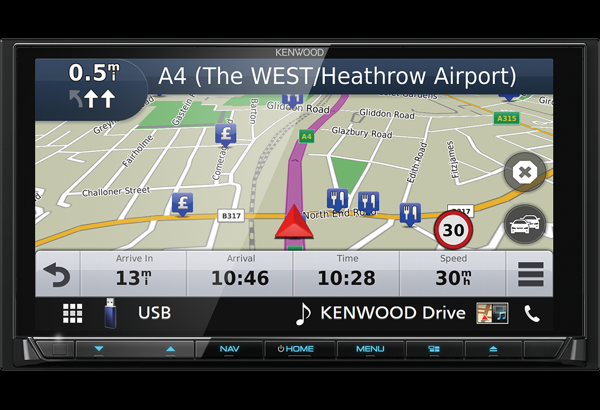

- Lane guidance with photorealistic view of intersections.

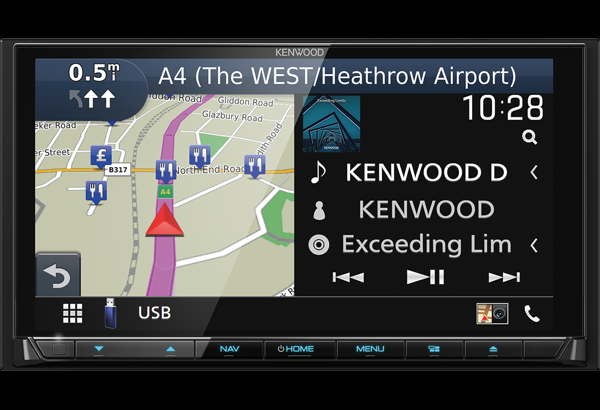

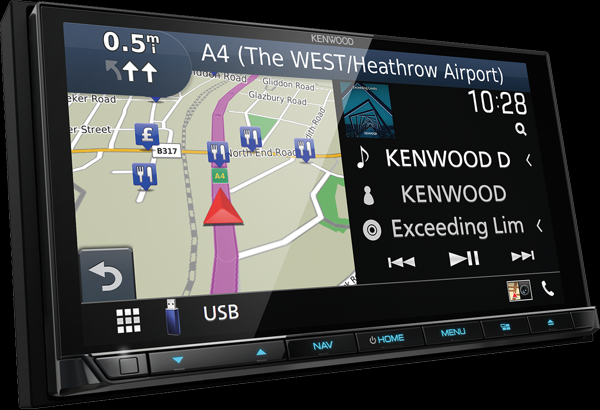

- Split screen.
- Dual Zone.
- Input for steering wheel controls.
- An external GPS antenna is included in the package.
- Ready for IR remote control KNA-RCDV331 (not included).
| Catalog number | DNX-9190DABS |
| Brand | Kenwood |
| Links | Official web presentation |
| Car radio sizeCar radios are divided into 2 basic sizes, 1DIN car radios and 2DIN car radios . 1DIN size car radios - the exact dimensions including the metal frame where the car radio is inserted are 184 x 53 mm, the external dimensions of the branded 1DIN car radio are 188 x 59 mm. We know 2DIN car radios from newer vehicles, a classic example is the VW Golf IV with navigation. The dimensions of a 2DIN car radio without a metal frame are 180 x 101 mm, the external dimensions of a branded 2DIN car radio are 189 x 119 mm. | 2DIN |
| DisplayAdditional information about the display. Segment, LCD, multi-line, etc. | 6.8" HD capacitive touch screen |
| CD driveCar radios with CD drive. Car radios that have an input slot for inserting a CD. | Yes |
| Integrated BluetoothBluetooth is a communication technology used for wireless connection between two or more electronic devices. A mobile phone, for example, can be connected to a car radio with built-in Bluetooth. Most car radios for 2017 and later can also wirelessly stream (play) music via Bluetooth -> A2DP function. | Yes |
| USB inputThe USB input of the car radio is used to connect a USB flash drive or smartphone. Today, playing music via USB is the most popular way to listen to music in the car. The USB input can be front (on the front panel of the car radio) or rear (on the back of the cable). | Yes (2x rear entry) |
| SD card accessModern branded car radios can play SDHC SD cards up to 32 GB, sometimes even 64 GB. The SD card slot is behind the front panel in most car radios. | Yes |
| Supported formats via USB inputList of all supported formats (MP3, AAC, Flac, DivX, etc.) that the car radio can play via USB input. | MP3 / WMA / AAC / WAV / FLAC / MPEG1 / MPEG2 / MPEG4 / WMV / H.264 / MKV |
| Apple CarPlayApple CarPlay is a completely new option for connecting a smartphone to a car radio that has the Apple CarPlay function. The connection is only by cable, thanks to the high data flow. You click on the Apple CarPlay icon on the car radio screen and application icons appear on the car radio screen like on a smartphone, and you can continue to control everything using the car radio. It also works with voice control and Siri. | Yes |
| Android AutoGoogle's Android Auto is a completely new option for connecting a smartphone to a car radio that has the Android Auto function. The connection is only by cable, thanks to the high data flow. The Android OS requirement is at least version 5.0. You click on the Android Auto icon on the car radio screen, and application icons appear on the car radio screen like on a smartphone, and you can continue to control everything using the car radio. Voice control and GPS signal also works. | Yes |
| Car radio performanceThe performance of the car radio shown in maximum values. This is therefore the MAX value. The performance of the internal amplifier of the car radio. Today, the RMS power of a car radio ranges from 17 - 30 W RMS per channel. | 4 x 50W |
| Number of RCA outputsRCA outputs , colloquially called "cinches", are used to connect an external amplifier or active subwoofer. Aftermarket car radios are usually equipped with 1 to 3 pairs of RCA outputs. FRONT, REAR and SUB are used. It also depends on how many volt outputs the car radio is equipped with. More basic models of car radios have 2V outputs, more expensive units have 4V and more. The higher the specified value, the less power demands are placed on the external amplifier and the sound quality increases. | 3 pairs |
| Output level on RCAAn important parameter if you are going to install an external amplifier. If you purchase a car radio with a basic value, i.e. 2V outputs, then greater demands will be placed on the power of the amplifier. As the value increases, e.g. 4V or 5V, the power of the external amplifier increases significantly, in layman's terms. A car radio with strong outputs therefore has the advantage that you do not pull so much power through the amplifier and thus achieve a better sound, as external amplifiers lose control at higher loads. | 5 V |
| Input for steering wheel button control adapterCar radios equipped with a cable input or a 3.5 Jack socket for an adapter to control the buttons on the steering wheel. Most branded car radios have this input, from the back of the car radio body. | Yes |
| Backlit buttonsColor options for the backlight of the car radio buttons. | Variable RGB |
| External microphone included in the packageThe external microphone is connected from the back of the car radio to the input marked "MIC". For ideal sound quality during a phone call, we recommend placing the external microphone on the left "A" pillar at the point where the "A" pillar and the roof panel connect to each other. A very good position to place an external microphone is also near the central rear-view mirror. | Yes |
| Remote control includedCard IR remote control of the car radio, thanks to which certain functions of the car radio incl. control the volume from the hand, remotely. | No |
