Car radio with DAB tuner Kenwood KMM-DAB307
1DIN, built-in DAB, no CD drive, USB input, red lighting, can play FLAC
More about the product
More about the product
The sale is over
Car radio with DAB tuner Kenwood KMM-DAB307
New basic Kenwood unit without mechanics with built-in DAB tuner. For all trips around Prague or in places where the DAB signal already works.General specifications of the Kenwood KMM-DAB307 car radio
- 13 character VA LCD.
- Front USB and AUX inputs.
- Smartphone charging via USB (1 A).
- Playing music from iPhone / Android.
- FLAC playback (48 kHz / 16 bit).
- 1 x RCA preout (2.5V).
- 3-band EQ for easy sound adjustments.
- Less than 1mA draw in standby mode.
- Red button backlight, white display.
- DAB+ tuner.
- Removable panel.
- Button backlight - red.
- Rotary control knob.
- Highlighted button - iPod / USB.
- Backup memory for radio station memory.
- Touch control tone.
- Digital clock (24 h).
- Turn everything off (20 / 40 / 60 minutes).

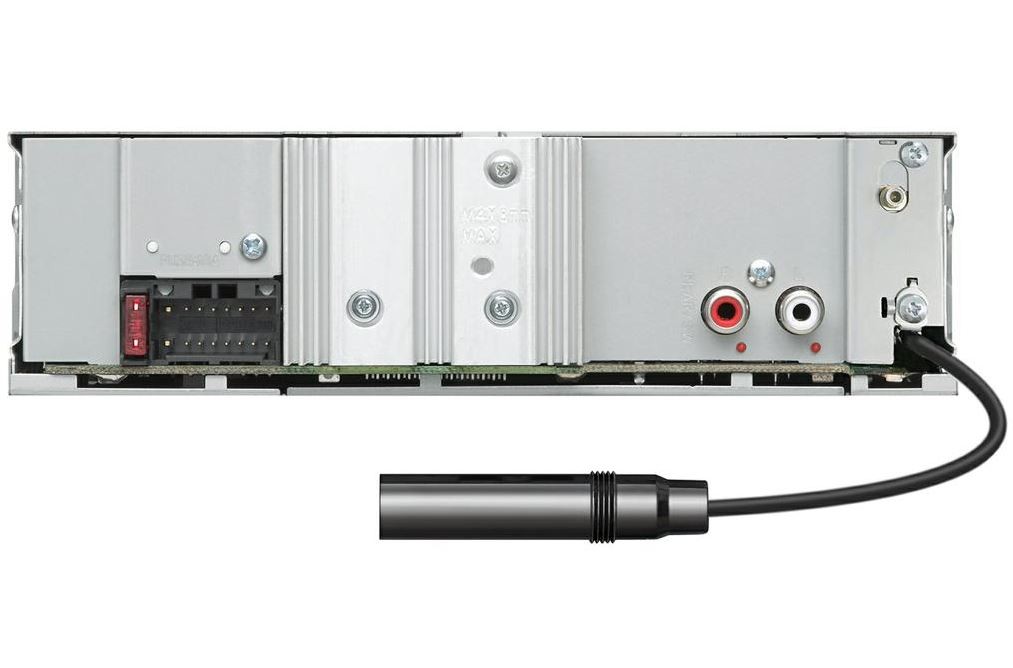

- ISO connector, new Mitsumi to ISO cable.
- 1 x USB interface.
- Firmware update.
- Operating voltage - 14.4 V (range 10.5 ~ 16 V).
- Maximum current consumption - 10 A.
- Dimensions (W x H x D) - 182 x 53 x 158 mm.
- Weight including installation frames - 0.6 kg.
- Operating temperature range: -10 to +60°C.
Display features and design of the Kenwood KMM-DAB403 car radio
- Display type - LCD.
- Display layout - 13 segments x 13 characters.
- VA2 LCD.
- Display backlight - white LED.
- Dimmer control - manual / set by timer.
- Demo mode.
- Menu languages - English, Spanish, Russian.
- Display of local characters in tag information - English, Spanish, Russian and Greek.
- Mask / border - black.
- Frame design - black.
- Control knob or wheel - chrome.
- Triangle backlight - red.
- Front input cover.
- Button backlight - red.
- Display display - white LED.
- Brightness control (display) - 0 - 31 steps.
- Dimmer control (display) - manual / set by timer.
Accessories for the Kenwood KMM-DAB403 car radio
- Extractor keys - 2 pcs.
- Frame.
- Installation frame.
- Power cable (Mitsumi to ISO) - 15 cm.
| Catalog number | KMM-DAB307 |
| Brand | Kenwood |
| Links | Official web presentation |
| Car radio sizeCar radios are divided into 2 basic sizes, 1DIN car radios and 2DIN car radios . 1DIN size car radios - the exact dimensions including the metal frame where the car radio is inserted are 184 x 53 mm, the external dimensions of the branded 1DIN car radio are 188 x 59 mm. We know 2DIN car radios from newer vehicles, a classic example is the VW Golf IV with navigation. The dimensions of a 2DIN car radio without a metal frame are 180 x 101 mm, the external dimensions of a branded 2DIN car radio are 189 x 119 mm. | 1 DIN |
| DisplayAdditional information about the display. Segment, LCD, multi-line, etc. | 13 segment LCD display |
| CD driveCar radios with CD drive. Car radios that have an input slot for inserting a CD. | No |
| Integrated BluetoothBluetooth is a communication technology used for wireless connection between two or more electronic devices. A mobile phone, for example, can be connected to a car radio with built-in Bluetooth. Most car radios for 2017 and later can also wirelessly stream (play) music via Bluetooth -> A2DP function. | No |
| USB inputThe USB input of the car radio is used to connect a USB flash drive or smartphone. Today, playing music via USB is the most popular way to listen to music in the car. The USB input can be front (on the front panel of the car radio) or rear (on the back of the cable). | Yes (front entry) |
| SD card accessModern branded car radios can play SDHC SD cards up to 32 GB, sometimes even 64 GB. The SD card slot is behind the front panel in most car radios. | No |
| Supported formats via USB inputList of all supported formats (MP3, AAC, Flac, DivX, etc.) that the car radio can play via USB input. | MP3, WMA, WAV, FLAC |
| Apple CarPlayApple CarPlay is a completely new option for connecting a smartphone to a car radio that has the Apple CarPlay function. The connection is only by cable, thanks to the high data flow. You click on the Apple CarPlay icon on the car radio screen and application icons appear on the car radio screen like on a smartphone, and you can continue to control everything using the car radio. It also works with voice control and Siri. | No |
| Android AutoGoogle's Android Auto is a completely new option for connecting a smartphone to a car radio that has the Android Auto function. The connection is only by cable, thanks to the high data flow. The Android OS requirement is at least version 5.0. You click on the Android Auto icon on the car radio screen, and application icons appear on the car radio screen like on a smartphone, and you can continue to control everything using the car radio. Voice control and GPS signal also works. | No |
| Car radio performanceThe performance of the car radio shown in maximum values. This is therefore the MAX value. The performance of the internal amplifier of the car radio. Today, the RMS power of a car radio ranges from 17 - 30 W RMS per channel. | 4 x 50W |
| Number of RCA outputsRCA outputs , colloquially called "cinches", are used to connect an external amplifier or active subwoofer. Aftermarket car radios are usually equipped with 1 to 3 pairs of RCA outputs. FRONT, REAR and SUB are used. It also depends on how many volt outputs the car radio is equipped with. More basic models of car radios have 2V outputs, more expensive units have 4V and more. The higher the specified value, the less power demands are placed on the external amplifier and the sound quality increases. | 1 pair |
| Output level on RCAAn important parameter if you are going to install an external amplifier. If you purchase a car radio with a basic value, i.e. 2V outputs, then greater demands will be placed on the power of the amplifier. As the value increases, e.g. 4V or 5V, the power of the external amplifier increases significantly, in layman's terms. A car radio with strong outputs therefore has the advantage that you do not pull so much power through the amplifier and thus achieve a better sound, as external amplifiers lose control at higher loads. | 2.5 V |
| Input for steering wheel button control adapterCar radios equipped with a cable input or a 3.5 Jack socket for an adapter to control the buttons on the steering wheel. Most branded car radios have this input, from the back of the car radio body. | Yes |
| Backlit buttonsColor options for the backlight of the car radio buttons. | Red |
| Remote control includedCard IR remote control of the car radio, thanks to which certain functions of the car radio incl. control the volume from the hand, remotely. | No |
| Removable front panelPossibility to remove the entire front panel of the car radio by pressing the side button. A very effective weapon against car radio theft. We recommend not hiding the panel in the vehicle, but taking it with you. Alternatively, place the panel in a hidden place in the trunk, but not when leaving the car, but before parking. You never know when a thief might be watching you. | Yes |
