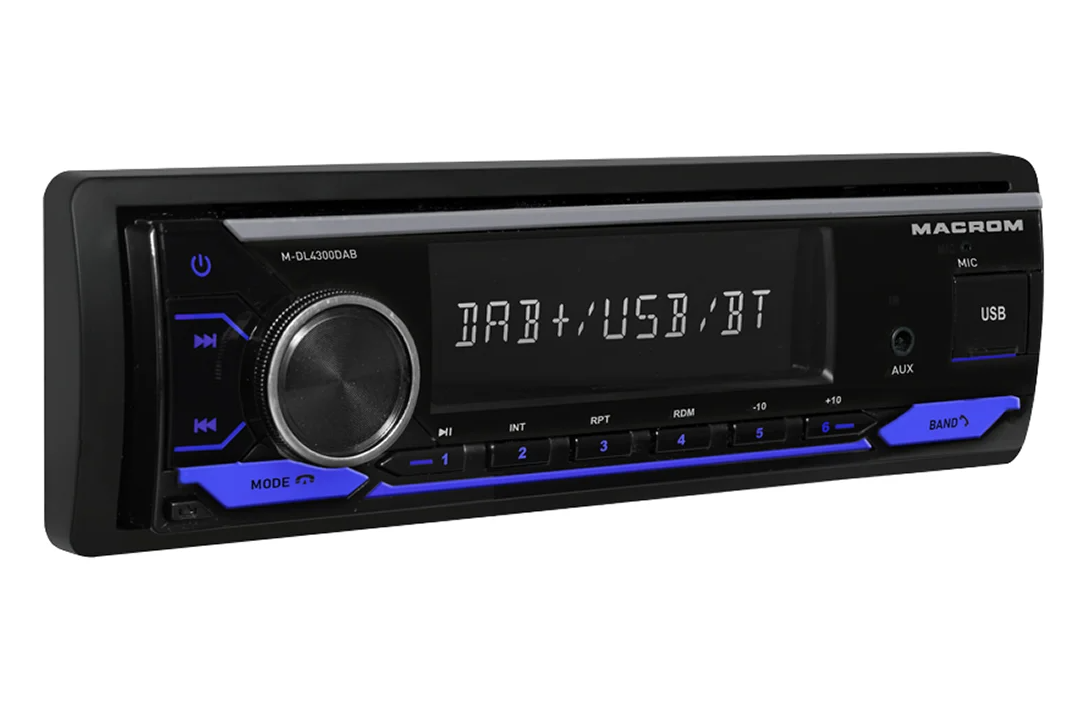

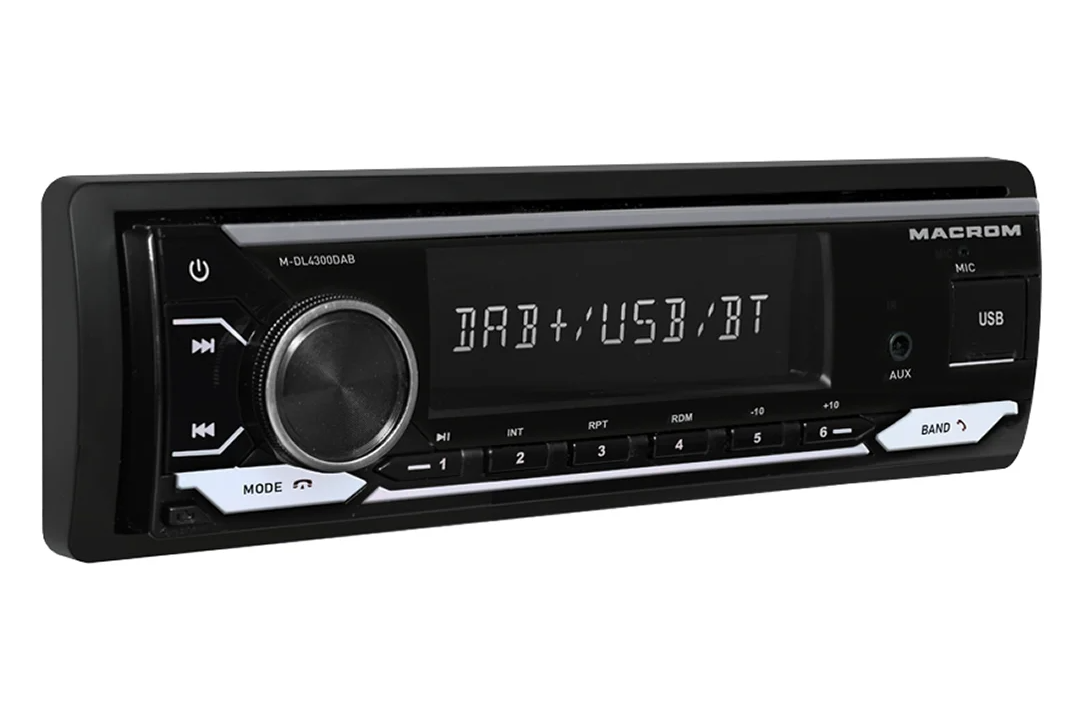

Macrom M-DL4300DAB Car Stereo
MACROM M-DL4300DAB is a modern 1DIN car stereo without a CD drive that combines digital and analog radio reception. In addition to the classic AM/FM tuner it features a DAB/DAB+ tuner for clear digital sound and more stations without noise. The front panel USB and micro SD slot play music in MP3, WMA, FLAC and APE formats. The built-in Bluetooth hands-free kit with a microphone on the front panel provides convenient hands-free calls and supports wireless audio streaming (A2DP). The unit includes a MOSFET amplifier 4 × 50 W, four RCA outputs for external amplifiers and a detachable front panel. A DAB glass antenna is included in the package.
Main features
- 1DIN car stereo without CD drive.
- Digital radio reception – DAB/DAB+ tuner.
- AM/FM RDS tuner with Radiotext function.
- USB input and micro SD slot on the front panel.
- AUX input for external devices.
- Supported formats: MP3, WMA, FLAC, APE.
- Built-in Bluetooth hands-free kit with front-panel microphone.
- Bluetooth audio streaming (A2DP) – wireless music playback.
- Powerful MOSFET amplifier 4 × 50 W.

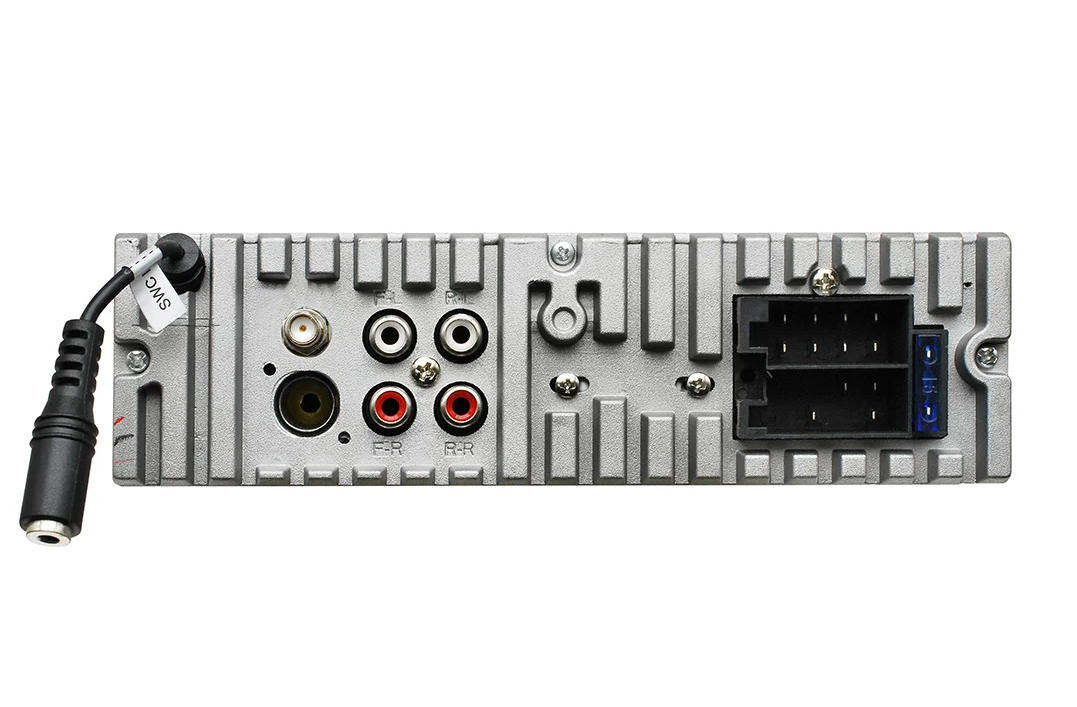

- 4× RCA preamp outputs (front + rear, 2.5 V).
- 3-band equalizer (POP, ROCK, CLASSIC).

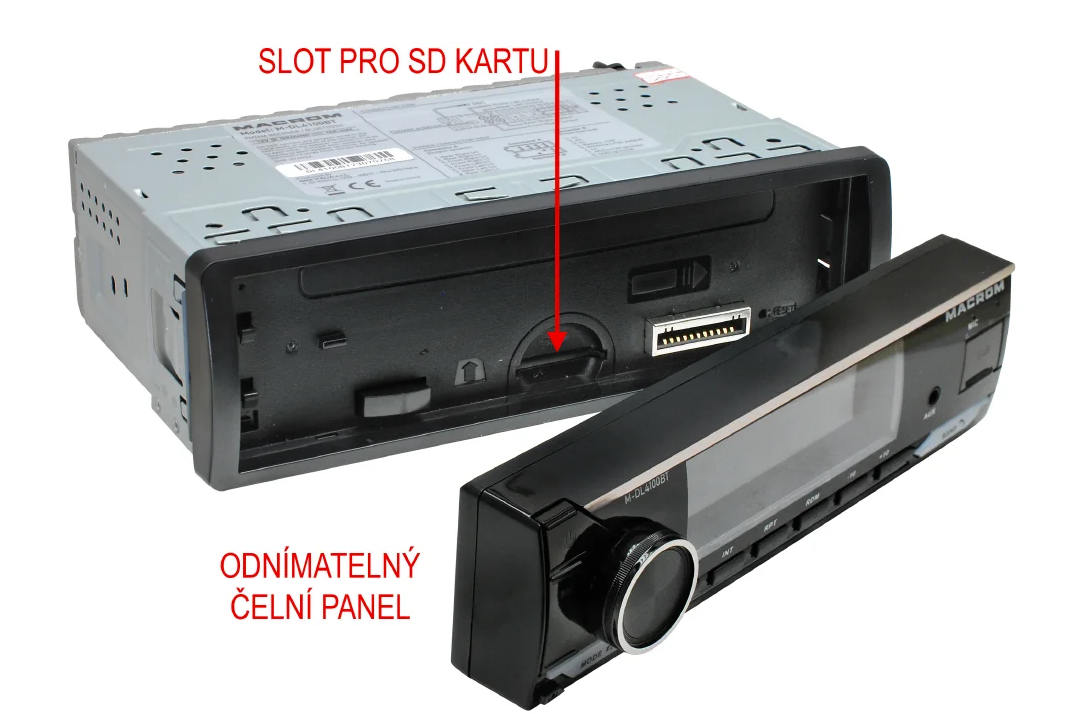

- Detachable front panel.

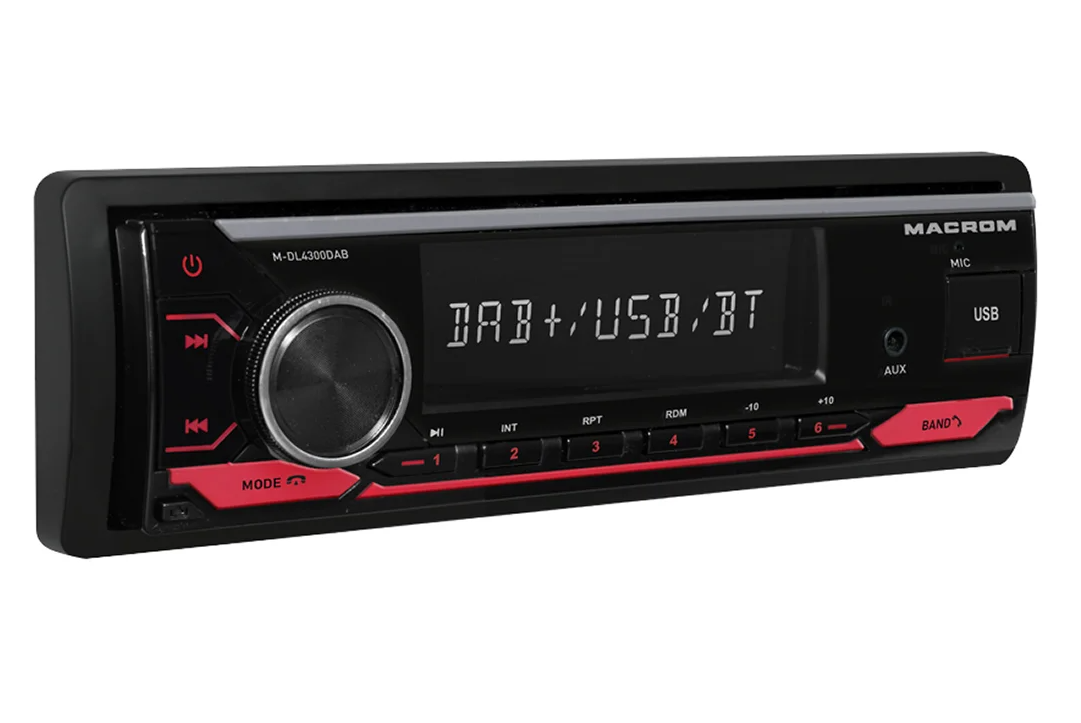

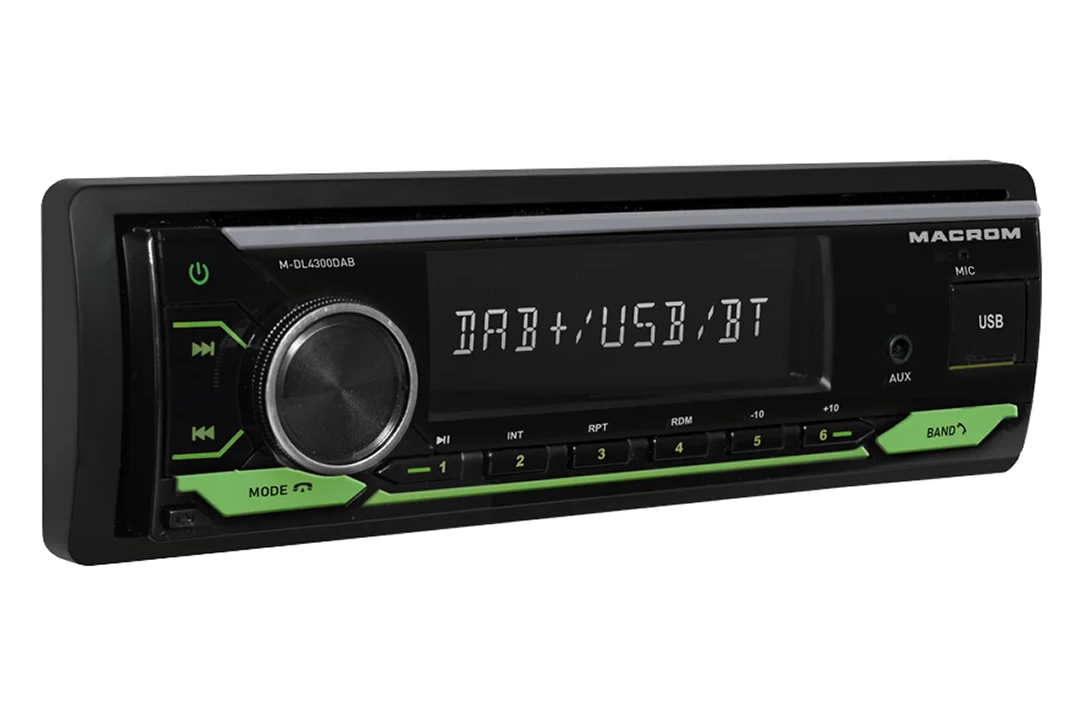

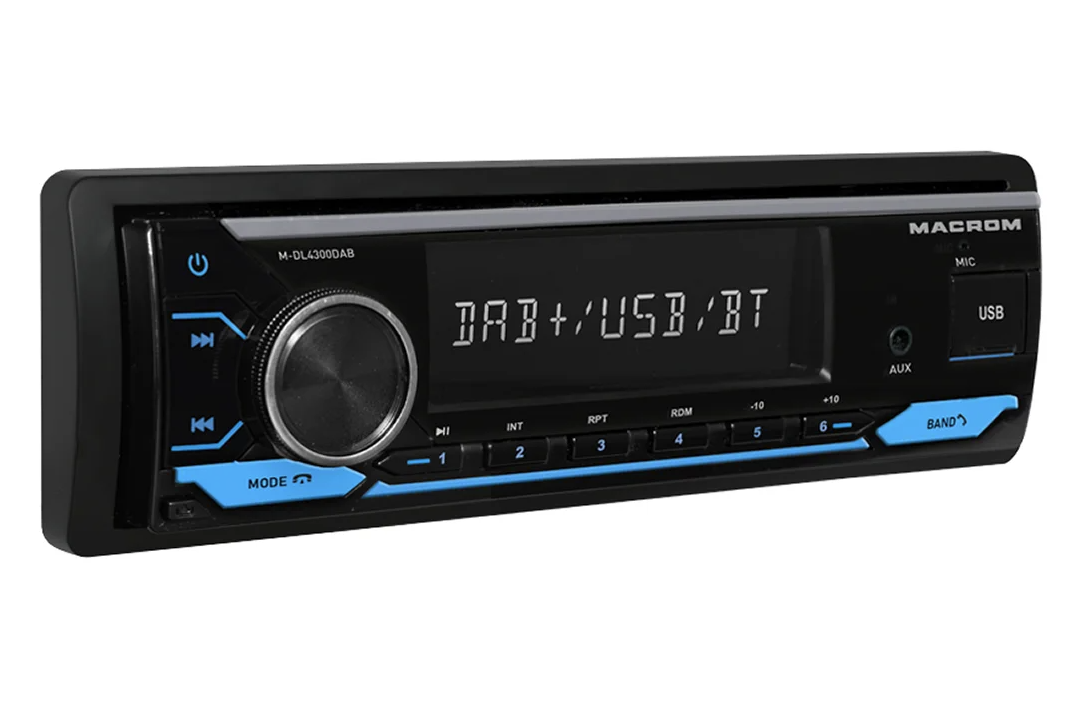

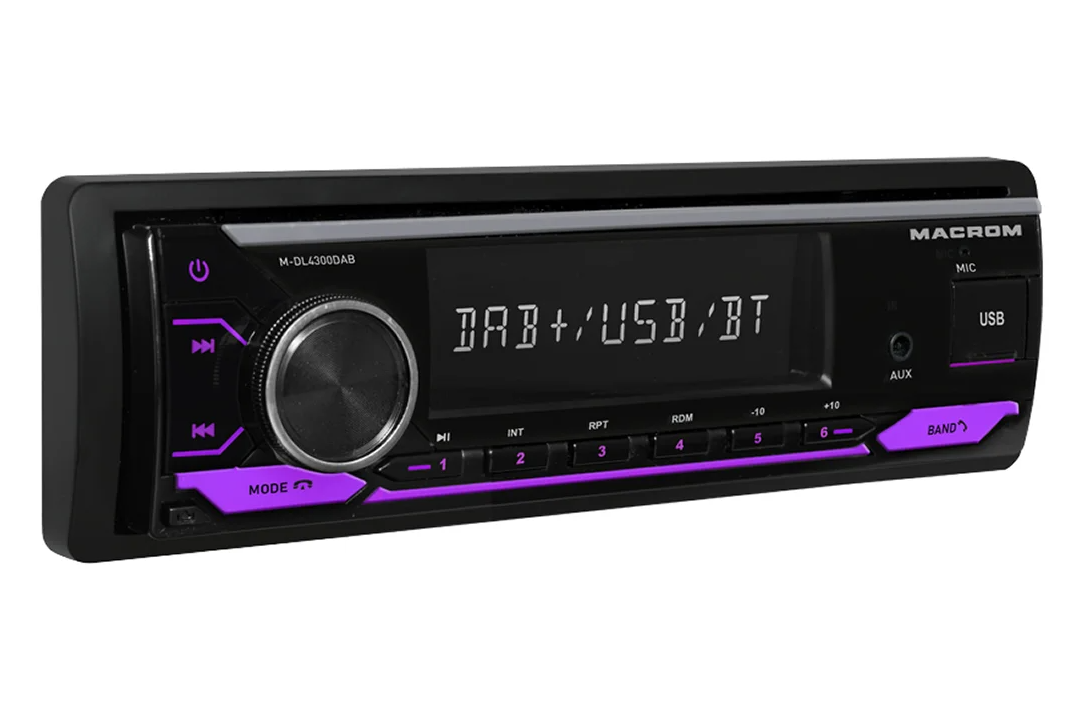

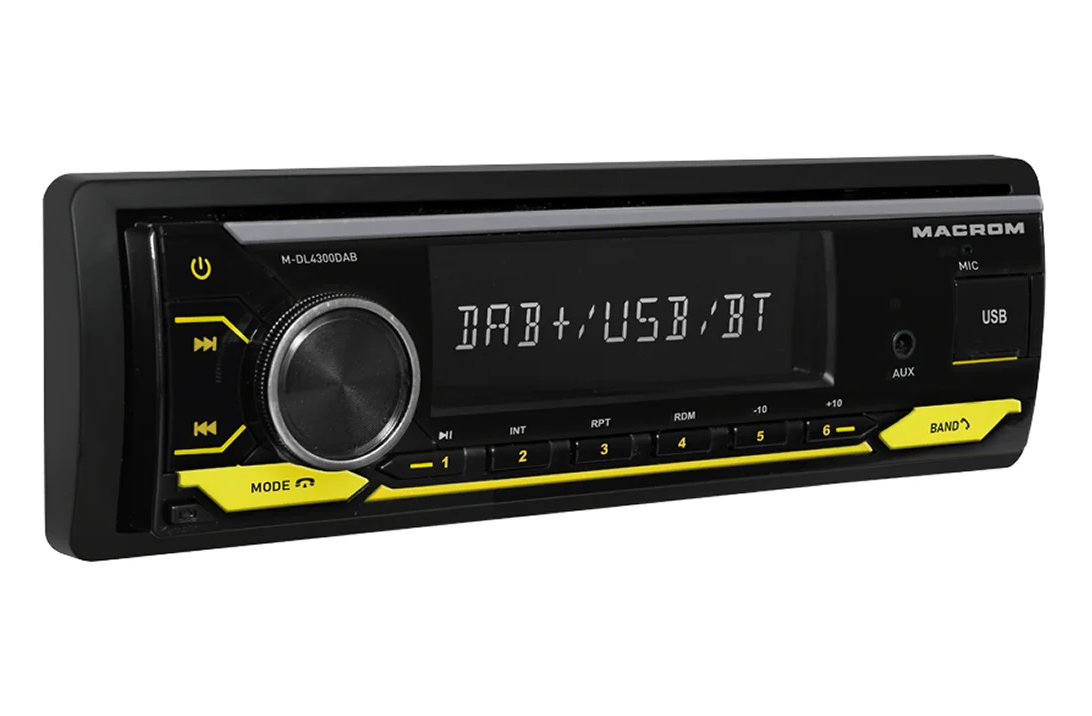

- Switchable RGB button backlight (7 colors).

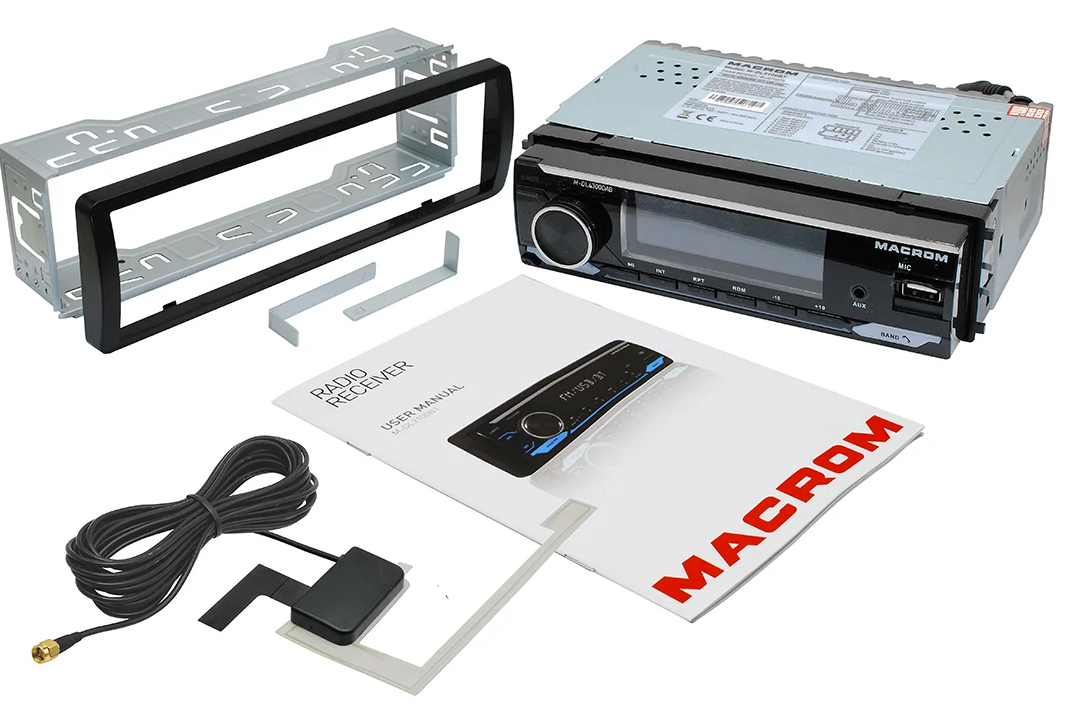

- DAB glass antenna included.
Technical specifications
- Supply voltage: 11 – 14 V DC.
- Max. current consumption: 15 A.
- Amplifier: 4 × 50 W max.
- Frequency range: 20 Hz – 20 kHz.
- Impedance: 4 – 8 Ω.
- Line output: 10 kΩ.
- Line output level: 2000 mV RMS (max.).
- DAB frequency range: 174.928 – 239.200 MHz.
- DAB sensitivity: <93 dB.
- Stereo separation (DAB): 50 dB / 1 kHz.
- S/N (DAB): 65 dB.
- FM range: 87.5 – 108 MHz.
- FM sensitivity: <10 dB.
- Stereo separation (FM): 35 dB / 1 kHz.
- S/N (FM): 50 dB.
- AM range: 522 – 1620 kHz.
- AM sensitivity: <45 dB.
- S/N (AM): 40 dB.
- Antenna connector: DIN.
- Bluetooth version: 4.2.
- Bluetooth frequency: 2402 – 2480 GHz.
- EIRP: 3.3 dBm.
- USB: max. 32 GB flash drive, FAT12/16/32, supports USB 1.1/2.0.
- Micro SD/MMC card: max. 32 GB, FAT12/16/32.
- Supported formats: MP3 / WMA / APE / FLAC.
- SWC input for steering wheel control.
- Switchable button backlight: blue, green, cyan, red, purple, yellow, white.
- Dimensions: 180 × 52 mm (W × H) with metal frame.

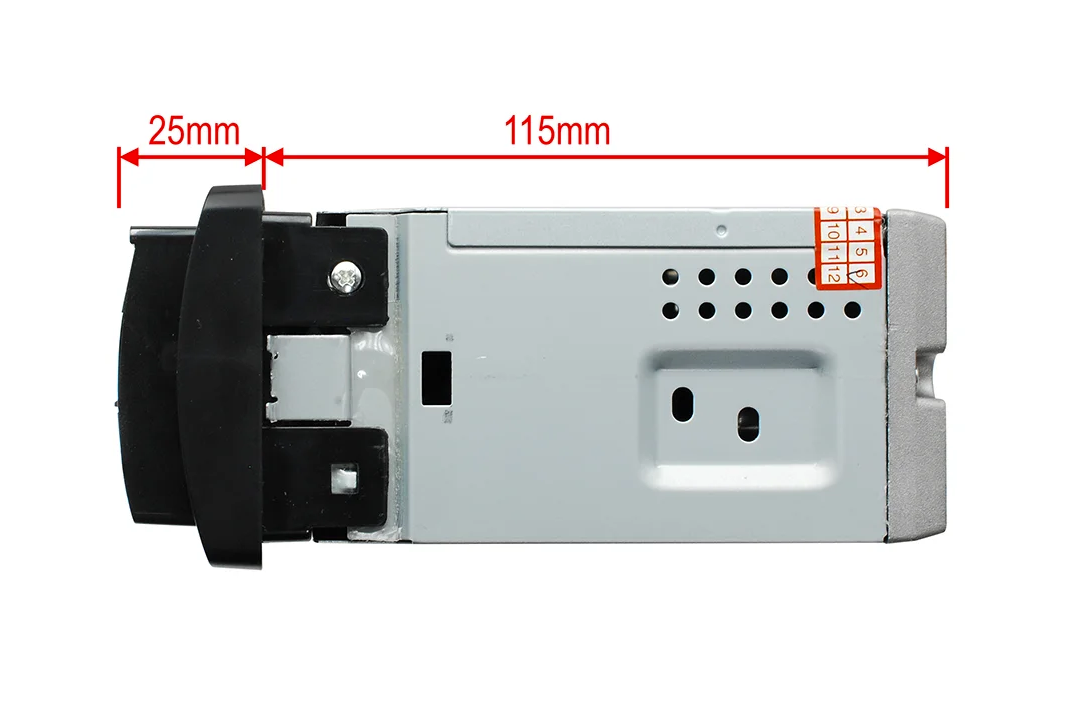

- Mounting depth: 115 mm (without connectors).
- Front panel: 168 × 46 mm (W × H).
| Catalog number | 222432 |
| Brand | Macrom |
| Links | Official web presentation |
| Car radio sizeCar radios are divided into 2 basic sizes, 1DIN car radios and 2DIN car radios . 1DIN size car radios - the exact dimensions including the metal frame where the car radio is inserted are 184 x 53 mm, the external dimensions of the branded 1DIN car radio are 188 x 59 mm. We know 2DIN car radios from newer vehicles, a classic example is the VW Golf IV with navigation. The dimensions of a 2DIN car radio without a metal frame are 180 x 101 mm, the external dimensions of a branded 2DIN car radio are 189 x 119 mm. | 1DIN |
| Car radio performanceThe performance of the car radio shown in maximum values. This is therefore the MAX value. The performance of the internal amplifier of the car radio. Today, the RMS power of a car radio ranges from 17 - 30 W RMS per channel. | 4 x 50 W |
| Supported formats via USB inputList of all supported formats (MP3, AAC, Flac, DivX, etc.) that the car radio can play via USB input. | MP3 / WMA / APE / FLA |
| Supported formats via CD/-R/-RW discList of all supported formats (MP3, AAC, Flac, DivX, etc.) that the car radio can play via CD or DVD drive. | MP3 / WMA / APE / FLA |
| USB inputThe USB input of the car radio is used to connect a USB flash drive or smartphone. Today, playing music via USB is the most popular way to listen to music in the car. The USB input can be front (on the front panel of the car radio) or rear (on the back of the cable). | Yes |
| CD driveCar radios with CD drive. Car radios that have an input slot for inserting a CD. | MP3 / WMA / APE / FLA |
| SD card accessModern branded car radios can play SDHC SD cards up to 32 GB, sometimes even 64 GB. The SD card slot is behind the front panel in most car radios. | No |
| DVD driveDVD ("Digital Versatile Disc" or "Digital Video Disc") is a digital optical data carrier format that can contain movies or various other data. Car radios with a DVD drive can also play classic CD discs, and the car radio always has a slot for only one disc, the CD drive and the DVD drive are always in one. | No |
| Integrated BluetoothBluetooth is a communication technology used for wireless connection between two or more electronic devices. A mobile phone, for example, can be connected to a car radio with built-in Bluetooth. Most car radios for 2017 and later can also wirelessly stream (play) music via Bluetooth -> A2DP function. | Yes |
| Audio Streaming via BluetoothA2DP (Advanced Audio Distribution Profile) is a Bluetooth profile that enables the wireless transmission of stereo audio from an A2DP source, typically a mobile phone or computer, to an A2DP receiver (car radio). These devices usually also support the AVRCP profile. | Yes |
| External microphone included in the packageThe external microphone is connected from the back of the car radio to the input marked "MIC". For ideal sound quality during a phone call, we recommend placing the external microphone on the left "A" pillar at the point where the "A" pillar and the roof panel connect to each other. A very good position to place an external microphone is also near the central rear-view mirror. | Yes |
| Number of RCA outputsRCA outputs , colloquially called "cinches", are used to connect an external amplifier or active subwoofer. Aftermarket car radios are usually equipped with 1 to 3 pairs of RCA outputs. FRONT, REAR and SUB are used. It also depends on how many volt outputs the car radio is equipped with. More basic models of car radios have 2V outputs, more expensive units have 4V and more. The higher the specified value, the less power demands are placed on the external amplifier and the sound quality increases. | 2 pairs |
| Output level on RCAAn important parameter if you are going to install an external amplifier. If you purchase a car radio with a basic value, i.e. 2V outputs, then greater demands will be placed on the power of the amplifier. As the value increases, e.g. 4V or 5V, the power of the external amplifier increases significantly, in layman's terms. A car radio with strong outputs therefore has the advantage that you do not pull so much power through the amplifier and thus achieve a better sound, as external amplifiers lose control at higher loads. | 2.5 V |
| Android AutoGoogle's Android Auto is a completely new option for connecting a smartphone to a car radio that has the Android Auto function. The connection is only by cable, thanks to the high data flow. The Android OS requirement is at least version 5.0. You click on the Android Auto icon on the car radio screen, and application icons appear on the car radio screen like on a smartphone, and you can continue to control everything using the car radio. Voice control and GPS signal also works. | No |
| Backlit buttonsColor options for the backlight of the car radio buttons. | Multicolor |
| Display backlightOptions for backlighting the car radio display. | White |
| DisplayAdditional information about the display. Segment, LCD, multi-line, etc. | Basic graphic |
| Bass boost functionBass boost or bass enhancement. With this function, the bass itself can be emphasized, at a high level of bass boost, the speakers and the subwoofer can distort a lot and the sound will be worse than better. We therefore recommend using the "bass boost" function wisely. With maximum use of bass boost, there is a risk of damage to the speakers and thus to the subwoofer. | No |
| Equalizer / DSP processorA basic or parametric equalizer allows you to adjust the sound at individual frequencies in finer steps. Using the DSP processor , you can set the time correction, connect the speakers actively (actively): without crossovers, set the location of the speakers and determine their size digitally. | Yes / No |
| NFC connectionNFC is a new form of wireless communication between devices. Simply place a smartphone that is equipped with NFC to the car stereo with NFC, and the two devices will connect immediately, so you can immediately play music from the smartphone to the car stereo. So all you have to do is get close and the connection will happen. | No |
| Built-in DAB+ tunerIntegrated DAB+ (Digital Audio Broadcasting) digital FM tuner for reception of digital FM radio signal broadcasting. Before buying a car radio with a DAB+ tuner, we recommend checking whether the package includes a DAB+ antenna, without which you cannot receive digital broadcasts. This information is usually provided on the manufacturer's official website. | Yes |
| Removable front panelPossibility to remove the entire front panel of the car radio by pressing the side button. A very effective weapon against car radio theft. We recommend not hiding the panel in the vehicle, but taking it with you. Alternatively, place the panel in a hidden place in the trunk, but not when leaving the car, but before parking. You never know when a thief might be watching you. | Yes |
| Remote control includedCard IR remote control of the car radio, thanks to which certain functions of the car radio incl. control the volume from the hand, remotely. | No |
| Possibility to purchase a wireless remote controlCar radios equipped with a sensor for IR remote control. Usually, the remote control does not need to be paired or set up, it works automatically. If your remote control does not work, we recommend checking the battery in the remote control. | No |
| Cable with ISO terminal included in the packageThere is usually a specific 12-18 pin connector on the back of the car radio itself, into which the reduction to standard ISO is connected. This cable is always included in the package of branded aftermarket car radios and has a length of 8 - 15 cm. | Yes |
| Cover for the front panel included in the packagePlastic or fabric cover for the front panel. A good helper against destroying or scratching the front panel of the car radio. | No |
