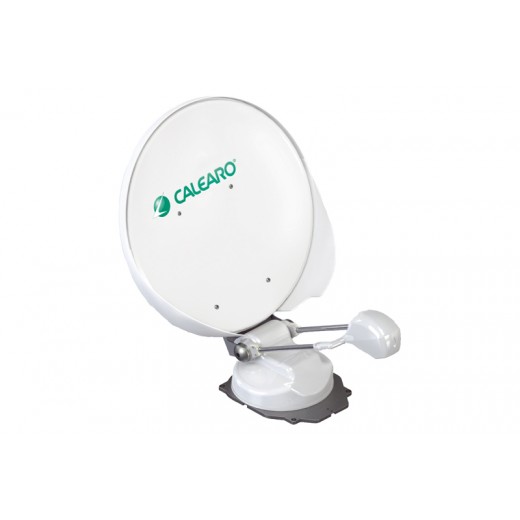

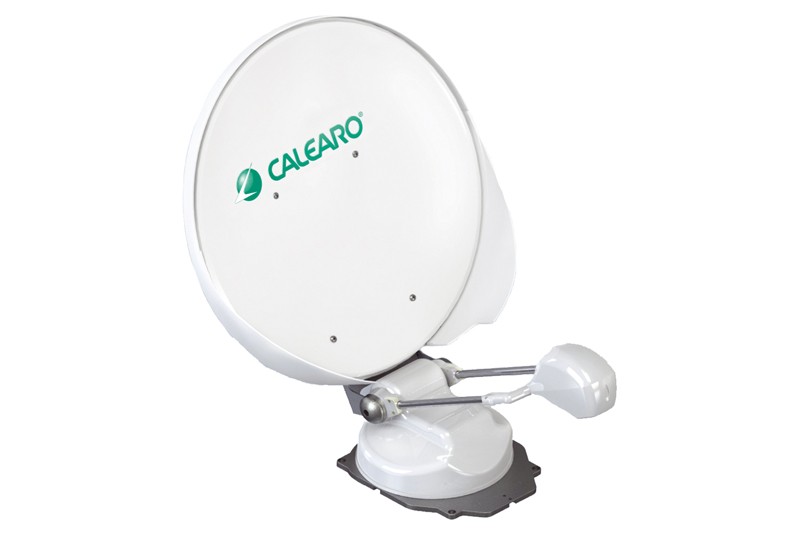

Calearo SatShark Antenna 7138081

DVB-S fully automatic satellite roof antenna designed for caravans or trucks

• diameter of the dish: 85 cm
• frequency range: 10.7 - 12.75 GHz (KU band)
• gain: 35.8 dBi@11 GHz
• power supply: 12 V
• current consumption: 80 mA (in stand-by mode) 2.5 A max (when setting the position)
• cable length from the antenna to the control unit: 2.5 m
• antenna connector: F male

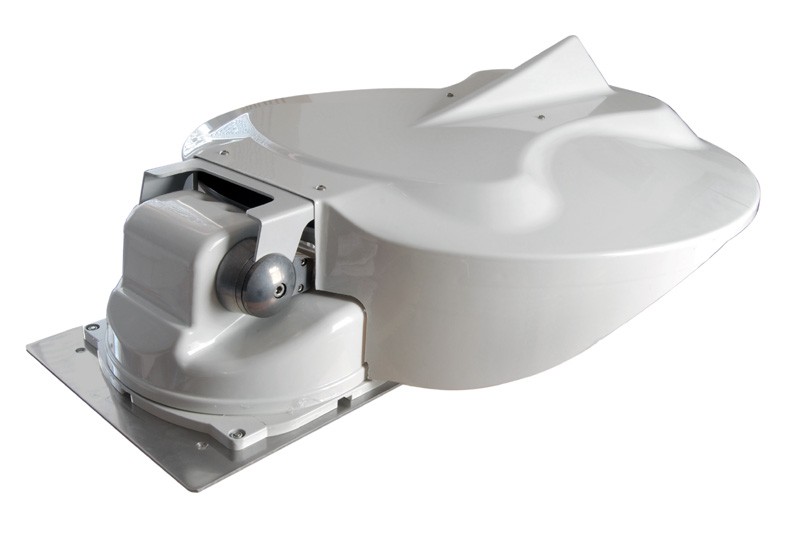

• dimensions: 85 x 70 x 35 cm (L x W x H) - when closed
• weight: 11 kg

Package contents:

• satellite antenna with converter

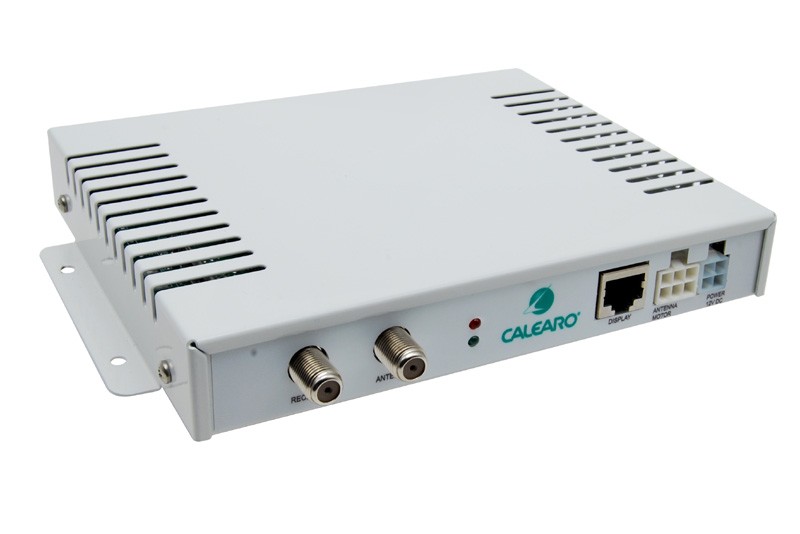

• control unit

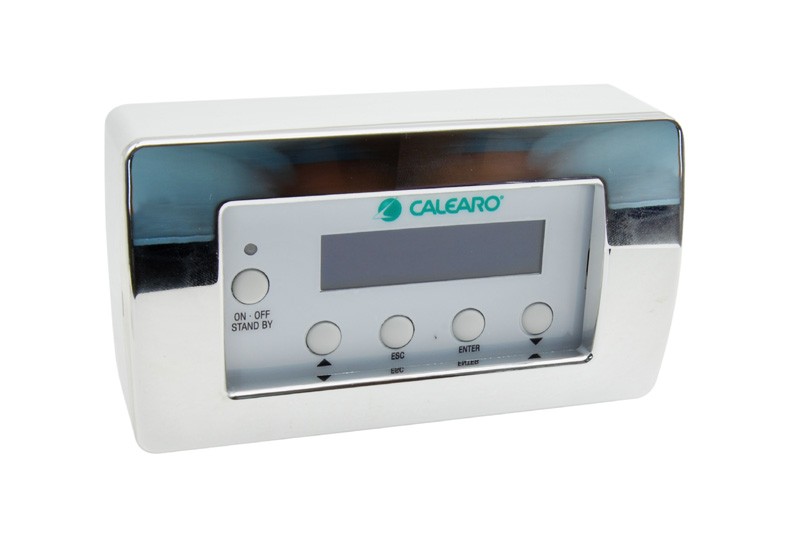

• control panel with display
