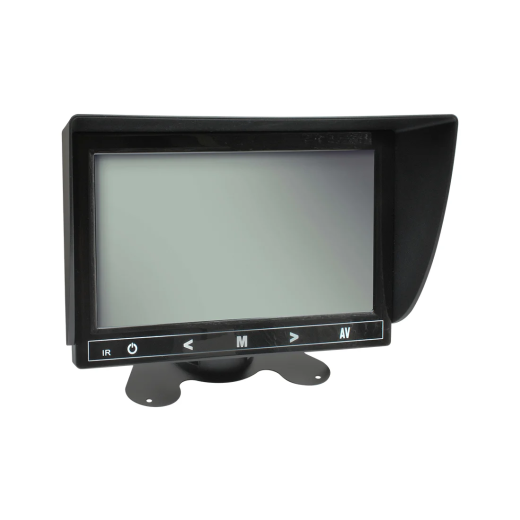

Calearo monitor 7 AHD LCD TFT
This ultra-thin monitor is a practical and affordable solution for everyday use. The monitor is equipped with touch controls for easy and quick operation and includes a remote control. It supports both AHD and CVBS video formats, making it fully compatible with a wide range of camera systems. The package includes a removable sun visor that ensures perfect visibility even in bright light.
Technical parameters
diagonal 7" (17.8 cm)
image format 16:9
resolution CVBS 800 x 480 pixels, AHD 1024 x 600 pixels
brightness 250 cd/m²
contrast 250:1
TV system PAL / NTSC (automatic recognition)
2x video input
touch control

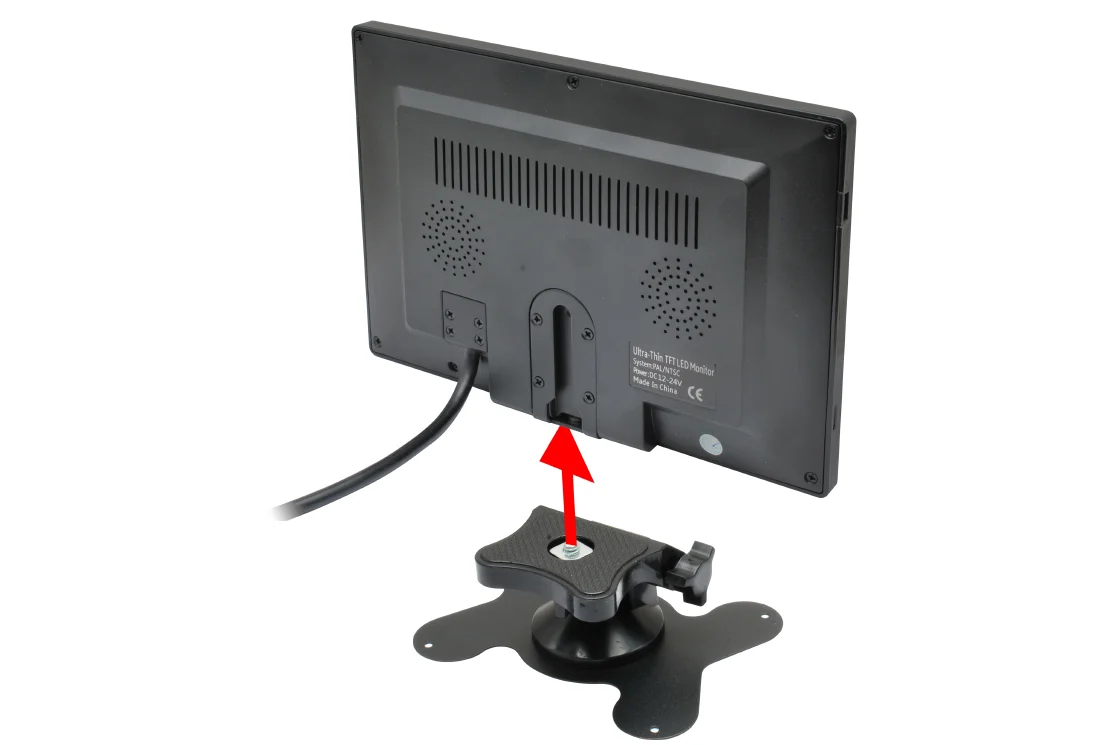

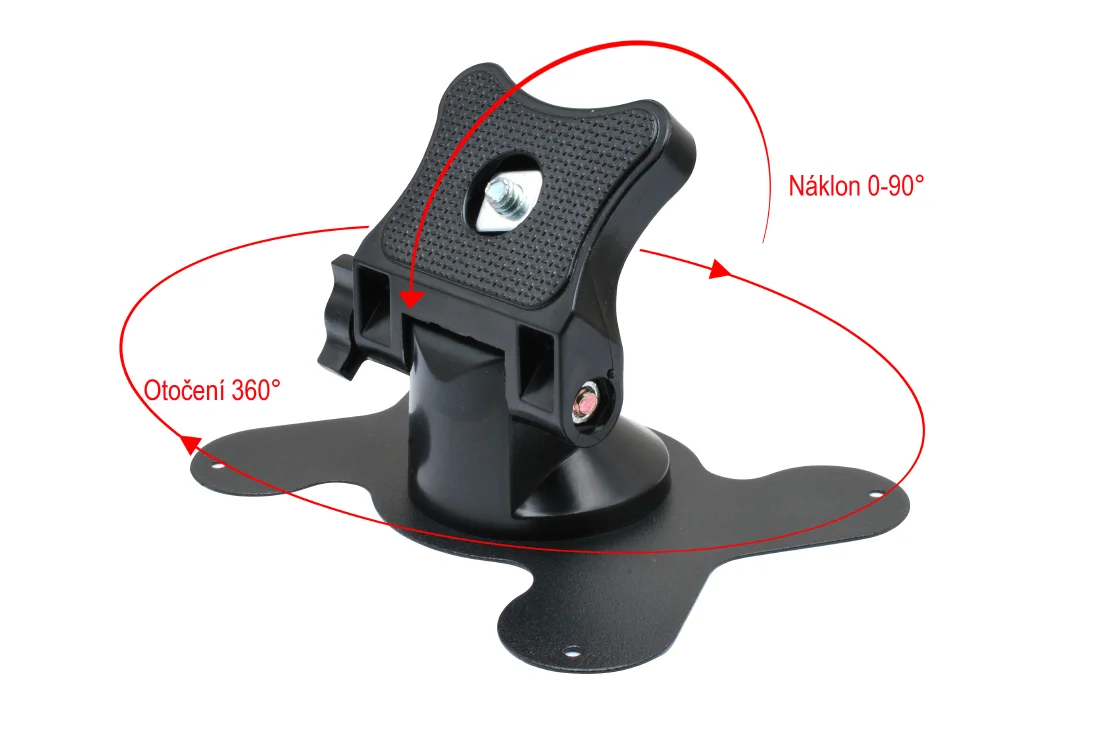

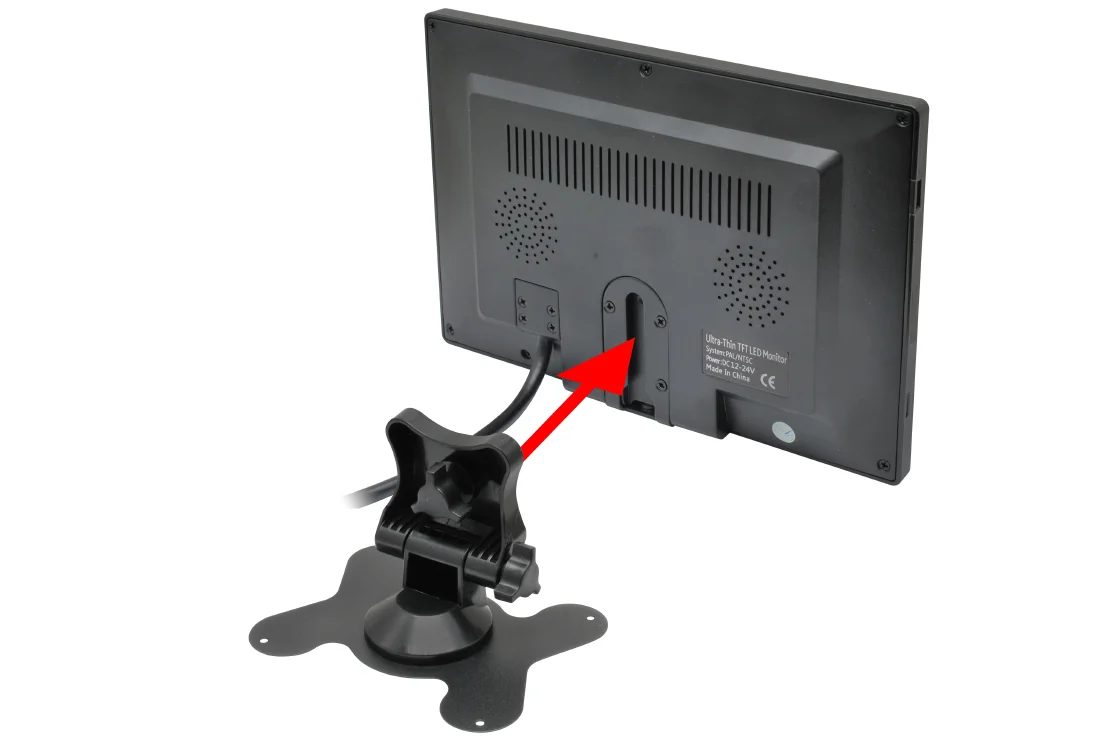

monitor mounting bracket
removable sunshade
glossy black color
remote control
adjustable trajectories (guide lines)
possibility of vertical image rotation
supply voltage 12 - 24 V
consumption: 6 W max
working temperature: -20 °C - +65 °C

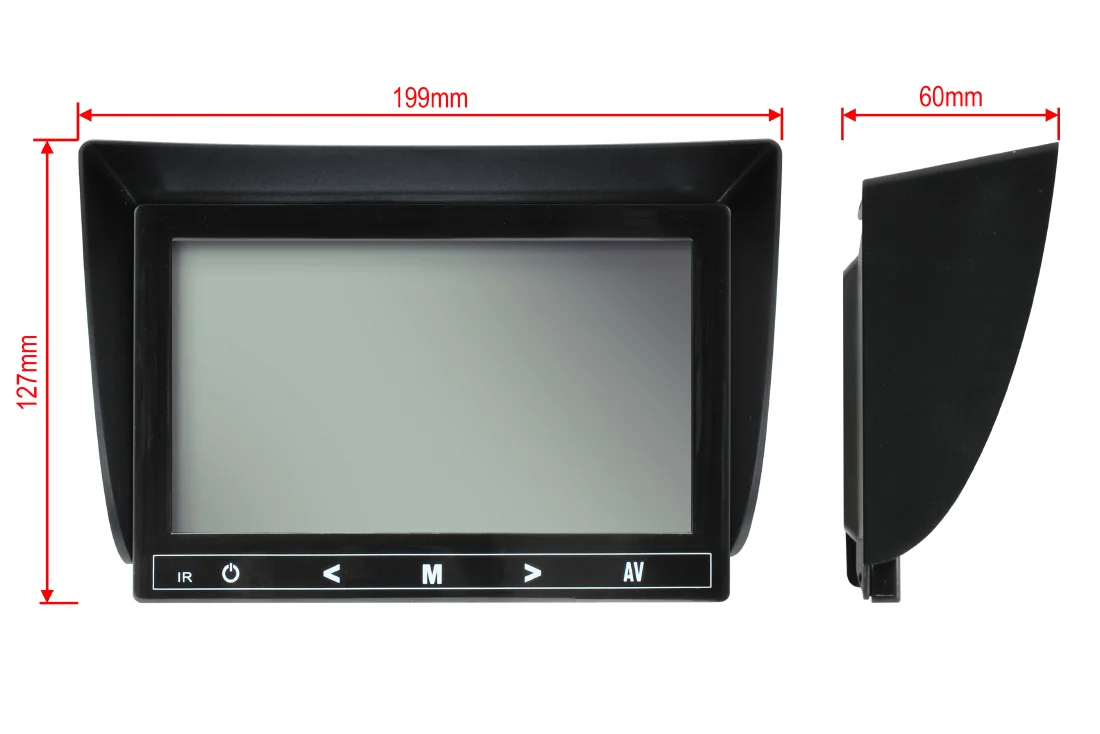

monitor dimensions: 177 x 118 x 17 mm (without sunshade)
About the brand
Discover quality Calearo antennas - an Italian brand with a long history tradition in the field of automotive electronics. We offer a wide selection of antennas for receiving FM/AM, DAB, GPS, GSM and LTE signals, designed for cars and trucks. Calearo antennas are characterized by modern design, reliable performance and easy installation. The ideal choice for anyone looking for high quality reception and long service life. Choose from the range of Calearo roof, interior or universal antennas and improve signal reception in your vehicle today!
This ultra-thin monitor is a practical and affordable solution for everyday use. The monitor is equipped with touch controls for easy and quick operation and includes a remote control. It supports both AHD and CVBS video formats, making it fully compatible with a wide range of camera systems. The package includes a removable sun visor that ensures perfect visibility even in bright light.
Technical parameters
diagonal 7" (17.8 cm)
image format 16:9
resolution CVBS 800 x 480 pixels, AHD 1024 x 600 pixels
brightness 250 cd/m²
contrast 250:1
TV system PAL / NTSC (automatic recognition)
2x video input
touch control
monitor mounting bracket
removable sunshade
glossy black color
remote control
adjustable trajectories (guide lines)
possibility of vertical image rotation
supply voltage 12 - 24 V
consumption: 6 W max
working temperature: -20 °C - +65 °C
monitor dimensions: 177 x 118 x 17 mm (without sunshade)
About the brand
Discover quality Calearo antennas - an Italian brand with a long history tradition in the field of automotive electronics. We offer a wide selection of antennas for receiving FM/AM, DAB, GPS, GSM and LTE signals, designed for cars and trucks. Calearo antennas are characterized by modern design, reliable performance and easy installation. The ideal choice for anyone looking for high quality reception and long service life. Choose from the range of Calearo roof, interior or universal antennas and improve signal reception in your vehicle today!
| Catalog number | 222725 |
| Brand | Calearo |
