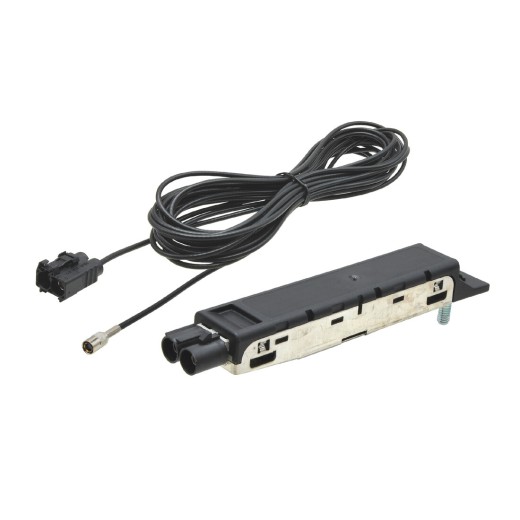

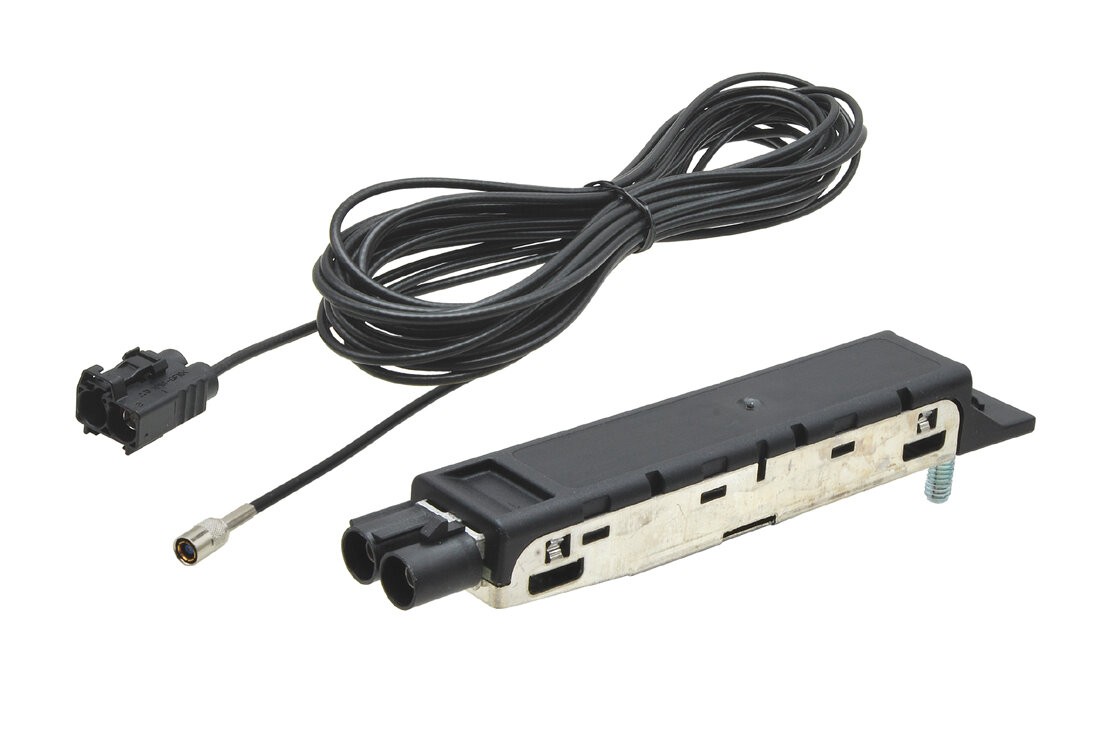

Calearo 7590009 signal amplifier and splitter

FM / DAB-DAB+ amplifier and signal processor

Suitable for VW cars with an OEM antenna installed in the rear window.

FM part

• FM frequency range: 87 - 108 MHz
• Gain: 5dB
• VSWR: < 2:1
• Without antenna lead (original cable used)
• Amplifier connector: FAKRA male type A

DAB part

• Frequency range: 174 - 240 MHZ (III band) / 1452-1492 (L band)
• RG174 cable length: 6.5 m / 50 ohms / impedance 101 pF/m
• Amplifier connector: FAKRA male type A
• Gain: 21 dB (III band) / 16 dB (L band)
• VSWR: <2:1

Common features

• Phantom power: 8.5 - 12 V
• Current consumption: 50 mA max
• Dimensions: 115 x 19 x 14 mm (L x W x H)
• Weight: 80 g
• Working temperature: -40°C to +95°C
• Installation inside the car on the pillar
• Protection IP50

It allows the connection of a car radio or navigation with an analogue radio tuner and a DAB digital tuner.

Suitable for cars:

• VW Passat [B7] Variant (Combi) (2010 -> 2014)
• VW Passat [B8] Variant (Combi) (8/2014 ->)

Use for VW Variant (station wagon) cars with OEM antenna located in the rear glass. Suitable for cars with or without antenna system diversity (1 or 2 antennas).
The original antenna cable is used for FM reception. For DAB reception, it is necessary to install the cable that is included in the package.
