Calearo 7561007 signal splitter
AM-FM / DAB-DAB+ signal splitter with adapters for connection
More about the product
More about the product
The sale is over

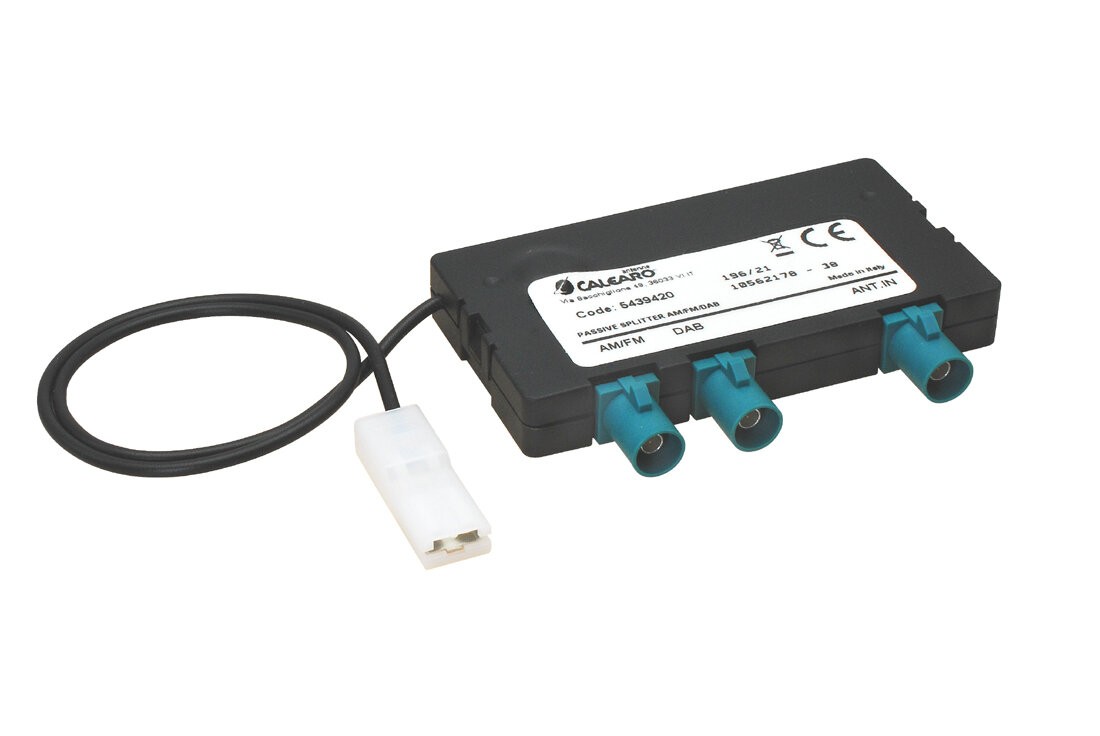

AM-FM / DAB-DAB+ signal splitter

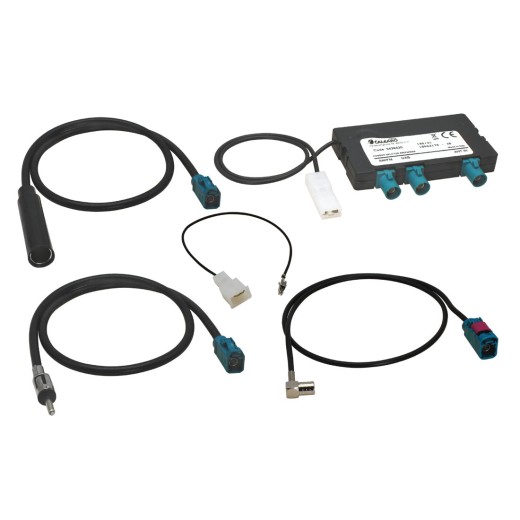

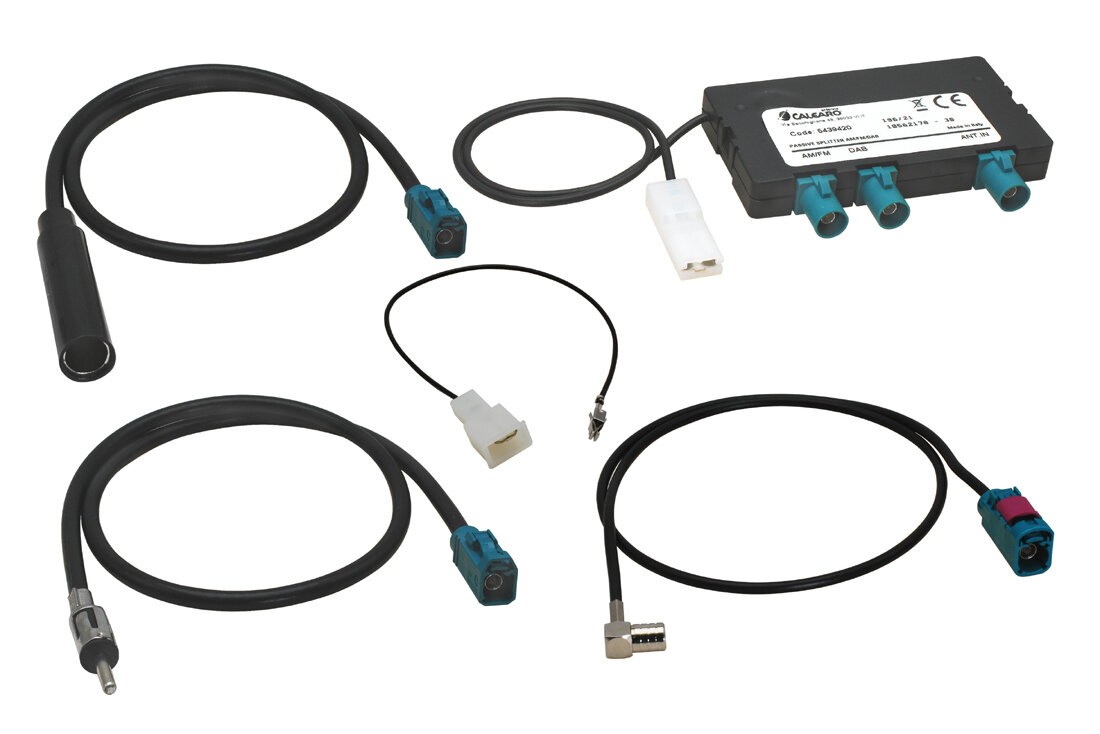

Radio signal splitter for receiving AM-FM analog radio signal and DAB-DAB+ digital radio signal. It is designed for active or passive AM / FM car antennas ready to receive a digital signal. The splitter is also suitable for antennas with 12 V phantom power.- The package contains adapters for connecting to the car.

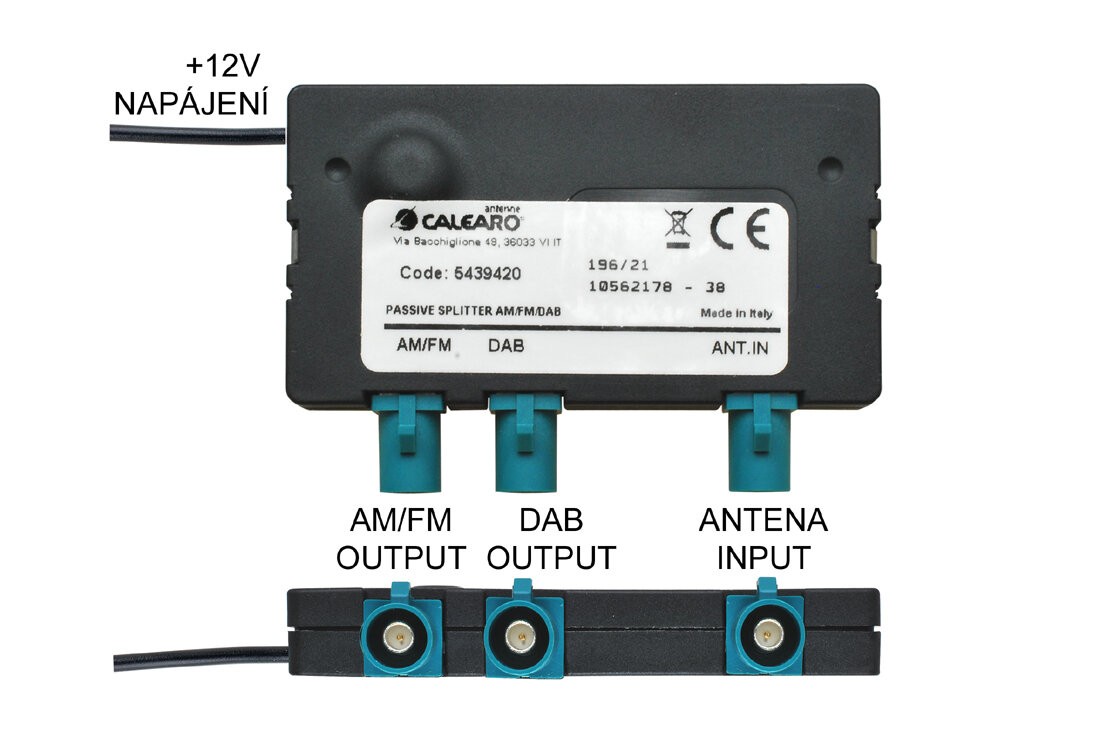

- Antenna input: DIN female.
- AM/FM output to car radio: DIN male.
- DAB output to car radio: SMB female 90°.
Use
- Universal, for passive car antennas with an antenna rod designed to receive DAB broadcasts.
Installation
- To the interior of the car using double-sided adhesive tape or tightening tapes (not included in the package).
Technical parameters
- FAKRA male universal connectors for signal connection, green-blue color
- Frequency bands:
- AM: 0.52 - 1.71 MHz
- FM: 87 - 108 MHz
- DAB: III band 174 - 240 MHz
- DAB L band 1452 - 1492 MHz
- Gain: - 2 dB
- Supply voltage: 12 V (separate wire)
- Current consumption: 110 mA max.
- Impedance: 50 ohms
- VSWR: FM 2:1 / DAB 2:1
- Dimensions: 62 x 35 x 27 mm (L x W x H)
- Weight: 100 g
- Installation: self-adhesive, inside the car
- Working temperature: -40°C - +95°C
- Protection: IP40
Use for Calearo ("DAB Ready") antennas
- 7667012
- 7667013
- 7667010
- 7667011
- 7677865
| Catalog number | 7561007 |
| Brand | Calearo |
| Links | Official web presentation |
