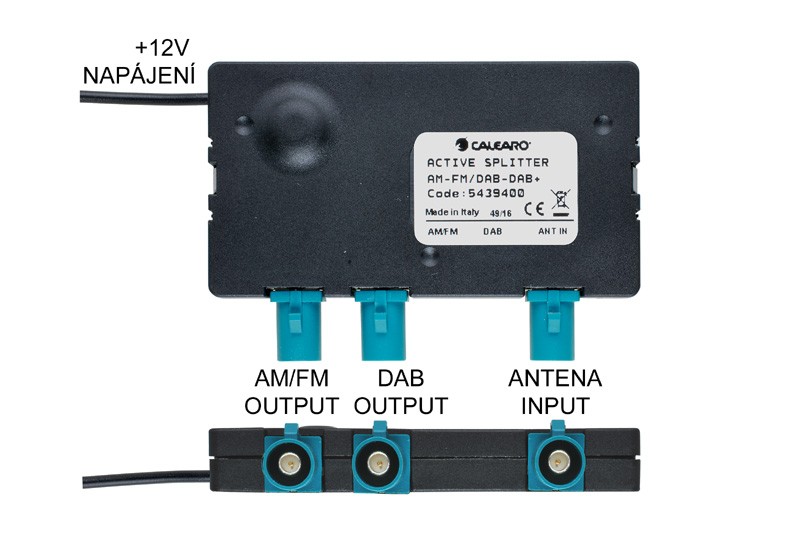

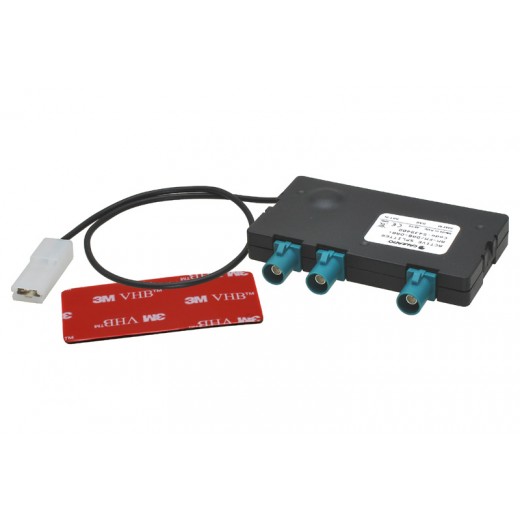

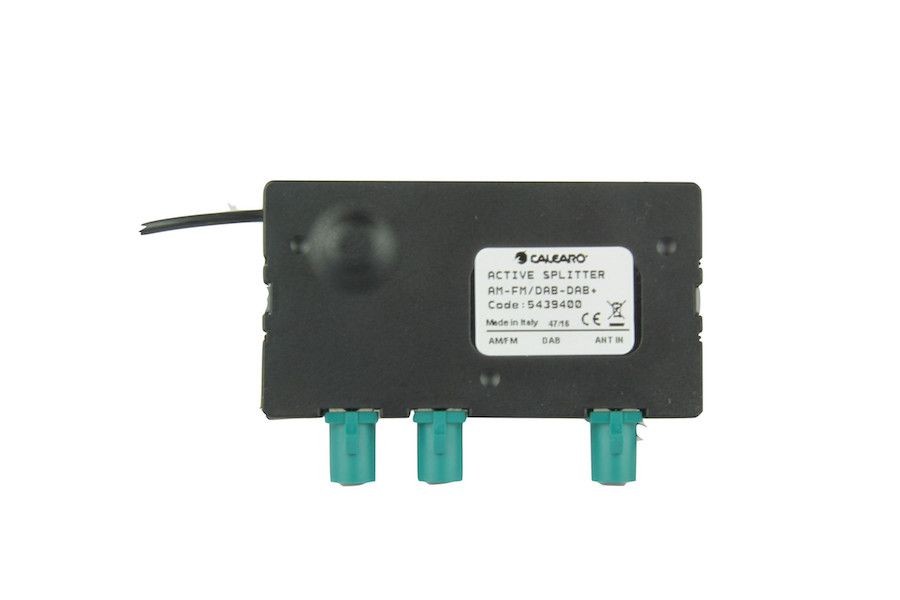

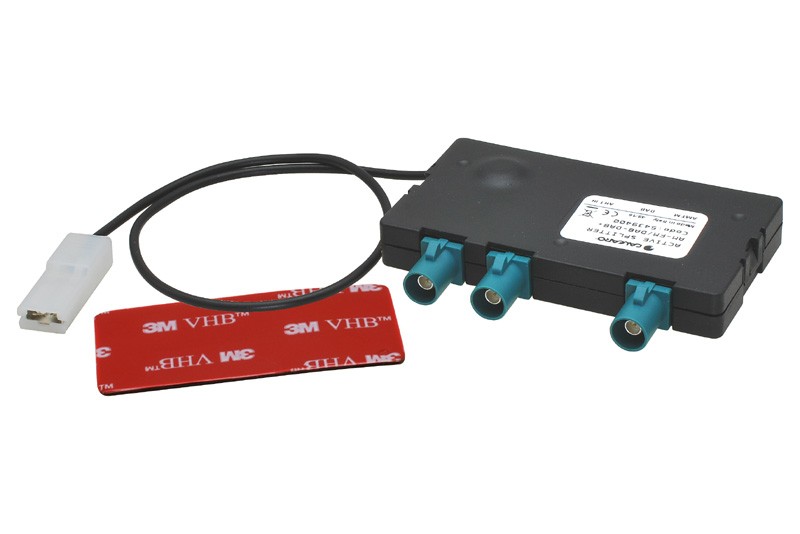

Calearo 7561004 signal amplifier and splitter

AM-FM / DAB-DAB+ active splitter and signal amplifier

Radio signal splitter for receiving AM-FM analog radio signal and DAB-DAB+ digital radio signal, which is intended for passive car antennas.

Specifications:

• FAKRA male universal connectors for signal connection
• frequency bands:
  • AM: 0.52 - 1.71 MHz
  • FM: 87 - 108 MHz
  • DAB: III band 174 - 240 MHz
  • DAB: L band 1452 - 1492 MHz
• profit:
  • AM: 25dB
  • FM: 13.5dB
  • DAB: III band 21 dB
  • DAB: L band 14 dB
• supply voltage: 12 V (separate wire)
• current consumption: 110 mA max.
• impedance: 50 ohms
• VSWR: <2:1
• dimensions: 62 x 35 x 27 mm (L x W x H)
• weight: 100 g
• installation: self-adhesive, inside the car
• working temperature: -40°C - +95°C
• protection: IP50

Use:

• universal
• for passive car antennas with an antenna rod intended for receiving DAB broadcasts
