Brax RX2 Pro Amplifier - Digital In Black

Brax RX2 Pro Amplifier - Digital In Black

Although digital signal processing with the legendary BRAX DSP has long since entered the BRAX world, analog power amplifiers have always been the benchmark for the highest possible sound quality and best parameters. With the BRAX REVELATION RX2 PRO model, however, a new era begins - as the name suggests: A new digital revelation of sound that eclipses everything so far in the car audio segment.

Heinz Fischer: "As a passionate musician with over 45 years of success in the audio industry, I could never have imagined that Class D technology could ever compete with analog technology. But I must express something very clearly: The BRAX REVELATION RX2 PRO literally takes my breath away. The absolutely audiophile reproduction this amplifier offers is out of this world and takes BRAX's uncompromising sound quality standards to a new level. I am convinced that this technological masterpiece will open the eyes of even the biggest analog technology supporters and show them a new era of top-level amplification."

New Standard of Sound Quality with PURIFI EIGENTAKT Technology

The BRAX RX2 PRO uniquely combines compact dimensions and efficiency with technical and sound parameters that elevate all amplifier manufacturing standards to a completely new level. In collaboration with Danish manufacturer PURIFI, a unique, uncompromising solution worthy of the BRAX brand was realized based on the patented EIGENTAKT technology, dispelling all prejudices against digital amplification. All measured values, such as distortion (THD+N), intermodulation (IMD), or signal-to-noise ratio (SNR), are so exceptional that only the most expensive measuring systems can accurately capture them. The basis of this unique performance is the principle of multi-level feedback, where several extremely wideband and fast control loops in the amplifier stages compensate for all nonlinearities. Even the output relays have their own control loop, eliminating their minimal contact transition resistance. The crucial factor is that the necessary LC output filter in Class D amplifiers is included in the control loops, completely compensating for its influence on distortion and output impedance. The RX2 PRO thus achieves a phenomenal damping factor of 10,000, not only at the usual measuring frequency of 1 kHz but across the entire audio range. The load-dependent frequency response typical for Class D amplifiers is also a thing of the past thanks to this topology. It doesn't matter what speaker the RX2 PRO drives - its amplitude response remains perfectly linear up to 60 kHz.

State-of-the-Art Power Supply

Another key to the RX2 PRO's unrivaled sound quality is its exceptionally sophisticated power supply. A regulated power source is standard, providing the output stages with battery-independent and constant voltage. The RX2 PRO offers not only full compatibility with the Start-Stop function but also allows operation in electric vehicle networks, where voltage can reach up to 18 V. The power supply is also equipped with a total of 67 electrolytic capacitors with enormous capacity, capable of delivering massive current pulses when needed. To ensure the circuit board does not restrict current flow, eight layers of copper take care of the lowest possible internal resistance. But that's not all; the large number of layers also brings other advantages - along with a thoughtful layout, it prevents high currents from affecting sensitive input or feedback signals.

Flexible Input Options and Top-Notch Signal Processing

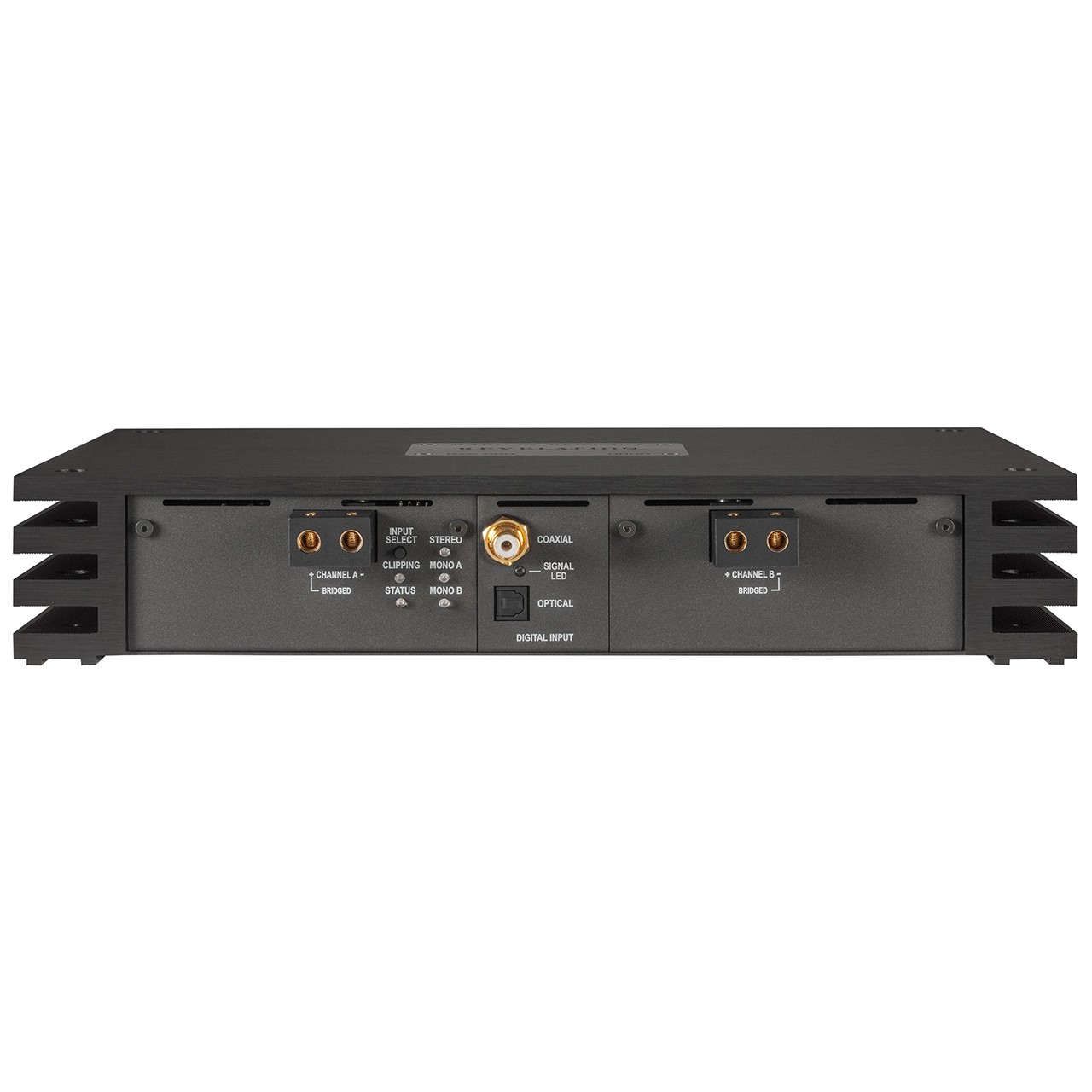

At the input, the RX2 PRO offers two options - an analog input module or a module with a digital SPDIF interface. Both versions use sophisticated technologies that eliminate any negative impact on sound quality from the start. The analog module debuts a new "Super-Balanced" concept, where two extremely low-noise and low-distortion BurrBrown OPA1612 operational amplifiers form a differential input stage. They not only amplify but ensure high immunity to interference typical of the automotive environment thanks to exceptional common-mode rejection. The digital module with optical and coaxial SPDIF input offers a top-of-the-line ESS D/A converter with parameters unparalleled in car audio: a signal-to-noise ratio of 130 dB and distortion of -117 dB (0.00014%) guarantee absolute sound neutrality. Among other things, these values are owed to the power supply – a special dual-channel ESS regulator supplies each channel individually with extremely stable and low-noise voltage. In line with BRAX's philosophy, the digital module naturally supports the proprietary DiSAC 2.0 BRAX DSP protocol for unique volume control at the end of the signal chain.

Compact Design and Revolutionary Efficiency

Despite all its technical uniqueness, the RX2 PRO is presented in an elegant and compact form. Despite an output power of up to 2 x 300 W at 4 Ω (2 x 510 W at 2 Ω or 1 x 930 W bridged), it is exactly the same size as the BRAX DSP and 40% smaller than the GX2000, or 66% smaller than the MX4 PRO. In terms of efficiency, current consumption, and low heat generation, BRAX opens a new chapter and matches the trend of higher power density and maximum efficiency to find its place in modern vehicles.

Awarded Digital Revolution in Amplifier Construction

No matter how you look at the RX2 PRO - it's simply a revolution. After more than three years of intensive development, it represents a new milestone, confirmed by the prestigious EISA award "In-Car Amplifier 2024 - 2025": "What was previously unthinkable has become reality: With the BRAX REVELATION RX2 PRO, Audiotec Fischer introduces the first 'digital' power amplifier under the BRAX brand. To match or even surpass the analog high-end BRAX amplifiers, the RX2 PRO uses innovative Eigentakt technology from Purifi for the first time in automotive, setting new standards in performance and sound. BRAX REVELATION RX2 PRO exclusively uses the world's best components and can be equipped with either an analog input module with TI/BurrBrown operational amplifiers or a digital module with ESS converters – in both cases, the highest signal quality is guaranteed. The result is not only a massive power output of 2 x 300 W at 4 Ω or 2 x 510 W at 2 Ω, but above all an absence of noise and any distortion. Those looking for a modern compact Class-D amplifier with a true high-end approach will find it in the BRAX REVELATION RX2 PRO."

Main Features

• Proprietary, bridgeable High-End Class D amplifier solution based on patented “EIGENTAKT” technology from PURIFI – offers sound quality that surpasses even the best Class A and Class AB amplifiers.
• Unique “Multistage Feedback Design” – several feedback loops individually compensate for all nonlinearities in the power section including LC filters and even output relays for absolute precision.
• Outstanding measured parameters – due to negligible THD+N distortion, minimal intermodulation distortion, impedance-independent linear frequency range up to 60 kHz, and immense signal-to-noise ratio, it surpasses everything known to date.
• Modular input concept with optional modules – offers a choice between analog or digital inputs.
• Analog stereo input module – with innovative “Super-Balanced” input structure for extraordinarily high resistance to interference due to maximum common-mode rejection, equipped with the currently sonically highest quality and ultra-low-noise BurrBrown OPA1612 operational amplifiers.
• Digital stereo input module – equipped with the latest top-of-the-line ES9039Q2M D/A converter from ESS, powered by a special voltage regulator developed by ESS, with each DAC channel using separate extremely low-noise and stable power supply. Fitted with optical and coaxial SPDIF inputs, which support the proprietary DiSAC protocol for lossless and highly innovative volume control, operable via BRAX DSP.
• Unrivaled sophisticated power supply – regulated power supply with Start-Stop support for power stages with huge total capacity for maximum impulse current delivery capability. Separate voltage regulators for each input and control stage ensure maximum stability and eliminate any impact on signal quality; suitable up to 18 V on-board voltage for electric vehicles.
• Exceptional frequency-independent damping factor over 10,000 at 4 Ω – unlike common Class D designs ensures maximum control over speakers across the entire frequency range and thus unparalleled sound accuracy.
• Especially compact and maximally efficient – same size as the BRAX DSP, ideal for modern vehicle concepts due to low heat generation and high efficiency.
• Extremely low-impedance 8-layer printed circuit board – allows maximum loss-minimal current flow and at the same time the best possible separation of sensitive input signals from power stages.
• Use of only the highest quality and carefully selected components – ensures maximum manufacturing consistency and extraordinary longevity.
• Comprehensive protective circuits – optimal protection of the amplifier and connected speakers under all conceivable operating and temperature conditions.
• Processor and temperature-controlled fan – ensures optimal cooling and ideal operating temperature of the amplifier.

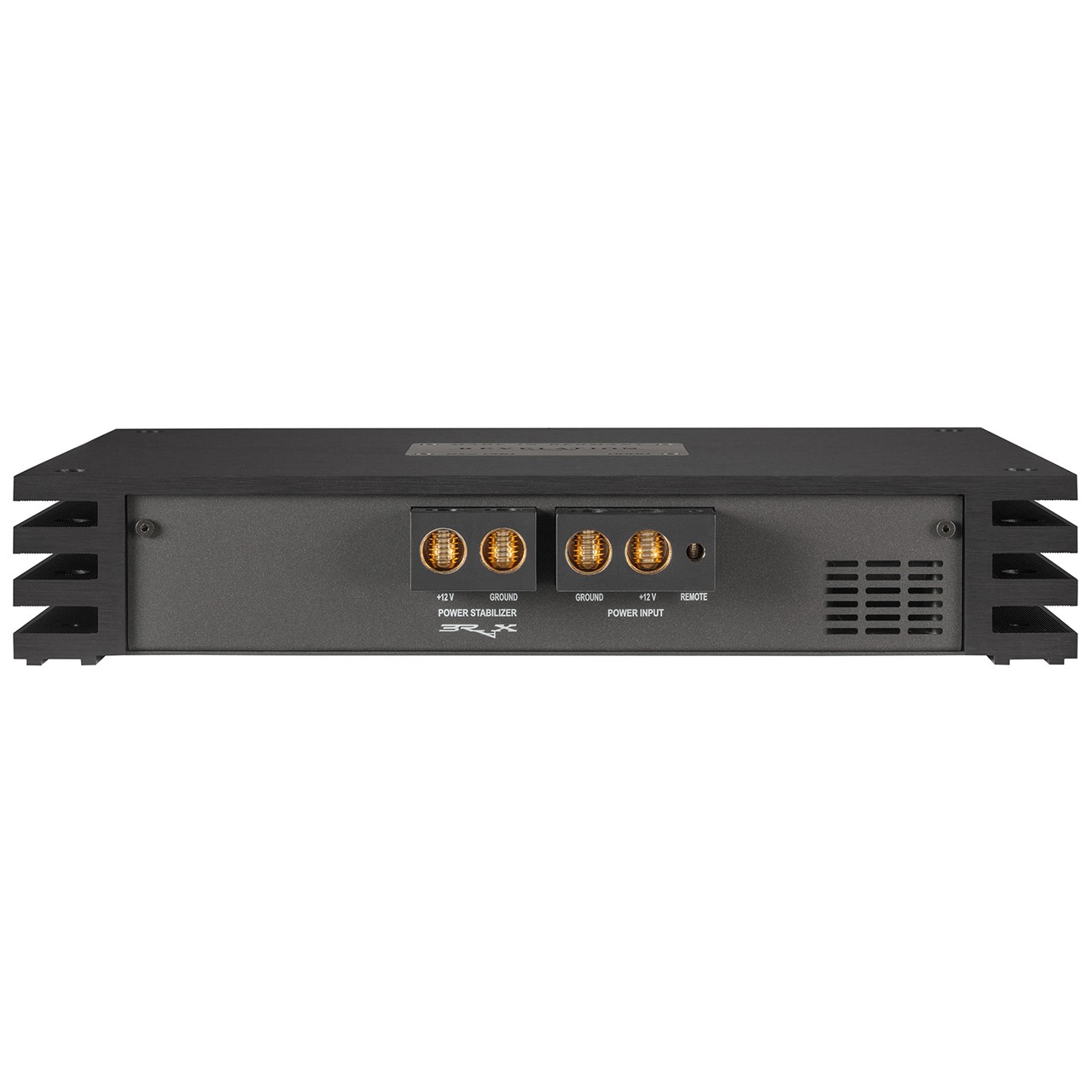

• Separate connector for BRAX Power Stabilizer – for improved power supply and maximum amplifier performance.
• Massive heat sink made from special aluminum alloy – allows optimal heat dissipation and consistently high performance.
• Engraved serial number on stainless steel nameplate – emphasizes the exclusivity of the amplifier.
