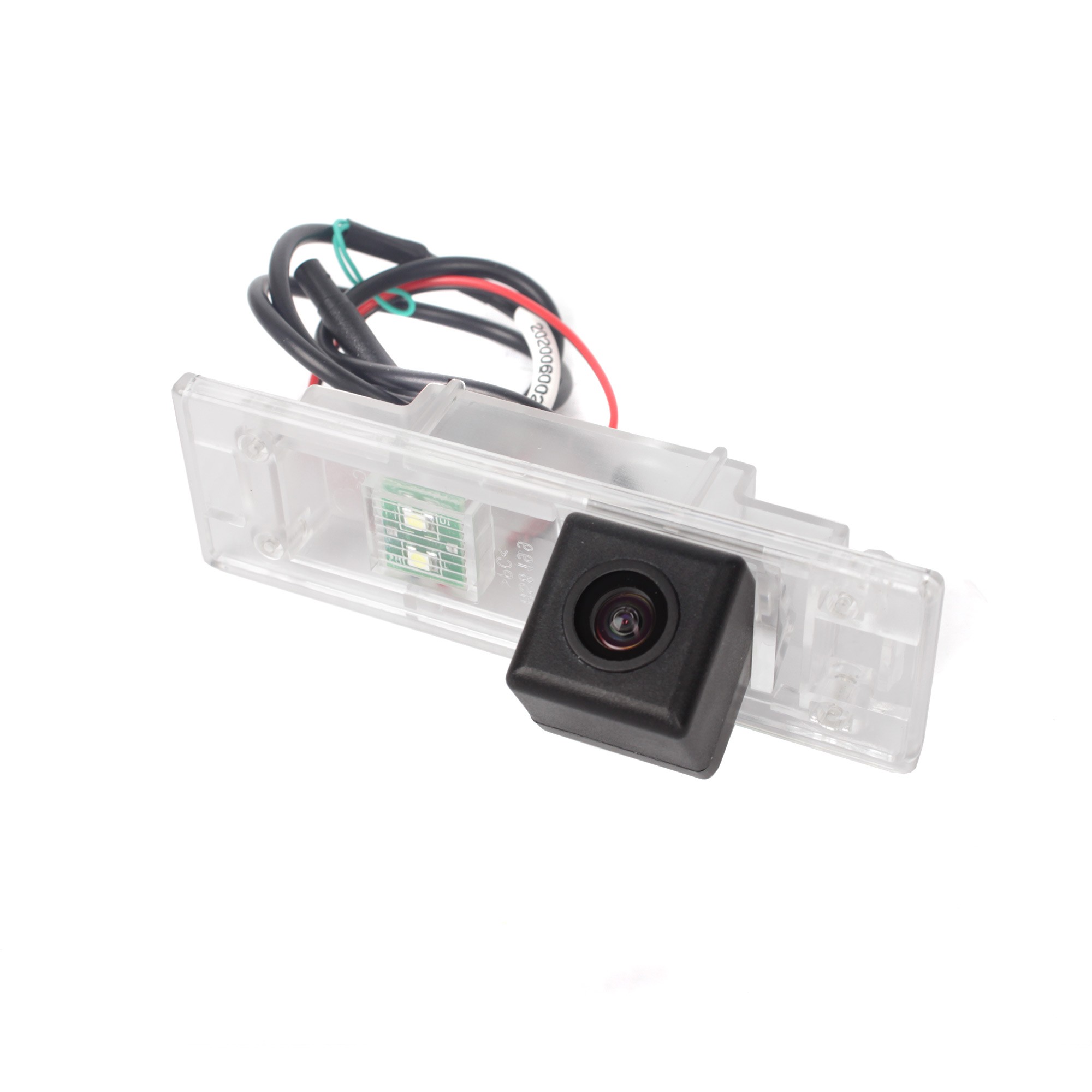

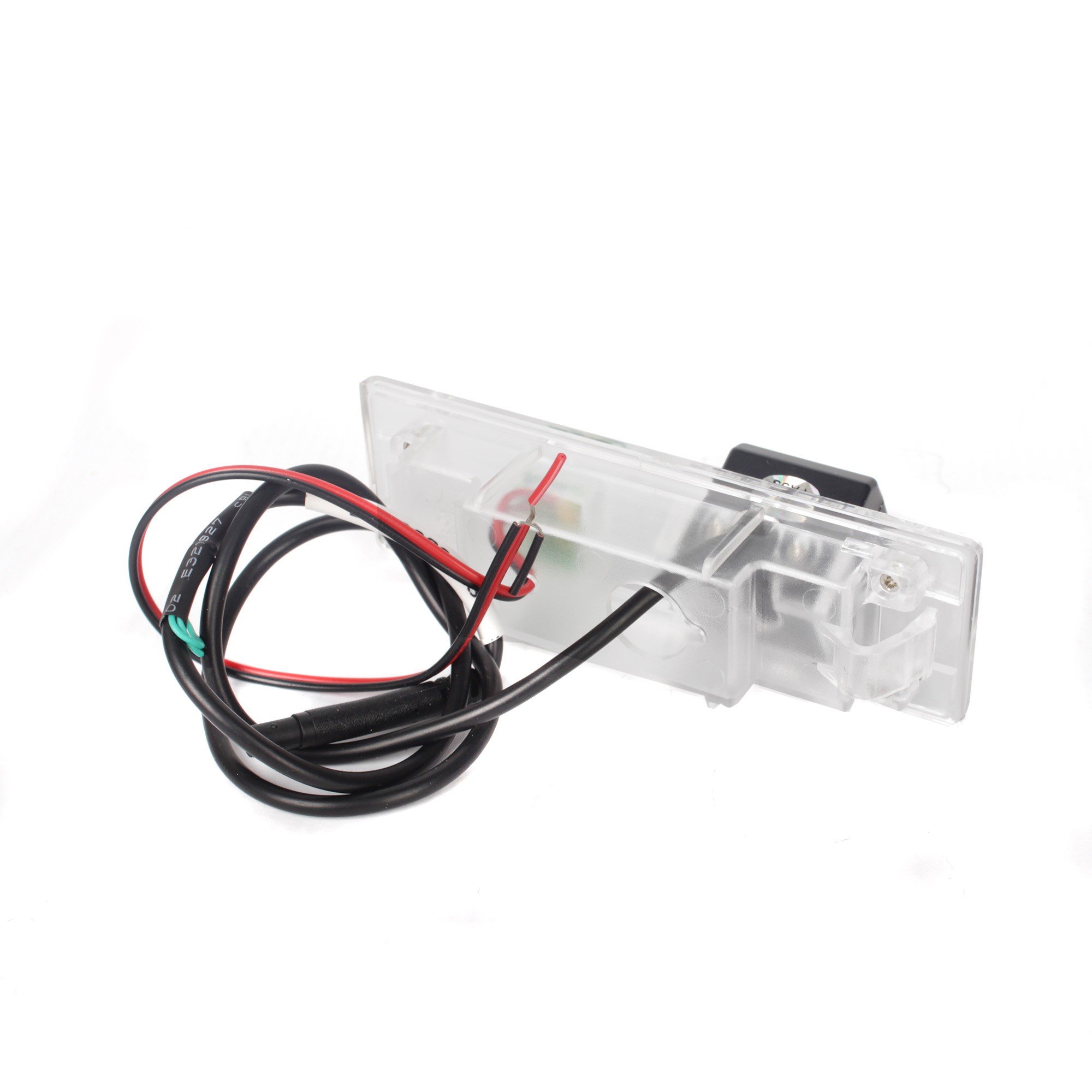

Parking camera for BMW (BC BMW-04)
OEM color parking camera for installation into the lamp for illuminating the rear license plate. The camera includes an LED light replacing the original illumination.The camera is suitable for the following vehicles:
- BMW 1 (11/2003 -> 09/2012) (E81,E87)
- BMW 1 (11/2010 ->) (F20,F21)
- BMW 6 (01/2004 -> 2/2010) (E63, E64)
- BMW 6 (03/2011 ->) (F12, F13)
- BMW Z4 (02/2003 -> 08/2008) (E85)
- BMW Z4 (05/2009 ->) (E89)
Technical specifications
- image sensor: PC3089 1/3"
- ability to turn on/off display of auxiliary trajectories (guidelines)
- electronic shutter: 1/60 - 1/10000 sec.
- minimum illumination: 0.1 lux
- signal-to-noise ratio: > 48 dB
- TV system: NTSC
- number of TV lines: 600
- effective pixels: 668 × 576
- weather protection: IP67
- viewing angle: 170°
- camera body: durable plastics "private housing"
- image display: mirrored
- white balance: automatic
- operating temperature: from -30 °C to +70 °C
- AGC, BLC, white balance: automatic
- signal cable: length 6.2 m terminated with CINCH / RCA connector
- video output: 1.0 V / 75 ohm
- power cable length: 1 m
- power supply: 12 V DC
- power consumption: <1 W
Dimensions
- base: 22 x 104 mm
- distance between mounting points: 90 mm
Note
The camera is intended for non-original (aftermarket) radios with a CINCH AV input. Use with an original radio may require connecting a video adapter for the parking camera!| Catalog number | BC BMW-04 |
| Brand | TSS Group |
