BMW 5 (F11) - Audison sound system with DSP processor

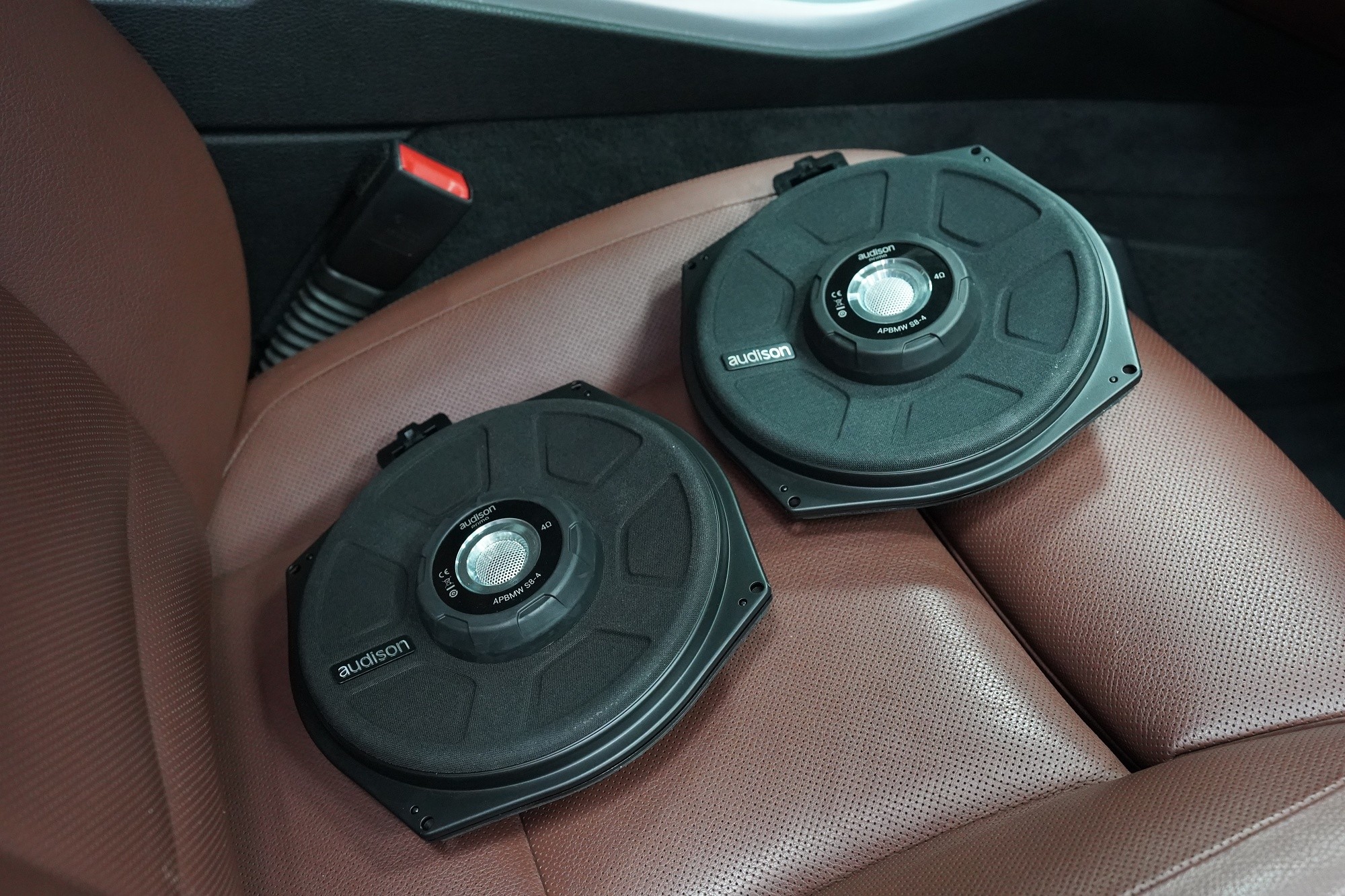

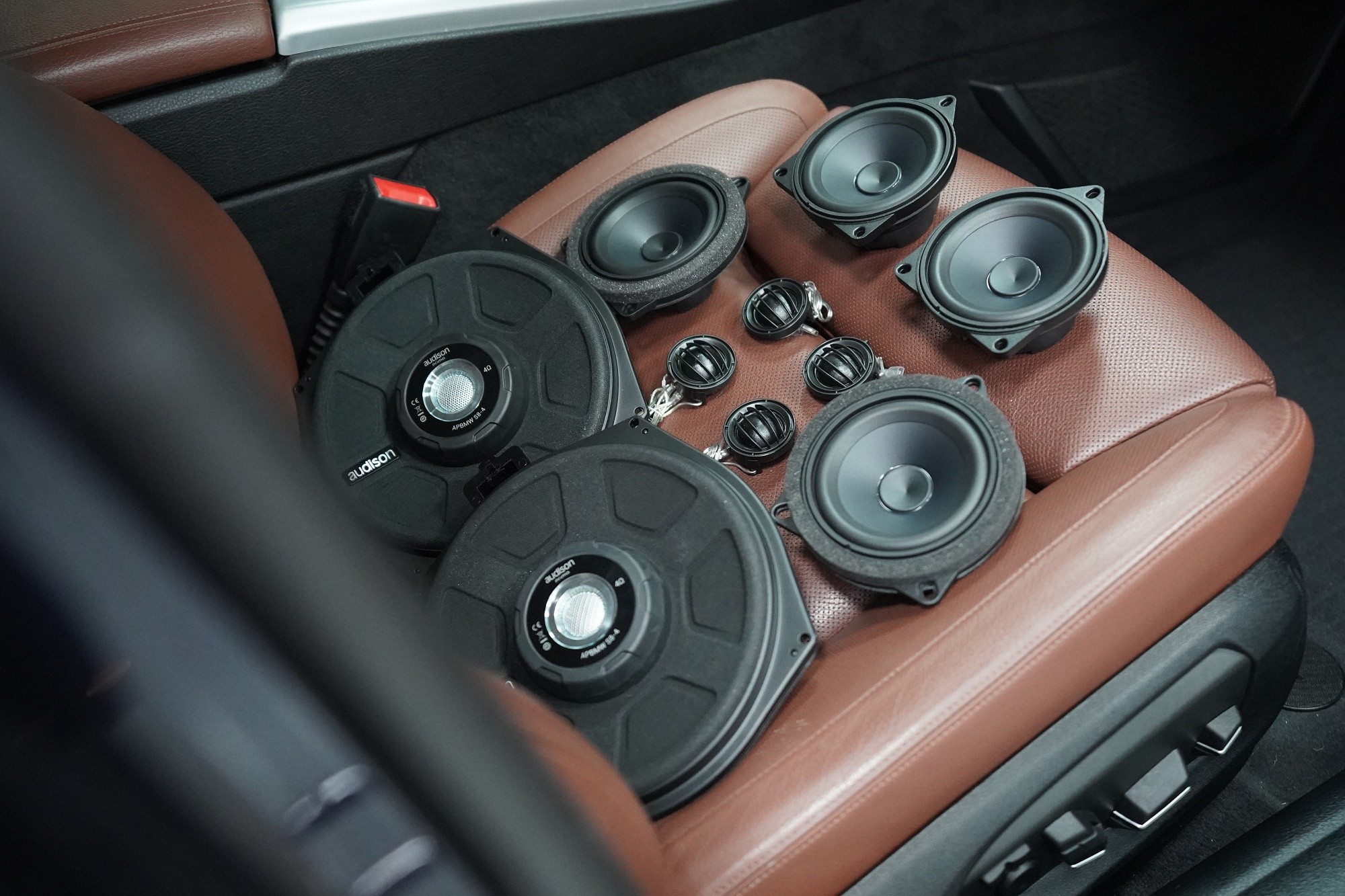

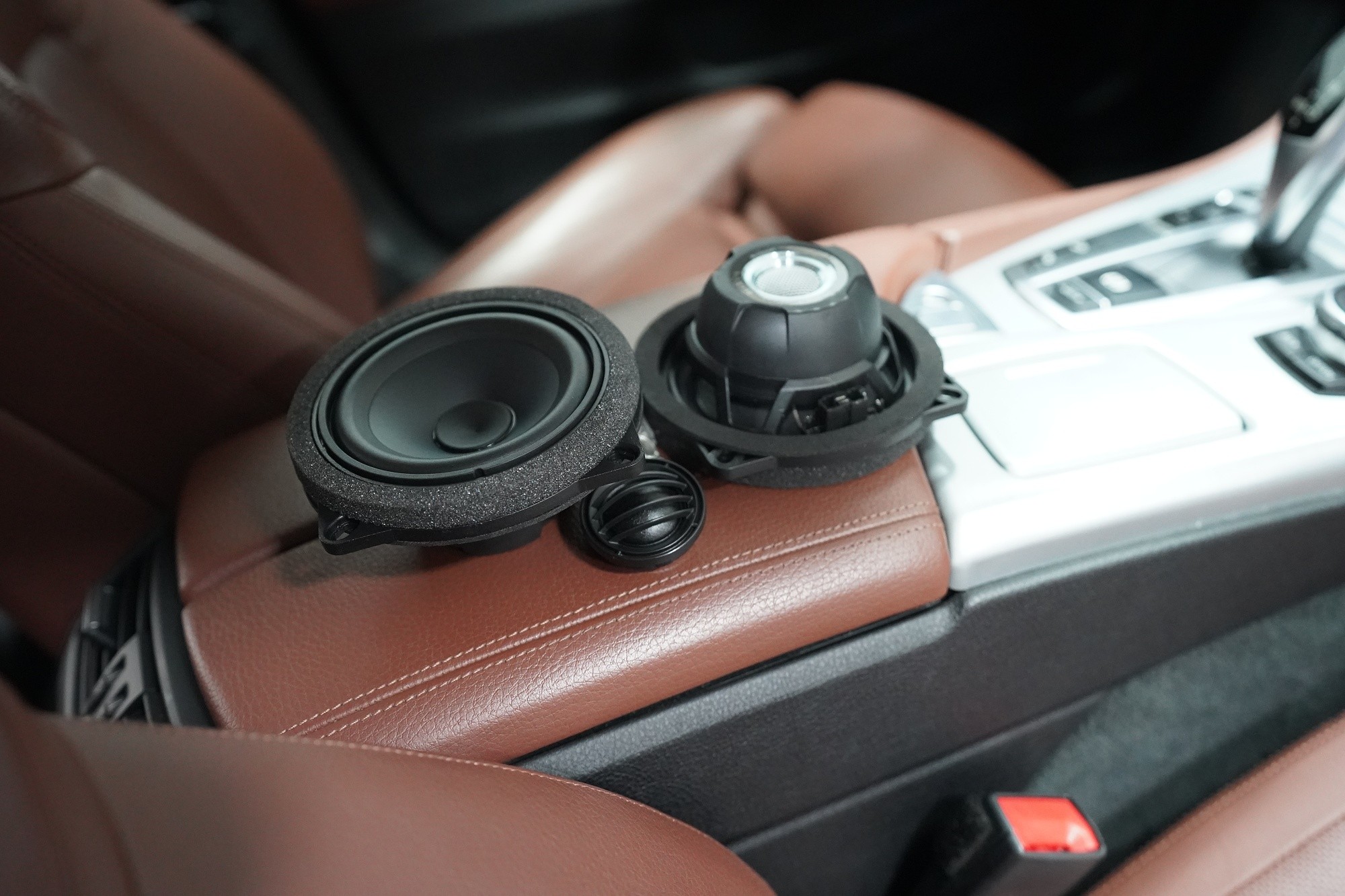

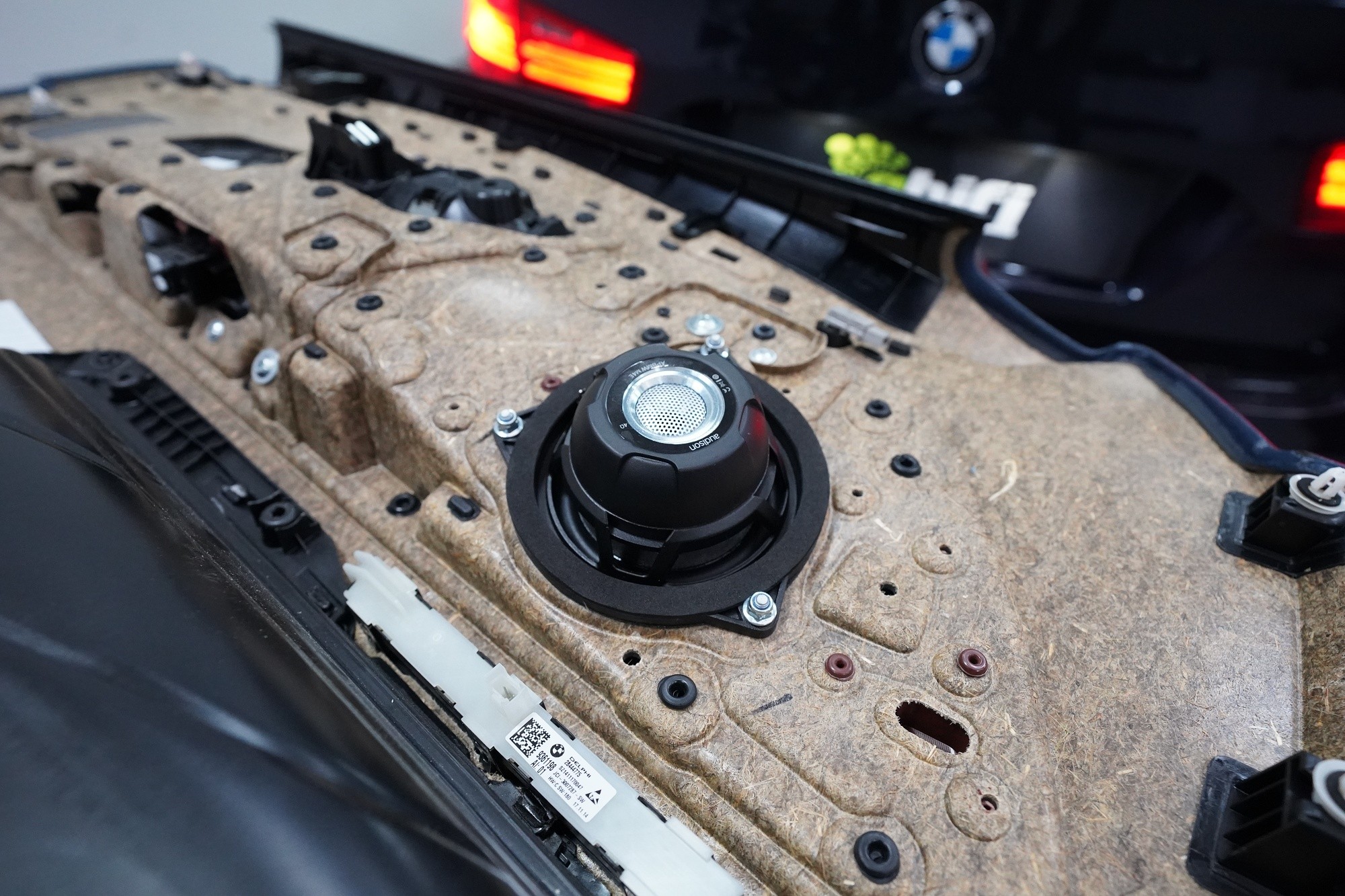

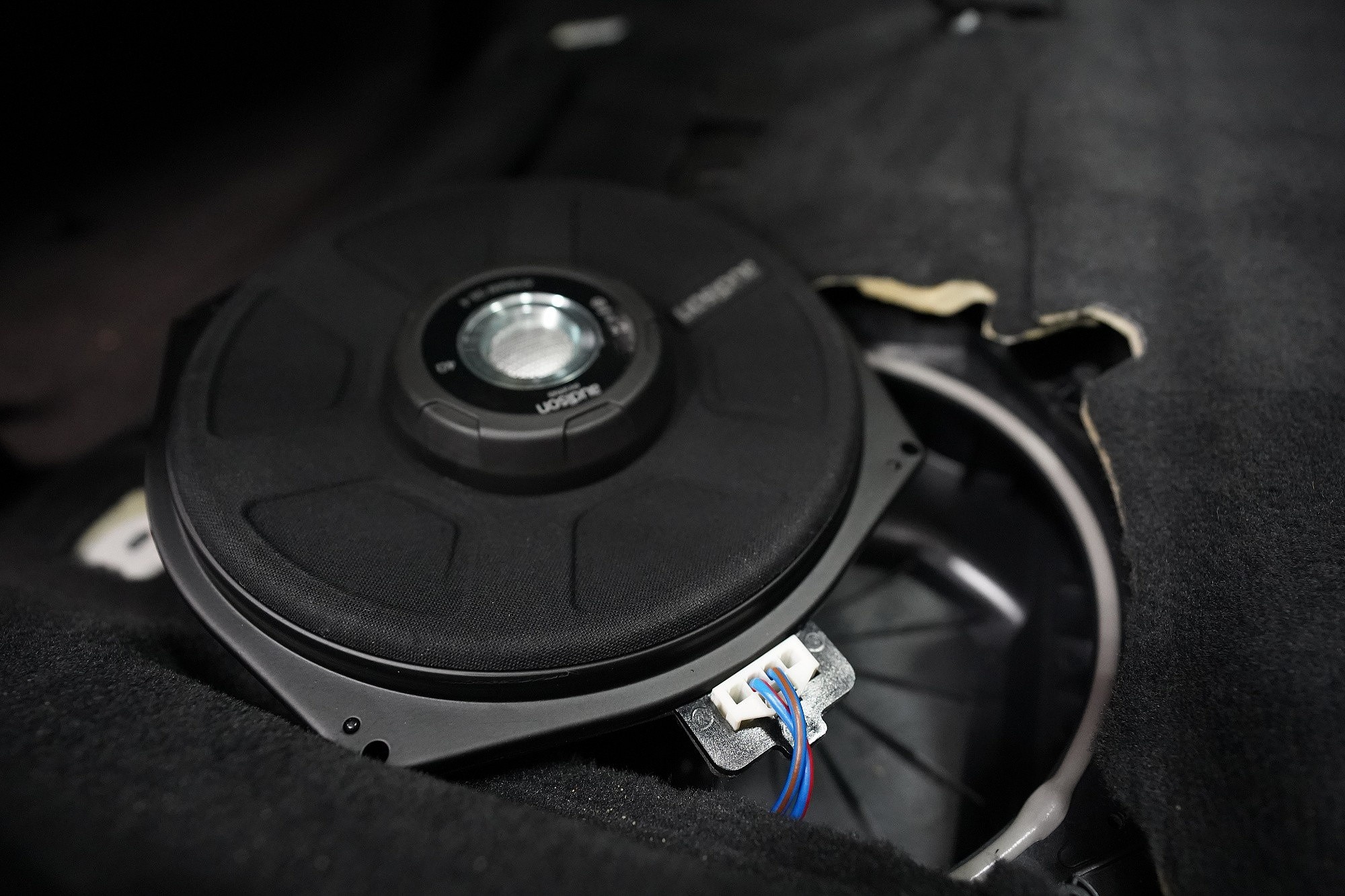

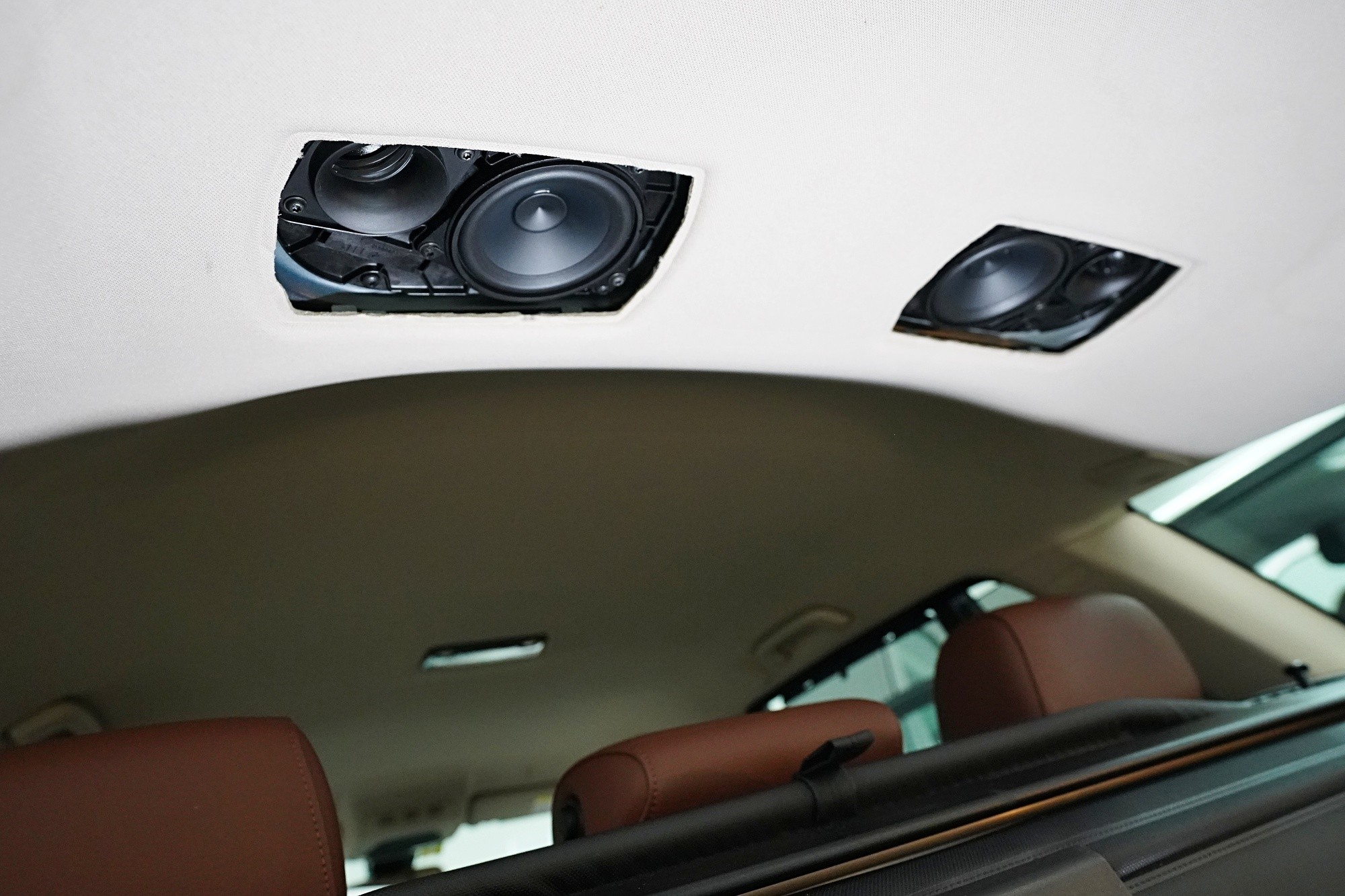

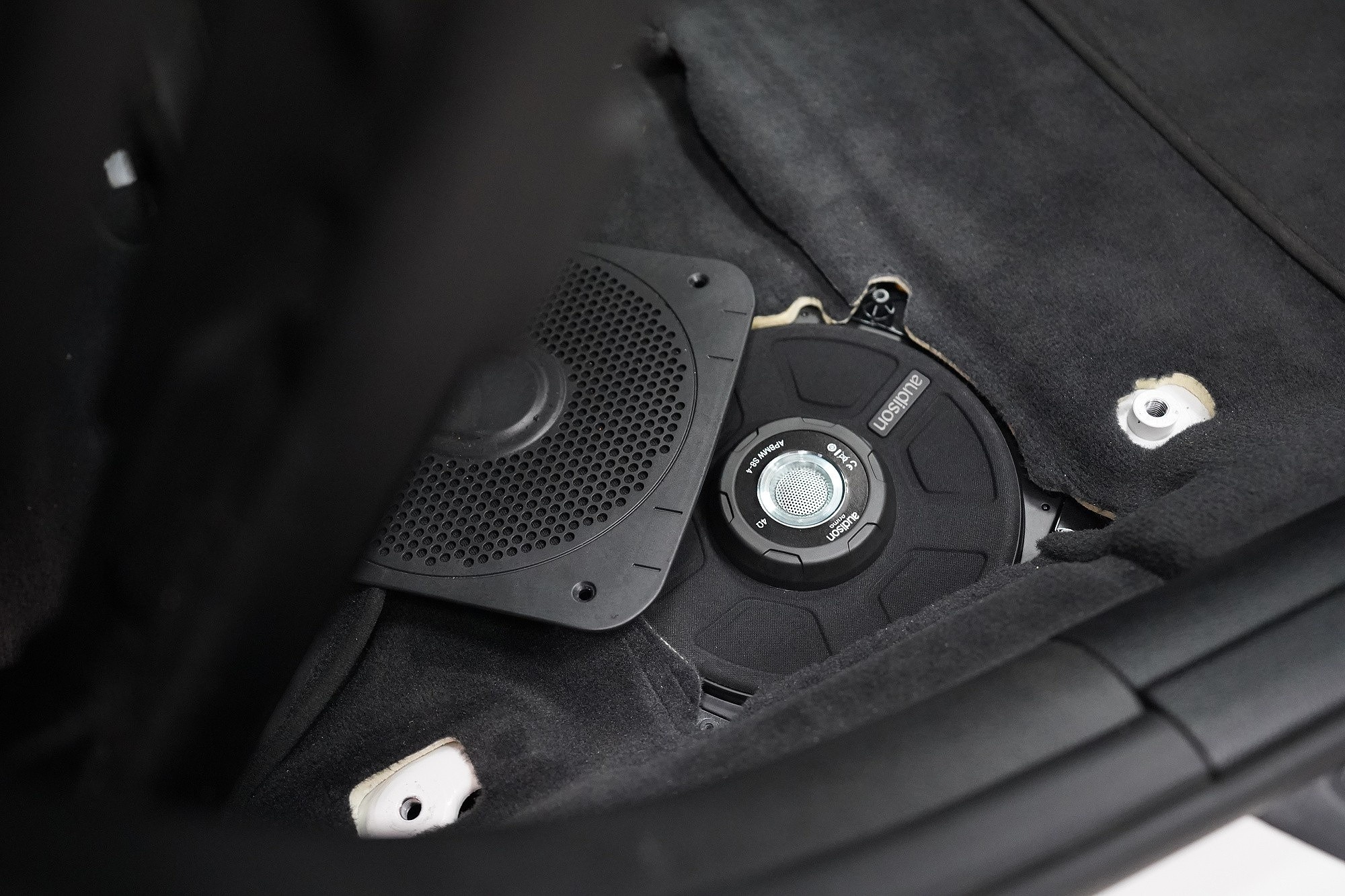

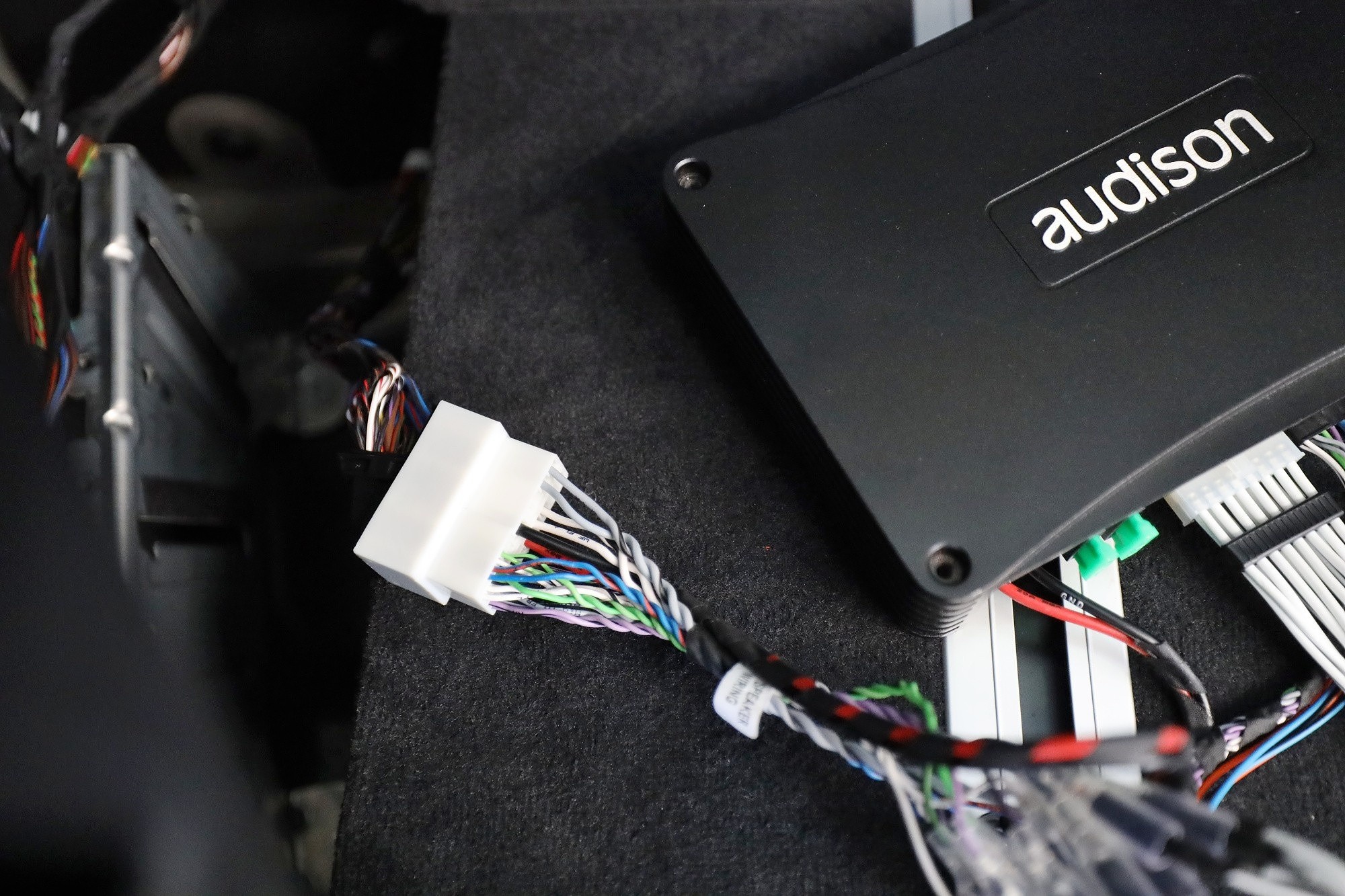

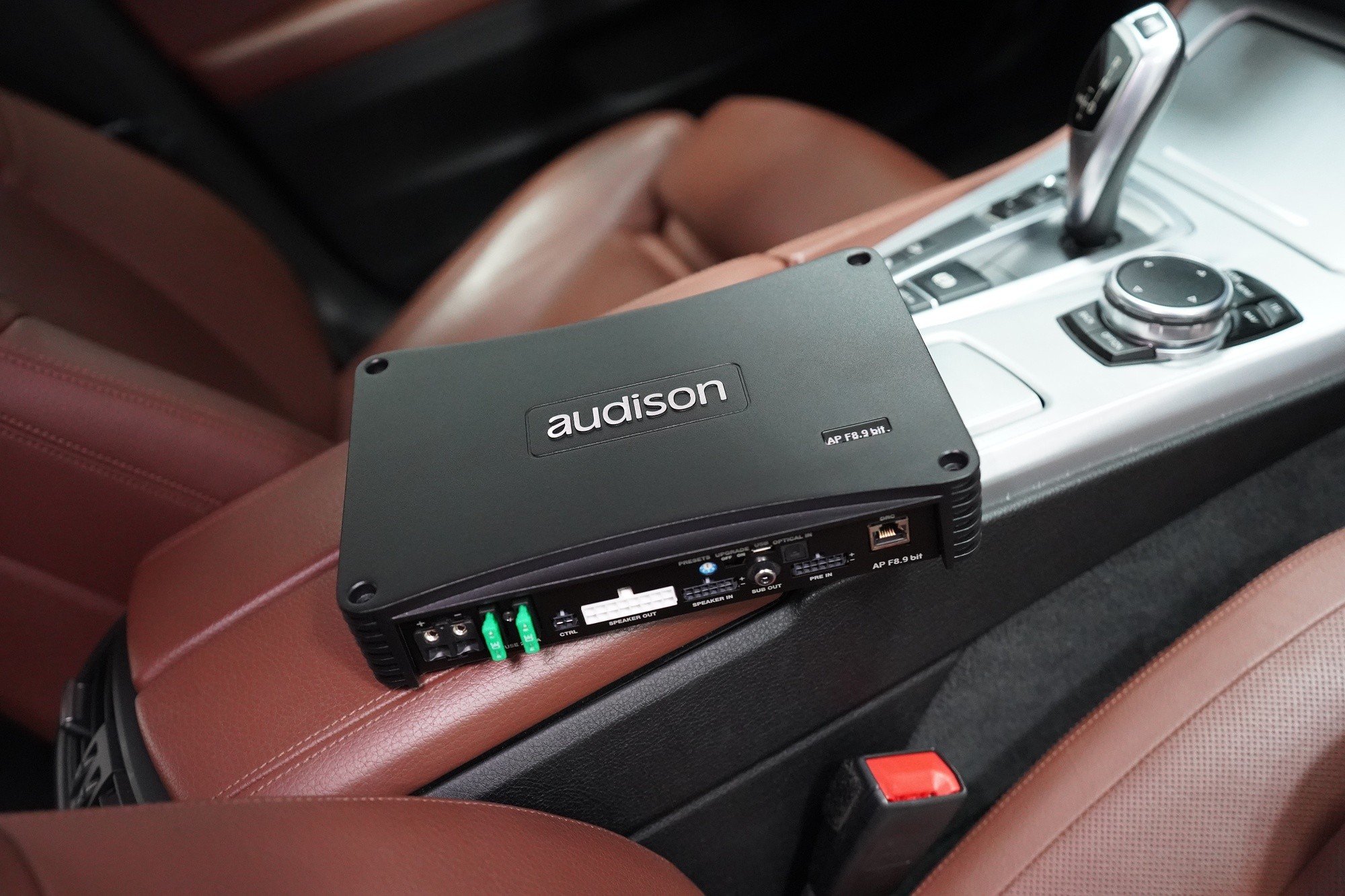

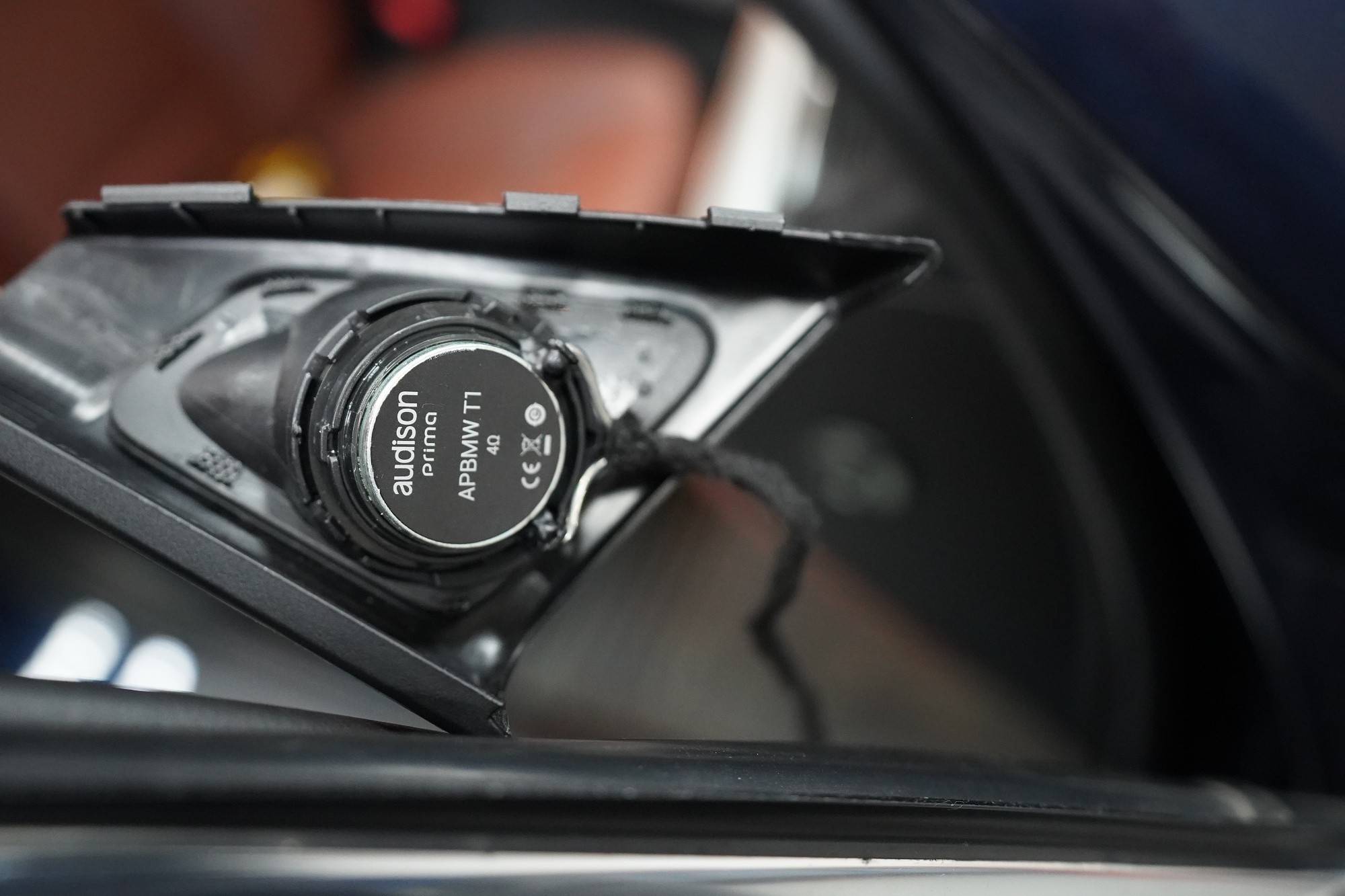

Installation of Audison sound equipment into a BMW 5 (F11) from the Italian manufacturer, which is exceptional not only for its high-quality sound and power but also for installation without the slightest intervention in the original wiring. This is thanks to a sophisticated system with cabling that ensures complete integration with the factory head unit without having to cut, solder or run new wiring. Audison speakers and subwoofers have the same dimensions, shape, mounts and connectors as the factory speakers, so the whole solution is true Plug & Play. This way you won’t lose the new car warranty; the system can be removed at any time and everything restored to the original condition, and the installation time is also significantly reduced. In this particular vehicle there was an "optional" Hi‑Fi Sound System (S676A), which includes component speakers in the front doors, a center speaker in the dashboard, rear component speakers in the headliner and 200 mm subwoofers under the seats. Everything is connected to the factory amplifier in the trunk. However, the sound quality hardly matches the vehicle’s price and is rather below average. The new source for the speakers is an eight-channel digital amplifier with an Audison DSP processor, which supplies power to all speakers and subwoofers. Its main advantage, however, is the installation. Thanks to a specific cable the amplifier is connected to the original wiring that ran to the factory amplifier. We therefore use the original power, ground and speaker cables without any modification. The final stage of the installation is tuning the speakers on the DSP processor. In an intuitive program we set up the speaker layout, bridge the subwoofers for higher power, set crossovers, time alignment according to the speaker positions and a detailed equalizer. The result is a high-quality sound tuned specifically for the vehicle, which in quality and power significantly surpasses even optional higher-end audio systems from Harman Kardon or Bang & Olufsen.View products >Hide products >
