Blaupunkt Wolfsburg 648 DAB multimedia car radio
More about the product
- You can return the goods to us within 14 days
Blaupunkt Wolfsburg 648 DAB

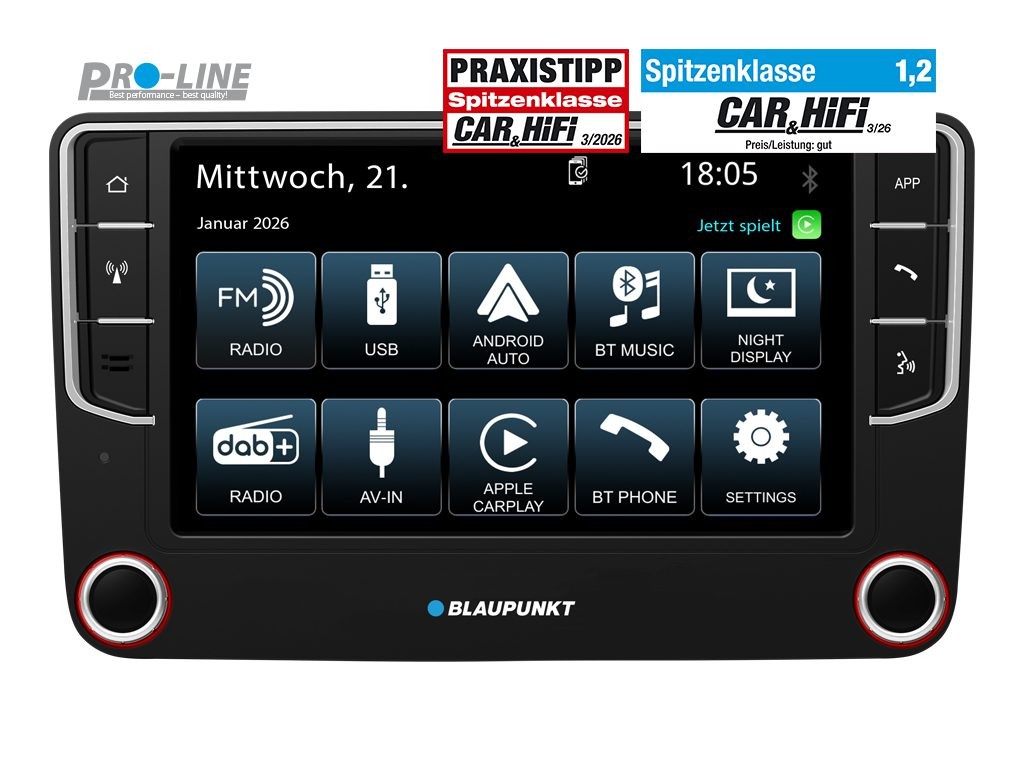

Blaupunkt Wolfsburg 648 DAB is a modern multimedia head unit designed specifically for selected Volkswagen, Škoda and Seat vehicles. Visually it follows the original head units used roughly from 2008 onwards, so it fits very well into the dashboards of older vehicles from the Volkswagen group, while technically it offers contemporary features such as wireless Apple CarPlay, wireless Android Auto, DAB+, Bluetooth, USB and an AV input. The centerpiece of the head unit is a 7" color TFT touchscreen with a resolution of 1024 × 600 px and an anti-reflective coating. Variable button backlighting allows matching the radio's appearance to the vehicle's original interior lighting, and day and night modes are also included.
Modern connectivity in an original look

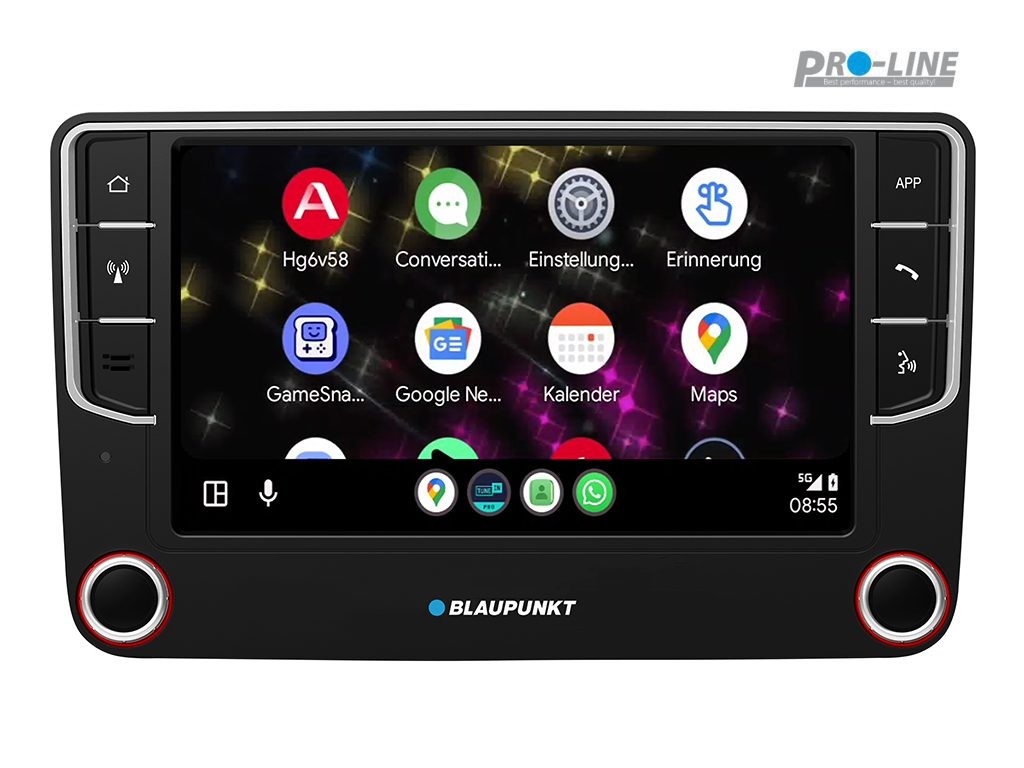

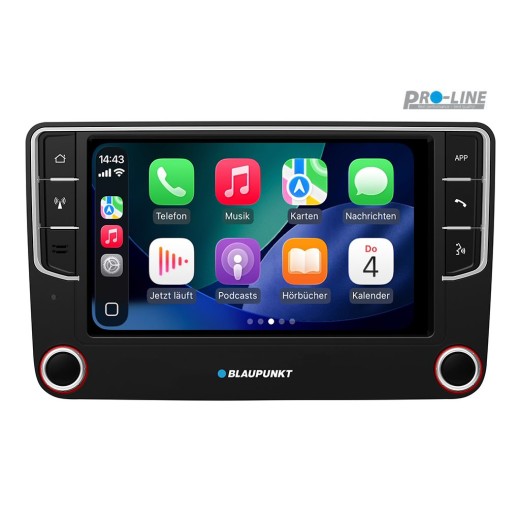

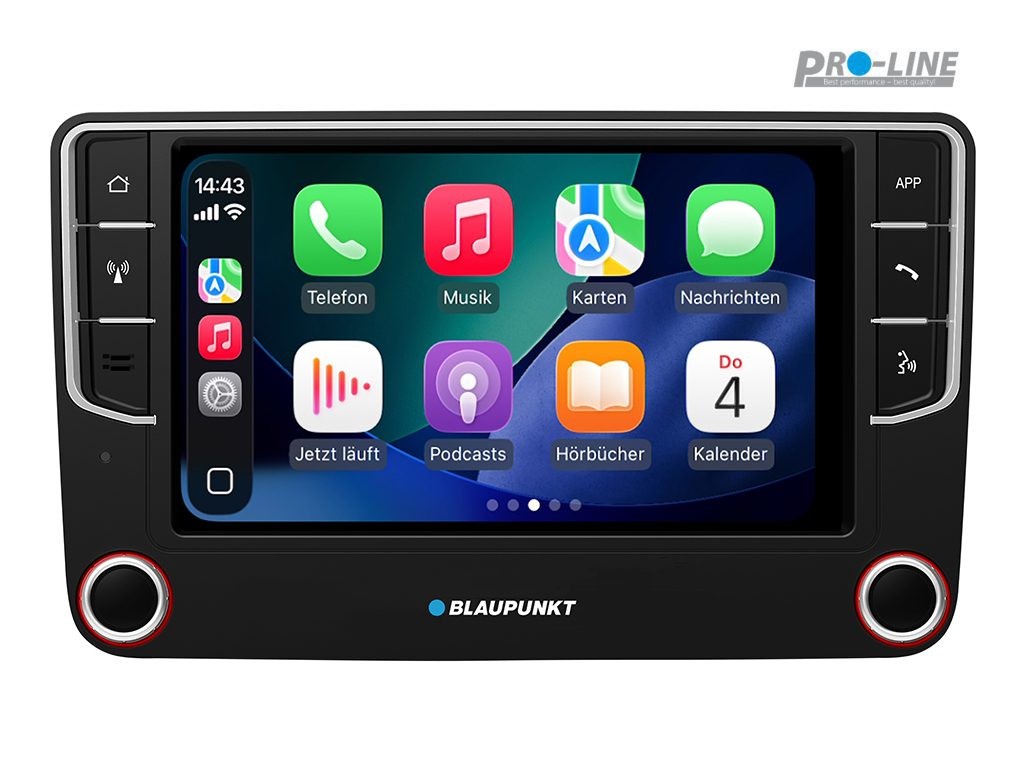

Blaupunkt Wolfsburg 648 DAB is an ideal solution for owners of older VW, Škoda or Seat cars who want to preserve the interior look appropriate to the vehicle's era while taking advantage of modern infotainment. It supports Apple CarPlay and Android Auto both wired and wirelessly, so you can conveniently use navigation, calls, music apps or voice assistants directly through the radio's display.
DAB+ and high-quality FM tuner
The head unit is equipped with a quality tuner for FM, AM, DAB and DAB+. Digital DAB+ reception offers higher sound quality, a wider selection of stations and additional broadcast information. Radiotext / DLS, an alphabetical DAB station list and the Service Following function for automatic switching between available signal sources are also available.
Advanced sound customization options
Blaupunkt Wolfsburg 648 DAB offers digital audio processing and a 12-band equalizer, preset sound modes and a Loudness function. The integrated amplifier provides a maximum power of 4 × 45 W at 4 Ω, while the manufacturer states a sinusoidal power of 4 × 26 W at 14.4 V according to DIN 45324. For expanding the audio system, 4-channel RCA preamp outputs and a separate RCA output for a subwoofer are available, so the radio can be easily combined with an external amplifier or an active subwoofer.
CAN-Bus integration with the vehicle
The package includes Quadlock II wiring with CAN-Bus interface and a Quadlock II to Quadlock III adapter. Thanks to CAN-Bus communication, certain functions linked to the vehicle electronics can be retained or used in selected vehicles. Depending on the specific vehicle and its equipment, the radio supports information such as PDC, multifunction display or the speed signal GALA.
Main features
- Vehicle-specific head unit designed for selected Volkswagen, Škoda and Seat models.
- Design inspired by original head units used roughly since 2008.
- 7" color TFT touchscreen with a resolution of 1024 × 600 px.
- Wireless and wired Apple CarPlay.
- Wireless and wired Android Auto.
- Digital radio DAB and DAB+.
- High-quality FM and AM tuner.
- Bluetooth for handsfree calling and wireless music streaming.
- USB player with folder support and file browsing.
- AV input for connecting an external device.
- Digital audio processing with a 12-band equalizer.
- Sound presets and Loudness function.
- Maximum power 4 × 45 W.
- 4-channel RCA pre-out.
- Separate RCA output for subwoofer.
- CAN-Bus interface included.
- Variable color button backlight.
- Low standby power consumption.
- Software update possible via USB.
- External Bluetooth microphone included.
Technical specifications
- Type: Multimedia head unit specific for selected vehicles.
- Display: 7" color TFT.
- Display resolution: 1024 × 600 px.
- Display surface: Antireflective.
- Display backlight: 16.7 million colors.
- Button backlight: Variocolour.
- Apple CarPlay: Yes, wired and wireless.
- Android Auto: Yes, wired and wireless.
- Bluetooth: Yes.
- DAB / DAB+: Yes.
- FM / AM tuner: Yes.
- USB: Yes.
- AV input: Yes.
- Equalizer: 12-band.
- Maximum power: 4 × 45 W at 4 Ω.
- Sinusoidal power: 4 × 26 W at 14.4 V according to DIN 45324.
- RCA outputs: 4-channel pre-out.
- Subwoofer output: 1× RCA.
- Power supply voltage: 12 V.
- Power consumption during operation: Less than 10 A.
- Standby current: Less than 3.5 mA.
- Chassis dimensions: 100 × 180 × 120 mm.
- Front panel dimensions: 127 × 227–210 × 21 mm.
- Weight of the device: 1.55 kg.
- Software update: Via USB.
Compatibility
Blaupunkt Wolfsburg 648 DAB is designed primarily for selected Volkswagen, Škoda and Seat vehicles from generations where similarly shaped original head units were used from approximately 2008. Exact compatibility should always be verified according to the specific model, year of manufacture and original equipment of the vehicle.

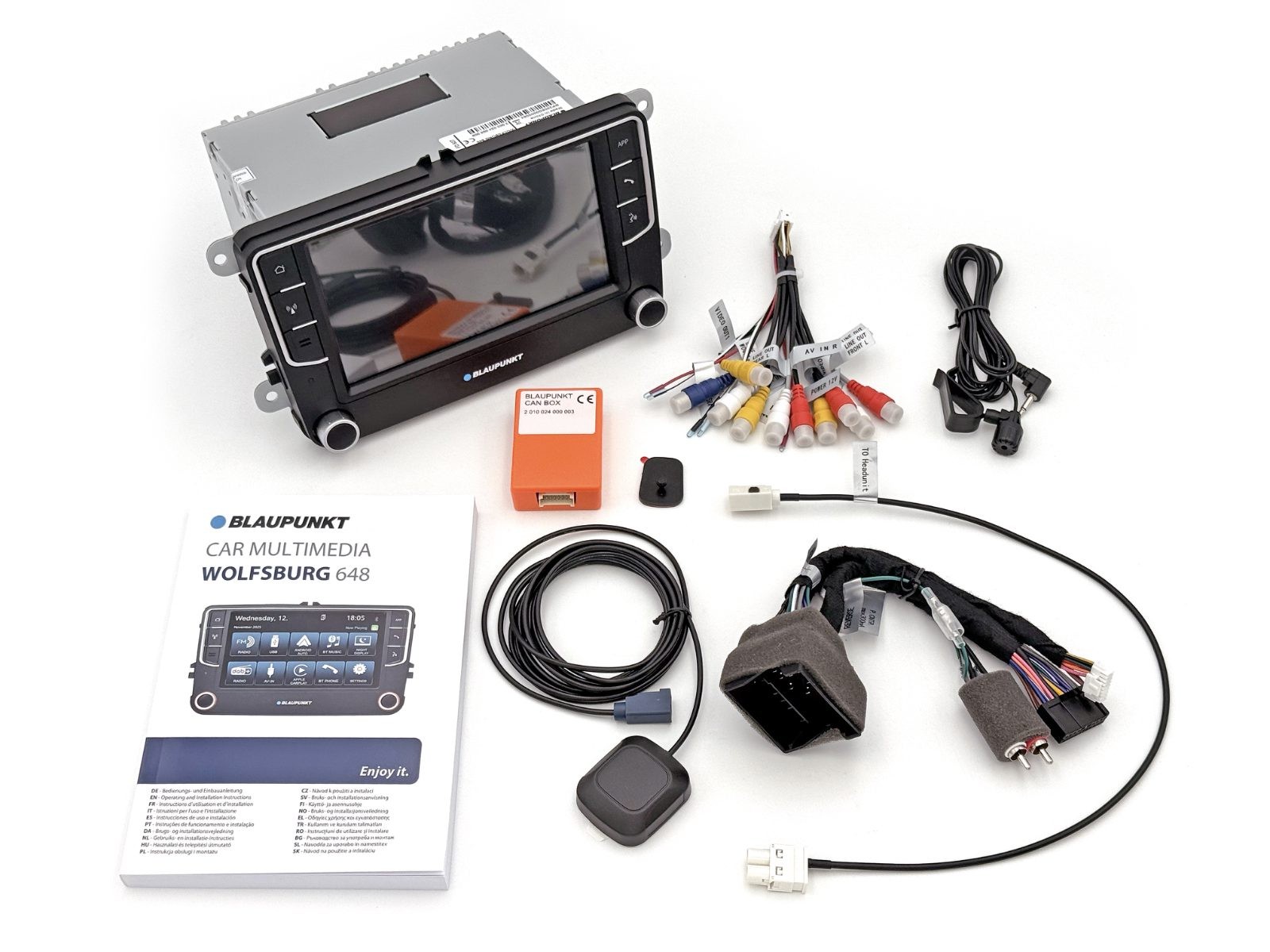

What's included in the package
- Multimedia head unit Blaupunkt Wolfsburg 648 DAB.
- External Bluetooth microphone.
- Quadlock II wiring with CAN-Bus interface.
- Quadlock II to Quadlock III adapter.
- Fakra antenna adapter to 2× Fakra.
- User manual.
About the brand
Blaupunkt is a traditional and globally recognized brand with a long history in automotive electronics. For decades it has been primarily associated with car radios and practical car accessories. The current range includes modern car radios with Bluetooth, handsfree, digital radio DAB+, USB or support for Apple CarPlay and Android Auto. There are also popular retro-designed models that combine a classic appearance with contemporary technologies. These retro car radios are among Blaupunkt's notable products. They are ideal for youngtimers and classic cars where preserving the original look and atmosphere of the interior is important. The brand also offers subwoofers, car antennas, reversing cameras, monitors and other installation accessories. Blaupunkt thus appeals to drivers seeking a well-known brand, simple and functional solutions, good compatibility and a balanced price-to-performance ratio.| Catalog number | WOLFSBURG 648 DAB |
| Brand | Blaupunkt |
| Links | Official web presentation |
| Car radio sizeCar radios are divided into 2 basic sizes, 1DIN car radios and 2DIN car radios . 1DIN size car radios - the exact dimensions including the metal frame where the car radio is inserted are 184 x 53 mm, the external dimensions of the branded 1DIN car radio are 188 x 59 mm. We know 2DIN car radios from newer vehicles, a classic example is the VW Golf IV with navigation. The dimensions of a 2DIN car radio without a metal frame are 180 x 101 mm, the external dimensions of a branded 2DIN car radio are 189 x 119 mm. | 2DIN |
| DisplayAdditional information about the display. Segment, LCD, multi-line, etc. | 7\" TFT touchscreen display |
| CD driveCar radios with CD drive. Car radios that have an input slot for inserting a CD. | No |
| Integrated BluetoothBluetooth is a communication technology used for wireless connection between two or more electronic devices. A mobile phone, for example, can be connected to a car radio with built-in Bluetooth. Most car radios for 2017 and later can also wirelessly stream (play) music via Bluetooth -> A2DP function. | Yes |
| USB inputThe USB input of the car radio is used to connect a USB flash drive or smartphone. Today, playing music via USB is the most popular way to listen to music in the car. The USB input can be front (on the front panel of the car radio) or rear (on the back of the cable). | Yes |
| SD card accessModern branded car radios can play SDHC SD cards up to 32 GB, sometimes even 64 GB. The SD card slot is behind the front panel in most car radios. | No |
| Supported formats via USB inputList of all supported formats (MP3, AAC, Flac, DivX, etc.) that the car radio can play via USB input. | MP2, MP3, WMA, FLAC, WAV, MP4, 3GP, MOV, M4V, MKV, FLV, MPEG, AVI |
| Apple CarPlayApple CarPlay is a completely new option for connecting a smartphone to a car radio that has the Apple CarPlay function. The connection is only by cable, thanks to the high data flow. You click on the Apple CarPlay icon on the car radio screen and application icons appear on the car radio screen like on a smartphone, and you can continue to control everything using the car radio. It also works with voice control and Siri. | Yes (wired and wireless) |
| Android AutoGoogle's Android Auto is a completely new option for connecting a smartphone to a car radio that has the Android Auto function. The connection is only by cable, thanks to the high data flow. The Android OS requirement is at least version 5.0. You click on the Android Auto icon on the car radio screen, and application icons appear on the car radio screen like on a smartphone, and you can continue to control everything using the car radio. Voice control and GPS signal also works. | Yes (wired and wireless) |
| Car radio performanceThe performance of the car radio shown in maximum values. This is therefore the MAX value. The performance of the internal amplifier of the car radio. Today, the RMS power of a car radio ranges from 17 - 30 W RMS per channel. | 4 x 45 W |
| Number of RCA outputsRCA outputs , colloquially called "cinches", are used to connect an external amplifier or active subwoofer. Aftermarket car radios are usually equipped with 1 to 3 pairs of RCA outputs. FRONT, REAR and SUB are used. It also depends on how many volt outputs the car radio is equipped with. More basic models of car radios have 2V outputs, more expensive units have 4V and more. The higher the specified value, the less power demands are placed on the external amplifier and the sound quality increases. | 2 pairs + SW |
| Input for steering wheel button control adapterCar radios equipped with a cable input or a 3.5 Jack socket for an adapter to control the buttons on the steering wheel. Most branded car radios have this input, from the back of the car radio body. | Yes |
| Backlit buttonsColor options for the backlight of the car radio buttons. | White |
| External microphone included in the packageThe external microphone is connected from the back of the car radio to the input marked "MIC". For ideal sound quality during a phone call, we recommend placing the external microphone on the left "A" pillar at the point where the "A" pillar and the roof panel connect to each other. A very good position to place an external microphone is also near the central rear-view mirror. | Yes |
| Remote control includedCard IR remote control of the car radio, thanks to which certain functions of the car radio incl. control the volume from the hand, remotely. | No |
| Removable front panelPossibility to remove the entire front panel of the car radio by pressing the side button. A very effective weapon against car radio theft. We recommend not hiding the panel in the vehicle, but taking it with you. Alternatively, place the panel in a hidden place in the trunk, but not when leaving the car, but before parking. You never know when a thief might be watching you. | No |
