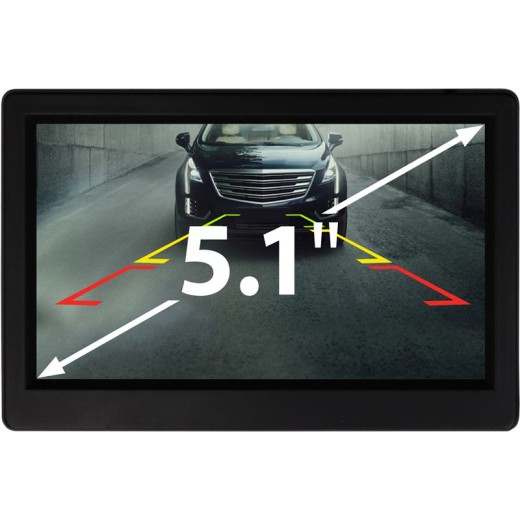

Blaupunkt RVM 5.1 monitor

Blaupunkt RVM 5.1

The Blaupunkt RVM 5.1 is a universal 5" monitor designed for connecting reversing cameras. It offers the option of automatic switching to a second camera, a resolution of 640 × 480 px, brightness of 450 cd/m² and 12 V power supply. Thanks to its compact dimensions and two mounting options it is suitable for passenger cars, vans and other vehicles. The monitor can be mounted using a suction-cup holder to the windshield, or permanently installed using a screw-on bracket. The package includes the necessary cabling for power and video signal as well as mounting hardware.

Automatic switching to a second camera

The Blaupunkt RVM 5.1 supports connecting a second camera and allows automatic switching of the image. This function is practical, for example, when combining a rear reversing camera with another camera monitoring a different part of the vehicle. The monitor can therefore be used not only for standard reversing but also on larger vehicles, vans or work vehicles where improved situational awareness is required.

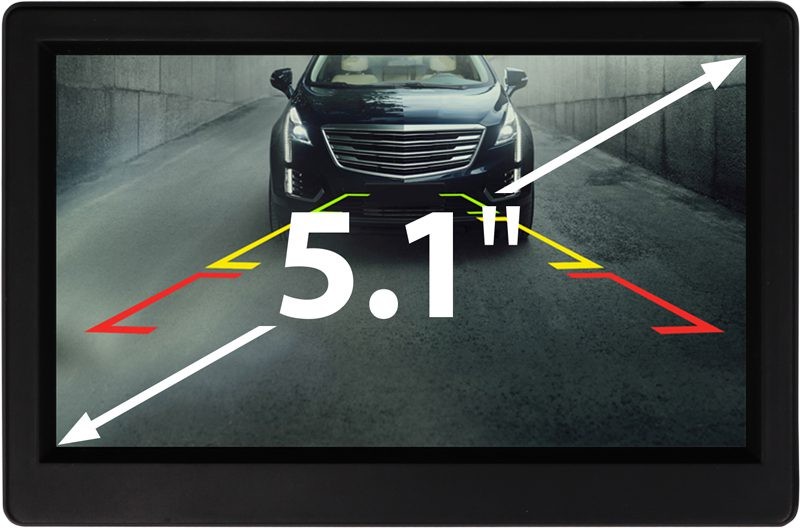

5" display with 640 × 480 px resolution

The 5" diagonal display offers a resolution of 640 × 480 px and a brightness of 450 cd/m². It thus provides a clear image from the connected camera when parking and maneuvering.

Two mounting options

A major advantage of the RVM 5.1 is its flexible mounting. The monitor can be installed using a suction-cup bracket, allowing quick installation without permanent alteration of the interior, or it can be fixed permanently using a screw-on bracket. Both mounting options are supported by the manufacturer.

Key features

• Universal 5" monitor for reversing cameras.
• Support for a second camera connection.
• Automatic switching to the second camera’s image.
• Display resolution 640 × 480 px.
• Display brightness 450 cd/m².
• Operating temperature from -20 °C to +65 °C.
• Supply voltage 12 V.
• Mounting via suction-cup holder.
• Permanent mounting via screw-on bracket.
• Power and video cabling included.
• Mounting accessories included.
• Suitable for passenger and commercial vehicles.

Technical specifications

• Type: Monitor for reversing camera.
• Display diagonal: 5".
• Display resolution: 640 × 480 px.
• Brightness: 450 cd/m².
• Second camera support: Yes.
• Automatic switching to second camera: Yes.
• Supply voltage: 12 V.
• Operating temperature: -20 °C to +65 °C.
• Mounting: Suction-cup holder or fixed screw-on bracket.
• Manufacturer product number: 2009021000000.

Optional accessories

Optional accessories are also available for the Blaupunkt RVM 5.1:

• Blaupunkt VK-RVC 4.X – 10 m RCA extension cable.
• Blaupunkt SF-RVC 4.0 – signal filter.

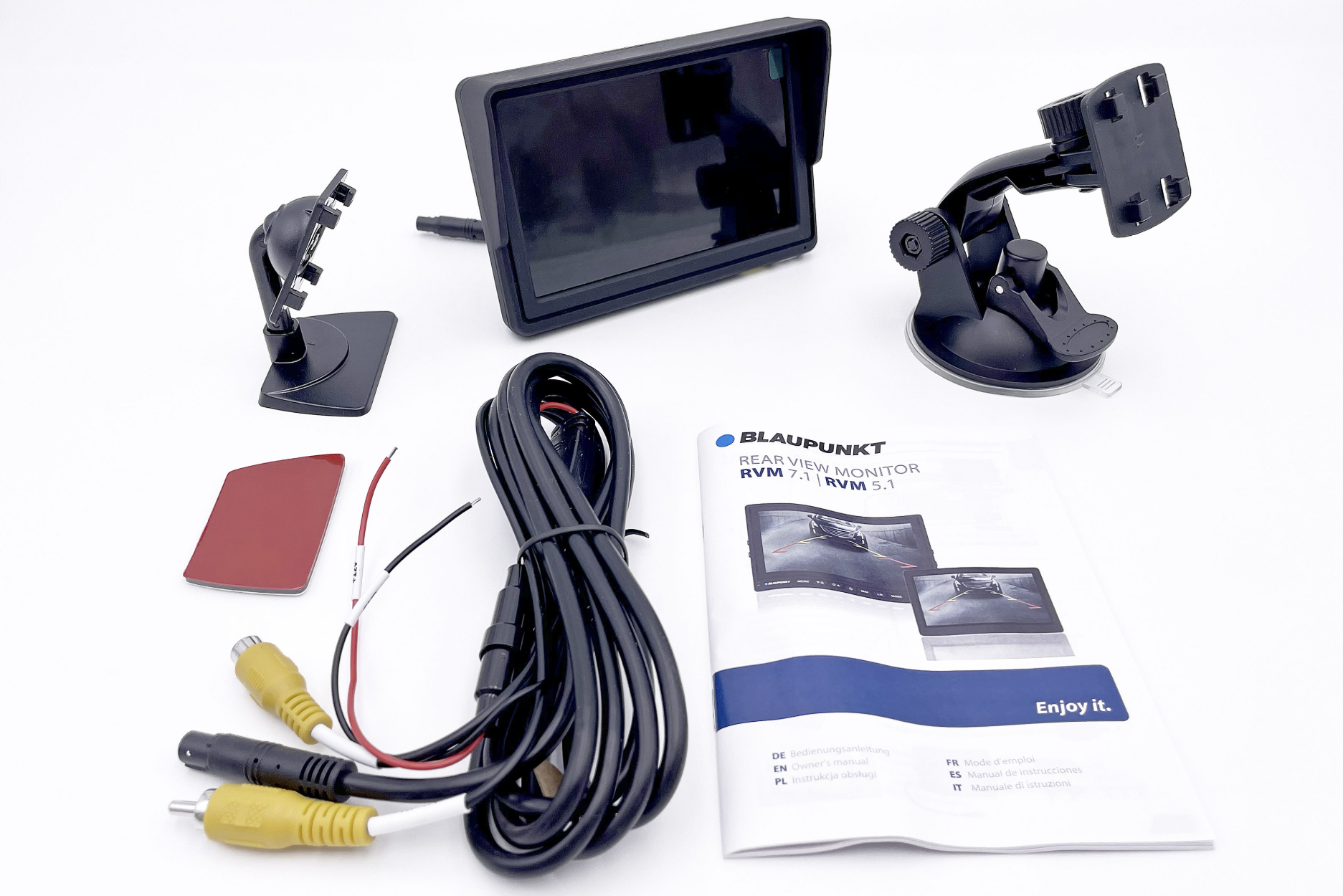

What’s in the box

• Blaupunkt RVM 5.1 monitor.
• Suction-cup holder.
• Bracket for permanent mounting.
• Adapter cable for power and video.
• Mounting hardware.

About the brand

Blaupunkt is a traditional and globally recognized brand with a long history in automotive electronics. For decades it has been associated primarily with car radios and practical automotive accessories. Today’s lineup includes modern car radios with Bluetooth, handsfree, digital radio DAB+, USB or support for Apple CarPlay and Android Auto. Popular retro-design models are also available, combining a classic look with modern technologies. The retro car radios are particularly interesting Blaupunkt products, ideal for youngtimers and classic cars where preserving the original look and interior atmosphere is important. The brand also offers subwoofers, car antennas, reversing cameras, monitors and other installation accessories. Blaupunkt appeals to drivers looking for a well-known brand, simple and functional solutions, good compatibility and a balanced price-performance ratio.
