Blaupunkt RVC 4.3 U

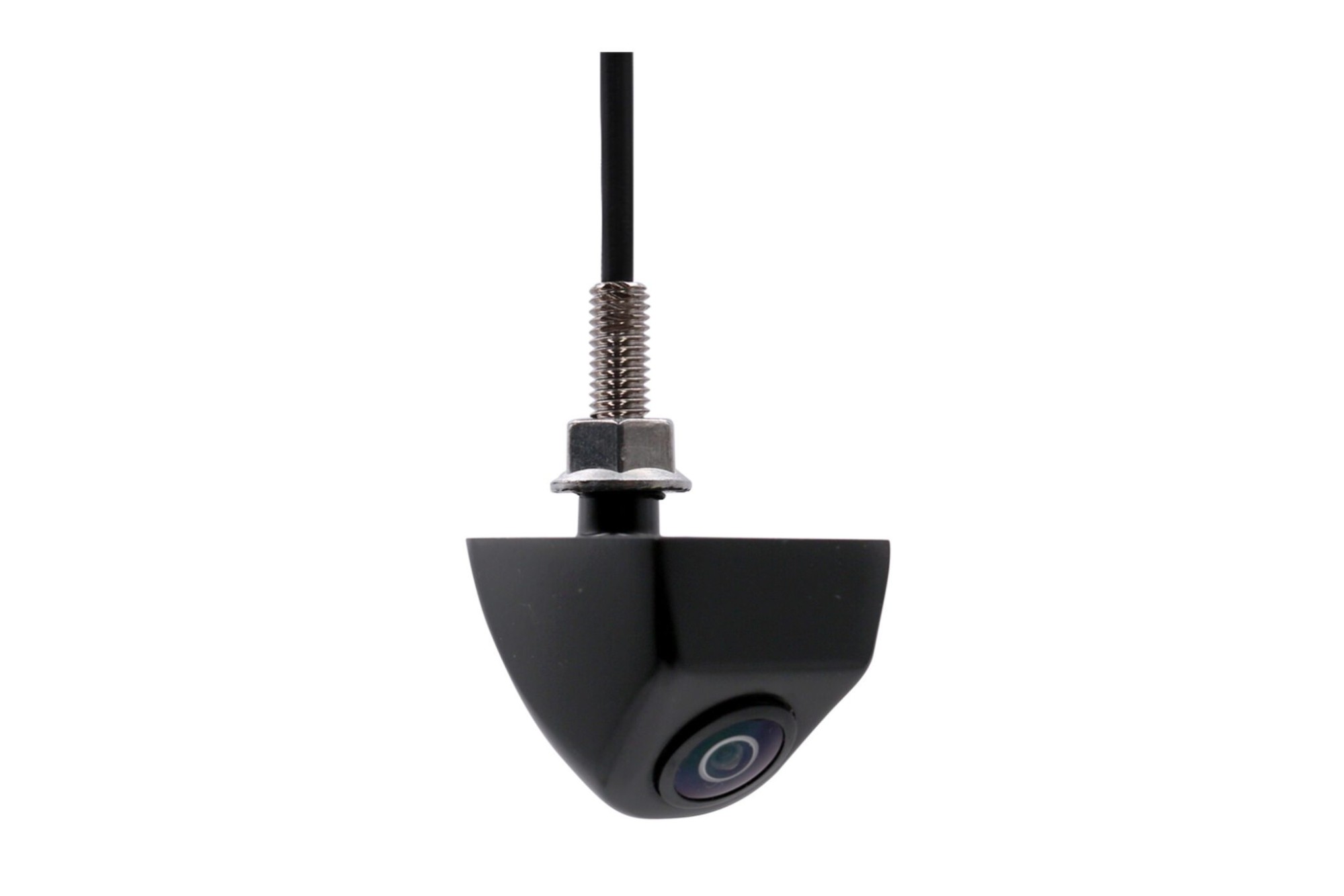

The Blaupunkt RVC 4.3 U is a compact universal reversing camera intended for horizontal mounting under a suitable part of the vehicle body or superstructure. It is equipped with a highly sensitive color CMOS sensor, high-quality all-glass optics and offers a wide 150° horizontal viewing angle, providing a good overview of the area behind the vehicle when parking and maneuvering. The camera angle can be adjusted using the supplied shims and wedges. The RVC 4.3 U also allows parking and distance guidelines to be enabled or disabled and mirror-image switching, so it can be used not only as a rear but depending on the installation also as a front camera.
Underslung mounting with adjustable angle
The Blaupunkt RVC 4.3 U is designed for horizontal underslung mounting. The camera is suitable, for example, under the edge of the trunk lid, above the license plate or under another suitable part of the body. Using the supplied wedge shims you can adjust the camera tilt so the view best matches the specific vehicle and mounting position.
Wide 150° viewing angle
The 150° horizontal viewing angle allows monitoring a wide area behind the vehicle. The camera thus helps not only when reversing but also when maneuvering in tight spaces or pulling out of a parking spot.
High-end all-glass optics
The Blaupunkt RVC 4.3 U uses a highly sensitive color CMOS sensor combined with a high-quality all-glass high-end lens. This design is intended for a clean and stable image in everyday use.
Switchable parking guidelines
The camera can display parking and distance guidelines that help estimate distance when reversing. If the parking lines are generated by the head unit or monitor, they can be easily turned off on the camera.
Front and rear use
The RVC 4.3 U features a switchable mirror-image function. Because of this, it can be used as a rear or front camera depending on the wiring.
Durable IP68 construction
The camera meets the IP68 protection class, so it is protected against dust and water and is ready for year-round exterior use on the vehicle. Power is supplied from the vehicle’s standard 12V electrical system.
Key features
- Universal underslung reversing camera.
- Horizontal mounting under a suitable body part.
- Highly sensitive color CMOS sensor.
- Wide 150° horizontal viewing angle.
- High-end all-glass optics.
- Adjustable angle using supplied wedge shims.
- Switchable parking and distance guidelines.
- Switchable mirror-image function.
- Can be used as front or rear camera.
- High water and dust resistance IP68.
- Power: 12 V.
- 2 m connection cable included.
- 6 m extension cable included.
- RCA adapter included.
- Adhesive pads and mounting wedges included.
Technical specifications
- Type: Universal underslung reversing camera.
- Image sensor: Color CMOS.
- Horizontal viewing angle: 150°.
- Mounting method: Horizontal underslung mounting.
- Camera angle adjustment: Yes, using wedge shims.
- Optics: High-end all-glass lens.
- Parking lines: Yes, switchable.
- Distance lines: Yes, switchable.
- Mirror image: Yes, switchable.
- Usable as front camera: Yes.
- Usable as rear camera: Yes.
- Protection: IP68.
- Supply voltage: 12 V.
- Manufacturer product number: 2009021001002.
Optional accessories
The following can be used with the Blaupunkt RVC 4.3 U:
- Blaupunkt VK-RVC 4.X – 10 m RCA extension cable.
- Blaupunkt SF-RVC 4.0 – signal filter.

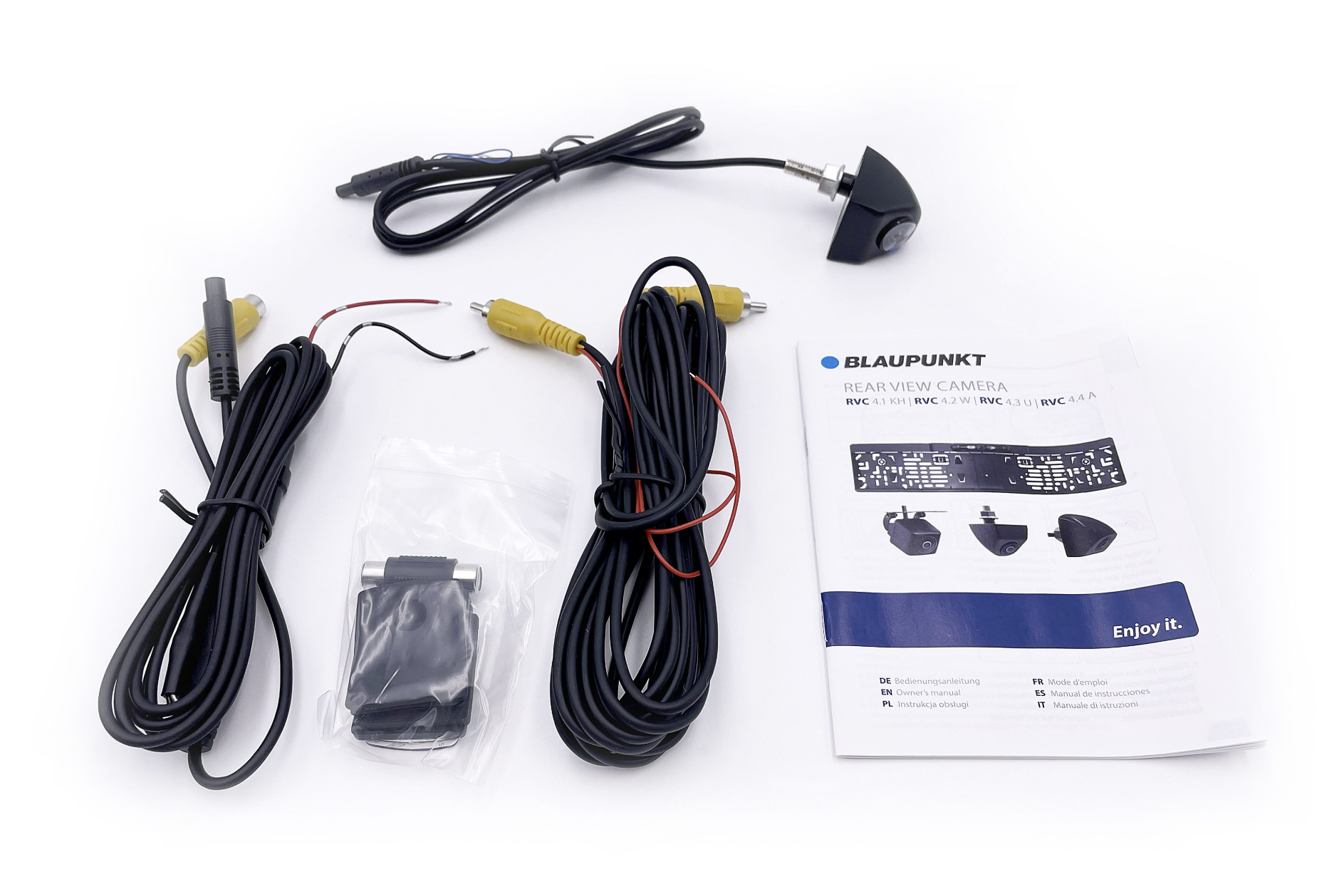

What’s in the box
- Blaupunkt RVC 4.3 U reversing camera.
- 2 m connection cable.
- 6 m extension cable.
- RCA adapter.
- Adhesive pads.
- Wedge shims for adjusting the camera angle.
About the brand
Blaupunkt is a traditional and globally recognized brand with a long history in automotive electronics. For decades it has been associated primarily with car radios and practical automotive accessories. Today’s lineup includes modern car radios with Bluetooth, handsfree, digital radio DAB+, USB or support for Apple CarPlay and Android Auto. Popular retro-design models are also available, combining a classic look with modern technologies. The retro car radios are particularly interesting Blaupunkt products, ideal for youngtimers and classic cars where preserving the original look and interior atmosphere is important. The brand also offers subwoofers, car antennas, reversing cameras, monitors and other installation accessories. Blaupunkt appeals to drivers looking for a well-known brand, simple and functional solutions, good compatibility and a balanced price-performance ratio.
