Blaupunkt Gtb 8200 A
More about the product
- You can return the goods to us within 14 days

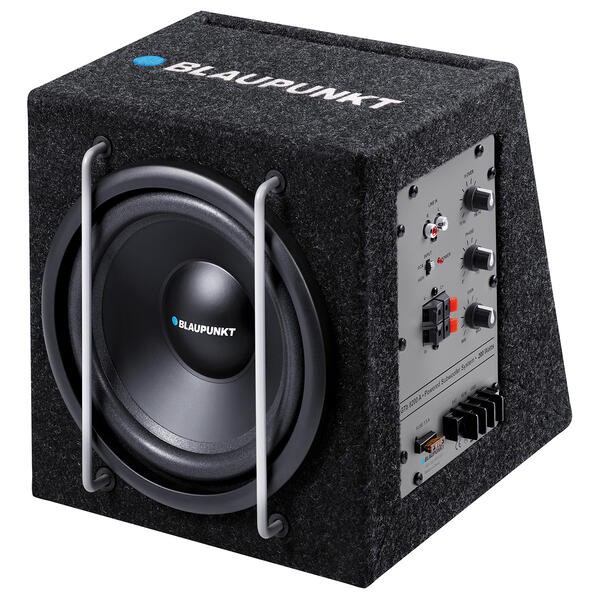

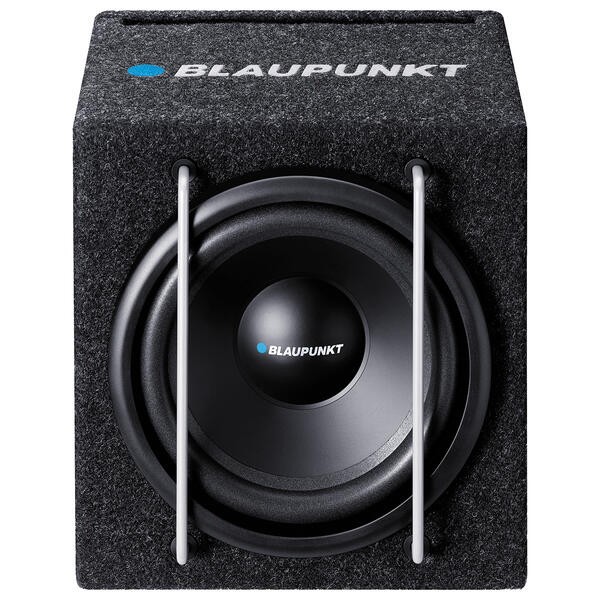

Active subwoofer Blaupunkt Gtb 8200 A
Blaupunkt GTB 8200 A is an active car subwoofer that significantly enhances the bass component of your sound system and complements a powerful car radio or audio setup with deep, controlled low frequencies. Thanks to its integrated Class-D amplifier it delivers a stable output of up to 75 W RMS and 200 W peak, ensuring dynamic and clean bass reproduction without distortion. The subwoofer is fitted with a 200 mm (8") driver with a paper cone in a bass-reflex enclosure that optimizes acoustic pressure and extends the lower frequency range, so you can enjoy deep, precise bass even at higher volumes.
Installation is simple and flexible — the unit offers RCA (Cinch) and high-level inputs and features automatic turn-on on signal detection. The subwoofer also includes crossover adjustment, phase control and signal level (Gain) adjustment, so you can easily tune it to your audio system and personal taste. The Blaupunkt GTB 8200 A is an ideal choice for drivers and audio enthusiasts who want to substantially improve the bass performance of their in-car sound system, whether OEM or aftermarket, without the need for an external amplifier.
Main features
- Active subwoofer with integrated Class-D amplifier - no external amplifier required.
- Power 75 W RMS / 200 W Max - strong and dynamic bass output.
- 8" (200 mm) driver with paper cone (SPC) - optimized for deep bass.
- Bass-reflex enclosure for efficient extension of low frequencies.
- RCA (Cinch) and high-level inputs for flexible connectivity.
- Automatic turn-on on audio signal detection - convenient use without extra trigger signals.

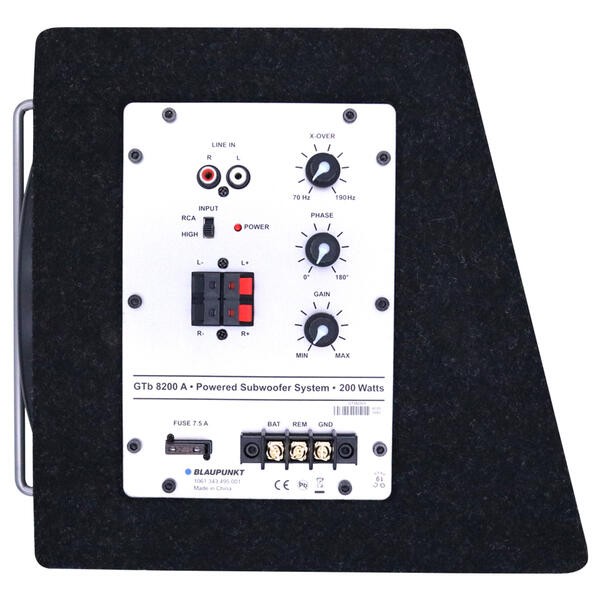

- Crossover, phase and signal level (Gain) adjustment - ability to fine-tune the sound precisely to the system.
- Sensitivity > 92 dB - high efficiency in bass reproduction.
- Compact dimensions (approx. 250 × 272 × 260 mm) - easy mounting even in limited space.
- Robust MDF enclosure with driver protection - sturdy construction for long life.
About the brand
Blaupunkt is a traditional, globally recognized brand with a long history in automotive electronics, associated for decades with quality car radios and car speakers. Blaupunkt car radios stand out for reliable operation, clear controls and broad compatibility with modern technologies such as Bluetooth, handsfree, DAB+ digital radio or playback from USB and mobile devices. This makes them an ideal choice for everyday use as well as long trips. Blaupunkt speakers deliver balanced and clear sound, easy installation and long service life — they represent a practical solution for replacing factory speakers or for a basic audio-system upgrade in the car. The Blaupunkt brand appeals to drivers seeking proven quality, functionality and good value for money without investing in complex or unnecessarily expensive solutions.
| Catalog number | GTB 8200 A |
| Brand | Blaupunkt |
| Links | Official web presentation |
| RMS power of the amplifier | 75 W |
| Energy class of the amplifierAmplifiers are divided into two basic classes: analog and digital . Analog amplifiers (A/B) have higher consumption requirements, but usually have a more natural sound. Digital amplifiers (D) have significantly lower consumption and higher efficiency, but the sound may not be as faithful as with classic analog amplifiers. | D |
| The diameter of the subwoofer usedThe diameter of the subwoofer that is installed in the active box. | 200 mm |
| Frequency rangeThe ability of the device to reproduce a signal from the lowest frequency to the highest, or the ability of an active subwoofer to faithfully reproduce sound in a specific frequency band. Professionally: In the frequency range from 40 to 16,000 Hz, the vast majority of fundamental and overtones (harmonics) of all musical instruments are found. We are interested in the course of the radiated sound pressure in this range of frequencies when the loudspeaker system is supplied with constant power. We call this course the frequency characteristic, which tells us the level of radiated sound pressure in decibels (dB) depending on the frequency. The frequency characteristic of a speaker or speaker system can be expressed most succinctly with a graph. Mostly, however, the frequency characteristic is indicated by indicating the maximum tolerance of the sound pressure in the given frequency range, e.g. 50 to 15,000 Hz -+ 6 dB. since the frequency characteristics of loudspeakers and systems in general are quite uneven, some manufacturers do not even specify this maximum tolerance of sound pressure in decibels for reasons of prestige. Data impoverished in this way is worthless. What is valid is that the manufacturer offers a speaker system with a frequency range of 30 to 20,000 Hz, if he is worried about stating the maximum unevenness of the sound pressure in this range, because he can have a tolerance of, for example, +- 20 dB. The unevenness, i.e. the undulation of the frequency course in good speaker systems for quality music performance should not exceed +-3 dB in the 80 to 12,000 Hz band and +-6 dB in the 40 to 16,000 Hz band. Greater unevenness already depletes or emphasizes certain tonal areas, which can cause audible or even disturbing distortion. The proportion between fundamental tones and higher harmonics also changes, thereby changing the color of the sound, and individual musical instruments as well as the entire musical image sound unnatural. | 30 - 200 Hz |
| Low-pass filter (LPF) | Yes |
| High level inputThe high-level input on the active subwoofer enables connection directly to the speakers in the car without purchasing an external high/low converter. Use in the case of mounting an active subwoofer on the original car radio. | Yes |
| Automatic on and offThis function will facilitate your installation and solve the problem of finding a remote signal, which is sometimes a problem with original car radios. The active subwoofer with the Auto sense function can recognize that the equipment in the car is active and turn itself on. A useful and practical feature. | Yes |
| Bass boost functionBass boost or bass enhancement. With this function, the bass itself can be emphasized, at a high level of bass boost, the speakers and the subwoofer can distort a lot and the sound will be worse than better. We therefore recommend using the "bass boost" function wisely. | No |
| Phase rotation optionPhase shift is a linear electronic oscillator that produces a sinusoidal output. It consists of an inverting part of the amplifier such as a transistor. The feedback network "shifts" the phase at the output of the amplifier by 180 degrees to the oscillation frequency and gives positive feedback. The Phase shift filter produces a phase shift that increases with increasing frequency. This is usually used when the subwoofer sub-assembly is out with the magnet, or when two amplifiers are connected externally. Phase Shift is also used with active speaker wiring, where the time shift of the speakers is set. The point is that the subwoofer does not play the bass late, and for this reason better amplifiers offer this phase reversal option. | Yes |
| Crossover setting optionsUsually this involves tuning the LPF filter on the active subwoofer. | Yes |
| Cabling included in the packageSome active subwoofers have complete wiring included in the package. In the event that the package really includes complete wiring for connection, we mark the parameter as "yes". If the wiring is not included, it must be purchased. | No |
| Remote control included in the packageSome models of active subwoofers also have wired remote controls in the package, which on the one hand connect to the active box, and on the other hand you have a potentiometer that you can place anywhere in the cabin. A common place to place the remote control is under the steering wheel. The advantage is the regulation of power, and therefore volume, depending on driving conditions and the mood of the crew in the car. | No |
| Option to purchase a remote controlIf the active subwoofer has a remote control input. | No |
| Protective gridProtective grids or bars, as protection against mechanical damage to the subwoofer. | Yes |
| Loudspeaker type | Bass reflex |
| What is the baffle made of?Active subwoofers can be made of MDF board, hardened plastic, sheet metal, aluminum or a combination of different materials. | MDF |
| Active subwoofer dimensions | 250 x 260 x 272 mm |
| Mass | 6.5 kg |
