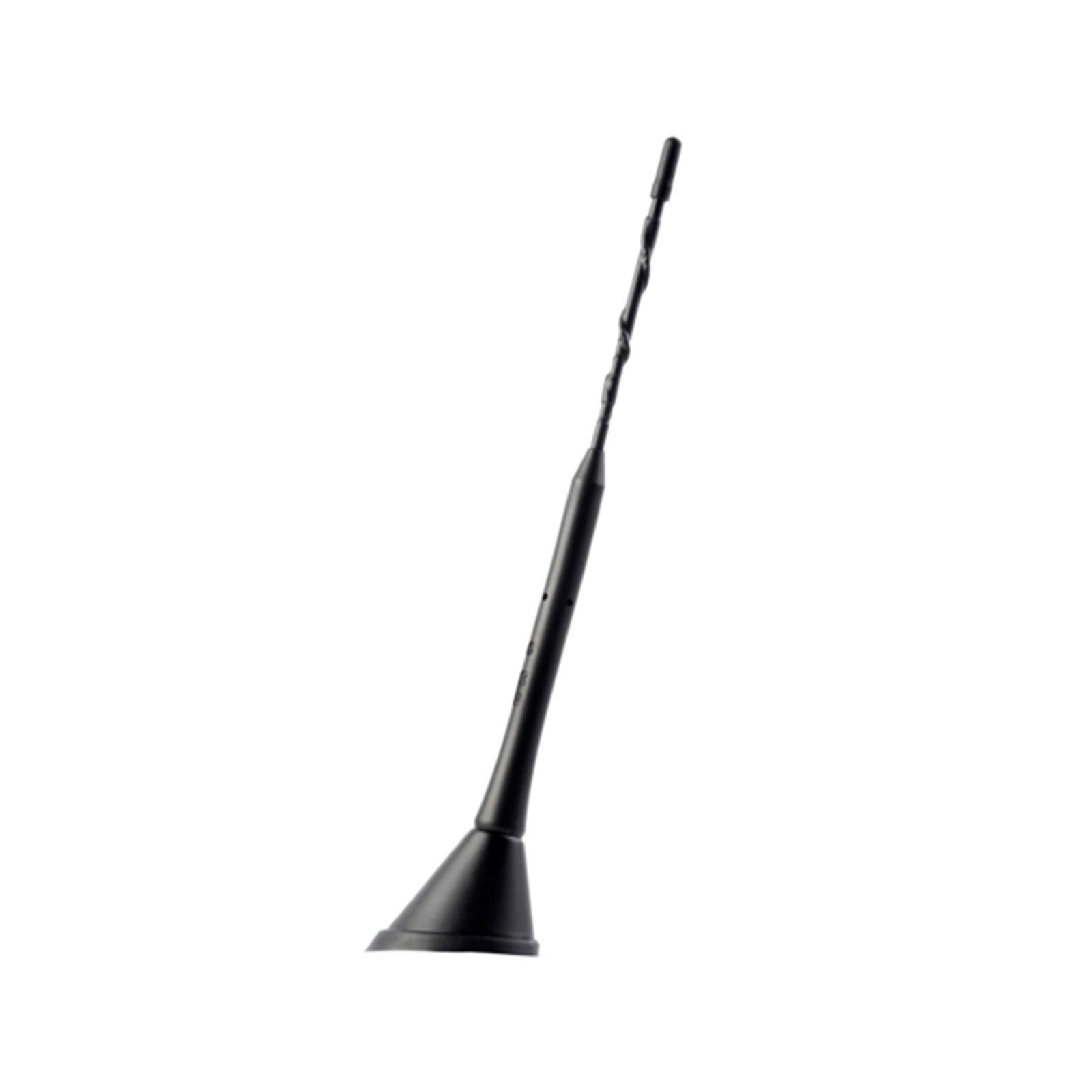

Blaupunkt DAB-AP antenna

Blaupunkt DAB-A-P

An active combined roof antenna designed for reception of classic analogue AM/FM radio as well as digital DAB/DAB+ broadcasts. In a single compact housing it replaces two separate antennas and is particularly suitable for retrofitting a modern car radio with a DAB+ tuner. The antenna uses active low-noise amplifiers for both radio and DAB reception. A major advantage is the shallow mounting depth of only 15 mm and easy installation, since a single roof opening is sufficient for both functions.

AM/FM and DAB/DAB+ in one antenna

Blaupunkt DAB-A-P combines conventional radio reception with DAB+ digital broadcasting. The DAB section is active and low-noise in Band III, while L-Band is passive. The analogue section is likewise active and low-noise for high-quality radio reception. This makes the antenna ideal, for example, when replacing an original car radio with a newer unit that supports DAB+ but where good FM reception must be retained.

Active amplifiers with 12 V power

The integrated amplifiers are powered by 12 V. Depending on the specific installation, power can be supplied either via the internal conductor of the antenna cable (phantom power) or through a separate DIN connector. This gives the installer greater flexibility when wiring into different car radios and vehicles.

Shallow mounting depth

The mounting depth is only 15 mm, so the antenna does not require much space between the vehicle roof and headliner. The manufacturer also highlights the simple installation — just one opening is needed for both AM/FM and DAB/DAB+ functions.

Low-noise antenna mast

The antenna is equipped with a specially designed low-noise mast that helps reduce unwanted aerodynamic noise while driving.

Main features

• Active combined roof antenna for AM/FM and DAB/DAB+.
• Active, low-noise DAB reception in Band III.
• Passive DAB reception in L-Band.
• Active, low-noise analogue radio reception.
• Integrated antenna amplifiers.
• Amplifier power supply: 12 V.
• Power via antenna cable option.
• Power via DIN connector option.
• Low mounting depth of only 15 mm.
• Single mounting hole for both functions.
• Low-noise antenna mast.
• Suitable for retrofitting a car radio with a DAB/DAB+ tuner.

Technical specifications

• Type: Active combined roof antenna.
• Reception: AM / FM / DAB / DAB+.
• DAB Band III: Active, low-noise.
• DAB L-Band: Passive.
• AM/FM reception: Active, low-noise.
• Amplifier power: 12 V.
• Power via antenna cable: Yes.
• Alternative power: Via DIN connector.

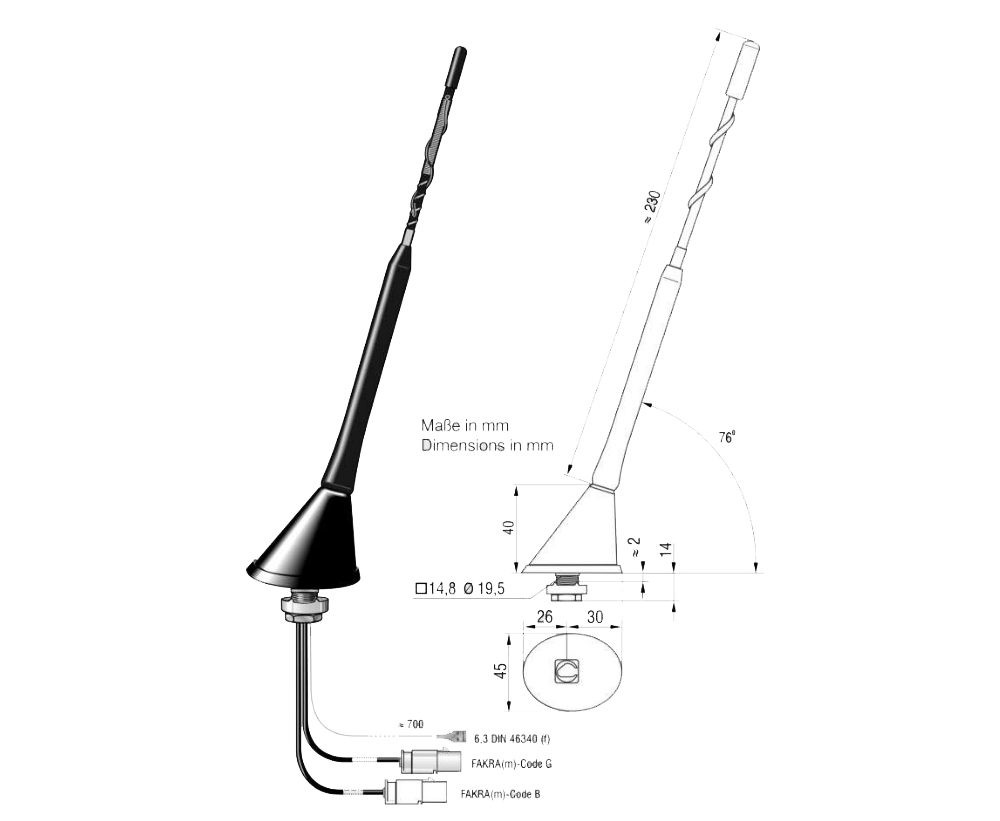

• Mounting depth: 15 mm.
• Installation: Single roof hole.
• Antenna type: Mast roof antenna.
• Antenna connector: ISO, 50 Ω.

What's in the box

• Active Blaupunkt DAB-A-P roof antenna.

About the brand

Blaupunkt is a traditional, globally recognized brand with a long history in automotive electronics. For decades it has been associated primarily with car radios and practical automotive accessories. Today’s range includes modern car radios with Bluetooth, hands-free, DAB+ digital radio, USB, and support for Apple CarPlay and Android Auto. Popular retro-style models combine classic looks with current technologies and are especially suitable for youngtimers and classic cars where preserving the original interior appearance and atmosphere is important. The brand also offers subwoofers, vehicle antennas, reversing cameras, monitors, and other installation accessories. Blaupunkt appeals to drivers who look for a familiar brand, simple and functional solutions, good compatibility, and a balanced price-performance ratio.
