Blaupunkt Club T48 DAB antenna

Blaupunkt Club T48 DAB

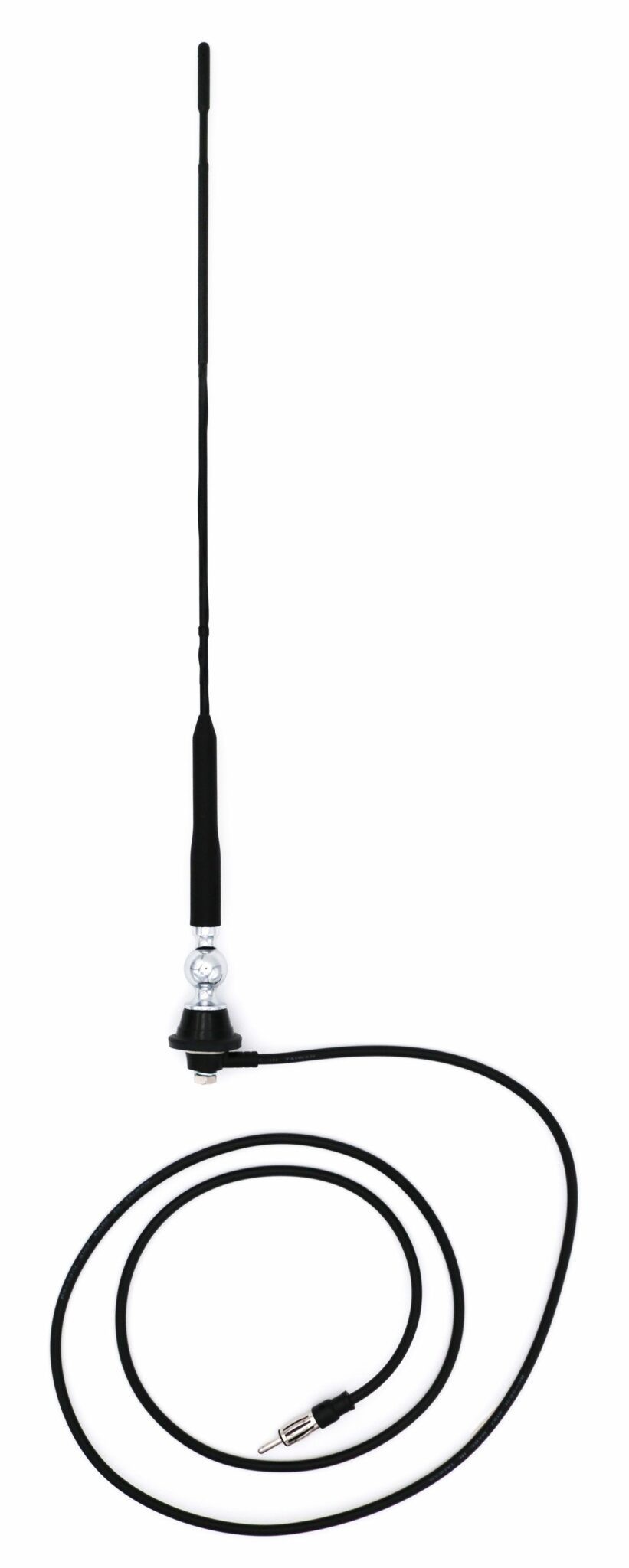

The Blaupunkt Club T48 DAB is a passive mast antenna designed for simultaneous reception of classic analog AM/FM radio and digital DAB/DAB+ broadcasting. The antenna mast is tuned for both reception types and the system includes a passive signal splitter that separates the analog and digital parts into individual outputs. This makes the Club T48 DAB suitable, for example, when retrofitting a car radio with a DAB+ tuner and you want to get both classic FM/AM and digital DAB+ signals from a single antenna location. No antenna amplifier power is required because the entire system is passive.

AM/FM and DAB+ from one antenna

The antenna covers AM 525–1705 kHz, FM 87.5–108 MHz and DAB Band III 174–240 MHz. The integrated passive splitter then divides the signal into analog and digital branches. The analog signal uses a JASO/DIN connector, while DAB/DAB+ is terminated with an SMB connector.

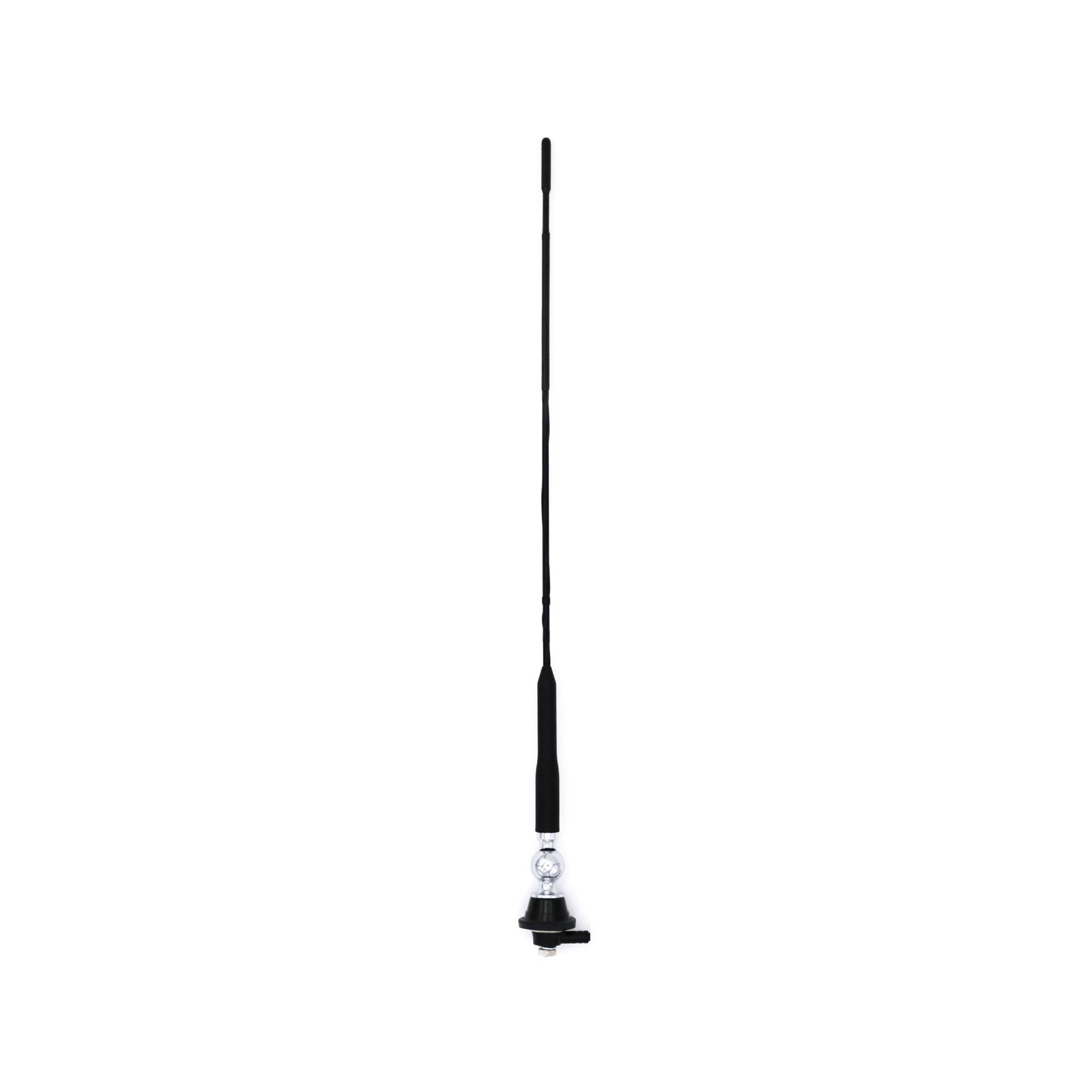

Swiveling antenna joint

The mounting base allows the antenna mast to be tilted by ±90°, so the angle can be adapted to the installation location and vehicle body shape. The manufacturer states the possibility of front or rear mounting in the range 0 to 90°.

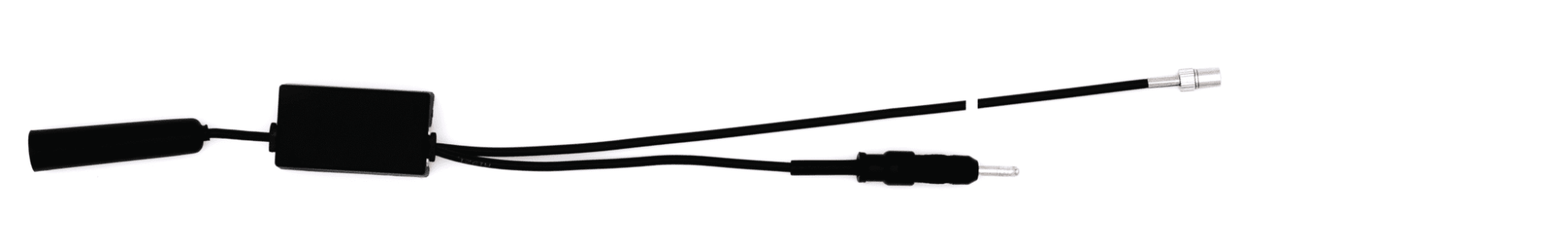

Passive splitter

The kit includes a compact passive splitter for analog and digital signals with dimensions of approximately 27 × 22 × 12 mm. Because the antenna is passive, no separate 12V power supply is required.

Key features

• Passive mast antenna for analog and digital radio.
• Supports AM, FM, DAB and DAB+.
• DAB reception in Band III.
• Integrated passive splitter for analog and digital signals.
• No separate power supply required.
• Flexible antenna mast.
• Swiveling antenna joint with ±90° range.
• Possible front or rear mounting.
• JASO/DIN connector for AM/FM.
• SMB connector for DAB/DAB+.
• Impedance 75 Ω.

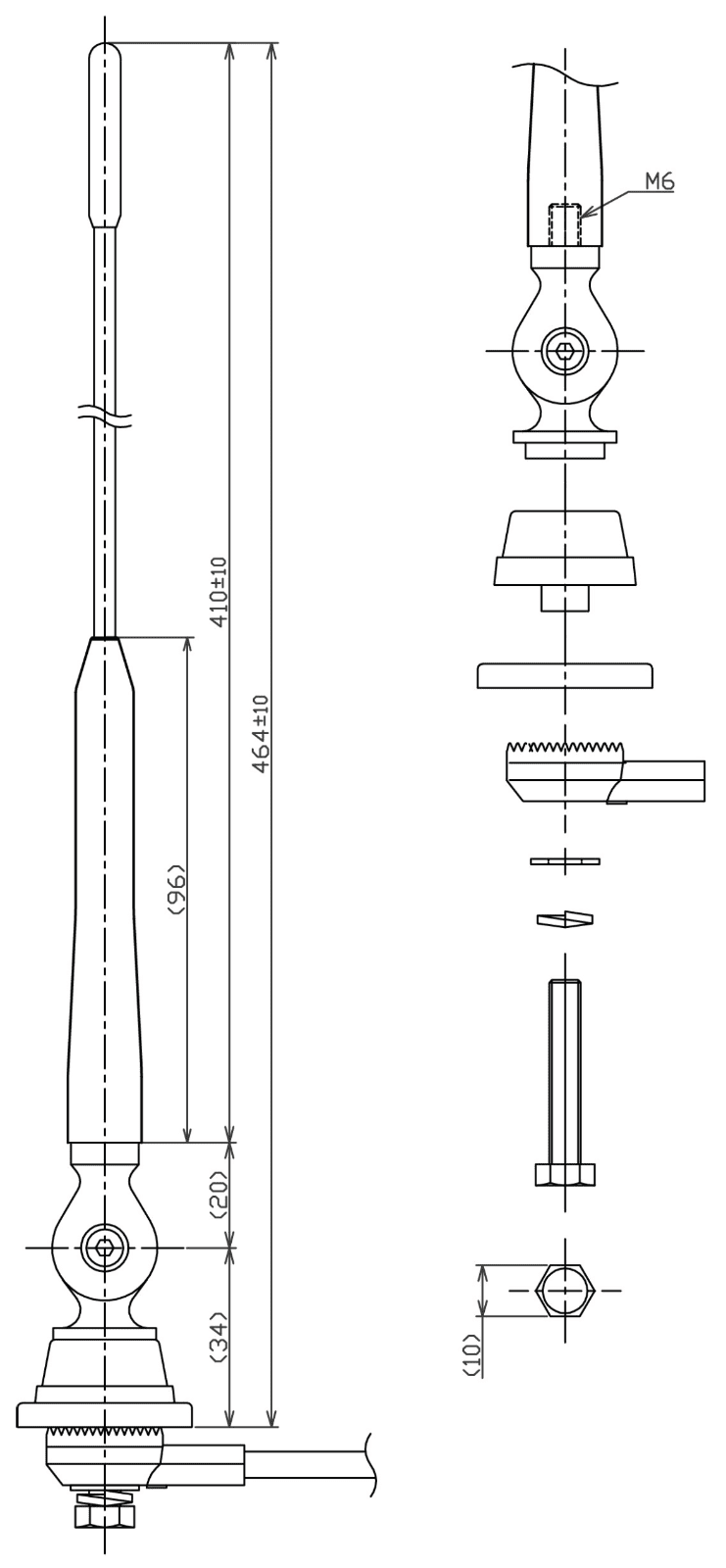

• Antenna mast length 464 mm.
• Cabling including splitter approximately 1.8 m long.

Technical specifications

• Type: Passive automotive mast antenna.
• Reception: AM / FM / DAB / DAB+.
• AM frequency range: 525–1705 kHz.
• FM frequency range: 87.5–108 MHz.
• DAB frequency range: 174–240 MHz.
• DAB band: Band III.
• Impedance: 75 Ω.
• Antenna amplifier: No.
• Power supply: Not required.
• Splitter: Passive analog / digital.
• Splitter dimensions: 27 × 22 × 12 mm.
• Antenna mast length: 464 mm.
• Cabling length including splitter: Approximately 1800 mm.
• AM/FM connector: JASO/DIN.
• DAB/DAB+ connector: SMB.
• Base tilt: ±90°.
• Location: Front or rear of the vehicle.

What's in the box

• Blaupunkt Club T48 DAB antenna.
• Passive splitter.
• Connection cabling with connectors for analog and DAB signals.
