Battery terminal Connection BBC 41PF.1

Connection BBC 41PF.1

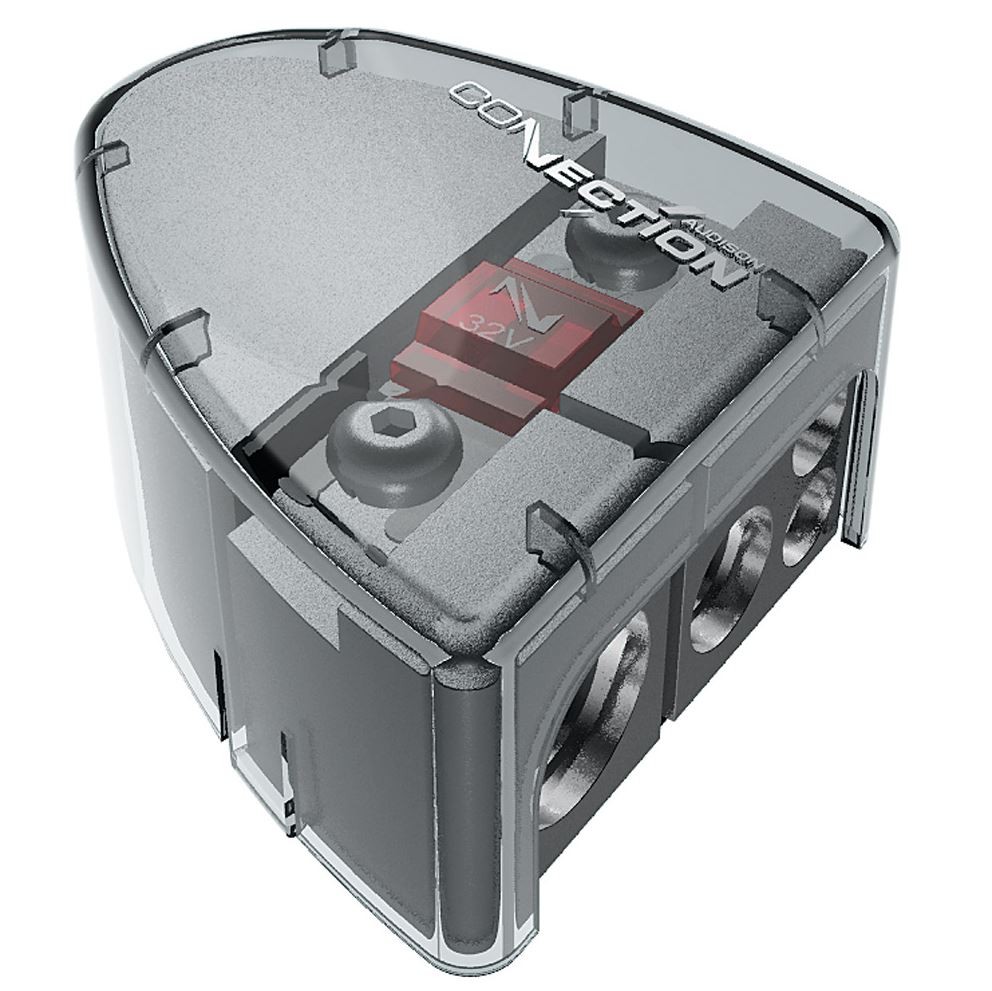

The Connection BBC 41PF.1 positive battery terminal is a reliable solution for safe and efficient connection of power cables in your vehicle. This key car audio component ensures optimal current transfer from the battery to other installed devices. With precise workmanship and an integrated housing for a mini ANL fuse, you get not only stable power but also a high level of protection for the entire audio system.

When building a powerful car audio system, stable and safe power is fundamental. Standard battery terminals often cannot accommodate thick power cables and do not provide sufficient short-circuit protection. This terminal addresses both issues at once by allowing secure connection of cables of various cross-sections and offering an integrated position for a mini ANL fuse right at the power source.

The massive brass construction with a platinum-satin surface finish ensures excellent electrical conductivity and minimizes contact resistance. A robust polycarbonate cover effectively protects the metal parts from mechanical damage, scratching and accidental contact with other metal parts in the engine bay. The recessed cable sleeve additionally protects delicate conductor strands from fraying during installation.

Thanks to a thoughtful design with knurled screws, maximum pressure is applied to the stripped cable end, preventing it from loosening under vibration while driving. The terminal features several outputs for different cable diameters, making it easier to distribute power to multiple amplifiers or other components without the need to install additional distribution blocks right at the battery.

Main features

• Positive battery terminal designed for safe connection and distribution of power cables from the battery.
• Scratch-resistant polycarbonate cover for reliable protection of metal parts.
• Option to insert a mini ANL fuse to protect the power branch directly at the battery.
• Sturdy brass SMB construction for optimal electrical flow.
• Platinum-satin surface finish ensuring an attractive look and durability.
• Recessed sleeve preventing strand fraying during installation.
• Knurled screws for a secure and stable contact with the conductor.
• Outputs for cables with cross-sections 53.5 mm², 1 x 21.2 mm² and 2 x 8.4 mm².
• Integrated mini ANL fuse holder; the fuse itself is not included.

About the brand

Connection is an Italian brand of high-quality cables, accessories and installation materials for audio systems, part of the renowned Elettromedia group — the same group that includes the prestigious brands Audison and Hertz. Elettromedia is a long-standing leader in the audio industry with a strong tradition of innovation and quality in the manufacture of car-audio components. The Connection brand focuses primarily on interconnects, power cables, speaker cables and a wide range of accessories designed to transmit signals with maximum accuracy and no compromises. Connection combines Italian design, top-quality materials and precise manufacturing, making it the choice for those seeking reliable and long-lasting performance for their audio systems. It is a brand synonymous with premium quality and technological advancement in cabling and accessories for car audio installations.
