Audison AVCX 3P crossover

Audison AVCX 3P Three‑way Crossover

Discover the Audison AVCX 3P, a premium passive three‑way frequency crossover designed for advanced audio installations and the speaker systems of the VOCE II series. This crossover supports bi-amplification, allowing separate amplifiers to be connected for the bass and treble bands. The result is exceptionally precise sound control, natural tonality and maximum power. Thanks to the Mid‑Contour and Hi‑Contour functions you can finely tune the crossover points according to speaker placement and listener preferences. A three‑position treble switch, Hi‑Boost for emphasis above 10 kHz and the possibility of individual system configuration make it possible to create a perfectly balanced sound in any interior.

Key features

• Passive three‑way crossover (woofer / midrange / tweeter).
• Supports bi‑amplification with a high‑current switch.
• Mid‑Contour and Hi‑Contour – two‑position adjustment for mids and highs.
• Three‑position treble switch (+2 / 0 / –2 dB).
• Hi‑Boost – emphasis above 10 kHz to compensate for off‑axis tweeter placement.

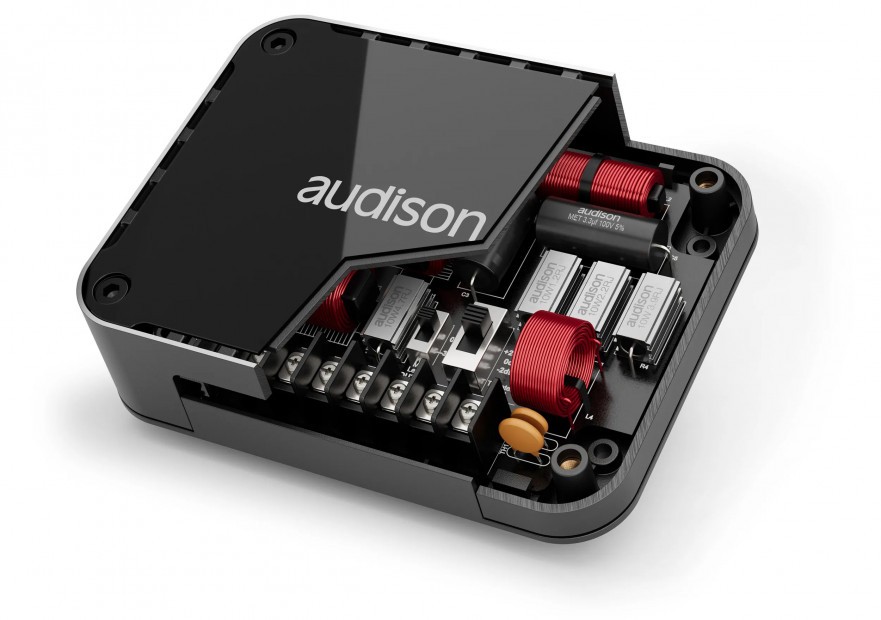

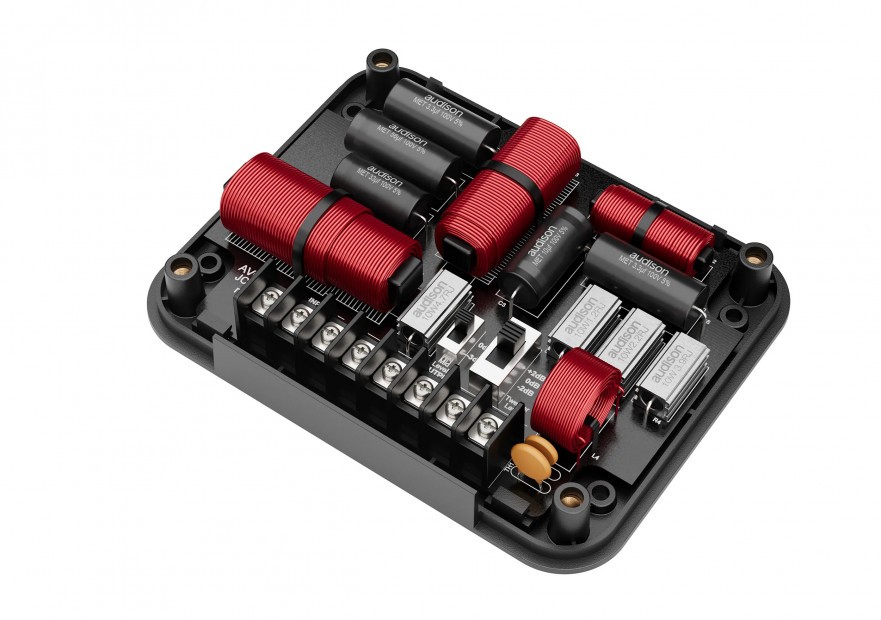

• Quality components – 160 V bi‑metallized capacitors, copper coils (Ø 1 mm), aluminum resistors.
• Configurable with sets AV 6.5 P II, AV 3.0 II and AV 1.1 II.
• 12 dB/oct crossovers – precise transitions between bands.

About the brand

Audison is an Italian brand with a tradition dating back to 1987. Its aim is to produce the best mobile electronics in the world and to continue innovating. Sound reproduction has always been a fascinating realm where emotions and technology meet. The best results are achieved when both of these values are at their peak. Thanks to this combination, every project Audison develops — born from a natural stance of love for music and an inner drive — challenges existing standards. Since the introduction of the first HR 100 amplifier, Audison has gone on to create products that have truly marked the history of car hi‑fi. At Audison they are unwaveringly dedicated to research that leads to perfect sound reproduction in vehicles. Audison is a pioneer of innovation and will not settle for anything less than perfection in every product it brings to life. Innovation disrupts standard processes and demands an approach that goes beyond common solutions adopted by others. This is where the essence of Audison shows. Innovation shapes the entire design process, starting with the conception of car audio products that deliver unique value and enhance the listening experience in the vehicle. Audison continually pushes technological boundaries and registers dozens of patents. Acoustic quality cannot accept compromises!

Catalog number	AVCX 3P
Brand	Audison
Links	Official web presentation (English)
