Audible Physics RAM 6.1 speakers
More about the product
- You can return the goods to us within 14 days

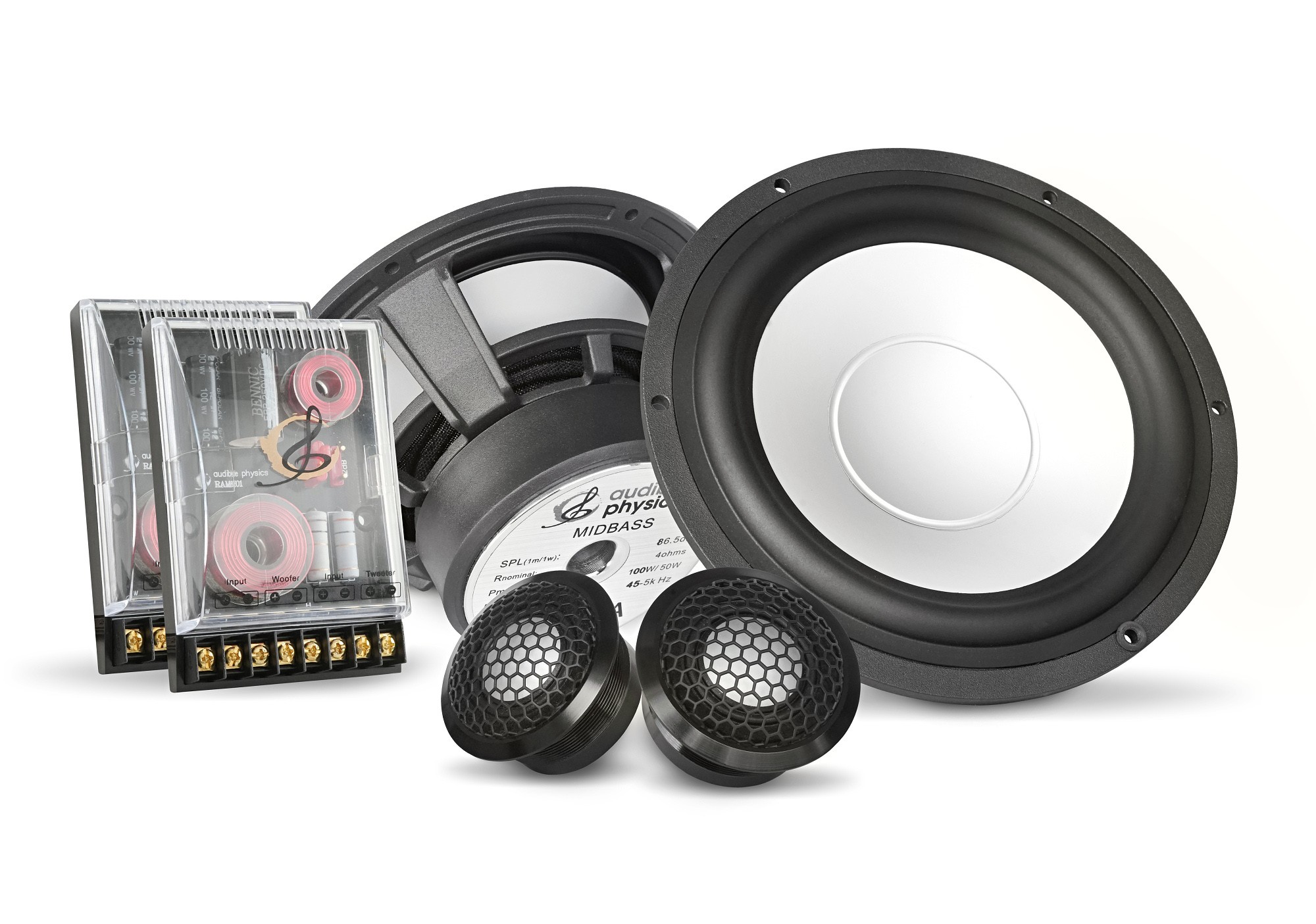

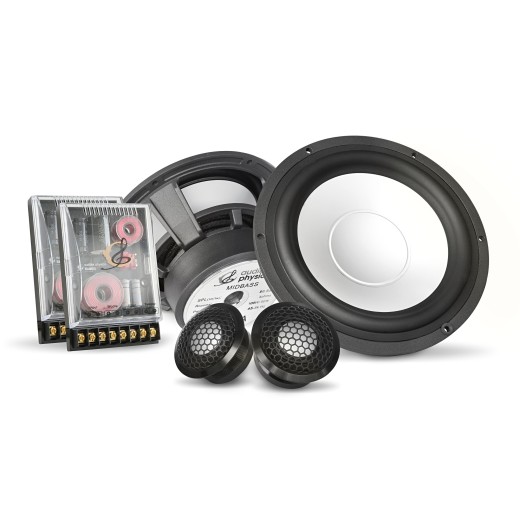

Audible Physics RAM 6.1 speakers
Audible Physics RAM 6.1 two-way component loudspeakers are already proud of Audible Physics' top systems. The RAM 6.1 components feature precision-engineered mid-bass and tweeters that are crafted from refined materials with a proprietary Matrix Alloy Dome diaphragm made of magnesium and aluminum alloy that enables the traditional Audible Physics sound experience. The RAM 6.1 brings even more power, ceramic mid-bass magnets, high-resolution tweeters, an exclusive design with beautiful metal tweeter housings and a host of other design features to the bee with a mid-bass grille with polished edges. In the package, you will also find high-quality frequency crossovers with the option of Bi-Amp connection. From this system you can expect high-quality sound with the highest level of precision and detail, impressive presentation of the entire frequency range, and high performance without distortion. Like all Audible Physics products, the RAM 6.1 speakers are handcrafted in our own factory.

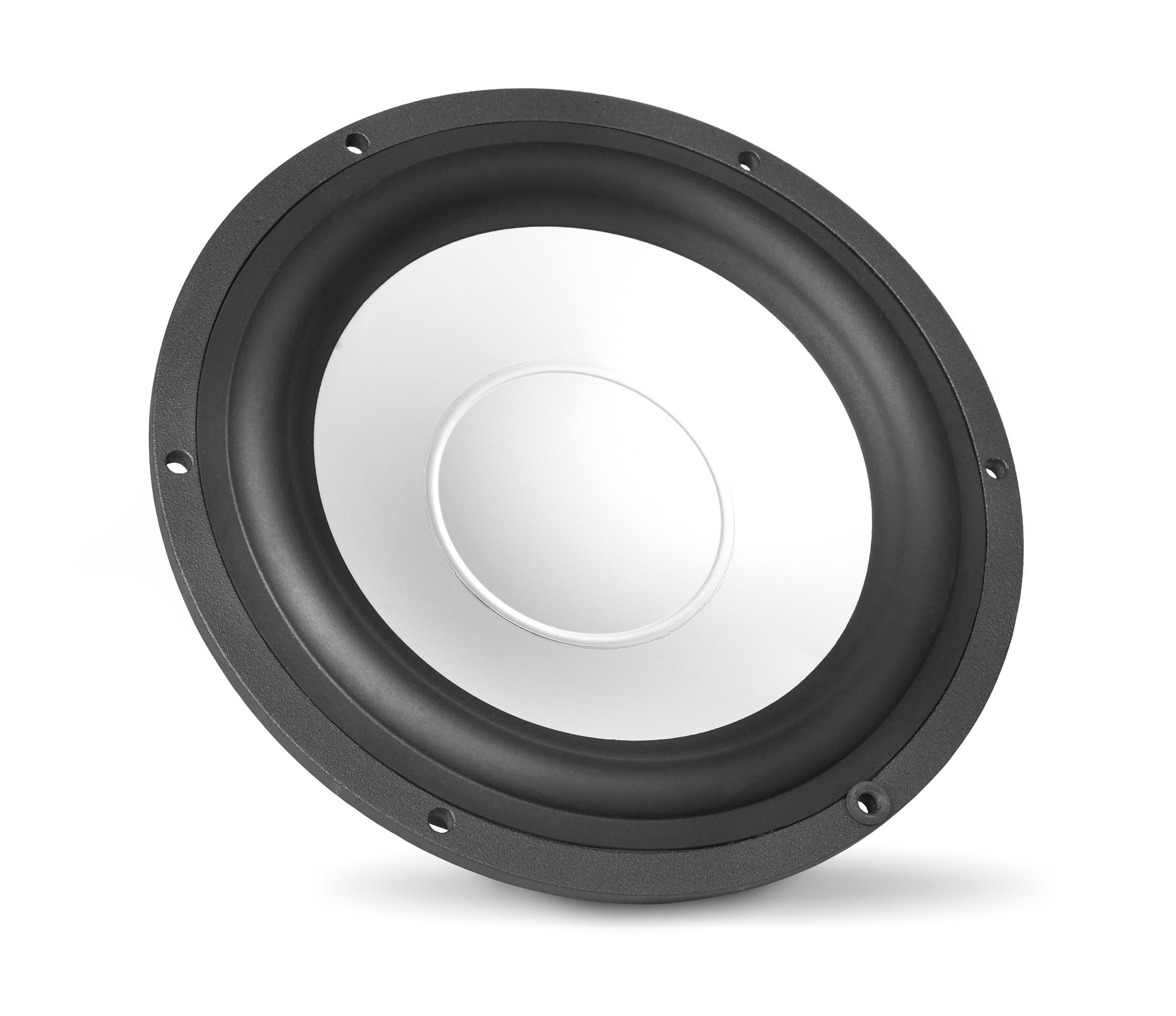

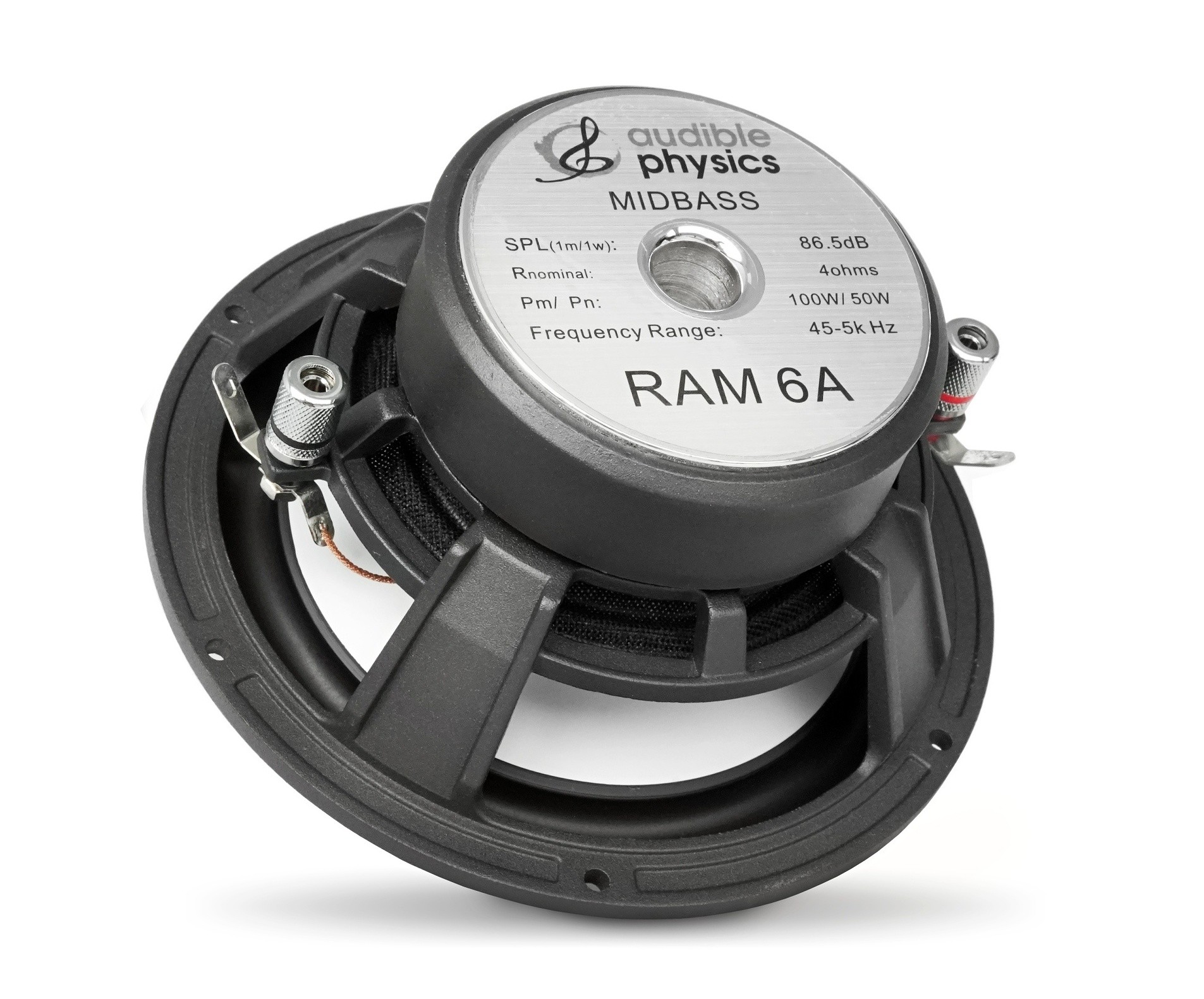

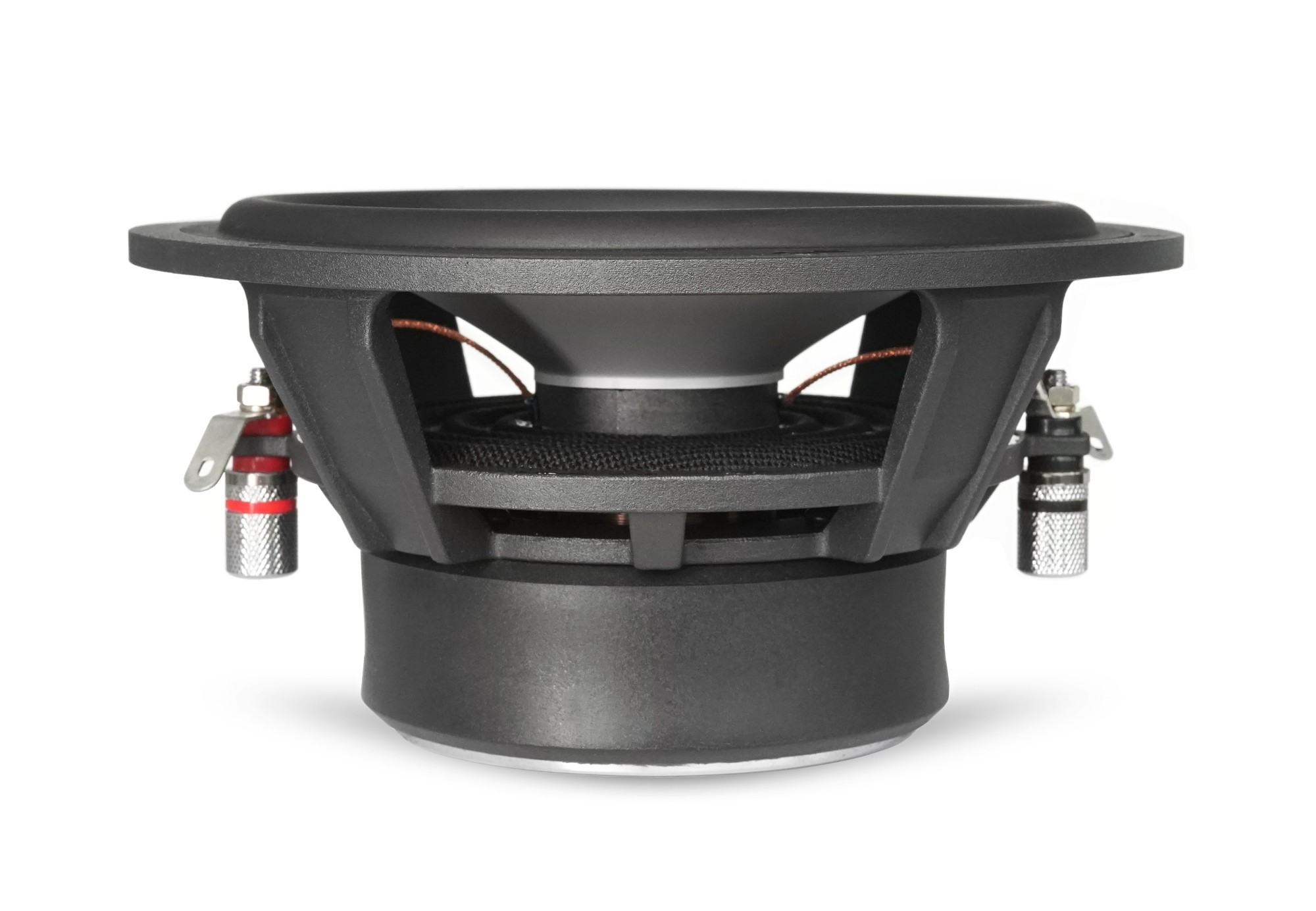

Audible Physics RAM 6A mid-bass speakers
In the case of the Audible Physics RAM 6A, the traditional white membrane is replaced by a silver color in a luxurious matte finish, but the material remains the same and, according to Audible Physics engineers, the most suitable for high-fidelity and precise sound without compromise. We are, of course, talking about the patented Matrix Alloy Dome membrane, which is made from an alloy of magnesium and aluminum. This combination stands out for its excellent stiffness, ability to dampen vibrations and also exemplary lightness. This enables the reproduction of deep and impressive bass while maintaining clean and precise mid-range frequencies. It is also worth mentioning the exemplary flat frequency response of the mid-bass, which is among the common characteristics of all Audible Physics speakers. The RAM 6 LE mid-bass speaker boasts increased performance, which is mainly made possible by high-quality and powerful ceramic magnets and an improved double voice coil with a diameter of 38.6 mm. The specially designed cast speaker basket is exceptionally rigid, eliminates vibrations and does not deform as much when the diaphragm moves, as is the case with classic steel baskets. At the same time, it does not reduce the magnetic field and dissipates heat from the oscillating coil significantly more effectively. The massive "Push" type cable terminals, which we are used to seeing on classic subwoofers, will also attract attention. In the package you will also find a beautiful design grid with a decorative polished edge.

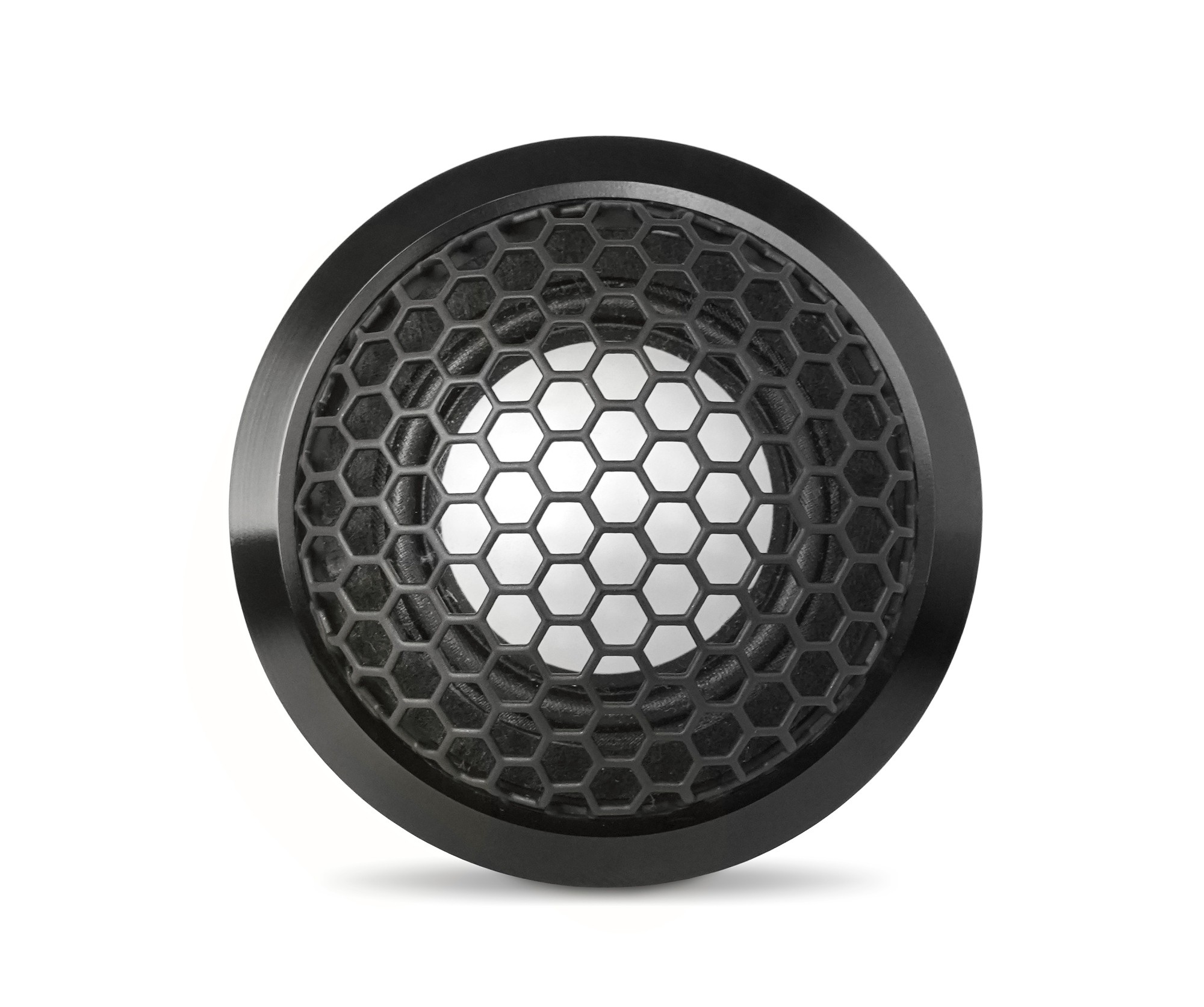

Audible Physics RAM 1 tweeters
The membrane of the Audible Physics RAM 1 tweeter, as in the case of the mid-bass speaker, is made of the patented Matrix Alloy Dome material. It is a magnesium and aluminum alloy that offers several advantages, led by exceptional high-frequency details, analytically accurate sound and an extremely deep soundstage. This alloy dome impresses with its perfect linearity of the frequency response curve and almost perfect neutrality. In addition, magnesium has excellent damping properties and, together with the very stiff aluminum in the alloy, significantly reduces distortion and mechanical deformation. The high quality 24mm neodymium magnet is optimized for better efficiency and improved linearity to ensure perfect power management and increase bandwidth and efficiency. The design of the calota in matte silver follows the mid-bass membrane and optically forms a perfectly coordinated system. Also worth mentioning are the beautiful steel tweeter housings designed for flush mounting. They also include rings for quick and reliable fastening.
| Catalog number | AP RAM 6.1 |
| Brand | Audible Physics |
| Links | Official web presentation (English) |
| Speaker typeCoaxial speakers: Coaxial speakers are characterized by a so-called all-in-one design. The tweeter and mid-bass speaker are in one basket. The advantage is simpler assembly, but thanks to the connection or proximity of the bands in one speaker, the sound quality will usually be reduced. As a rule, in the middle of the mid-bass speaker, there is a tweeter whose voice coil works in the second air gap of the common magnetic circuit. The three-way coaxial speaker consists of a mid-bass speaker, a center speaker and a separate tweeter in the front on a special beam. Component Speakers: Component speakers are characterized by a division into individual frequency bands, treble + mid-bass + or. bass band. The individual speakers can be placed completely separately, which results in a better sound and acoustic performance. In the vast majority of cases of component speakers, an external crossover is also supplied, which divides the treble, middle / mid-bass, and into the three-band the bass band or allows setting the decibel level of the tweeter (e.g. +2 dB, 0 dB, -2 dB), steepness (e.g. 6dB/Oct. 12dB/Oct.) or active or bi-amp connection. | 2-way component |
| RMS powerRMS speaker power is the constant power of the entire system, not just one speaker or one side. This is also the performance of continuous use of the speakers. If the RMS power is exceeded for a long time, the speakers may be irreversibly damaged! | 150 W |
| Max. (maximum performancePeak performance , which the speaker can play for a moment (approx. 0.5 s), for example when hitting drums in a song. If the max power is exceeded, the speakers will usually be damaged! | 300 W |
| Sensitivity (SPL 2.83V/1m)Sensitivity, sensitivity or efficiency of the speaker. Speaker sensitivity is given in decibels (dB) and simply put, the higher the value, the lower the demands on the amplifier's power. This is a defacto rating of how a speaker converts watts to sound. Sensitivity ratings are in noise level measured at 1 meter from the speaker using 1 W (watt of power) or using 2.83 volts at the source at 1 meter. A higher decibel level means the speaker is louder with less power. For every 3 dB increase in sensitivity, the speaker requires half the power to reproduce the same volume. For example, if an 88 dB speaker needs 100 Watts to produce a certain volume, then a speaker with a sensitivity of 91 dB needs only 50 Watts to reach the same volume. | 89.5 dB |
| Sensitivity (SPL 1W/1m)Sensitivity, sensitivity or efficiency of the speaker. Speaker sensitivity is given in decibels (dB) and simply put, the higher the value, the lower the demands on the amplifier's power. This is a defacto rating of how a speaker converts watts to sound. Sensitivity ratings are in noise level measured at 1 meter from the speaker using 1 W (watt of power) or using 2.83 volts at the source at 1 meter. A higher decibel level means the speaker is louder with less power. For every 3 dB increase in sensitivity, the speaker requires half the power to reproduce the same volume. For example, if an 88 dB speaker needs 100 Watts to produce a certain volume, then a speaker with a sensitivity of 91 dB needs only 50 Watts to reach the same volume. | 86.5 dB |
| ImpedanceImpedance - measurement of electrical resistance. When buying speakers, it is important to make sure that the impedance matches the amplifier or car stereo you are using. Example: A 2 Ohm speaker cannot be connected to an amplifier that is only stable up to 4 Ohms! A 4 Ohm speaker can easily be used with an amplifier that is stable up to 2 Ohms. The most common speaker impedance today is 3 - 4 Ohm. | 4 Ω |
| Frequency rangeThe ability of the speakers to play a signal from the lowest frequency to the highest, or the speaker's ability to faithfully reproduce sound in a specific frequency band. Professionally: In the frequency range from 40 to 16,000 Hz, the vast majority of fundamental and overtones (harmonics) of all musical instruments are found. We are interested in the course of the radiated sound pressure in this range of frequencies when the loudspeaker system is supplied with constant power. We call this course the frequency characteristic, which tells us the level of radiated sound pressure in decibels (dB) depending on the frequency. The frequency characteristic of a speaker or speaker system can be expressed most succinctly with a graph. Mostly, however, the frequency characteristic is indicated by indicating the maximum tolerance of the sound pressure in the given frequency range, e.g. 50 to 15,000 Hz -+ 6 dB. Since the frequency characteristics of loudspeakers and systems in general are quite uneven, some manufacturers do not even specify this maximum tolerance of sound pressure in decibels in their catalogs for reasons of prestige. Data impoverished in this way is unfortunately worthless. What is valid is that the manufacturer offers a speaker system with a frequency range of 30 to 20,000 Hz, if he is worried about stating the maximum unevenness of the sound pressure in this range, because he can have a tolerance of, for example, +- 20 dB. The unevenness or undulation of the frequency curve in good speaker systems for high-quality music performance should not exceed +-3 dB in the 80 to 12,000 Hz band and +-6 dB in the 40 to 16,000 Hz band. Greater unevenness already depletes or emphasizes certain tonal areas, which can cause audible or even disturbing distortion. The proportion between fundamental tones and higher harmonics also changes, thereby changing the color of the sound, and individual musical instruments as well as the entire musical image sound unnatural. | 50 - 20000 Hz |
| The diameter of the mid-bass speakerWe state the diameter of the speaker as the diameter of the entire speaker, not including the mounts, when smaller speakers (87, 100, 130 mm) have extra mounts. Some speakers are oval and there the dimension is given in inches, always the shortest side to the longest side. One inch is approx. 2.5 cm. | 165 mm |
| Installation depth of the mid-bass speakerThe installation depth of the speaker is measured from the bottom edge of the magnet to the bottom edge of the tin, plastic or cast speaker basket, or speaker bearing surfaces. | 78.3 mm |
| Mid-woofer diaphragm materialThe material that was used for the speaker diaphragm. Don't be afraid of the paper, it surprisingly has a very natural and high-quality sound and, thanks to the surface treatment, it can withstand moisture without any problems. | Matrix Alloy Dome (magnesium and aluminum alloy) |
| Resonant frequency of the mid-bass speaker | 52 Hz |
| Overall tweeter diameterThe total diameter of the tweeter is given as the diameter of the individual tweeter without the installation houses. | 52 mm |
| Tweeter dome diameterThe net diameter of the dome (diaphragm) of the tweeter. | 25 mm |
| Tweeter dome materialThe shell material that was used in the manufacture of the tweeter. | Matrix Alloy Dome (magnesium and aluminum alloy) |
| The resonant frequency of the tweeter | 1440 Hz |

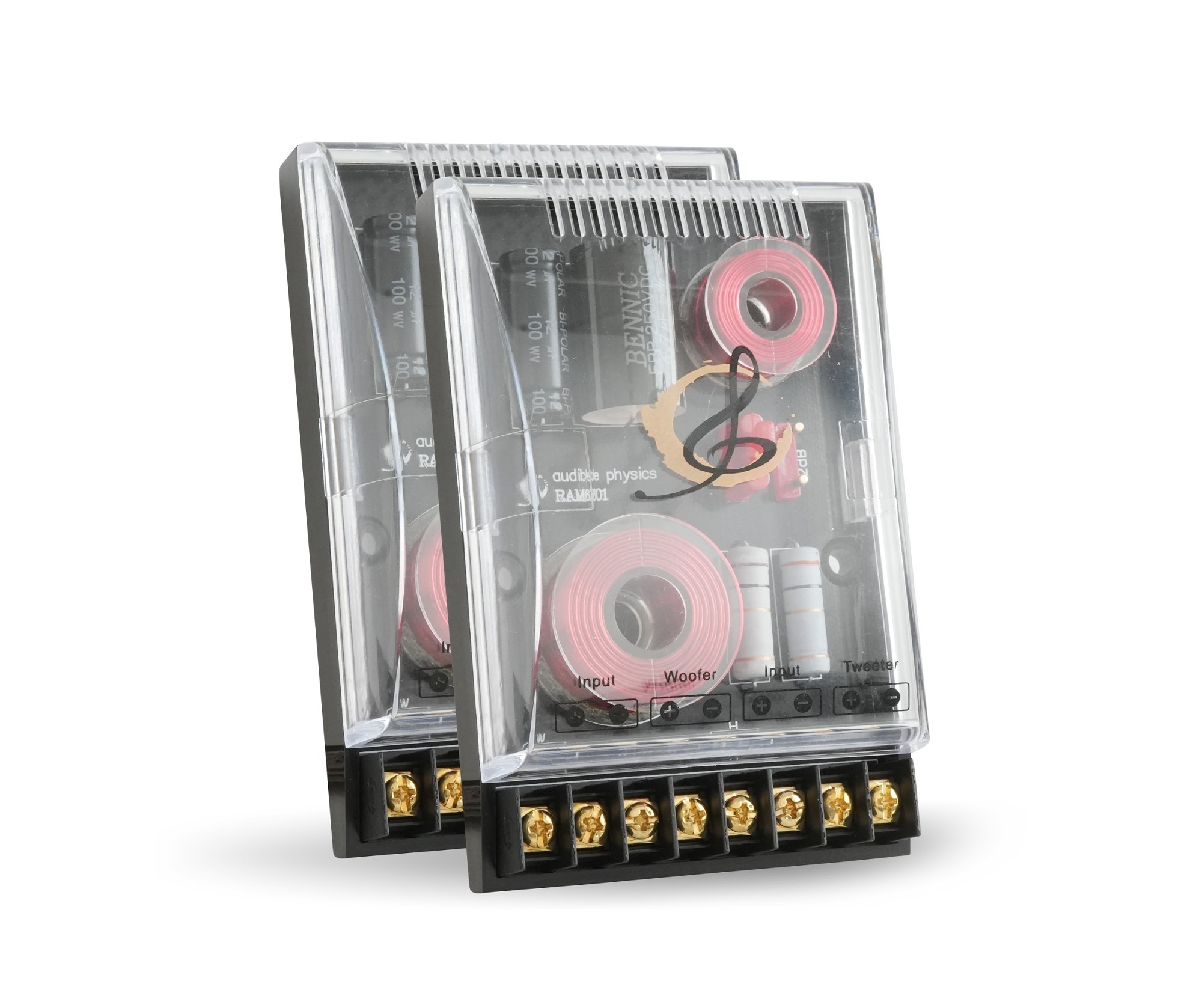

| Frequency crossover included in the packageThe crossover is an important part of defacto all loudspeakers. A crossover usually contains different resistor values, coil sizes, and capacitor types that fundamentally modify the sound. We describe below what the turnouts are for. Component Speakers: A crossover is part of every quality component speaker system. Its task is to ensure the distribution of frequencies that the amplifier produces in the entire acoustic spectrum of frequencies so that each of the speakers receives only that part of the band that it can optimally play in terms of efficiency and minimal distortion. Coaxial speakers: In most cases, coaxial loudspeakers have a simple crossover (6dB/Oct.) formed by a capacitor at the tweeter. | Yes |
| Options for setting the frequency crossoverThe unwritten rule is that the more expensive the speakers, the more options the crossover has for adjusting the sound. The most common way to adjust the crossover is attenuation on the tweeter. More advanced crossovers also offer the option of setting the steepness on the mid-bass and tweeter or adjusting the frequency range. | Yes |
| Cover grids included in the packageOriginal cover grilles in speaker packaging. | Yes |
| Price forIf the price is for a pair, the package always includes 2 pieces of everything, e.g. 2x mid-bass, 2x tweeter and 2x crossover. | Pair |
