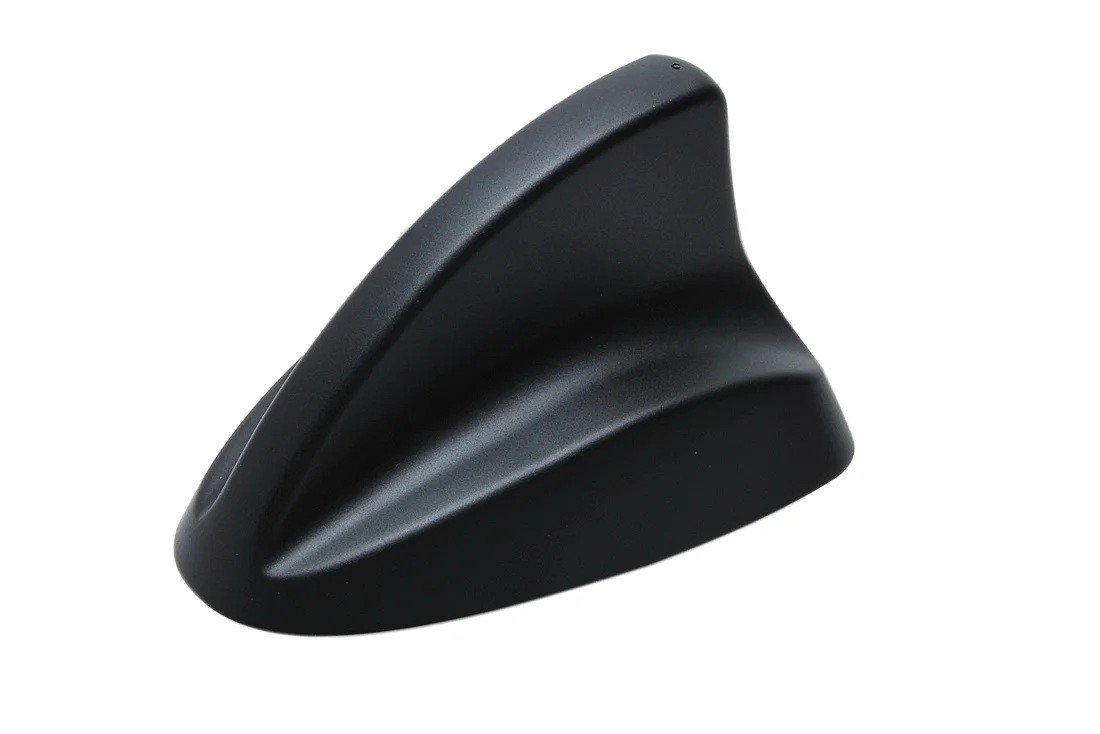

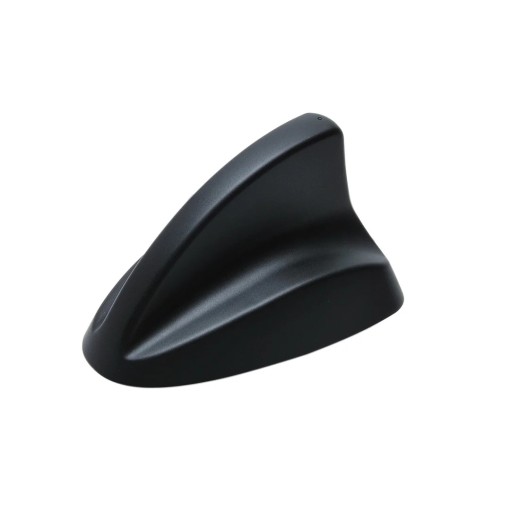

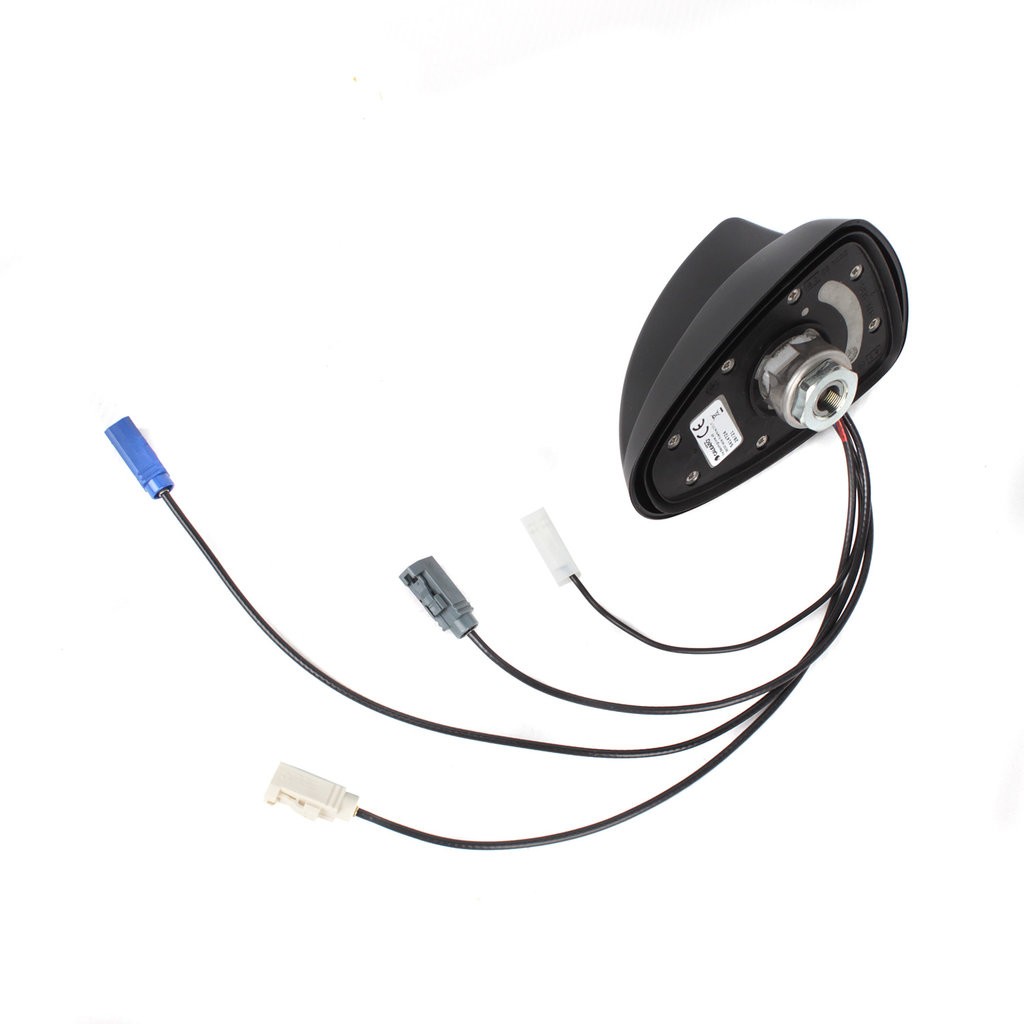

Antenna Calearo Shark 2 7677890
FCA AM / FM / DAB / DAB+ / GPS roof antenna with Fiat / Chrysler amplifier
More about the product
More about the product
We will help you with your purchase
- You can return the goods to us within 14 days
FCA AM / FM / DAB / GPS roof antenna with Fiat / Chrysler amplifier
Roof antenna for reception of AM / FM - DAB / DAB+ broadcasting to the rear part of the roof with an amplifier for Fiat / Chrysler cars.
AM / FM part
- AM/FM frequency range: 0.52 - 1.71 / 88-108 MHz
- Phantom and separate power supply: 12 V
- Cable length at the antenna: 25 cm
- Cable: RG174
- Packaging without antenna lead

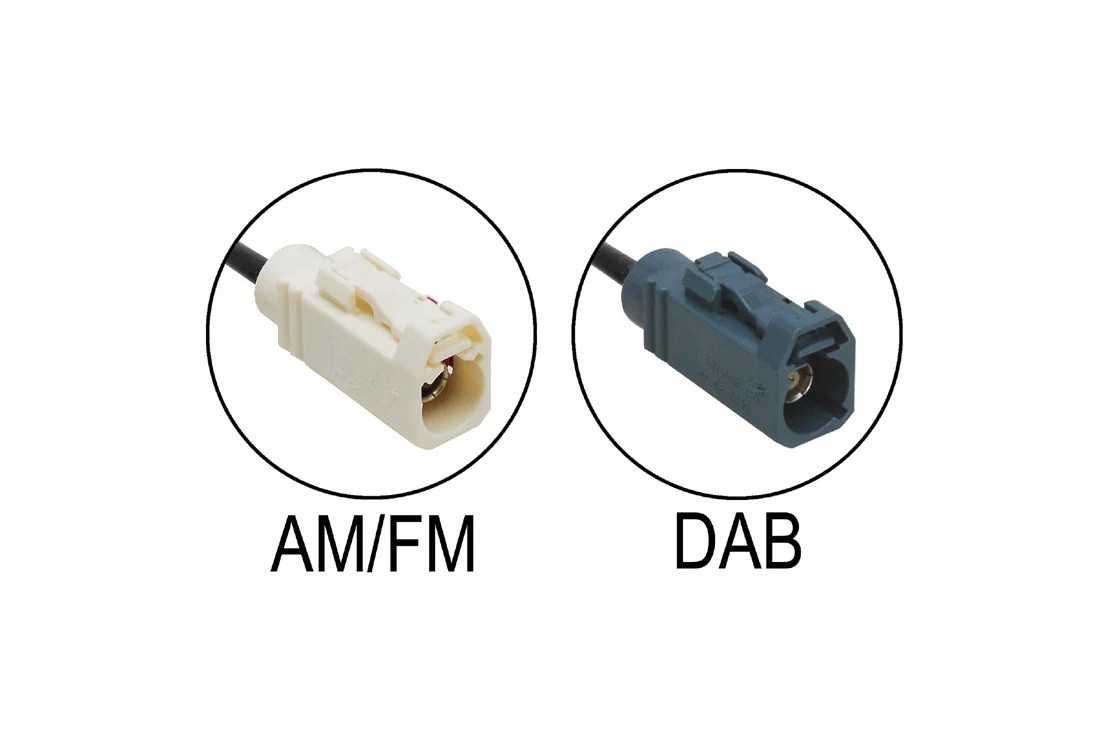

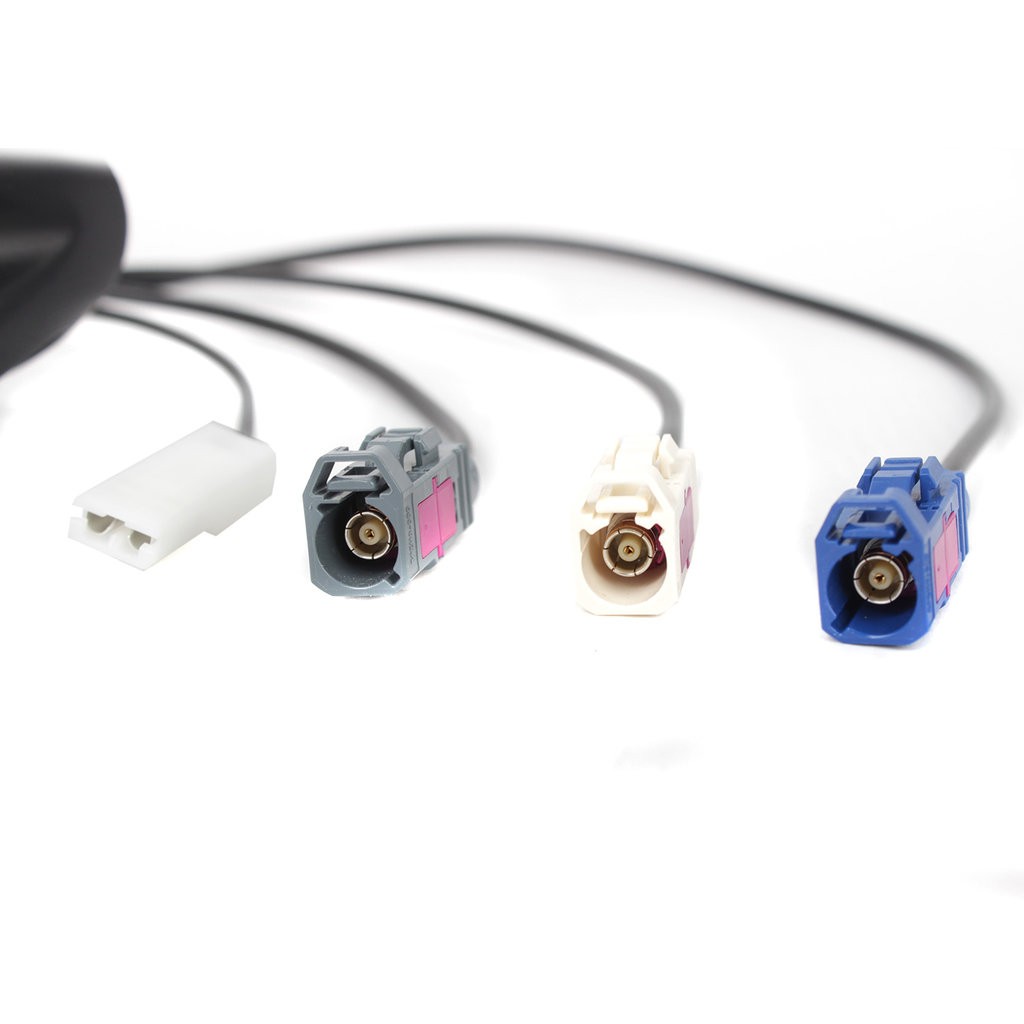

- Antenna connector: FAKRA female white
DAB part
- Frequency range: 174 - 240 MHz (III band)
- Phantom and separate power supply: 12 V
- Cable length at the antenna: 20 cm
- Cable: RG174
- Packaging without antenna lead
- Connector: FAKRA female gray
- Gain: 2dB
- VSWR: <3:1
GPS part
- GPS frequency range: 1575.42 (+/-1.023) MHz
- Phantom power: 3 - 5 V
- Gain: >28dB
- Current consumption: max. 45 mA
- VSWR: 2:1
- Without antenna lead
- Cable length at the antenna: 25 cm
- Antenna connector: FAKRA female blue
Common features
- Consumption: 50 mA (max)
- Impedance: 50 ohms
- Black colour
- Protection: IP68
- Dimensions: 11.7 x 7.6 x 6.2 cm (L x W x H)

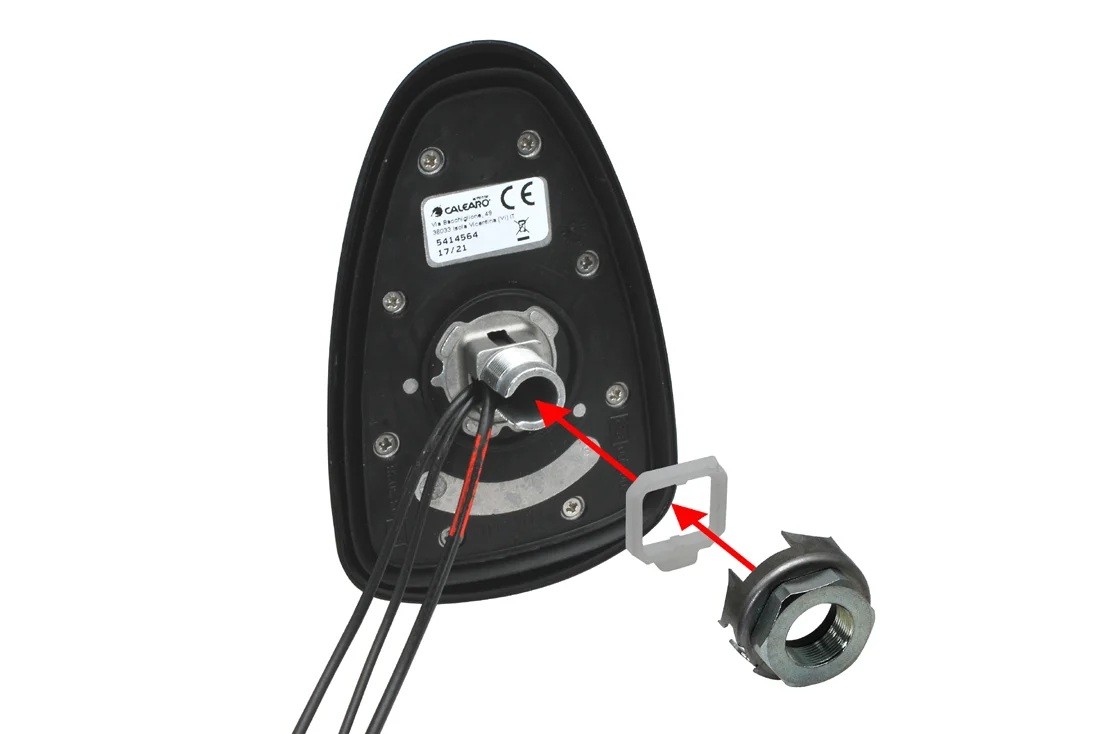

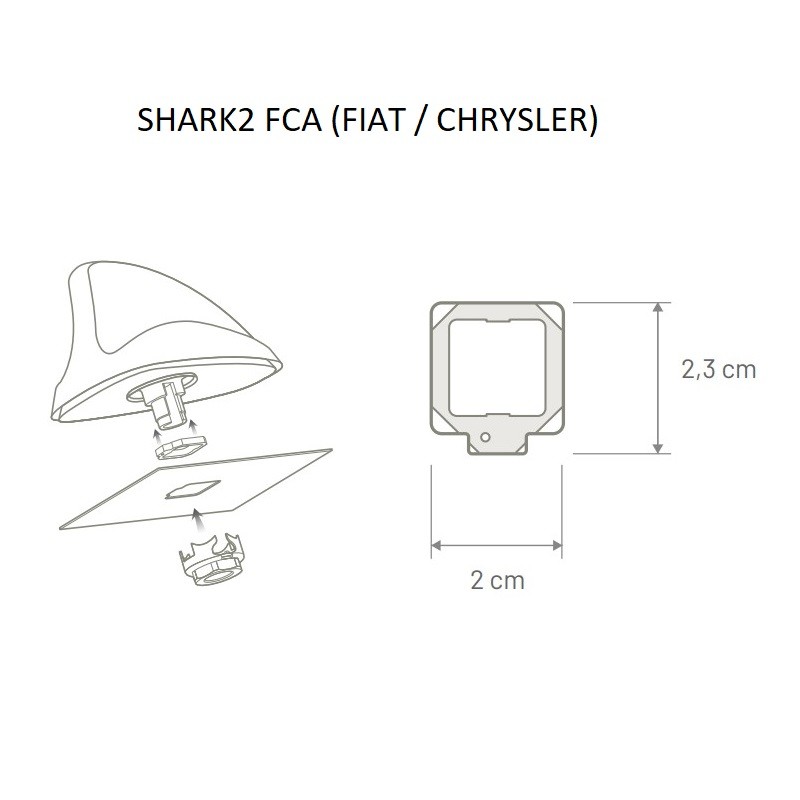

- Body hole diameter: square 20 x 23 mm
Suitable for cars
- Fiat
- Chrysler
- Jeep
- Dodge
| Catalog number | 7727170 |
| Brand | Calearo |
| Links | Official web presentation |
