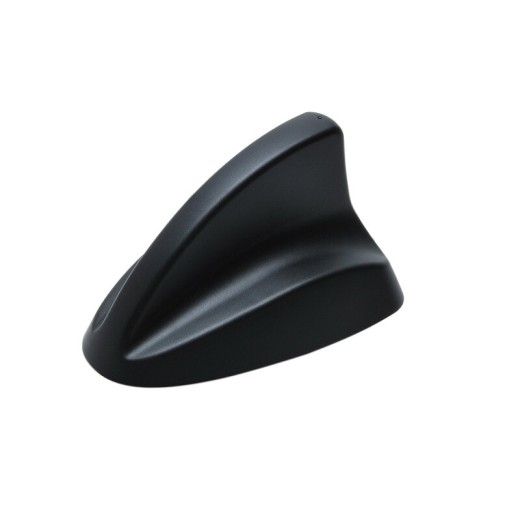

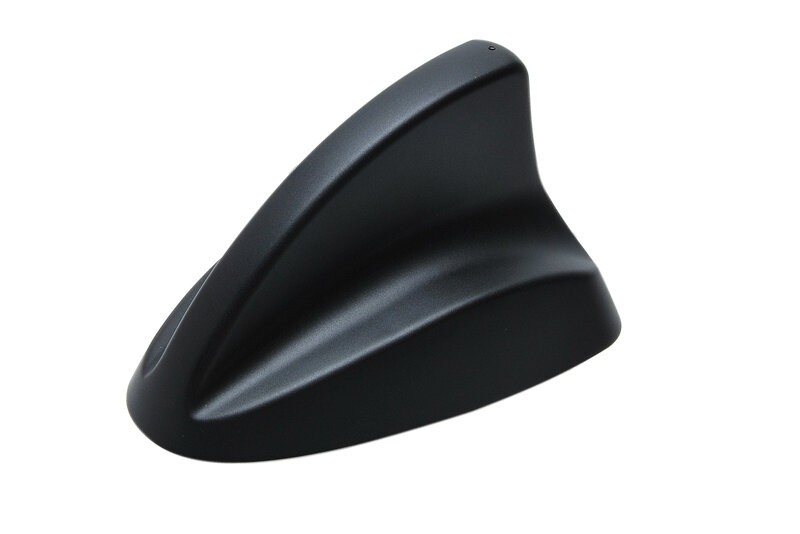

Antenna Calearo Shark 2 7677825
roof antenna for receiving AM/FM - GPS to the rear part of the roof with an amplifier
More about the product
More about the product
The sale is over
Roof antenna for receiving AM/FM - GPS to the rear part of the roof with an amplifier
Use on the roof of cars or trucks, can also be used as a replacement for the original antenna. In the case of a request for a different type of connector on the side of the connected device, it is possible to use one of the reductions or replace the cable.
AM/FM part:
- AM/FM frequency range: 0.52 - 1.71 / 88-108 MHz
- Phantom and separate power supply: 12 V
- Cable: RG174
- Packaging without antenna lead
- Cable length at the antenna: 25 cm

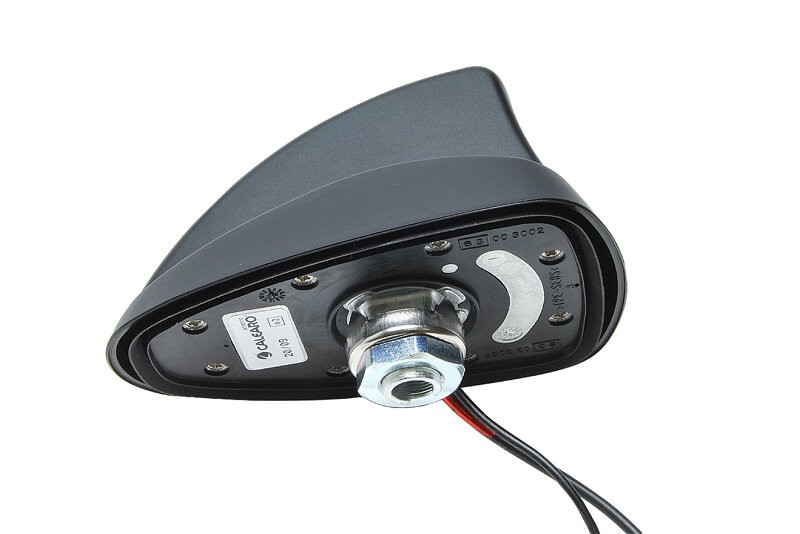

- Antenna connector: FAKRA male white
GPS part:
- GPS frequency range: 1575.42 (+/-1.023) MHz
- Phantom power: 3 - 5 V
- Gain: >28dB
- Current consumption: max. 31 mA
- VSWR: 1.7:1
- Without antenna lead
- Cable length at the antenna: 25 cm
- Antenna connector: FAKRA male blue
Common features:
- Consumption: 50 mA (max)
- Impedance: 50 ohms
- Black colour
- Protection: IP68
- Dimensions: 11.7 x 7.6 x 6.2 cm (L x W x H)
- Body hole diameter: circular 19 mm / square 15 x 15 mm
Suitable for cars:
- Universal use
- Alfa Romeo 145
- Alfa Romeo GT
- Audi A3
- Audi A6 Avant (-> 2001)
- Audi A4 Avant (-> 2001)
- BMW Mini (2001 ->)
- Citroen Xsara
- Citroen C2
- Citroen C3
- Citroen C5 Estate
- Daewoo Nubira Combi
- Daewoo Tacuma
- Fiat Stilo
- Fiat Idea
- Fiat Panda II (2003 -> 2012)
- Lancia Libra Combi
- Lancia Y (2004 ->)
- Lotus Elise
- Lotus Esprit
- Mazda 323 (1999 ->)
- Mazda3
- Mazda 6 I. (2002 -> 1/2008)
- Mitsubishi Outlander
- Nissan Micra
- Nissan Almera
- Nissan Primera
- Opel Omega Caravan
- Opel Zafira
- Opel Vectra
- Opel Meriva
- Opel Speedster
- Opel Agila
- Opel Astra (1998 ->)
- Opel Vectra Wagon
- Opel Corsa (2003 ->)
- Opel Signum
- Peugeot 307
- Renault Clio (2001 ->)
- Renault Megane II
- Renault Scenic II
- Seat Aroza
- Seat Ibiza (1998 ->)
- Seat Cordoba (1998 ->)
- Seat Toledo (1998 ->)
- Seat Leon
- Seat Altea
- Too bad Felicia
- Skoda Fabia I
- Skoda Fabia II
- Skoda Octavia I
- Skoda Octavia II
- Škoda Superb I
- Škoda Superb II
- Toyota RAV4
- Toyota Corolla (2002 ->)
- Toyota Yaris (2003 ->)
- Toyota Prius
- VW Lupo
- VW Polo
- VW Golf III.
- VW Corrado
- VW Golf IV.
- VW Beetle
- VW Bora
- VW Passat (1993 ->)
- VW Passat (1997 ->)
- Volvo V40
| Catalog number | 7677825 |
| Brand | Calearo |
| Links | Official web presentation |
