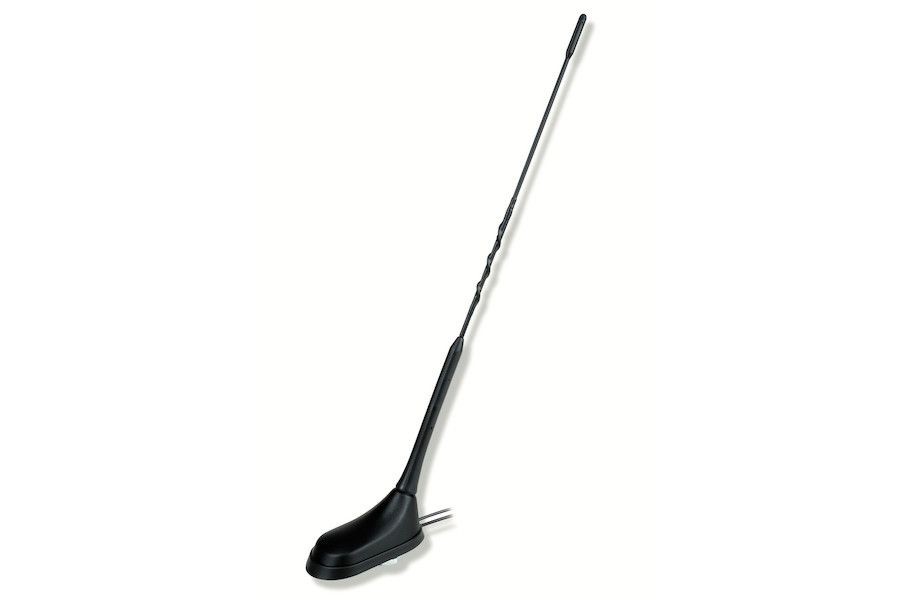

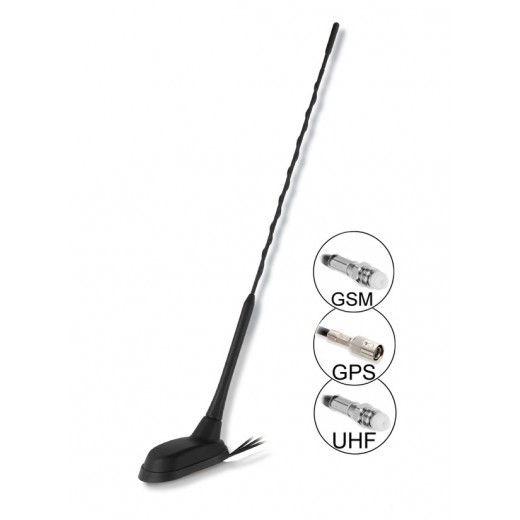

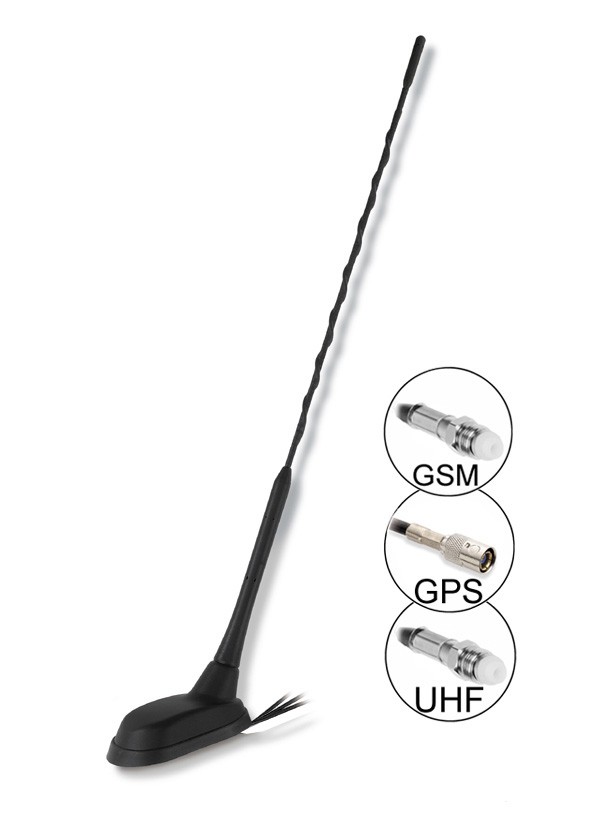

Antenna Calearo 7771005

Roof antenna / VHF+GPS+GSM / 60°

VHF+GPS+GSM combined universal antenna on the roof 60° for radio stations working in the VHF band, GPS navigation and GSM devices.

• black colour
• slope: 60°
• rod length: 38 cm
• temperature range of use: -40°C to 85°C
• protection class: IP68
• base dimensions: 9.8 x 5 cm (L x W)
• body hole diameter: circular 19 mm / square 15 x 15 mm
• automotive use: on the roof for cars or trucks
• can be used as a replacement for the original antenna
• in case of a request for a different type of connector on the side of the connected device, it is possible to use one of the reductions, or to replace the cable
• Splitter ( 7561003 ) can also be used to receive AM/FM frequencies

VHF part:

• VHF frequency range: 146-174 MHz
• gain: 3 dBi
• max. power: 20 W
• VSWR: TX < 2:1 / BW 2 MHz
• antenna cable length: 5 m (RG58)
• connector at the radio station: FME female
• connector at the antenna: FAKRA male (cable 14 cm)

GPS part:

• GPS frequency range: 1575.42 (+/-1.023) MHz
• phantom power: 3 - 5 V
• gain: >27 dBi
• current consumption: max. 30 mA
• VSWR: < 2:1
• antenna cable length: 5 m
• GPS device connector: SMB female
• antenna connector: RAST (cable 20 cm)

GSM part:

• GSM frequency range: 890 - 860 MHz / 1710 - 1880 MHz
• gain: 0 dB
• VSWR: TX: < 1.5:1 / RX: < 2:1
• power: 4 W
• antenna cable length: 5 m
• connector for GSM devices: FME female
• antenna connector: RAST (cable 20 cm)
