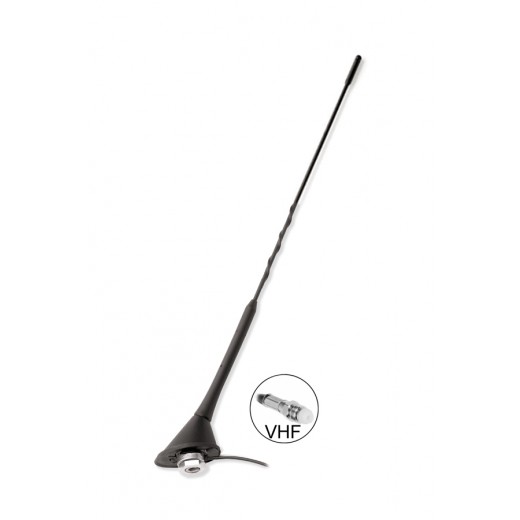

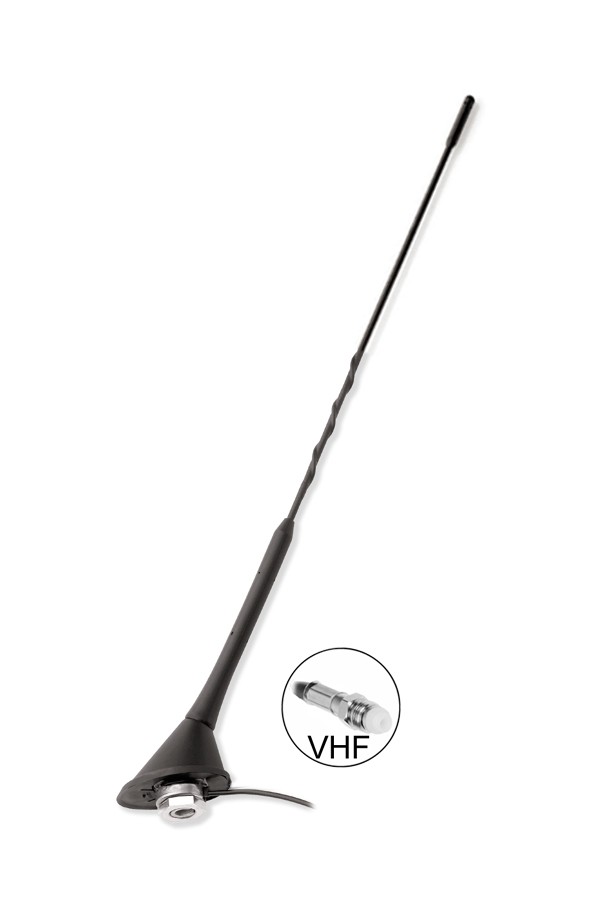

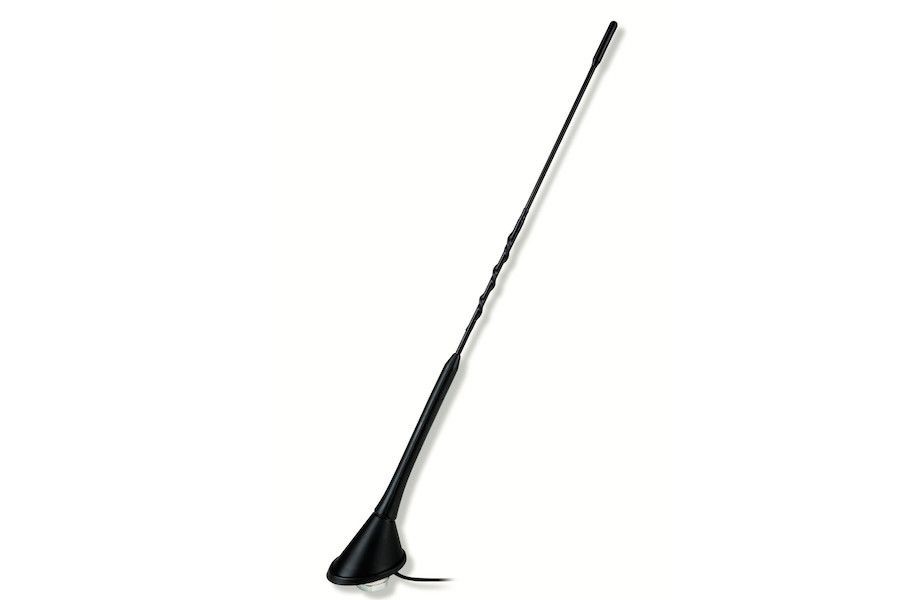

Antenna Calearo 7771002

Universal antenna on the roof 60° for radio stations working in the VHF band

• frequency range: VHF 146 - 174 MHz
• gain: 2.14 dBi
• max. power: 20 W
• VSWR: TX < 2:1 / BW 2 MHz
• antenna cable length: 5 m (RG58)
• connector at the radio station: FME female
• connector at the antenna: FAKRA male (cable 14 cm)
• black colour
• slope: 60°
• rod length: 38 cm
• temperature range of use: -40°C to 85°C
• protection class: IP68
• base dimensions: 9.8 x 5 cm (L x W)
• body hole diameter: circular 19 mm / square 15 x 15 mm
• on the roof for cars or trucks
• can be used as a replacement for the original antenna
• in case of a request for a different type of connector on the side of the connected device, it is possible to use one of the reductions, or to replace the cable
• Splitter ( 7561003 ) can also be used to receive AM/FM frequencies
