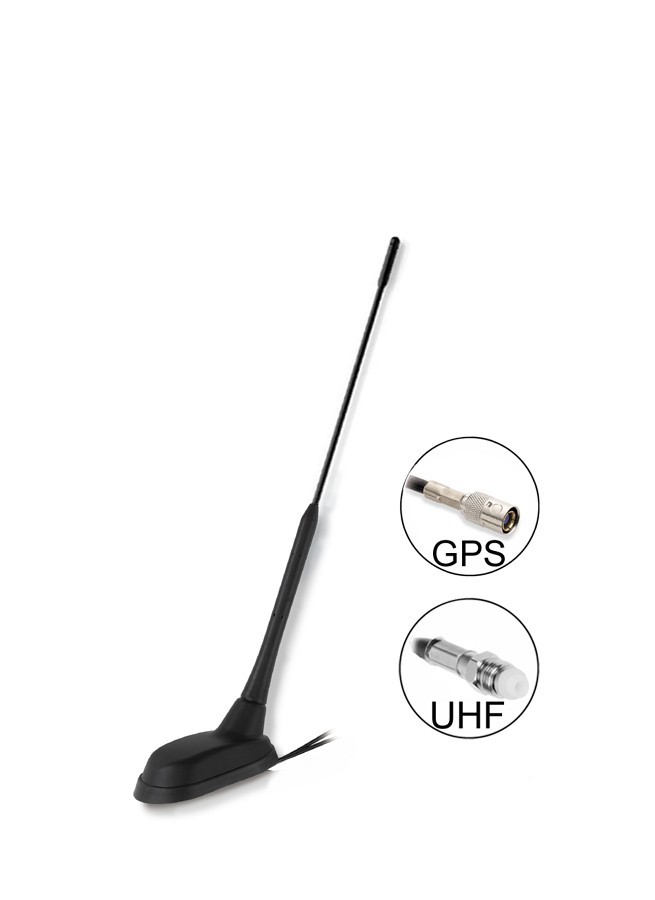

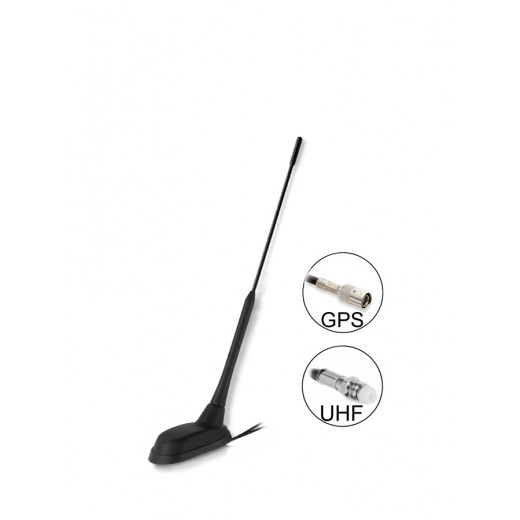

Antenna Calearo 7771001

Roof antenna / UHF+GPS / 60°

UHF+GPS combined universal antenna on the roof 60° for radio stations working in the UHF band and GPS navigation.

• black colour
• slope: 60°
• rod length: 26.5 cm
• temperature range of use: -40°C to 85°C
• protection class: IP68
• base dimensions: 9.8 x 5 cm (L x W)
• body hole diameter: circular 19 mm / square 15 x 15 mm
• automotive use: on the roof for cars or trucks
• can be used as a replacement for the original antenna
• in case of a request for a different type of connector on the side of the connected device, it is possible to use one of the reductions, or to replace the cable

UHF part:

• UHF frequency range: 430 - 470 MHz
• gain: 3 dBi
• max. power: 20 W
• VSWR: TX < 2:1 / BW 2 MHz
• antenna cable length: 5 m (RG58)
• connector at the radio station: FME female
• connector at the antenna: FAKRA male (cable 14 cm)

GPS part:

• GPS frequency range: 1575.42 (+/-1.023) MHz
• phantom power: 3 - 5 V
• gain: >27 dBi
• current consumption: max. 35 mA
• VSWR: < 2:1
• antenna cable length: 5 m
• GPS device connector: SMB female
• antenna connector: RAST (cable 20 cm)
