Antenna Calearo 7727016

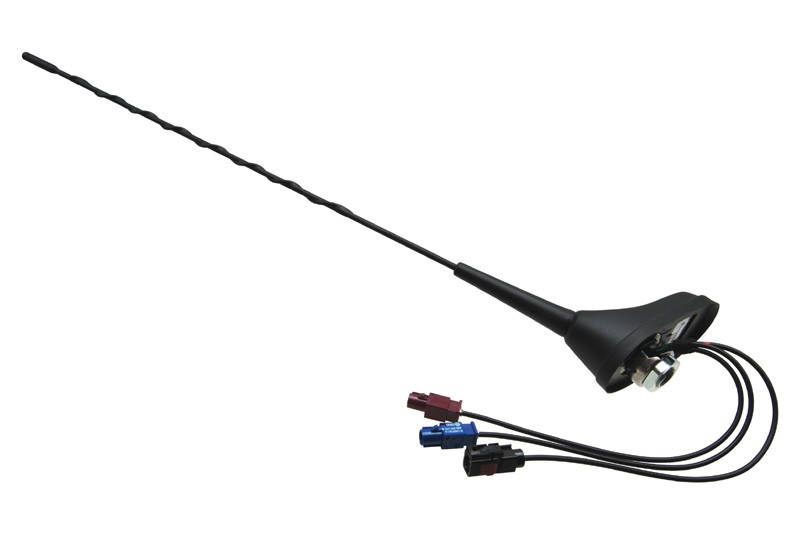

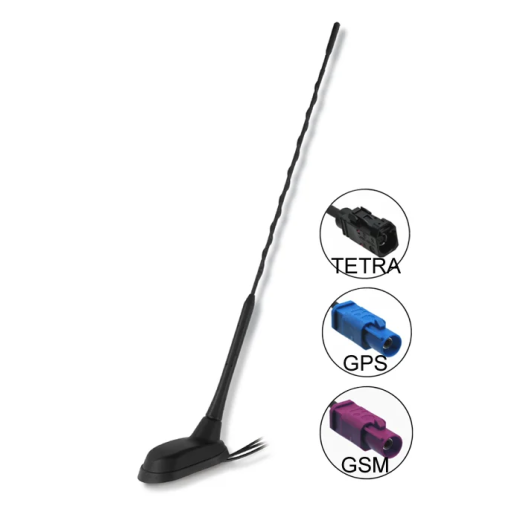

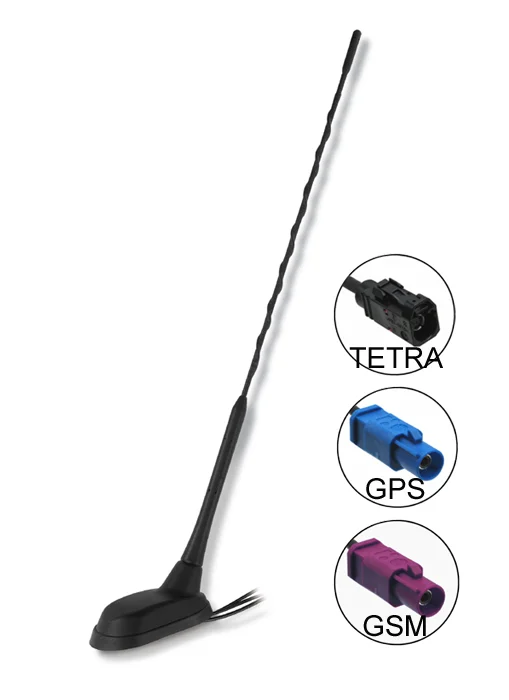

Calearo TETRA/ GSM DSC / GPS combined universal roof antenna 60°

• black colour
• slope: 60°
• rod length: 40 cm
• temperature range of use: -40°C to 85°C
• protection class: IP68
• base dimensions: 9.8 x 5 x 44 cm (L x W x H)
• body hole diameter: circular 19 mm / square 15 x 15 mm
• automotive use: on the roof for cars or trucks
• can be used as a replacement for the original antenna
• in case of a request for a different type of connector on the side of the connected device, it is possible to use one of the reductions, or to replace the cable

TETRA part:

• TETRA frequency range 380 - 430 MHz
• gain: 1 dBi
• max. power: 20 W
• VSWR: < 2:1
• without antenna lead
• connector at the antenna: FAKRA male (cable 18 cm)

GPS part:

• GPS frequency range: 1575.42 (+/-1.023) MHz
• phantom power: 3 - 5 V
• gain: >27 dBi
• current consumption: max. 30 mA
• VSWR: < 2:1
• without antenna lead
• connector at the antenna: FAKRA male (cable 18 cm)

GSM DSC part:

• GSM frequency range: 890 - 860 MHz / 1710 - 1880 MHz
• gain: 0 dB
• VSWR: TX: < 1.5:1 / RX: < 2:1
• power: 4 W
• without antenna lead
• connector at the antenna: FAKRA male (cable 18 cm)
