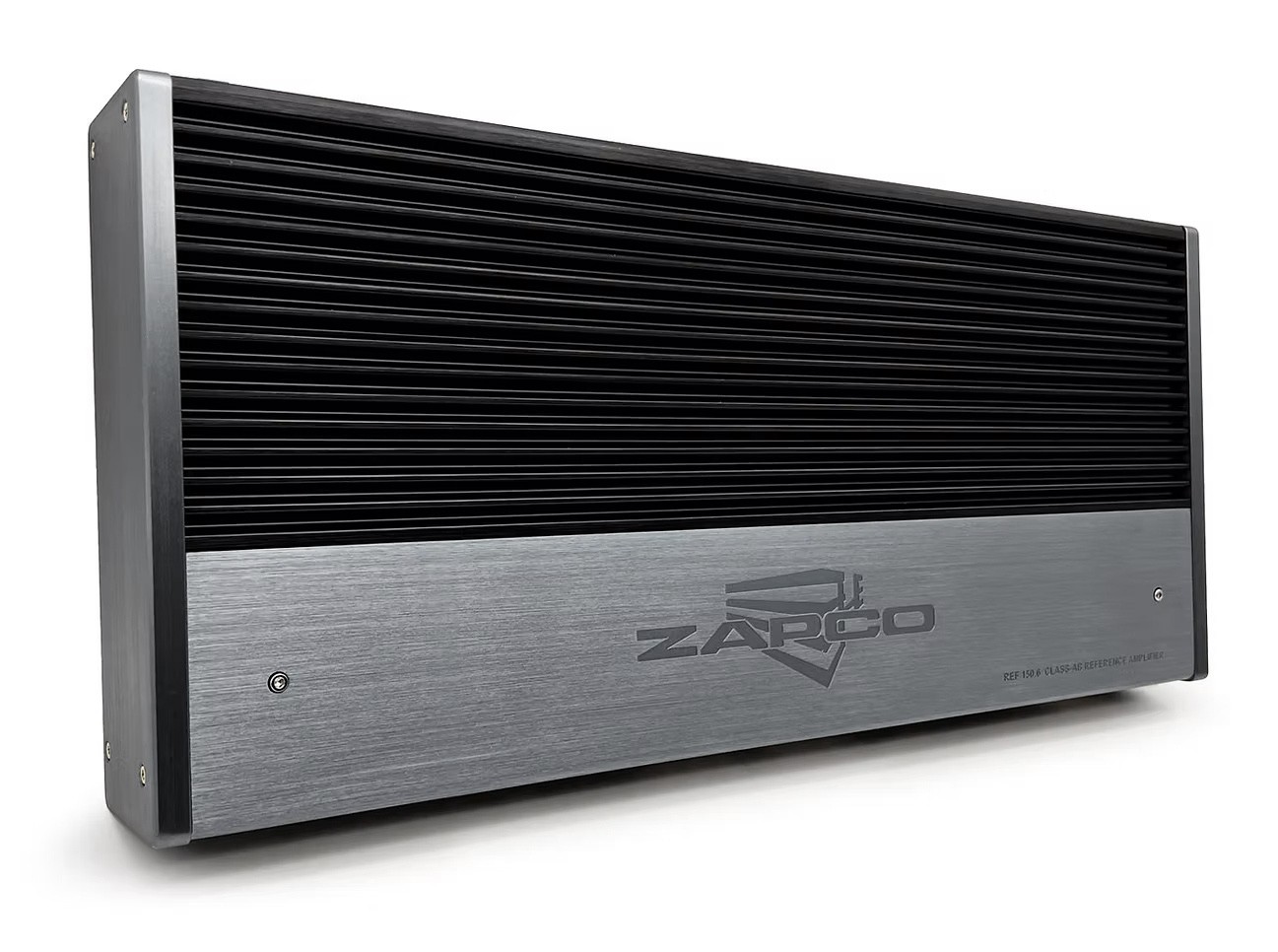

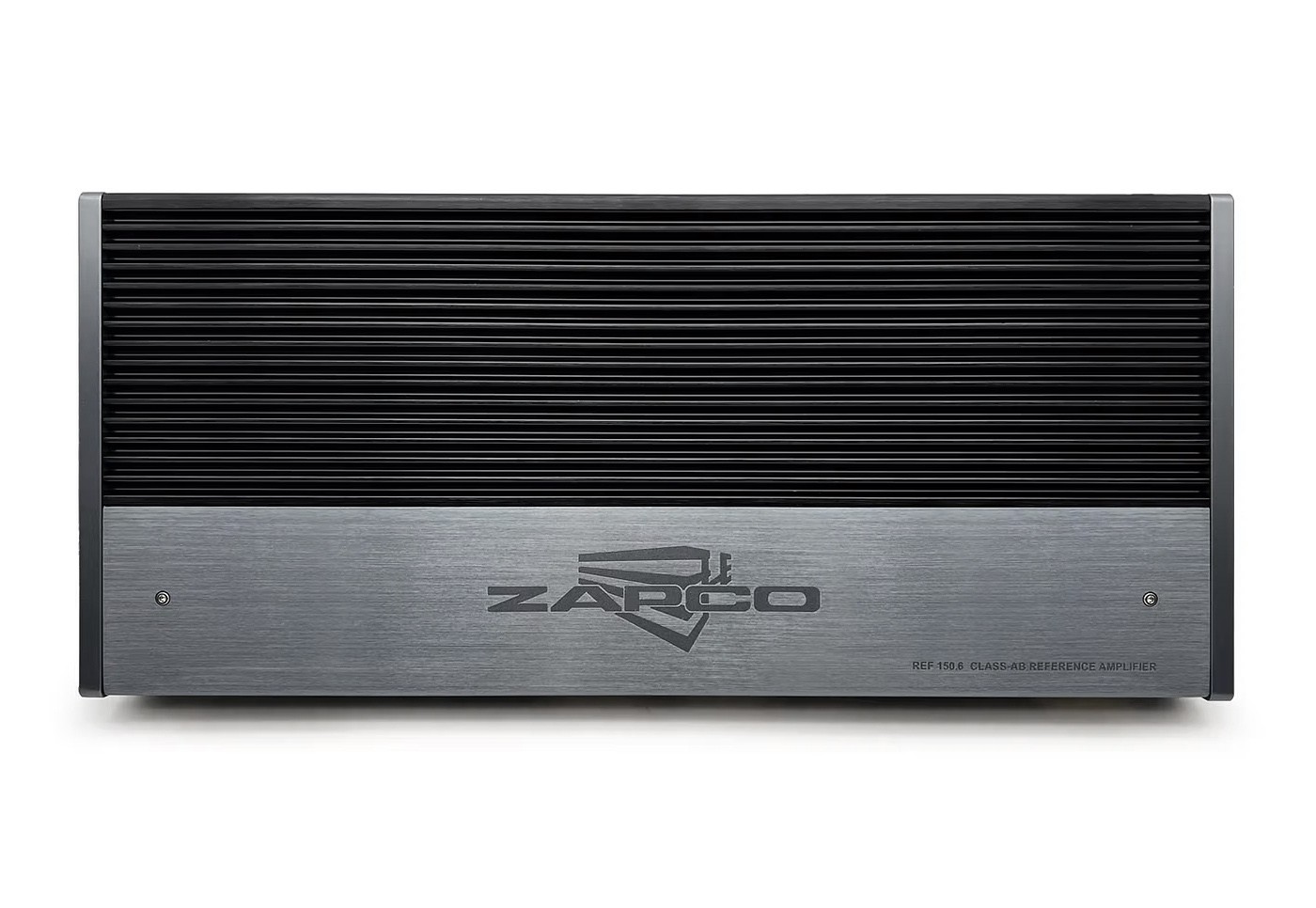

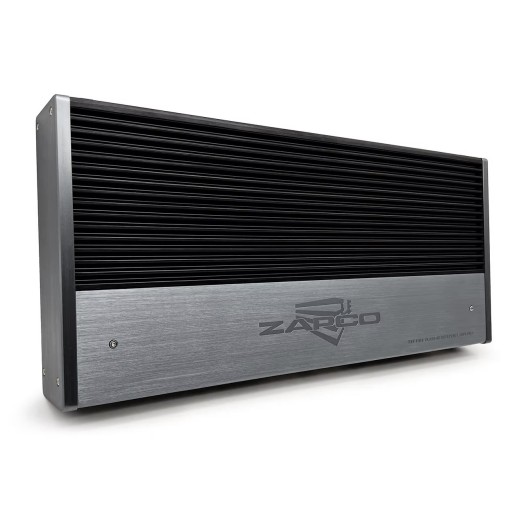

Amplifier Zapco REF 150.6

Zapco REF 150.6 Amplifier

The Zapco REF 150.6 is a six-channel Class AB amplifier designed for those seeking the purest, most dynamic and natural sound. It builds on decades of Zapco’s experience developing top-tier amplifiers and uses only carefully selected components from renowned manufacturers. In line with the philosophy of a pure signal path, it contains no built-in active crossover filters or other circuits that alter the audio signal, so nothing influences the final reproduction except the amplifier’s own quality. The highest sound quality always begins inside the amplifier, which is why Zapco pays extraordinary attention to every single component. All components used are chosen not only for reliability and longevity, but above all for their impact on final reproduction quality. The equipment also includes top-tier MUSES8820 operational amplifiers, which can be easily swapped for other compatible models via sockets to match the preferred sound character. The REF 150.6 delivers 6 × 150 W RMS at 4 Ω, extremely low harmonic distortion under 0.02%, a signal-to-noise ratio over 102 dB and a wide frequency range of 10 Hz to 40 kHz. The result is an exceptionally musical performance, high reproduction fidelity and sufficient power reserve even for the most demanding speaker systems.

The Return of the Legendary Reference Series

The Zapco Reference lineup is back and in better shape than ever. It follows the legendary Studio Series amplifiers and continues the philosophy that gave rise to one of the most respected brands in high-end car audio. The first generation of the Reference Series, then labeled AG, was launched in 2001 with the goal of making Zapco’s characteristic sound accessible to a wider audience. The result exceeded all expectations and the Reference line quickly became one of the brand’s most successful projects. The new generation of the Reference Series no longer aims to offer a premium amplifier accessible to everyone. Its goal is to offer the best amplifier in its price class. The four new models—one-, two-, four- and six-channel—combine an elegant new design with carefully selected internal components chosen with a single aim: to achieve the highest possible reproduction quality. The result is a sound performance that confidently competes with, or even surpasses, much more expensive amplifiers from other manufacturers.

Custom Transformers and Sanken Power Transistors

At the heart of the amplifier are powerful toroidal transformers, in most cases hand-wound directly at the Zapco production facility. This is the only way to ensure maximum current capacity, high efficiency and minimal electromagnetic interference. The transformers use copper windings, feature low internal resistance (Low ESR), high thermal tolerance and are firmly mounted to the amplifier chassis to avoid transmitting vibrations to other components. The power stage uses proven complementary Sanken transistors MN1526 and MP1526, capable of up to 260 V and 15 A. Their stable parameters across a wide operating current range contribute to exceptionally clean reproduction with minimal distortion.

Carefully Designed Signal Path

The signal path and power supply section of the amplifier are equally important. In the signal path, Zapco uses high-quality ELNA capacitors from the RA3 and RFS series, while for the power supply capacitors were developed in cooperation with SAMXON exactly to Zapco engineers’ specifications. During development, the manufacturer’s name was less important than parameters such as leakage current, dissipation factor, resistance to vibration, high temperatures and manufacturing tolerance accuracy. Special attention was also paid to the input capacitors, which have a fundamental influence on the purity of the transmitted signal. Therefore Zapco uses specially manufactured Revenbi MKPA-B polypropylene input capacitors rated at 250 V with only 3% tolerance, designed specifically for professional Hi-Fi audio applications.

Precision Passive Components

Top-tier sound is the result of a synergy of all used components. In addition to power transistors, transformers and capacitors, Zapco pays equal attention to passive components that affect amplifier stability and the accuracy of audio signal processing. The components used are selected with emphasis on long-term reliability, minimal electrical losses and consistent parameters. Power resistors Token BWL 5W R1 B feature very low inductance, high stability under long-term load, a low temperature coefficient and effective heat dissipation. Thanks to their own manufacturing technology they achieve exceptionally low resistance values while maintaining high precision and reliability, contributing to stable amplifier operation even at high output power.

Balanced Input

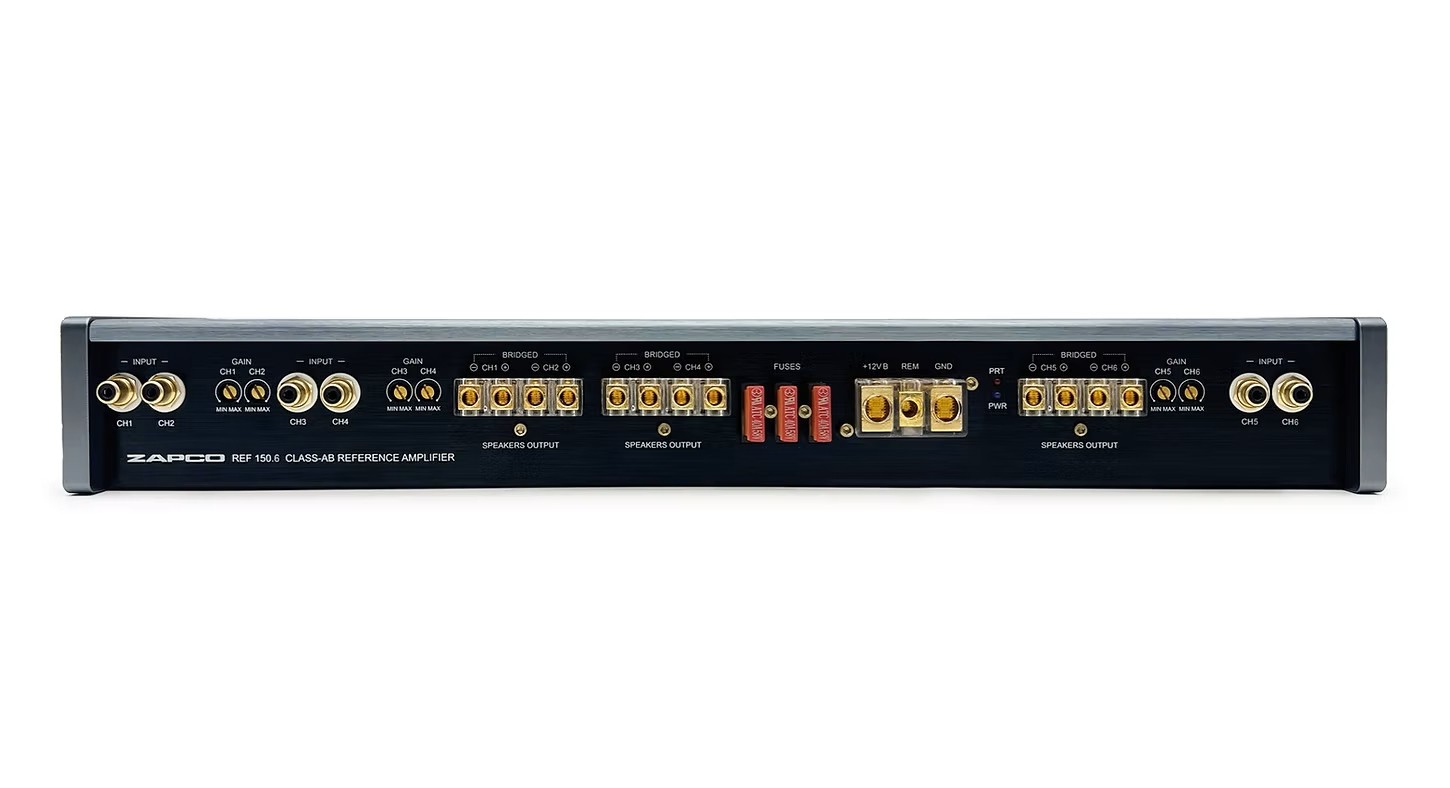

The electrical environment inside a car is full of interference that can negatively affect the quality of the transmitted audio signal. Long cable runs, ground loops, the alternator and currents generated during amplifier operation are sources of unwanted noise and distortion. Zapco therefore developed SymbiLink many years ago, a technology that converts a standard unbalanced signal into a fully balanced form and significantly increases its immunity to interference. The new Reference series continues this philosophy with a switchable balanced RCA input that allows you to easily choose balanced or unbalanced mode depending on the installation and ensure maximum signal purity.

Replaceable Operational Amplifiers (OP)

One of the most interesting features of the Reference amplifiers is the ability to replace the operational amplifiers (OPs), which have a decisive influence on the character and quality of reproduction. The standard equipment already includes top-tier MUSES8820 chips, which Zapco states deliver roughly two levels higher sound quality compared to commonly used LME49720 chips. The result is a more natural reproduction with better detail, spatial presentation and subtle musical nuances—from concert hall reverbs to tiny details of live recordings. A major advantage is the easy swap of operational amplifiers for an even higher MUSES02 model or another compatible type according to listener preferences. The operational amplifiers are not soldered in place but are seated in sockets, so swapping them is quick and requires no soldering or intervention in the amplifier’s electronics. According to Zapco, the MUSES02 model brings roughly another two levels of sound quality improvement over the MUSES8820 and overall represents up to a four-step improvement compared to the LME49720 chips.

Key Features

• Six-channel Class AB amplifier with reference-level sound quality.
• Power: 6 × 150 W RMS at 4 Ω or 3 × 450 W RMS bridged.
• Carefully engineered construction with emphasis on maximum reproduction quality.
• Hand-wound toroidal transformers with copper windings.
• Sanken MN1526 and MP1526 power transistors.
• Top-tier MUSES8820 operational amplifiers with easy replacement for MUSES02 or other compatible OPs.
• Signal path using ELNA RA3 and RFS capacitors.
• Custom SAMXON power capacitors developed to Zapco specifications.
• Revenbi MKPA-B polypropylene input capacitors for Hi-Fi applications.
• Switchable balanced and unbalanced RCA input for maximum interference immunity.
• High-quality bipolar operational amplifiers on the input.
• Output resistors with 0.1% accuracy.
• Ultra Low On-Resistance MOSFETs with fast switching.
• Low-resistance power capacitors and fuses with minimal losses.
• Harmonic distortion under 0.02%.
• Signal-to-noise ratio greater than 102 dB.
• Frequency range 10 Hz to 40 kHz (±1 dB).
• Elegant aluminum chassis with precise workmanship

About the Brand

Zapco is the oldest high-end car audio brand in the world, specializing in top-tier amplifiers and DSP processors for cars. The company was founded in the USA in 1974 and has been collecting one award after another ever since. Both from prestigious organizations that evaluate product quality and innovation, and at worldwide competitions focused especially on sound quality. Zapco amplifiers deliver audiophile quality without compromise, define the quality standard and set the criteria by which other products in this field are judged. For over 45 years Zapco has continuously sought innovative ways to bring better sound into the automotive environment, and this tireless pursuit of absolute sound quality continues to yield new technologies and high-end products. You ask why? Because nothing else can seize the soul and bring tears to the eyes like music. Because of music you can dance for joy....., of all art forms music has the strongest and most immediate effect on your body and mind. Reproducing music in all its beauty and subtlety deserves nothing less than the greatest effort of all Zapco employees. And also because music matters!
