Amplifier with DSP processor Nakamichi FDST800A
More about the product
- You can return the goods to us within 14 days

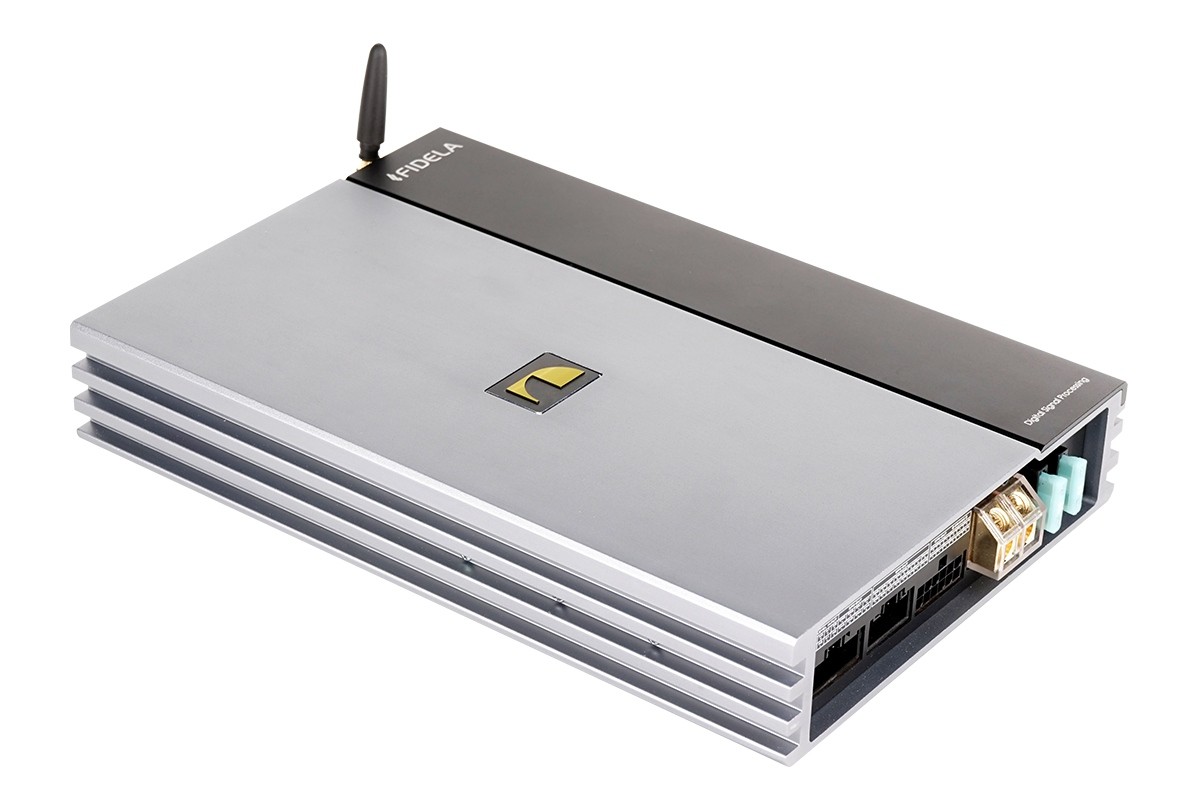

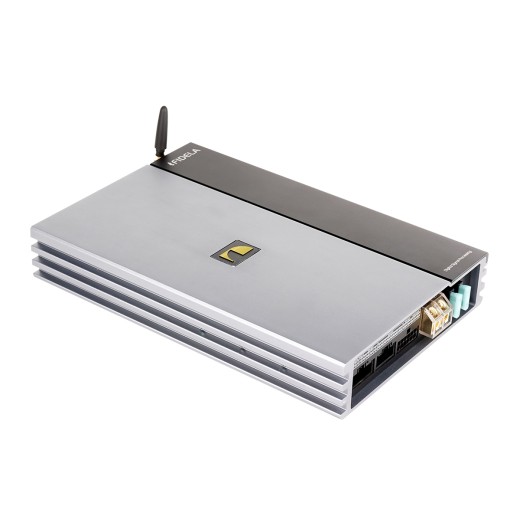

Amplifier with DSP processor Nakamichi FDST800A
The Nakamichi FDSK230A Pro is a 16-channel amplifier with an integrated DSP processor that combines powerful analog output with extensive digital tuning options. It offers 16 amplified channels and supports a wide range of input signals – from RCA and high-level inputs, through AUX and optical input, to built-in and external Bluetooth connectivity or USB music playback. This makes the unit extremely flexible and easy to integrate into both factory and aftermarket systems. The amplifier is Hi-Res Audio certified for high-resolution music playback. For more convenient control, the external Nakamichi AC6 remote can be purchased separately.
Fidela - Nakamichi's top line
Fidela represents Nakamichi's top tier, combining the brand's rich history with modern technologies and precise craftsmanship. Originally, the Fidela name was associated with high-end tape recorders in the 1960s, known for their innovative mechanisms and unmistakable sound. Today, the Fidela line focuses on car amplifiers and DSP processors that use premium components for maximum sound quality. Key features of Fidela amplifiers include the use of high-quality components, excellent build quality and a premium design. Thanks to these qualities, Fidela amplifiers are an ideal choice for discerning users seeking high sound quality and extensive customization options in automotive environments.
Integrated 20-channel DSP processor
Inside the unit you will find high-quality components such as WIMA and ELNA capacitors, OPA1678 operational amplifiers and Toshiba chips operating in class AB. The DSP processor is based on the AK7735 chip from Asahi Kasei and digital-to-analog conversion is handled by high-quality PCM3168 circuitry. The DSP offers a 31-band equalizer for each channel with 1 Hz resolution, up to 25 ms of time delay, phase control and a choice of professional crossover types such as Butterworth, Bessel or Linkwitz-Riley. The output signal is fully tunable including gain and Q settings. A stable and comprehensive PC tuning software is included, as well as an intuitive mobile app for settings via phone. With low distortion (≤0.05 %) and a high signal-to-noise ratio (≥98 dB), the resulting sound is precise and faithful, suitable even for demanding installations.
Main features
- 16-channel amplifier with integrated DSP processor.
- Supports all input types: RCA, high-level, Bluetooth (internal and external), USB, AUX, optical.
- DSP processor AK7735 with DAC/ADC PCM3168, OPA1678 operational amplifiers.
- Internal components WIMA, ELNA and Toshiba.
- 31-band EQ for each channel, time delay up to 25 ms, phase control.
- Professional crossovers: Butterworth, Bessel, Linkwitz-Riley.
- Output voltage up to 5.6 V RMS, adjustable gain 0 to +6 dB.
- USB playback support: MP3, WAV, FLAC.
- OTG input for lossless music playback via USB.
- Stable tuning software + mobile app for iOS/Android.
- Optional external controller Nakamichi AC6 available for purchase.
About the Nakamichi brand
The history of Nakamichi dates back to 1948, when it was founded in Japan by Etsuro Nakamichi. His journey toward fulfilling his dreams began with the establishment of a small research institute, Nakamichi Research Corporation, in Tokyo. It focused on sonar and magnet research and provided development solutions for leading brands, government institutions, universities and other organizations. Since then it has established itself as a trusted creator of high-quality products born from intensive scientific work, a passion for sound and a commitment to uncompromising quality and performance. In 1972, Takeshi Nakamichi joined Nakamichi Corporation and played a key role during its period of growth. He was closely involved in the development of all the brand's legendary audio products sold in Asia, America and Europe – including the introduction of the Nakamichi 1000, the world's first cassette deck. He was regarded as one of the world's leading acoustics and sound engineers, able to combine top-notch sound with the genius design virtues of the brand's then chief engineer Kozo Kobayashi. These amplifiers, players and car radios are today considered legends for their unsurpassed quality. Nakamichi remains successful today, producing high-quality products not only for home audio but also for vehicles. The manufacturer's cleverly designed portfolio continues to grow, and virtually all products stand out for their excellent sound and build quality in their price category.
| Catalog number | FDST800A |
| Brand | Nakamichi |
| Links | Official web presentation |
