Zesilovač s DSP procesorem Musway M4nano

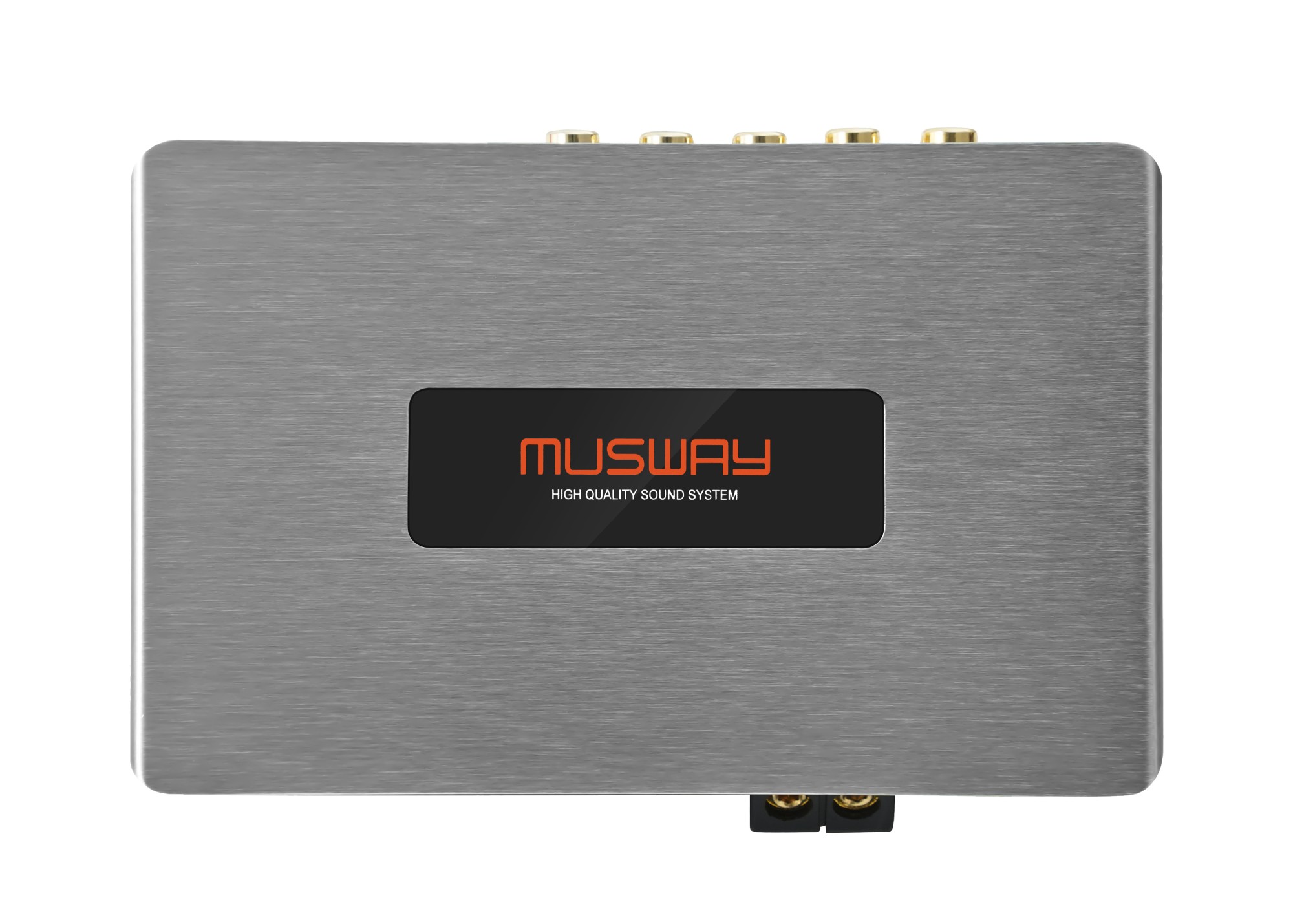

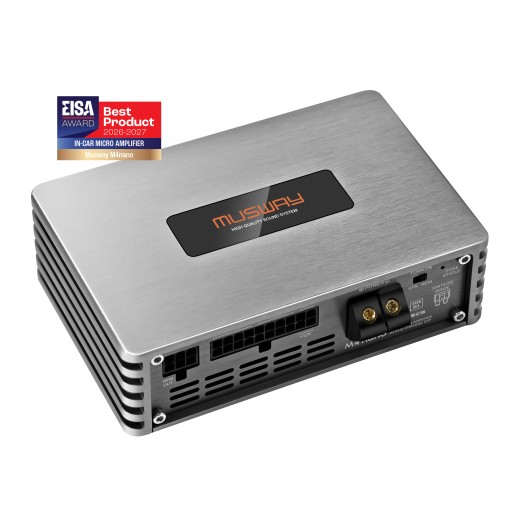

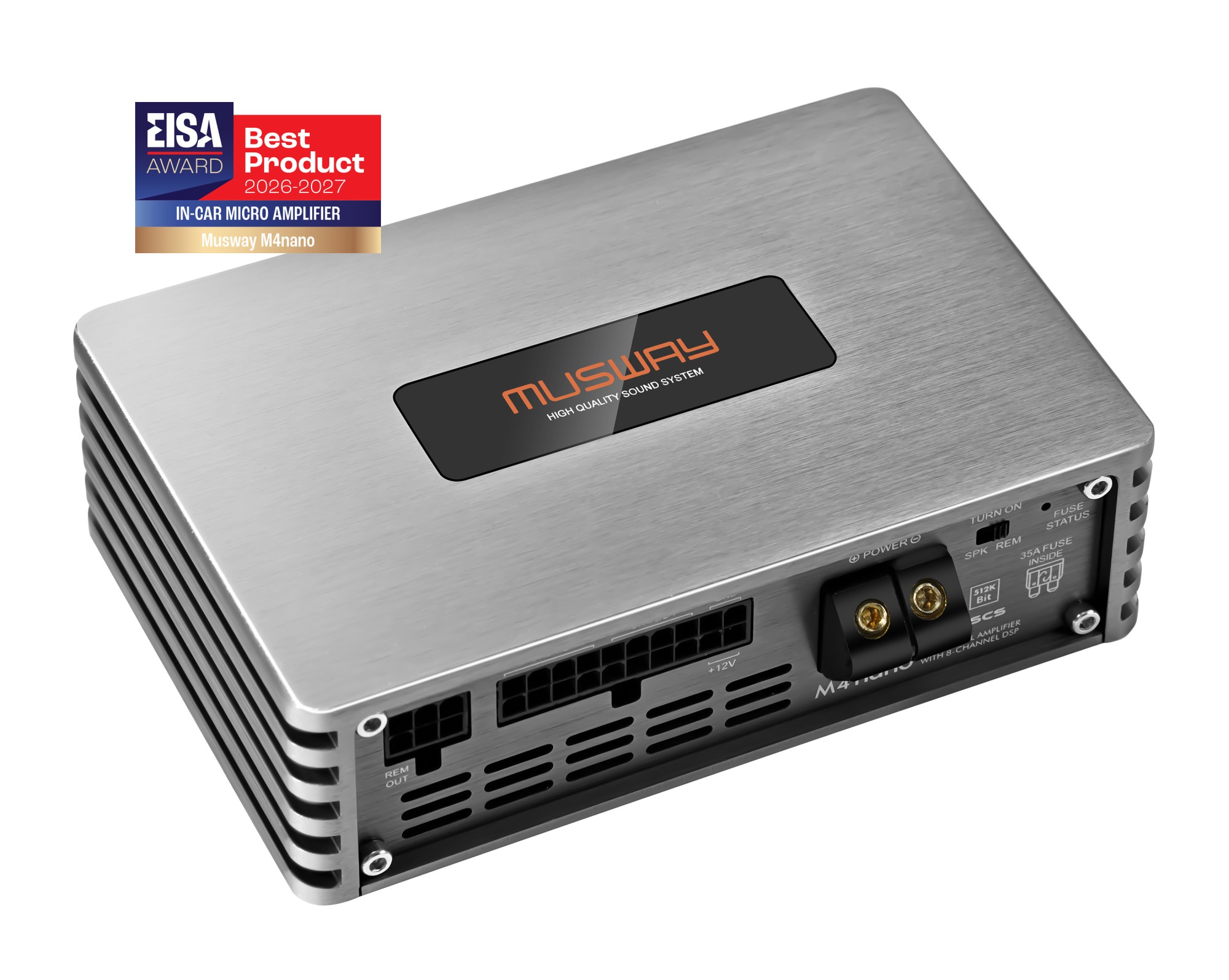

Musway M4nano is an ultra-compact 4-channel amplifier with an integrated 8-channel DSP processor and the prestigious EISA 2026–2027 award. It brings the technologies of Musway's larger DSP amplifiers into an exceptionally small chassis measuring just 150 x 95 x 45 mm. Four Class D amplification channels deliver 4 × 55 W RMS at 4 Ω, or up to 2 × 190 W RMS at 4 Ω in bridged configuration. Thanks to four processed RCA outputs, the system can be expanded with additional amplifiers at any time, so the M4nano can serve both as a simple upgrade for factory audio and as the control center of a larger active system. Signal processing is handled by the proven Analog Devices ADAU1452 DSP processor combined with the Burr-Brown PCM3168A converter and 512k Bit DSP technology. Six high-level inputs supporting signals up to 24 V RMS, EPS®, automatic turn-on, start-stop compatibility and the option of Plug&Play installation via the MX-Connect connector make integration into modern vehicles easy. Despite its very attractive price, the M4nano offers full DSP functions, high-quality sound and surprising power reserves, as confirmed by the professional test in Car&Hifi magazine.
Mimořádně kompaktní zesilovač s překvapivým výkonem
The main advantage of the M4nano is its extremely small size, allowing the amplifier to be installed practically anywhere in the vehicle. Nevertheless, inside you will find four full-featured Class D amplification channels and a complete power supply. The manufacturer specifies 4 × 55 W RMS at 4 Ω and 4 × 95 W RMS at 2 Ω, but measurements by Car&Hifi magazine showed significantly higher values – 63 W per channel at 4 Ω, 116 W at 2 Ω and 232 W bridged. The test also highlighted very low distortion at common power levels and a sonic character that sounds far more mature than the amplifier’s dimensions would suggest.
Plnohodnotný 8kanálový DSP procesor
The M4nano uses a 32-bit Analog Devices ADAU1452 DSP processor together with a Burr-Brown PCM3168A converter. The DSP processes eight output channels, of which four are for the internal amplifier and four are routed out via processed RCA outputs for connecting additional amplifiers. Available is a fully parametric 31-band equalizer for each output, active Butterworth, Bessel and Linkwitz crossovers with slopes up to 48 dB/oct., time correction, phase, level adjustments and full signal routing. New are expanded input-signal adjustment options including a 10-band parametric EQ for each input, which simplifies correcting the factory signal before further processing. Up to six separate DSP profiles can be saved.
Připraveno pro integraci do moderních automobilů

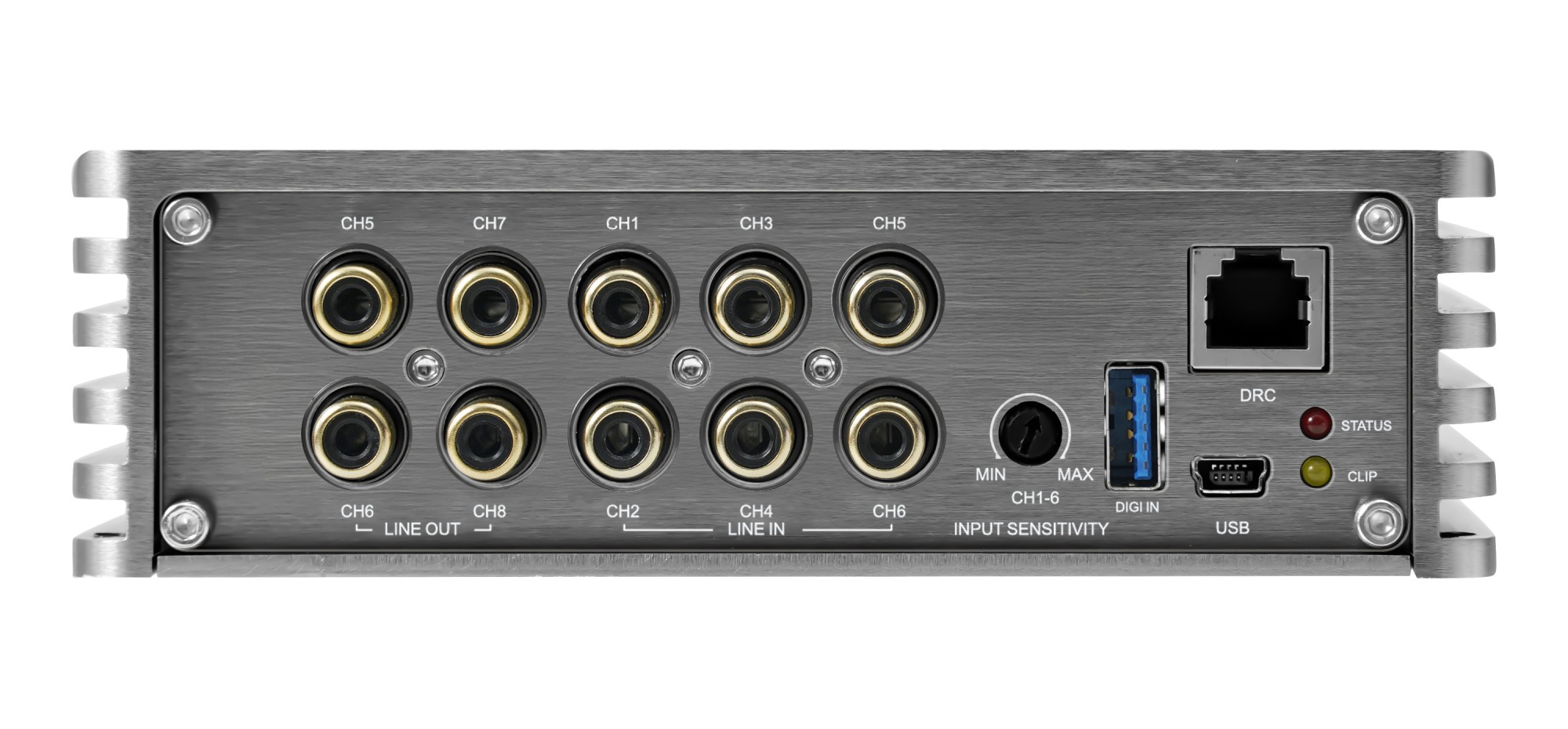

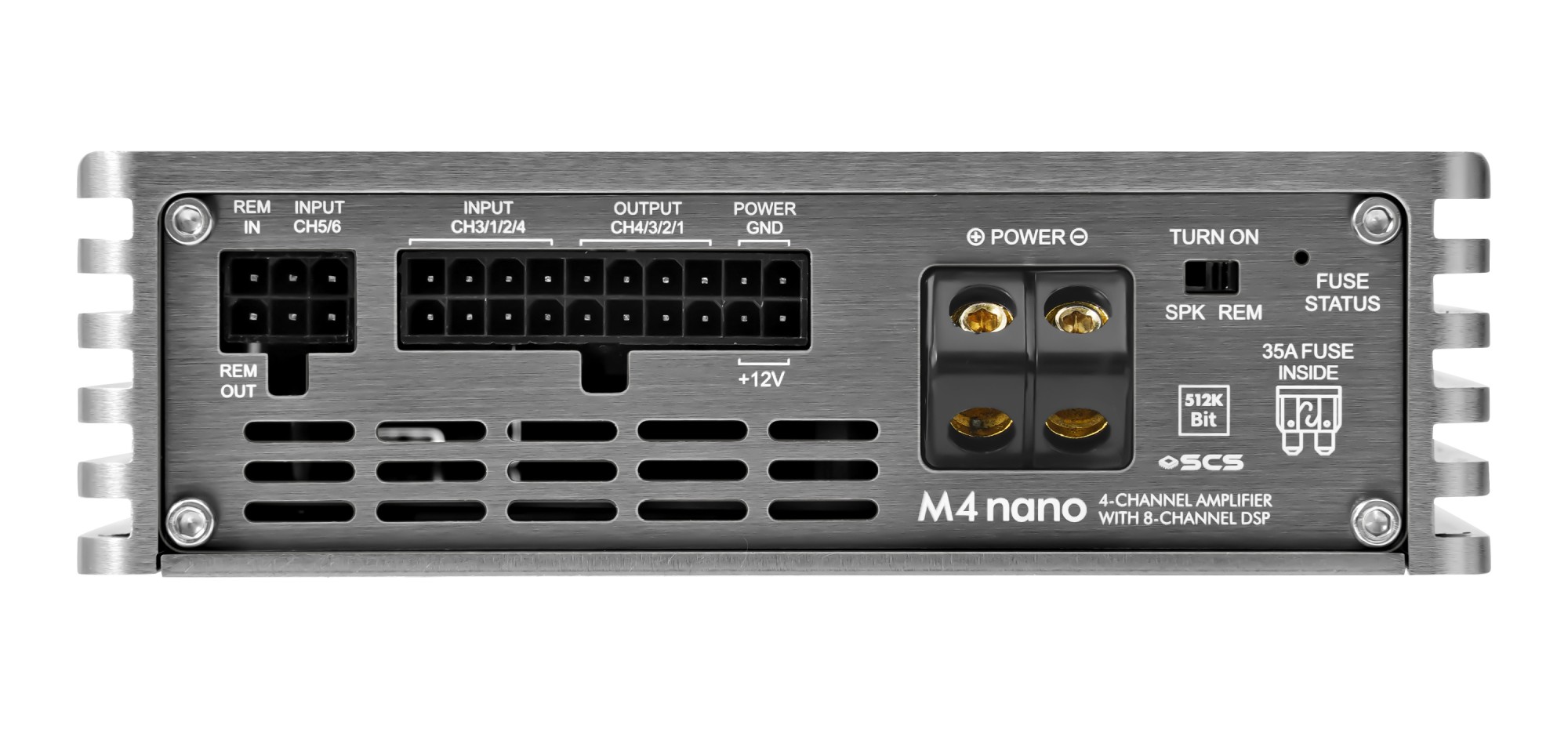

For connection to factory audio systems, the M4nano offers six high-level inputs with sensitivity up to 24 V RMS and six low-level RCA inputs. Intelligent automatic turn-on, the EPS® system for seamless cooperation with factory head-unit diagnostics, Remote Out and compatibility with start-stop vehicles are included. The software also provides automatic switching to the high-level input to preserve vehicle system sounds and offers a Power Save mode suitable for modern cars with CAN communication. Using the 20-pin MX-Connect connector, the amplifier can be linked to optional wiring harnesses and, in many vehicles, installed practically Plug&Play.
Ovládání, Bluetooth a další rozšíření
The DSP can be fully configured using Musway Tunest PC software. With the optional BTA-HD Bluetooth module, a mobile app and high-quality wireless music streaming are available, while the simpler BTS serves for Bluetooth audio streaming. The M4nano also supports Musway myCON and DRC1 remote controls, which allow volume control, subwoofer level adjustment, source switching or switching between saved DSP profiles. A major advantage of the Musway system is a wide portfolio of accessories and wiring harnesses, enabling the amplifier’s functions to be gradually expanded according to the specific installation.
Ocenění v odborných testech
In the review of the German magazine Car&Hifi 4/2026, Musway M4nano received the rating Spitzenklasse 1,2, the BEST PRODUCT award, the EMV-TIPP for flawless radio reception and the excellent value-for-money rating “hervorragend”. The editors praised above all the compact dimensions, very low distortion, surprisingly high real-world power and the wide capabilities of the 8-channel DSP. They summarized the result by calling the M4nano an exceptionally successful entry-level DSP amplifier. This recognition was followed by the international EISA IN-CAR MICRO AMPLIFIER 2026–2027 award, which confirms the outstanding combination of compact size, power, DSP features and easy integration.
Hlavní vlastnosti
- Ultrakompaktní 4kanálový zesilovač třídy D s integrovaným 8kanálovým DSP.
- Výkon 4 × 55 W RMS při 4 Ω a můstkový výkon 2 × 190 W RMS při 4 Ω.
- Reálně naměřený výkon 4 × 63 W při 4 Ω a 4 × 116 W při 2 Ω.
- DSP procesor Analog Devices ADAU1452 a převodník Burr-Brown PCM3168A.
- Technologie 512k Bit DSP s kompletním nastavením prostřednictvím softwaru Tunest.
- Plně parametrický 31pásmový ekvalizér pro každý výstupní kanál.
- 10pásmový parametrický EQ pro jednotlivé vstupní kanály.
- Aktivní výhybky se strmostí až 48 dB/okt.
- Časové korekce, nastavení fáze, úrovní a kompletní routing signálu.
- Osm DSP kanálů pro interní zesilovač i rozšíření systému.
- Čtyři procesované RCA výstupy pro připojení externích zesilovačů.
- Šest vysokourovňových vstupů až do 24 V RMS a šest RCA vstupů.
- EPS® ochrana a automatické zapnutí pro snadnou integraci s továrními autorádii.
- Podpora systémových zvuků vozidla a Power Save režimu.
- Start-stop kompatibilita.
- MX-Connect rozhraní pro volitelné Plug&Play kabelové svazky.
- Možnost Bluetooth streamingu a ovládání přes aplikaci pomocí volitelných modulů.
- Podpora dálkových ovladačů myCON a DRC1.
- Možnost uložení až šesti DSP profilů.
- Extrémně kompaktní rozměry.
- Ocenění BEST PRODUCT a EMV-TIPP magazínu Car&Hifi.
- Hodnocení Spitzenklasse 1,2 a výborný poměr ceny a výkonu.
- Držitel ocenění EISA IN-CAR MICRO AMPLIFIER 2026–2027.
O značce
MUSWAY stands for the motto “Music is the Way.” The brand was born from a passion for high-quality sound reproduction and first made its mark with high-quality Hi-Res audio players and digital signal processors. The real breakthrough came with the introduction of the first Class D amplifiers with integrated DSP, which gradually became internationally acclaimed products in professional magazine tests and received a number of prestigious awards, including EISA. Since 2015 the brand’s development has been anchored in Germany, where product design, technical tuning and final concept work are carried out. Musway has built a reputation as a maker of compact, technically advanced and musically natural components that combine modern digital technologies with an emphasis on clean and linear sound. The portfolio today includes standalone and DSP amplifiers, speakers and subwoofers, with each new generation following the brand philosophy – to offer the maximum musical experience without compromise in technology, functionality or craftsmanship.
| Catalog number | M4NANO |
| Brand | Musway |
| Links | Official web presentation |
| Energy class of the amplifierAmplifiers are divided into two basic classes: analog and digital . Analog amplifiers (A/B) have higher consumption requirements, but usually have a more natural sound. Digital amplifiers (D) have significantly lower consumption and higher efficiency, but the sound may not be as faithful as with classic analog amplifiers. | D |
| Number of amplifier channelsAmplifiers are divided into: - Monoblocks - 2-channel - 3-channel - 4-channel - 5-channel - 6-channel - multi-channel Each channel is used to power one speaker for the coaxial type, or one side if they are component speakers. Monoblock type amplifiers are mainly used for subwoofers. 2-channel are suitable for both subwoofers and, for example, the front pair of speakers in a car. 3-channel is used for front or rear speakers + subwoofer. 4-channel are used for front + rear speakers or 1 pair of speakers + subwoofer. 6 or 5-channel are used for 2 pairs of speakers + subwoofer, most often. Bridging means connecting the amplifier to a bridge, using the + pole from one channel and the - pole from the other channel. In most cases this is shown as "BRIDGED" on the amplifier. | 4 |
| RMS power into 4 ΩRMS power when loading speakers or subwoofer at 4 Ω. RMS power is the constant power of the amplifier and is one of the most important parameters when choosing an amplifier. | 4 x 55 / 2 x 190 W |
| RMS power into 2 ΩRMS power when loading speakers or subwoofer at 2 Ω. RMS power is the constant power of the amplifier and is one of the most important parameters when choosing an amplifier. | 4 x 95 W |
| Speaker impedance | 2 – 8 Ω |
| Frequency rangeThe ability of the amplifier to reproduce the signal from the lowest frequency to the highest = faithfully reproduce the sound in a specific frequency band. Professionally: In the frequency range from 40 to 16,000 Hz, the vast majority of fundamental and overtones (harmonics) of all musical instruments are found. We are interested in the course of the radiated sound pressure in this range of frequencies when the loudspeaker system is supplied with constant power. We call this course the frequency characteristic, which tells us the level of radiated sound pressure in decibels (dB) depending on the frequency. The frequency characteristic of a speaker or speaker system can be expressed most succinctly with a graph. Mostly, however, the frequency characteristic is indicated by indicating the maximum tolerance of the sound pressure in the given frequency range, e.g. 50 to 15,000 Hz -+ 6 dB. Since the frequency characteristics of loudspeakers and systems in general are quite uneven, some manufacturers do not even specify this maximum tolerance of sound pressure in decibels in their catalogs for reasons of prestige. Data impoverished in this way is unfortunately worthless. What is valid is that the manufacturer offers a speaker system with a frequency range of 30 to 20,000 Hz, if he is worried about stating the maximum unevenness of the sound pressure in this range, because he can have a tolerance of, for example, +- 20 dB. The unevenness or undulation of the frequency curve in good speaker systems for high-quality music performance should not exceed +-3 dB in the 80 to 12,000 Hz band and +-6 dB in the 40 to 16,000 Hz band. Greater unevenness already depletes or emphasizes certain tonal areas, which can cause audible or even disturbing distortion. The proportion between fundamental tones and higher harmonics also changes, thereby changing the color of the sound, and individual musical instruments as well as the entire musical image sound unnatural. | 10 – 22000 Hz |
| Harmonic Distortion (THD)Total harmonic distortion indicates how much the input signal is distorted in the amplifier. Distortions appear as overtones contained in the output signal. The proportion of originally absent parts of the signal is given as a percentage, typical values are between 0.001% and 0.5%. Distortion is measured in their power band. If it exceeds the limit of 0.7% from a certain power, it is the value of the output power of the given amplifier, from which it no longer plays without distortion and from which the distortion usually increases steeply, so that no further increase in power can be counted on. The lower the value, the better. | 0.01 % |
| Signal-to-noise ratioThe signal-to-noise ratio means that the output signal always contains noise. The signal-to-noise ratio expresses how much of this noise is compared to the useful signal. The so-called A value is given, which does not take deep and very high frequencies into account. This corresponds to the characteristic of human hearing, which is not so sensitive to deep frequencies, especially below 1 kHz. The higher the value, the better the amplifier is. | 100 dB |
| Inputs | 4 x RCA, 6 x high-level, AUX |
| Outputs | 4 x RCA, 4 x speaker-level |
| Input sensitivityIn order for the amplifier to perform its function correctly, it requires an input signal of a certain level, which is different for car radios. It is measured in "Volts" (e.g. 2 V, 4 V, etc.) The higher the value at the output of the pre-amplifier, or car radio, the less demands are placed on the power of the amplifier. However, the amplifier must allow this input sensitivity, and for that reason this value is also given for the amplifier. | 3 V – 24 V |
| Input sensitivity (RCA) | 0.7 V – 6 V |
| Input impedance | 18 Ω (high-level) |
| Damping factorDF - Damping Factor . It is the ratio of the load (repro + cables, crossover, etc.) to the internal resistance of the amplifier. The bigger the DF, the more controlled the bass. Amplifiers with a lower DF tend to hum. Subwoofers with a higher Q in the bass reflex and sometimes in the enclosure will also cause humming. | > 75 |
| Standby power consumption | 0.75 A |
| On-board voltage rangeThe ability of the amplifier to operate at a specified voltage. As the voltage decreases, so does the power of the amplifier. The ideal voltage in a car is between 13.8 and 14.4 V. | 8 – 17 V |
| The value of the fuses on the amplifierFrom the value of the fuses on the amplifier, you can get a true picture of the real performance of the amplifier. | 1 x 35 A |
| High level inputsThe high-level input on the amplifier allows connection directly to the existing speakers in the car without additional purchase of an external high/low adapter. Important equipment in the case of installing an amplifier on an original car radio. | Yes, with EPS function |
| Automatic on and offThis function allows you to automatically switch on the amplifier. | Yes |
| Integrated DSP processor | Yes |
| Number of DSP processor channels | 8 |
| Output equalizer | 31-band parametric |
| Filters | Full / High Pass / Low Pass / Band Pass |
| Filter types and slope | Bessel / Butterworth / Linkwitz @ 12/18/24/30/36/42/48 dB |
| Socket input terminalsFerrule terminals allow better wiring contact to the amplifier. It is also a more secure form of terminals. If you are tightening the sleeve terminals, we recommend retightening them after 1 day, as the connected cable gradually compresses. | Yes |
| Input for wired remote controlIf the amplifier has a remote control input. | Yes |
| Remote control included in the packageSome models of amplifiers also come with wired remote controls in the package, which on one side plug into the amplifier and on the other side you have a potentiometer that you can place anywhere in the cabin. A common place to place the remote control is under the steering wheel. The advantage is the regulation of power, and therefore volume, depending on driving conditions and the mood of the crew in the car. | No |
| Dimensions of the amplifier | 150 x 45 x 95 mm |
