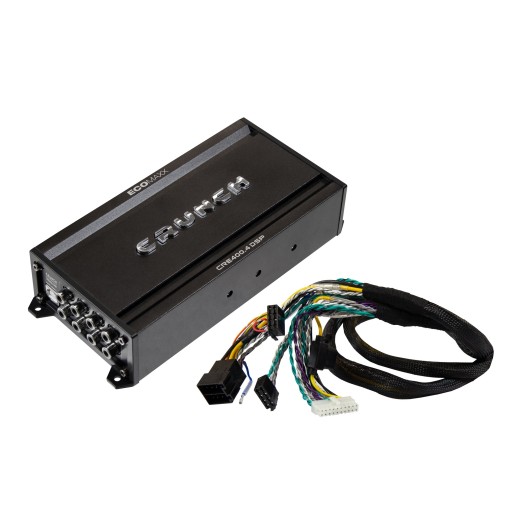

Amplifier with DSP processor Crunch CRE400.4DSP-ISO

4-channel amplifier with 6-channel DSP processor, 4 x 35 W RMS (4 Ω), 4 x 50 W RMS (2 Ω), Bluetooth, ISO wiring, class AB
More about the product

We will help you with your purchase

You can return the goods to us within 14 days

Amplifier with DSP processor Crunch CRE400.4DSP-ISO

Description and parameters
Evaluation0
Category

Amplifier with DSP processor Crunch CRE400.4DSP-ISO

The Crunch CRE400.4DSP is a compact four-channel amplifier with an integrated 6-channel DSP processor that enables comprehensive control of front and rear systems while also offering a separate RCA output for connecting an additional amplifier, for example for a subwoofer. The design combines an analog four-channel power stage with a digital processor in one compact body, making it a practical solution for installations that require active system control without an external DSP.

Signal processing is handled by a 32-bit Dual Core DSP with high-quality AKM A/D converters, which contribute to low distortion and clean reproduction. A parametric 31-band equalizer, time alignment and crossovers with adjustable slopes up to 48 dB/oct. are available, allowing precise tuning of active and semi-active systems. For quick setup the amplifier includes 9 preinstalled presets adapted to different vehicle sizes and listening preferences.

The equipment also includes an integrated Bluetooth module with A2DP/aptX support for wireless music streaming. The DSP can be configured conventionally via PC software (Windows) using a USB connection, or wirelessly via an app for iOS and Android. The amplifier features high-level inputs, an AUX input, Bluetooth audio input, six RCA outputs for further signal processing and an automatic turn-on function as well as REM OUT for controlling additional devices.

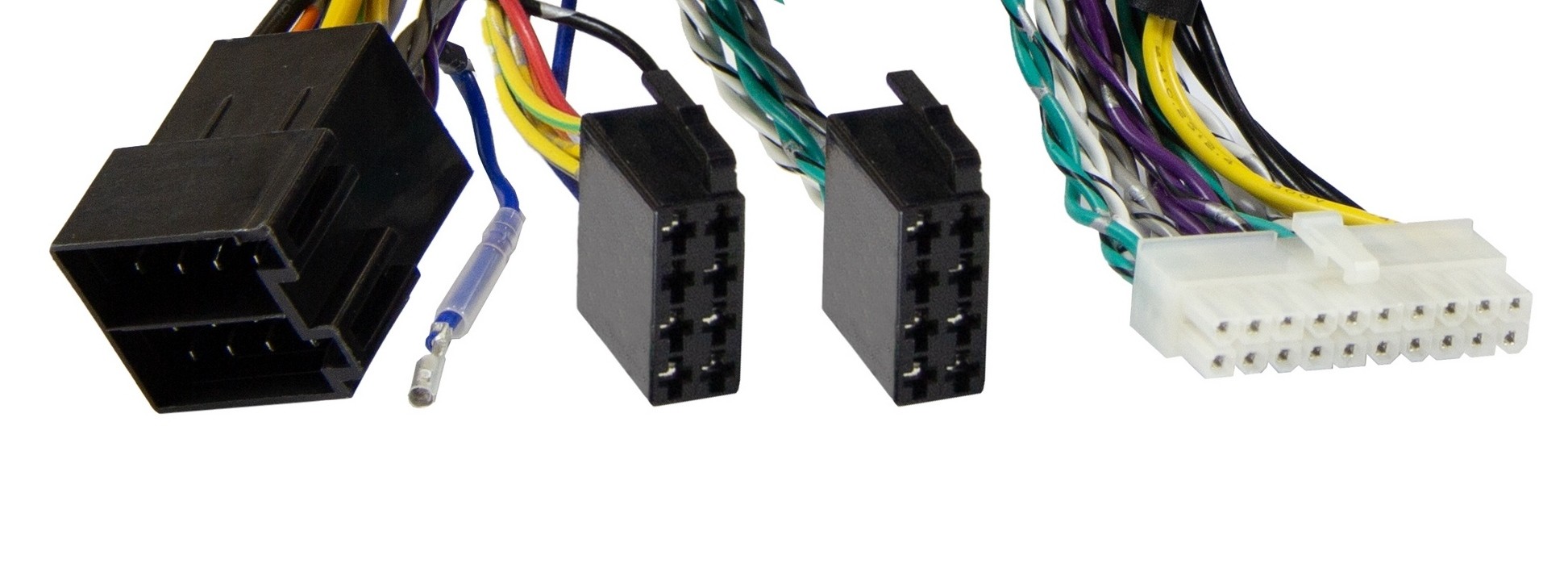

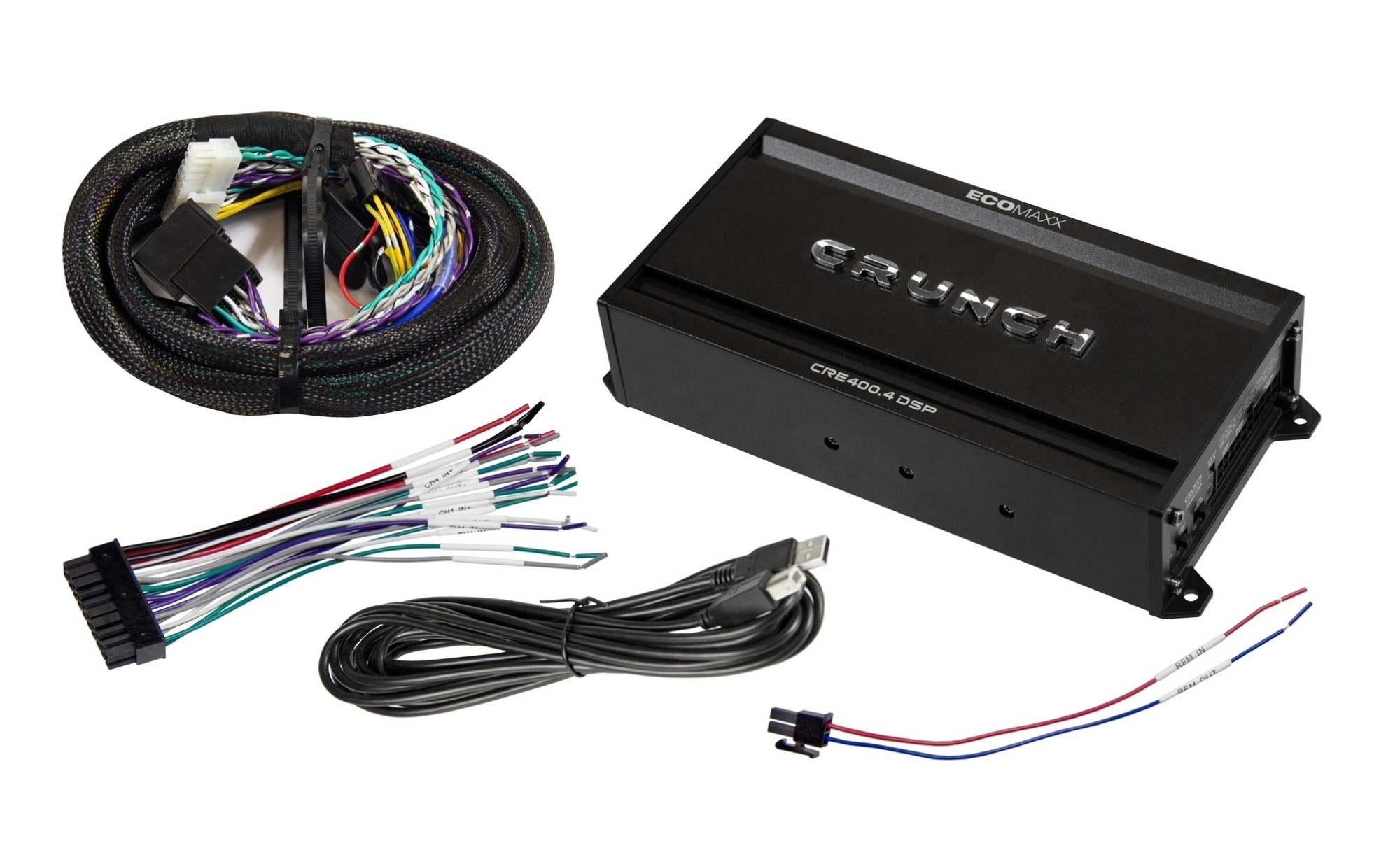

The alternative kit Crunch CRE400.4DSP-ISO offers the possibility of easy connection of the amplifier to many head units using the supplied 1-meter ISO cable. In addition, Crunch also offers ISO.M adapter cables that are designed for specific vehicle types and allow the installation to be tailored to the given car.

Main features

Four-channel amplifier with integrated 6-channel DSP processor.
Capability for active control of front and rear systems with an additional RCA output for another amplifier.
32-bit Dual Core DSP (122.88 MHz) for precise digital signal processing.
AKM A/D converters for clean reproduction and low distortion.
Parametric 31-band equalizer for detailed frequency shaping.
Crossovers with adjustable slopes up to 48 dB/oct.
Integrated time alignment for precise channel matching.
9 preinstalled presets for different vehicle sizes and listening preferences.
Bluetooth® module with A2DP/aptX support for wireless music streaming.
DSP can be configured via PC software (USB) or wirelessly via an app for iOS and Android.
High-level inputs, AUX input and Bluetooth audio input.
Six RCA outputs (2 V RMS) for additional amplifiers or active configurations.
Automatic turn-on function and REM OUT for controlling other devices.
